How Does An OLT Connect To An ONU?

In modern fiber optic communication (FTTH/FTTB) architectures, the OLT and ONU are core components for achieving high-speed internet access. The collaborative work between the OLT (Optical Line Terminal) and ONU (Optical Network Unit) is crucial for achieving gigabit broadband. This is not merely a simple hardware endpoint, but a vital component determining the latency, bandwidth allocation efficiency, and multi-service carrying capacity of the entire access network. Driven by 5G transmission, ultra-high-definition 8K video streaming, and large-scale Internet of Things (IoT) deployments, the global fiber optic access market is undergoing a generational leap from GPON to 10G-PON (and even 50G-PON).

1. The essential difference between OLT and ONU: Role definition in the architecture

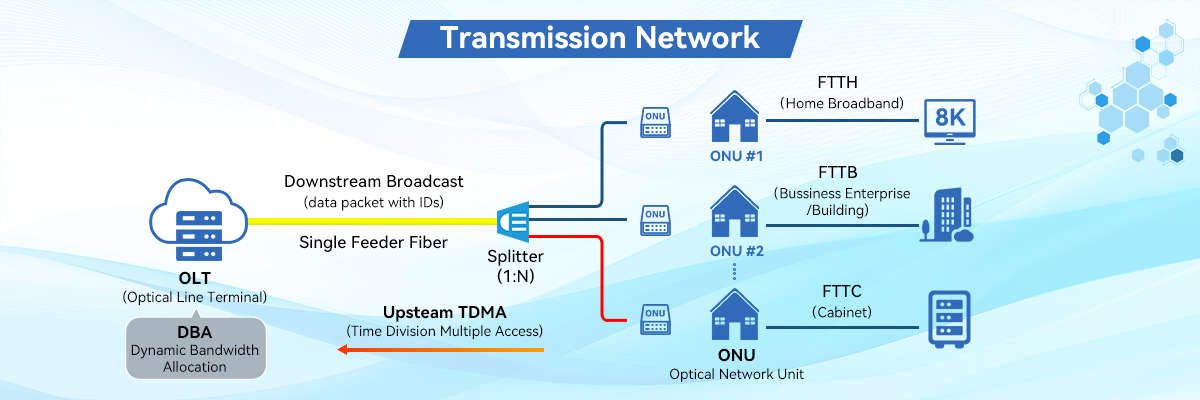

In a PON (Passive Optical Network) point-to-multipoint (P2MP) topology, the two play distinctly different roles:

OLT: The "commander" at the data center, typically deployed in the operator's central data center.

Uplink and Downlink: It connects to the metropolitan area network (MAN) core switch uplink and to the passive distribution network (ODN) downlink.

Core Task: The OLT is responsible for performing DBA (Dynamic Bandwidth Allocation). Like a precise traffic cop, it directs hundreds or thousands of ONUs to send data within specific timeframes to avoid signal collisions.

Management Dimension: It remotely configures all subordinate terminals via the OMCI (ONU Management and Control Interface) protocol.

ONU/ONT: The "translator" at the user end, it is the customer premises equipment (CPE) located in the user's home.

Signal Conversion: Its basic task is to convert the 1490nm optical signal from the fiber optic cable into an electrical signal that can be recognized by a computer.

Data Filtering: In downlink broadcast mode, the ONU must accurately filter out data from other users in the massive data stream, extracting only its own encrypted payload.

2. How the OLT Connects to the ONU

The connection between the OLT and ONU is mainly completed through the ODN (Optical Distribution Network), and the process is as follows:

- Physical Link Setup:

A single-mode optical fiber is led out from the OLT's PON port.

It enters the splitter. This is a crucial step; it requires no power supply and physically splits the signal from a single optical fiber into multiple paths.

The split optical fiber is then connected to the ONU in the user's home.

- Logical Authentication:

Discovery Phase: The OLT periodically sends discovery frames to search for newly connected ONUs.

Registration and Ranging: The ONU replies with its serial number (SN) or password. The OLT performs "ranging," calculating the physical delay of optical signal transmission to ensure that no collisions occur when multiple ONUs upload data.

Configuration Distribution: After successful authentication, the OLT distributes service configurations (such as VLANs, bandwidth limits, etc.) via the OMCI protocol.

3. Number of Clients Supported (Split Ratio)

*The number of ONUs that a single PON port on an OLT can support depends on the type of PON technology and the split ratio:

4. In-depth Troubleshooting Guide for Link Failures (Offline)

When a link cannot be established, it is usually caused by the following high-level technical issues:

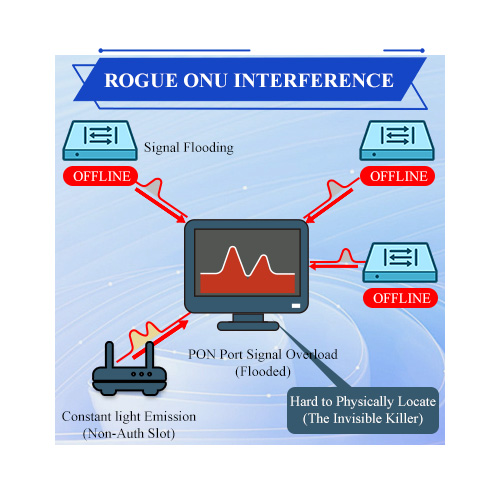

1. Rogue ONU Interference

This is the "invisible killer" of PON networks. If the driver or hardware of an ONU is damaged, causing it to continuously emit light during unauthorized times, this will "flood" the signal of the entire PON port. The result is that all users under that splitter will drop out, and it is difficult to locate the problem directly at the physical layer.

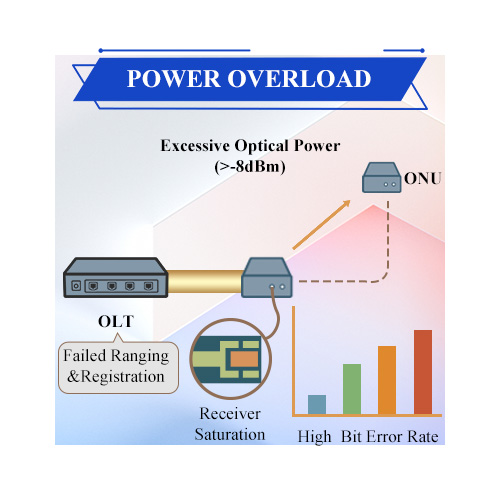

2. Power Overload

Due to improper splitting ratio design, if the ONU is too close to the OLT (e.g., less than 1km) and no optical attenuator is used, the excessively strong optical signal (>-8dBm) will cause the ONU's optical receiver to enter a "saturation" state, leading to a surge in bit error rate and failure to register.

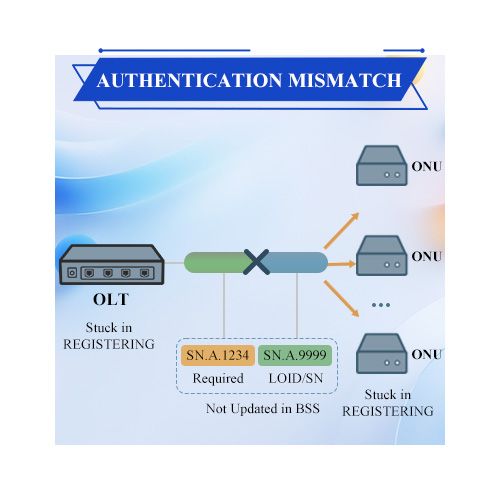

3. Authentication Logic Mismatch

OMCI interoperability issues frequently occur in cross-vendor networks (such as Huawei OLT with ZTE ONU). Furthermore, if the LOID or SN binding in the operator's backend system is not updated, the ONU will remain stuck in the "Registering" state even if the optical path is normal.

4. ODN Physical Damage

Microbending Loss: Excessive compression or bending of the optical fiber leads to optical signal leakage.

Endface Contamination: Dust on the fiber optic connector is a major cause of high reflection loss (ORL), which interferes with the OLT's sensitivity.

Conclusion

The connection between the OLT and ONU is not merely a physical process of photoelectric conversion, but also a precise process of time allocation and logic verification. With the advent of the 50G-PON era, this connection will become even more efficient and complex.
