HSGQ-X400AXF
| Quantity: | |
|---|---|
HSGQ-X400AX is an inteligent routing passive optical network terminal in FTTH solution. HSGQ-X400AX provides 4 GE LAN porport and AX3000 WiFi, high access speed up 2.5Gbps downstream and 1.25Gbps upstream. lt is widely compatible with the globa mainstream OLT brand, supports plug-and-play, OMCl and TR069 remote maintenance features.
Extremely Fast Fiber
Optic Essential for Home Access
HSGO-X400AX is an intelligent passive optical network terminal in the fiber-to-the-home solution. It can convert fiber network signals into Ethernet signals, allowing other network devices in the home or enterprise (such as computers, mobile phones, tablets, etc.) to access the Internet, providing users with high-speed and stable network connections to meet the Internet needs of family members.
4×5dBi Antennas
Equipped with 4x5dBi enhanced antennas, using scientific component layout to achieve excellent signal penetration and complete signal coverage in a wide area. Supports both 2.4GHz and 5GHz frequency bands.
Enjoy the Ultra-Fast Network Experience
HSGO-X400AX provides AX3000 WiFi high-speed access, adopts the latest Wi-Fi standards, provides higher wireless transmission rate, lower latency and stronger signal coverage. It allows more devices to be connected at the same time and effectively avoids the queuing transmission phenomenon in traditional networks. It can efficiently handle concurrent requests from multiple devices to ensure that each device can get a smooth network experience.
Dual-Band Intelligent Switching
HSGQ-X400AX supports 2.4GHz and 5GHz dual-band, which can meet the network needs of different devices, whether it is a low-speed device such as a smart watch or a high-speed device such as a high-definition video stream. It can intelligently switch to the best frequency band according to the connected device, thereby improving the overall performance and stability of the network.
Realize Multi Scenario Use
HSGQ-X400AX has significant advantages in many application scenarios such as home networks, hotels and commercial places, corporate offices, etc. It can provide users with high-speed, stable and secure wireless network services to meet network needs in various scenarios.
HSGQ-X400AX is a WiFi 6 ONU/ONT designed for FTTH networks, combining EPON/GPON access, four Gigabit Ethernet ports, and AX3000 dual-band wireless connectivity in one device.
It supports 2.4GHz and 5GHz WiFi, providing wired and wireless access for computers, mobile devices, smart TVs, cameras, printers, and other network terminals. With four 5dBi antennas, 20 km PON transmission distance, IPv4/IPv6 support, TR-069 remote management, Easy Mesh, and cloud management, it is suitable for home broadband, small offices, hotels, commercial premises, and other multi-device network environments.
For a voice-enabled alternative, see the WiFi 6 XPON ONU modem with voice.
User interface | 4*10/100/1000M RJ45 AX3000 WiFi |
PON | EPON&GPON mode adaptive Interface Type: SC-APC Security: ONU authentication mechanism Network coverage radius: 20KM GPON: upstream 1.25Gbps/ downstream 2.5Gbps Optical receive power: -7dBm~-28dBm Transmitting optical power: 0.5dBm~5dBm EPON: upstream 1.25Gbps/downstream 1.25Gbps Optical receive power: -7dBm~ -27dBm Transmitting optical power: 0dBm~4dBm |
Antenna | 4x5dBi dual-frequency antenna |

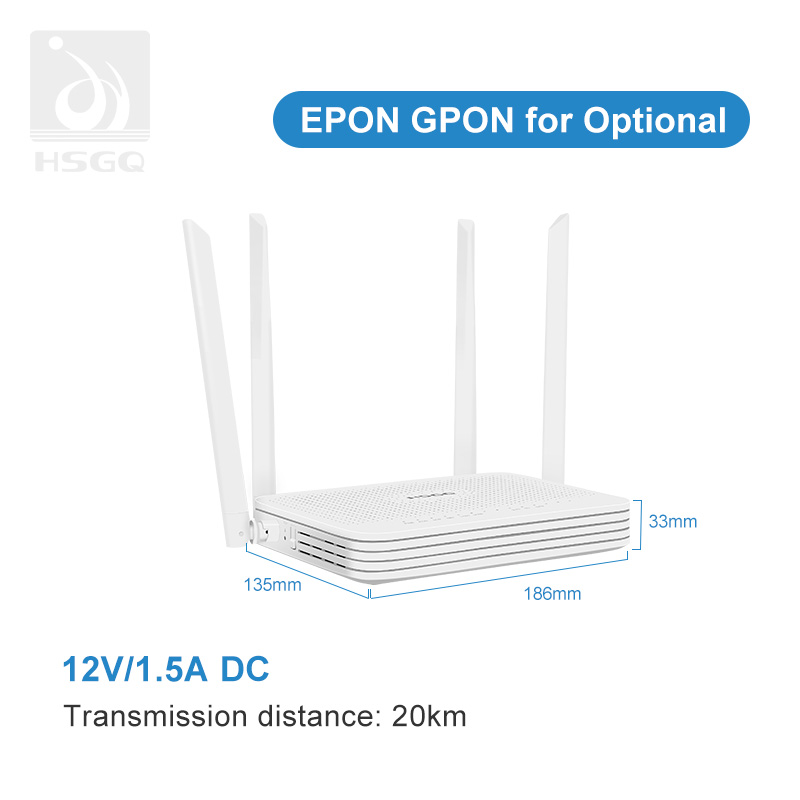

Size | 186mm(L)*136mm(W)*33.5mm(H) |
Ethernet | Operating temperature: 0°C~50°C Operating humidity: 10%~85% (non condensing) Storage temperature: -40°C~80°C Storage humidity: 5%~95% (non-condensing) |
Power | 12V/ 1.5A DC Power interface size: 2.1mm/ 5.5mm |
Wireless Protocol | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
Wireless Operating Band | 2.4~2.4835GHz 5.150GHz~5.850GHz |
Channel | 2.4G: 1~13 5.8G:36,40,44,48,52,56,60,64,149,153,157,161,165 |
Speed | Up to 3000Mbps |
Wireless Encryption Mode | WPA-PSK/WPA2-PSK,WPA3-SAEWPA3-SAE/WPA2-PSK2 |
The device supports IEEE 802.11b/g/n/ac/ax wireless standards, IPv4/IPv6, multi-SSID configurations, and hidden SSID settings. These functions allow service providers and network administrators to adapt wireless access policies for different users, devices, and service requirements.
HSGQ-X400AX supports firewall settings, IP filtering, port filtering, URL filtering, and MAC filtering. It also provides ACL, DMZ, port forwarding, TR-069 management, IPTV, PPPoE, DHCP, and NAT functions for flexible network deployment and remote service management.
As an FTTH optical network terminal, the device converts fiber network signals into Ethernet and wireless access. Computers, notebooks, monitoring equipment, and other terminals can connect through its wired or wireless interfaces for everyday Internet access and local network services.
The ONU is equipped with four 5dBi antennas and supports both 2.4GHz and 5GHz wireless bands. The antenna layout is designed to provide stable wireless coverage for office devices, online gaming equipment, cameras, printers, and other connected terminals.

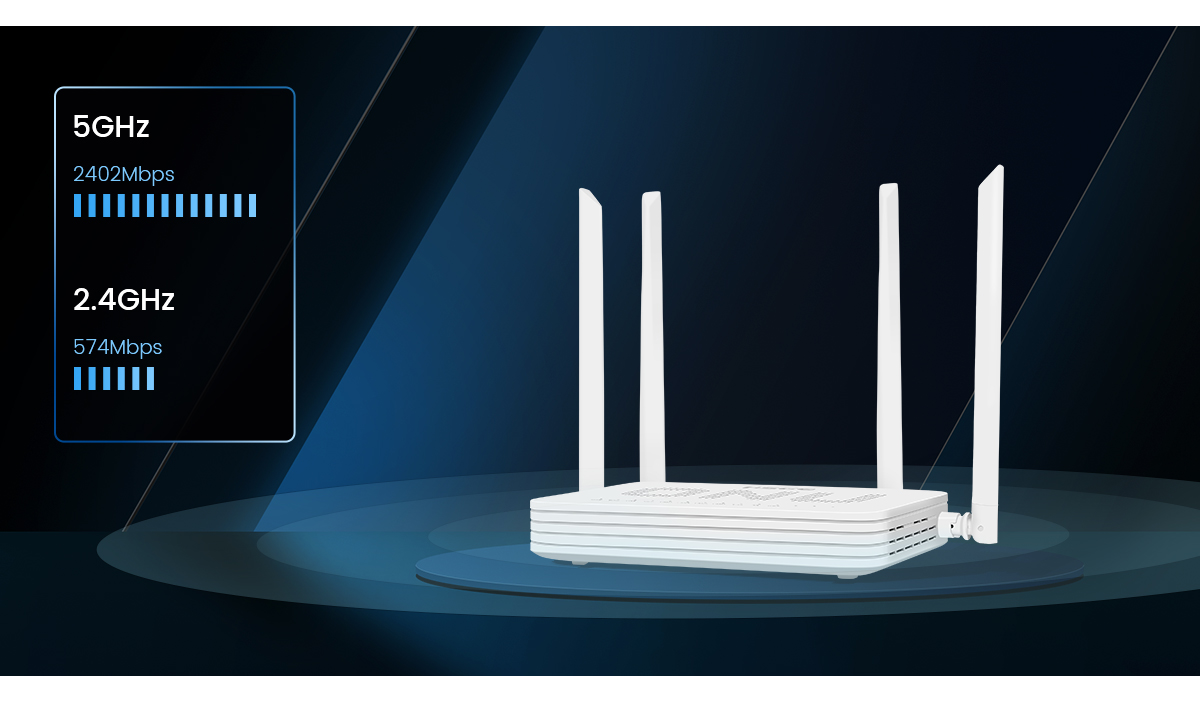

WiFi 6 technology provides higher wireless capacity and more efficient transmission for networks with multiple connected devices. HSGQ-X400AX supports AX3000-class wireless access, with up to 2402 Mbps on the 5GHz band and up to 574 Mbps on the 2.4GHz band under the listed wireless configuration.
The device supports 2.4GHz and 5GHz dual-band wireless access. Different devices can use the appropriate frequency band according to their performance and coverage requirements, helping improve overall network stability for smartphones, computers, smart devices, and high-definition video applications.
HSGQ-X400AX can be used in home networks, offices, public places, remote-work environments, high-definition video streaming networks, and selected industrial or smart-city deployments. Its combination of fiber access, Gigabit Ethernet, and WiFi 6 wireless connectivity simplifies network access for different types of users and terminals.
Supports device-based rate limitation and bandwidth control.
Compliant with IEEE 802.3ah and ITU-T G.984.x standards.
Supports transmission distances of up to 20 km.
Supports Dynamic Bandwidth Allocation (DBA).
Supports ONU auto-discovery, link detection, and remote software upgrades.
Supports power-off alarm functionality for easier link fault detection.
Supports online software upgrades.
Supports data encryption, group broadcasting, and port VLAN separation.
Supports port VLAN configuration.
Supports QoS configuration.
Supports port binding.
Supports port forwarding.
Supports ACL for flexible data packet filtering.
Supports TR-069 for ACS (Auto Configuration Server) management.
Supports PPPoE, DHCP Server, IPTV, POTS, and NAT.
Supports IPv4 and IPv6.
Supports cloud management.
Supports a specialized system breakdown prevention design to maintain stable operation.
Supports multi-SSID configurations, with a maximum of 4 SSIDs according to the listed feature specification.
Supports automatic channel selection.
Supports hidden SSID.
Supports 64/128-bit WEP, 802.1X, WPA, and WPA2 wireless security.
Supports Easy Mesh.
HSGQ-X400AX is a WiFi 6 ONU/ONT for FTTH networks. It combines EPON/GPON optical access, four Gigabit Ethernet ports, and AX3000 dual-band WiFi.
Yes. The device supports EPON and GPON adaptive access, helping it work with different PON network deployments.
The device supports AX3000-class dual-band WiFi, with a listed wireless rate of up to 3000 Mbps. Actual performance depends on the connected terminal, wireless environment, channel conditions, and network configuration.

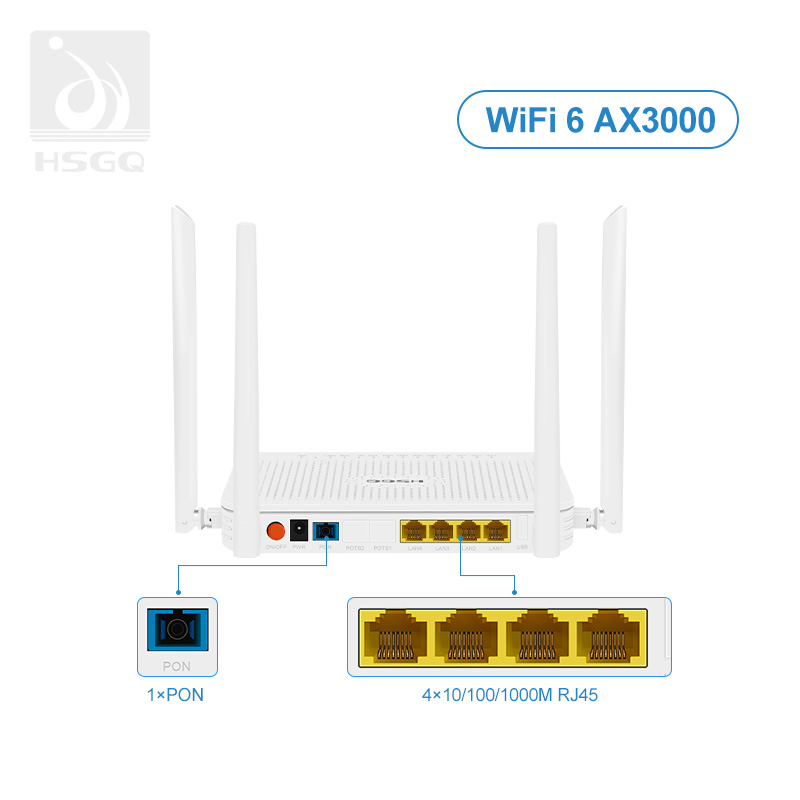

HSGQ-X400AX provides four 10/100/1000M RJ45 Ethernet ports for computers, switches, cameras, printers, and other wired terminals.
Yes. It supports both 2.4GHz and 5GHz wireless bands, allowing different terminals to use the appropriate frequency according to their coverage and bandwidth requirements.
Yes. It supports multi-SSID configuration and hidden SSID settings. The current feature specification lists a maximum of four SSIDs. Please confirm the final SSID quantity according to the shipping firmware.
Yes. The device supports TR-069 for ACS management, remote software upgrades, link detection, and cloud management functions.
The listed feature specification supports IPTV, POTS, PPPoE, DHCP Server, and NAT. The exact service availability should be confirmed according to the selected firmware and deployment requirements.
The listed PON transmission distance is up to 20 km. Actual distance depends on optical power budget, fiber quality, split ratio, connectors, and network conditions.
HSGQ-X400AX combines EPON/GPON access, AX3000 dual-band WiFi, and four Gigabit Ethernet ports in one WiFi 6 ONU. It is suitable for home broadband, offices, hotels, and multi-device FTTH networks.
