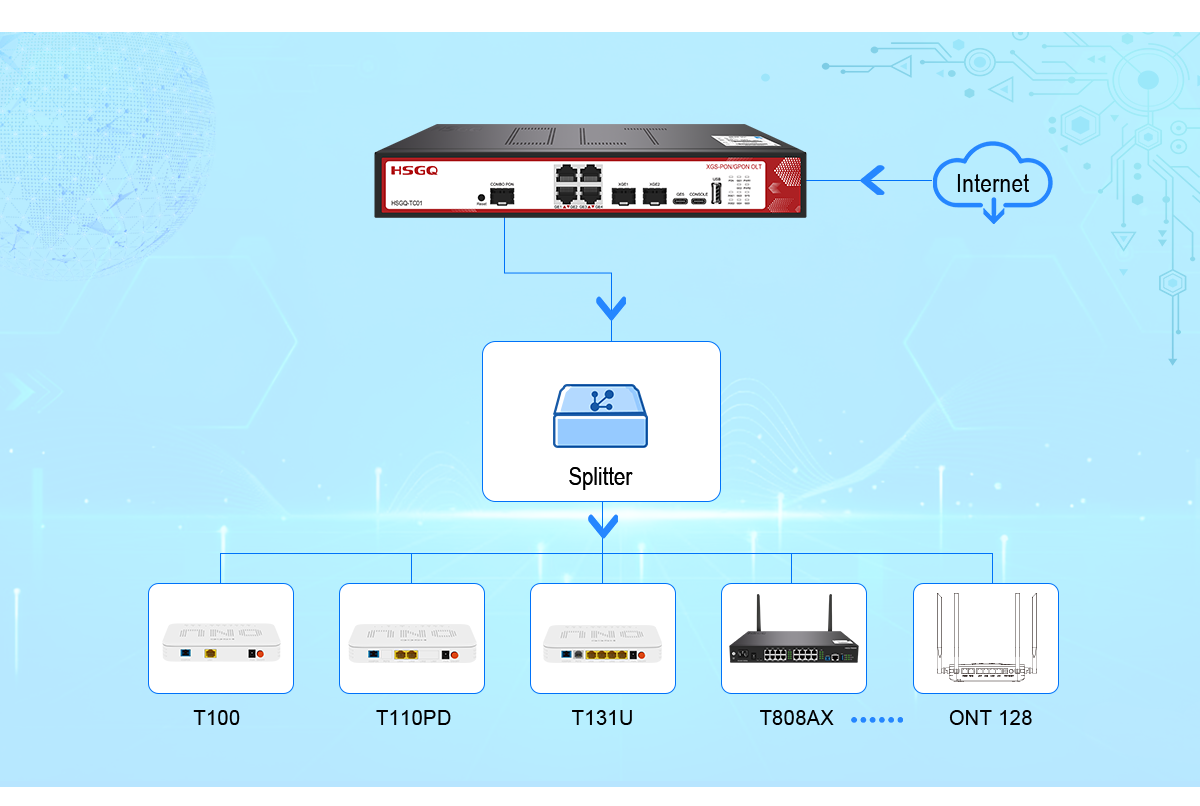

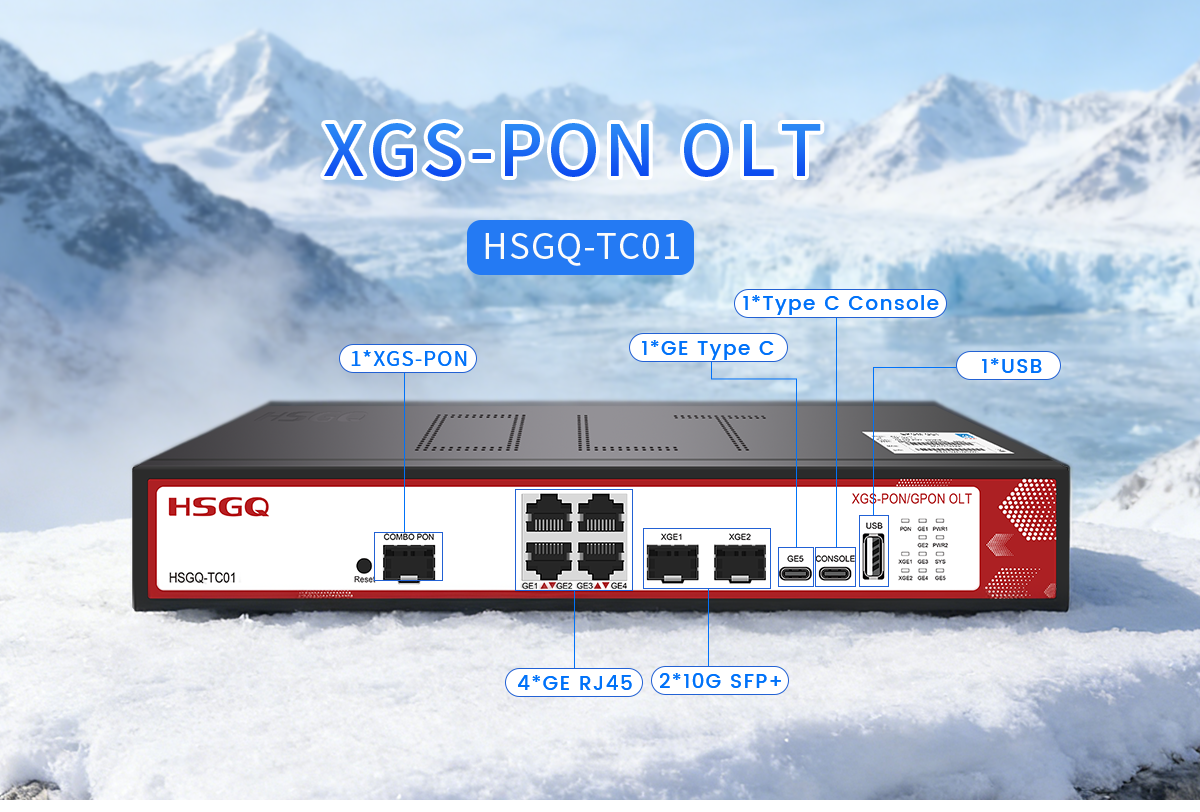

HSGQ-TC01 is a box type XGS-PON/GPON Combo OLT. The system has good stability and high reliability. Supports multiple management methods such as CLI, WEB, and SNMP. The product provides 1*XGS-PON/XG-PON/GPON port, 4*GE RJ45 uplink ports and 2*10G SFP+ Slots. Users can quickly deploy, configure, and monitor the device via the cloud management, greatly reducing labor and time costs during network construction. Suitable for sparsely populated and budget limitted areas, smart industrial parks, commercial buildings, FTTR, etc. Each PON port supports a maximum split ratio of 1:128, supports up to 128 users, 1U height is convenient for installation and maintenance. It is an excellent choice for operators to migrate from GPON to 10G PON.
XGS-PON 10G uplink interfaces
Meets the telecommunications equipment requirements of gigabit broadband, satisfies the needs of next-generation home and commercial applications, and is tailor-made for high-bandwidth application scenarios such as 4K/8K/VR/live streaming.
Type-C Console Port
Using a Type-C Console, device configuration management can be solved in one cable.

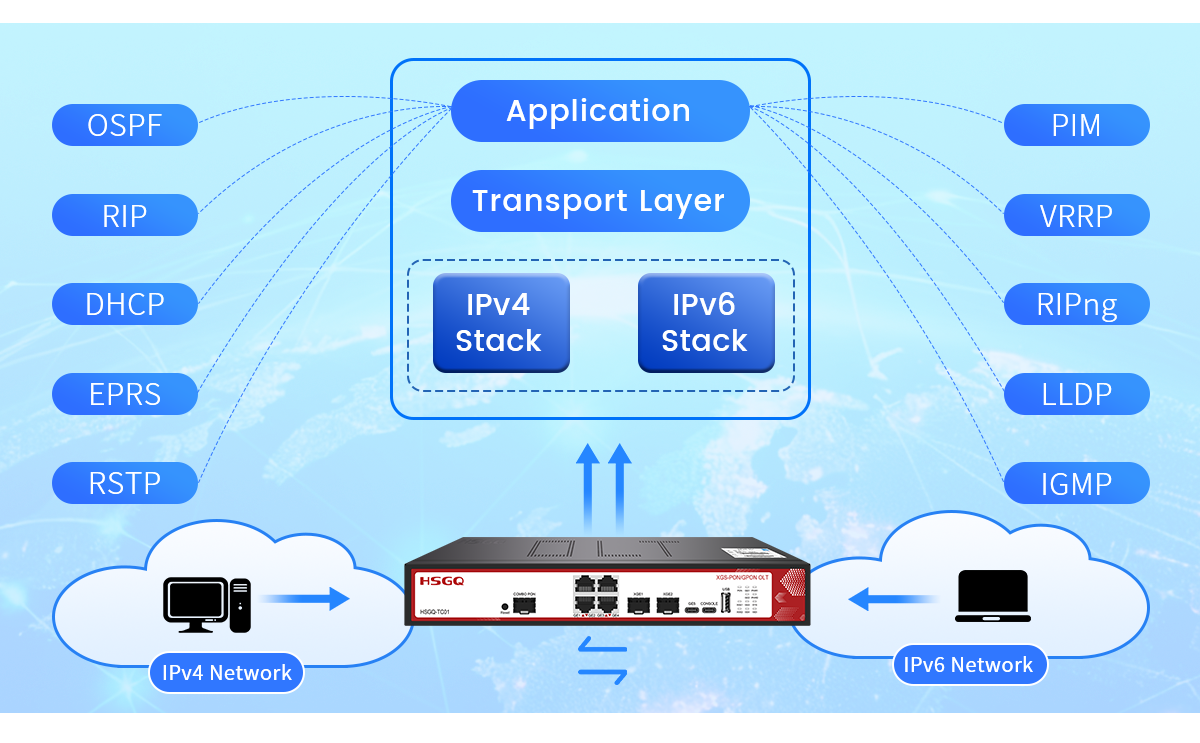

Supports Layer 3 routing protocols
Supports IPv4/IPv6 dual protocol stack, static routing, RIP, OSPF, VRRP redundancy, DHCP, PIM, and IGMP.

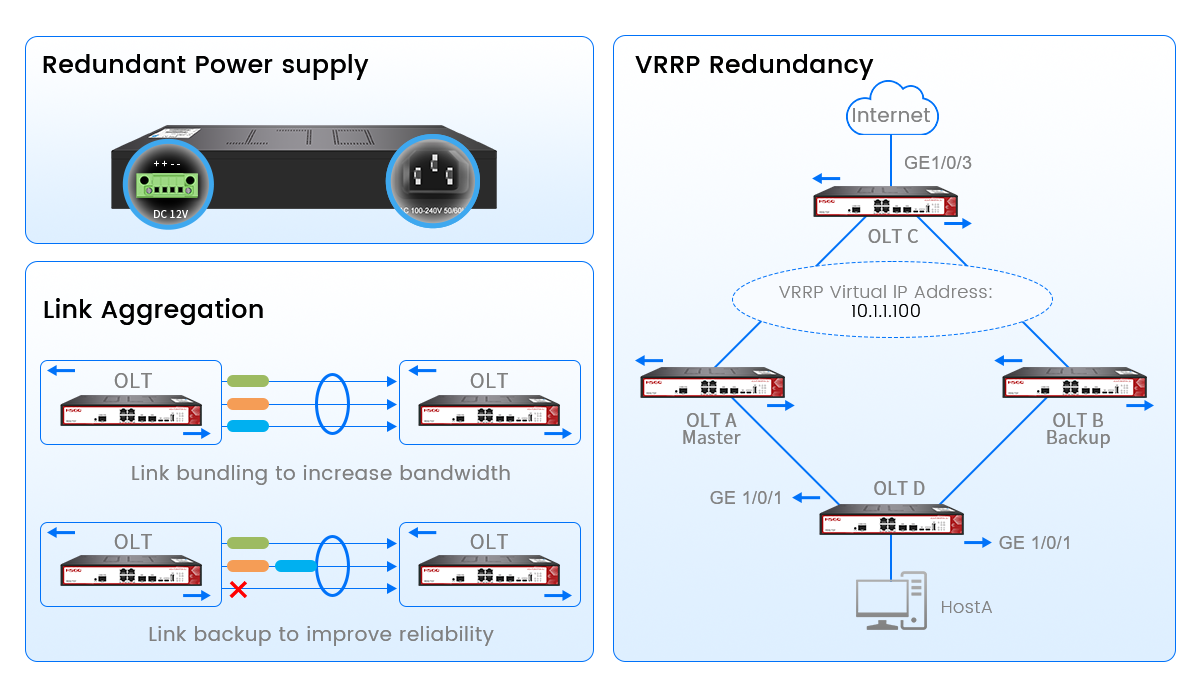

Software redundancy design
Redundancy Protection: Supports hardware and software redundancy design, including redundant power supplies, redundant link protection, and VRRP redundancy to ensure uninterrupted service.

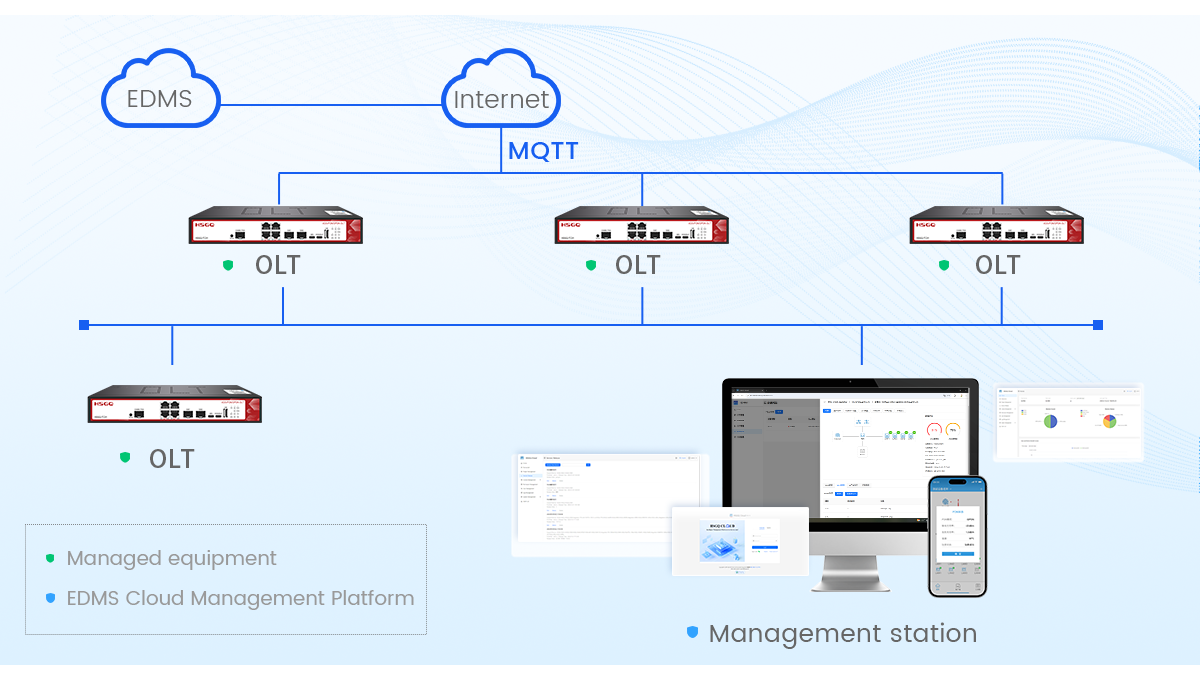

Supports EDMS cloud
platform management
Built-in MQTT function module, supporting connectivity to the EDMS cloud management platform via MQTT/SNMP protocols. This enables unified centralized device management and facilitates remote operation and maintenance.
