At the recently concluded 27th China International Optoelectronic Exposition (CIOE 2026), HSGQ made a significant appearance, showcasing its all-optical access network solutions.
HSGQ XGS-PON OLTs are designed for next-generation FTTH, FTTx, FTTR, enterprise, and high-bandwidth access networks. Based on XGS-PON technology, they provide symmetrical 10G-class upstream and downstream capacity for applications that require more than traditional gigabit access can deliver.
The growth of 8K video, cloud collaboration, VR/AR services, live streaming, enterprise backup, and all-optical building networks is increasing demand for higher upstream bandwidth and lower latency. XGS-PON provides a practical way to prepare access networks for these requirements while maintaining passive optical distribution.
The HSGQ XGS-PON range includes 1-port, 2-port, and 4-port configurations, as well as selected GPON/XGS-PON Combo models.
An XGS-PON OLT is the central-office device used to connect a service provider, enterprise, or campus network to multiple XGS-PON ONUs or ONTs through a passive optical network.
Unlike traditional GPON access, which uses asymmetric bandwidth, XGS-PON is designed to provide approximately 10 Gbps upstream and downstream line rates. This symmetrical bandwidth is useful for applications where users do not only download data but also upload large volumes of information.
Typical XGS-PON services include:
High-speed broadband
Enterprise cloud access
Cloud backup and synchronization
8K video transmission
Live video production
VR and AR applications
Data center interconnection
Wireless and FTTR backhaul
High-capacity campus networks
Hospital and research institution networks
A 1-port XGS-PON OLT is suitable for smaller access networks, localized FTTH projects, compact enterprise deployments, and network upgrades that require a single high-capacity PON interface.
The 1-Port XGS-PON OLT for FTTH access provides XGS-PON/XG-PON access with Ethernet and 10G SFP+ uplink options. It is designed for operators and system integrators that need 10G-class PON access in a compact chassis.
For projects that require strong aggregation capacity, a 1-port XGS-PON OLT with multiple 10G SFP+ uplinks can connect the PON access side to a higher-capacity core or aggregation network.
The 1-Port XGS-PON OLT with 2×10G SFP+ supports XGS-PON/GPON Combo functionality on the relevant configuration, together with GE electrical uplinks and 10G SFP+ interfaces.
A 2-port XGS-PON OLT provides additional PON-side capacity for multi-zone FTTH, enterprise access, smart buildings, and WiFi or FTTR deployments.
The range includes 2-Port XGS-PON OLT models for WiFi router applications and models designed for direct fiber connections. The appropriate product should be selected according to the number of connected users, required uplink capacity, and network topology.

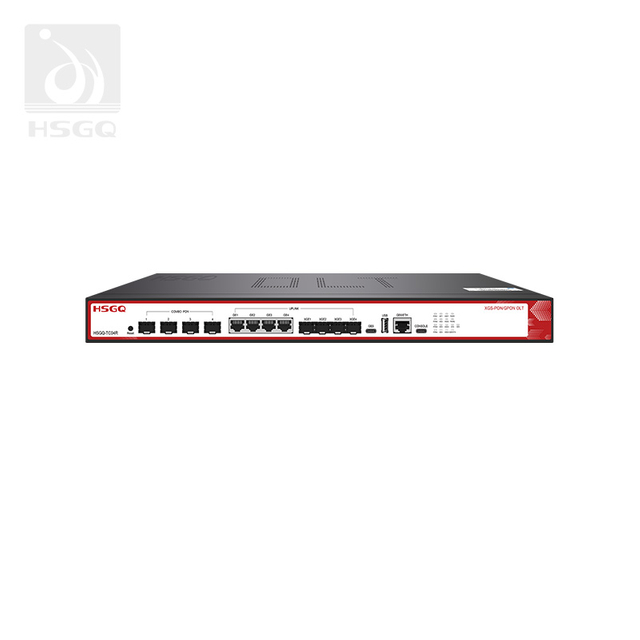

A 4-port XGS-PON Combo OLT is designed for higher-density access networks and GPON-to-XGS-PON migration projects.

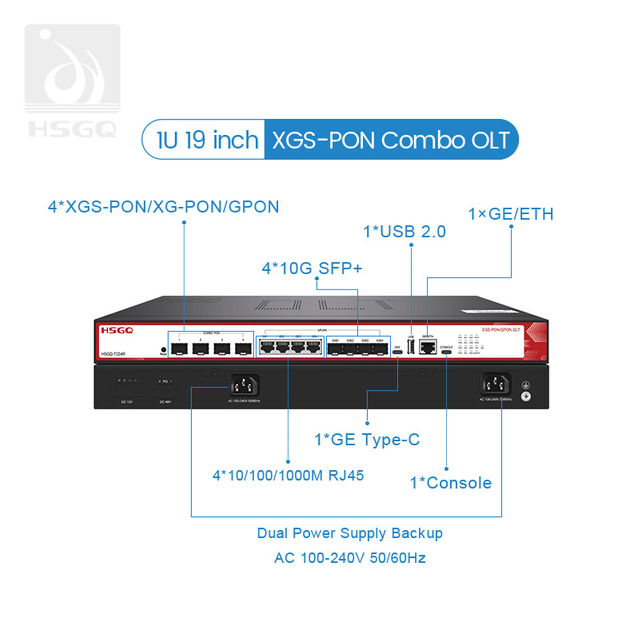

The 4-Port XGS-PON Combo OLT with 4×10G SFP+ combines multiple PON interfaces with high-speed uplink options. It is suitable for enterprise parks, large buildings, high-capacity FTTH, and service-provider access networks.
XGS-PON provides a nominal line rate of approximately 9.953 Gbps in both the upstream and downstream directions. This symmetrical architecture is useful for applications where upstream traffic is as important as downstream traffic.
Compared with traditional broadband access, XGS-PON is better suited to:
Large-scale cloud backup
High-definition video uploading
Remote production and collaboration
Enterprise file synchronization
Real-time cloud applications
High-capacity wireless backhaul
Data center and private-cloud access
Multi-user FTTR environments
The available user throughput depends on the number of connected terminals, traffic policies, ONU performance, uplink capacity, optical split ratio, and service-level configuration. The 10G PON line rate should not be treated as guaranteed bandwidth for every individual subscriber.
One of the main advantages of selected XGS-PON Combo OLTs is their ability to support GPON and XGS-PON coexistence on an existing passive optical distribution network.
A Combo PON solution can allow operators to:
Continue serving existing GPON users
Add new XGS-PON subscribers
Upgrade selected users to higher bandwidth
Reuse existing passive optical fiber
Reduce the need for immediate ODN reconstruction
Manage different access generations from one platform
The GPON/XGS-PON Combo OLT configuration is suitable for operators that want to migrate gradually rather than replace the entire GPON access network at once.
Actual coexistence depends on optical modules, wavelengths, splitter specifications, optical budget, ONU compatibility, and the configuration of the existing ODN. These conditions should be checked before deployment.
XGS-PON access can generate much more traffic than traditional gigabit PON networks. For this reason, the OLT uplink should be selected according to the combined traffic of all PON ports.
Selected HSGQ XGS-PON OLT models provide:
10G SFP+ uplink ports
Multiple 10G uplink interfaces
GE electrical uplink ports
Flexible connection to aggregation switches
High-speed access to enterprise core networks
Support for traffic aggregation and redundancy
A 10G SFP+ uplink can help reduce bottlenecks between the XGS-PON OLT and the upstream network. For 2-port and 4-port models, multiple 10G uplinks may also support link aggregation, network redundancy, or separate service paths depending on the configuration.
HSGQ XGS-PON OLTs use reinforced metal chassis designs for continuous operation in network rooms, cabinets, enterprise sites, and edge access locations.
The hardware design may include:
Thickened steel chassis
Gold-plated connectors
High-performance switching chips
Aluminum heat sinks
Intelligent fan management
1U or compact installation formats
AC and DC power options on selected models
Redundant power designs on selected models
The combination of high-speed PON processing and multiple 10G uplinks creates greater thermal and power requirements than a basic GPON device. Appropriate ventilation, cabinet space, grounding, and power protection should be provided during installation.
HSGQ XGS-PON OLTs support centralized configuration and maintenance functions through different management interfaces.
Depending on the model, supported management methods may include:
CLI
WEB
SNMP/NMS
Cloud management
Type-C console access
Firmware upgrade
Alarm and log management
Device monitoring
ONU discovery and authorization
Optical parameter monitoring

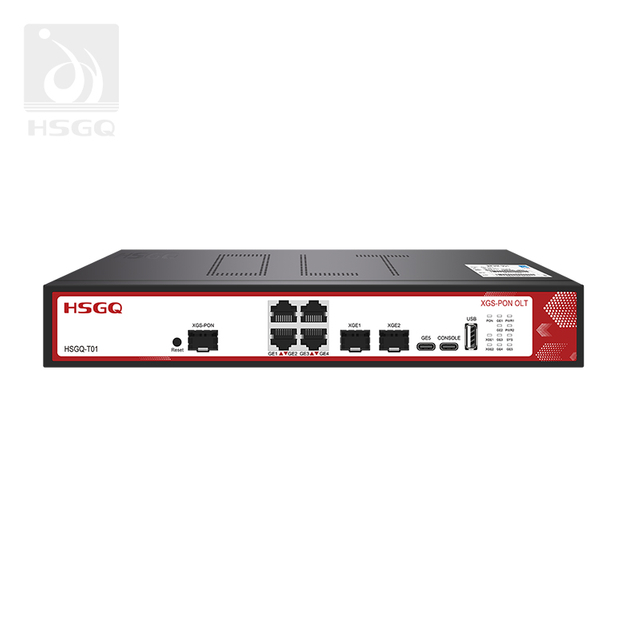

The HSGQ-T01 product configuration supports cloud management through the EDMS platform, allowing network administrators to review device status, monitor alarms, configure services, and perform remote maintenance.
XGS-PON networks often serve multiple high-bandwidth services over a shared infrastructure. HSGQ models provide traffic and service management functions for enterprise, carrier, campus, and FTTR networks.
Depending on the product, supported functions may include:
Flexible DBA
Upstream and downstream traffic control
VLAN transparent transmission
VLAN translation
QinQ
IP ToS and IEEE 802.1Q
Port aggregation
Traffic shaping
ONU automatic discovery and authorization
Loop detection
IGMP snooping and multicast management
ACL and QoS
Port isolation
DHCP
Static routing
OSPF
RIP
VRRP
PIM
IPv4 and IPv6 support
The exact function set varies by model. Before ordering, compare the required Layer 2 and Layer 3 features with the product configuration and planned network architecture.
XGS-PON is a practical option for operators that need to increase access bandwidth without repeatedly replacing the complete OLT platform.
A staged upgrade can follow this process:
Review the current GPON ODN and optical budget.
Confirm splitter, fiber, connector, and wavelength compatibility.
Select a Combo OLT if GPON and XGS-PON users need to coexist.
Continue using existing GPON ONUs where compatible.
Add XGS-PON ONUs for high-bandwidth subscribers.
Increase uplink bandwidth with 10G SFP+ interfaces.
Monitor traffic and upgrade additional users as demand increases.
This approach can help reduce the financial and operational impact of a full network replacement while providing a path toward symmetrical 10G access.
Enterprise parks often require high upstream bandwidth for cloud applications, video conferencing, data backup, security systems, and centralized software platforms. XGS-PON can provide high-capacity fiber access across multiple buildings.
Hospitals, universities, and research institutions may need to transmit large medical images, research data, high-resolution video, and real-time collaboration traffic. Symmetrical 10G access can support these high-volume data flows.
Video production, broadcasting, and live-streaming environments require high upstream bandwidth for uploading and distributing large video files. XGS-PON can support high-speed optical access between production areas, storage systems, and cloud platforms.
XGS-PON can provide high-capacity fiber access for FTTR, smart buildings, high-density wireless networks, and integrated building services.
For premium residential communities and high-bandwidth broadband packages, XGS-PON can support multi-gigabit access, cloud gaming, 8K content, and simultaneous use by many devices.
XGS-PON can be used in selected edge and enterprise access scenarios where multiple sites, cloud platforms, or distributed data systems require high-speed fiber connectivity.
Before selecting an XGS-PON OLT, evaluate the complete access network rather than only the advertised 10G speed.
Important selection factors include:
Number of XGS-PON ports
Need for GPON/XGS-PON Combo operation
Number of connected users
Required optical split ratio
Existing ODN compatibility
XGS-PON ONU compatibility
Required 10G SFP+ uplink capacity
Layer 2 and Layer 3 features
Cloud or local management
Power redundancy
Installation environment
Expected traffic growth
Need for FTTR, enterprise, mobile backhaul, or residential access
A 1-port model may be suitable for a compact or localized upgrade. A 2-port model can serve multiple access zones, while a 4-port Combo OLT is more suitable for higher-density networks and GPON-to-XGS-PON migration.
GPON typically provides asymmetric bandwidth, with a higher downstream rate than upstream rate. XGS-PON is designed for symmetrical 10G-class upstream and downstream access, making it more suitable for cloud backup, video production, enterprise collaboration, and other applications with high upload requirements.
In many cases, a Combo XGS-PON/GPON solution can reuse the existing passive optical distribution network. However, the ODN splitters, fiber loss, optical budget, wavelengths, ONU types, and PON modules must be checked before deployment.
A Combo PON OLT supports GPON and XGS-PON access through a shared platform or compatible optical architecture. It allows existing GPON subscribers to remain connected while new users are migrated to higher-speed XGS-PON services.
The user capacity depends on the number of PON ports, split ratio, optical budget, ONU configuration, and model. Selected HSGQ models support up to a 1:128 split ratio and up to 128 users per PON port. The actual deployment capacity should be confirmed according to the project design.
No. The approximately 10 Gbps upstream and downstream rates are PON line rates shared by the connected ONUs. Actual user bandwidth depends on the split ratio, traffic policies, ONU capability, uplink capacity, and service plan.
A 10G SFP+ uplink is strongly recommended when the OLT serves multiple high-bandwidth PON ports or connects to a high-capacity aggregation network. A smaller 1-port deployment may have different uplink requirements depending on the expected traffic.
Yes. XGS-PON can provide high-capacity optical access for FTTR networks, especially when multiple rooms, WiFi access points, or smart-building services require high aggregate bandwidth and strong upstream performance.
Pricing depends on the number of PON ports, Combo or pure XGS-PON design, 10G SFP+ uplink count, ONU capacity, optical modules, cloud management, Layer 3 functions, power redundancy, and chassis design. A complete quotation should include the required PON ports, split ratio, uplink bandwidth, ONU type, and existing ODN conditions.
