24*2.5GE PoE Switch Managed for Camera

5 0 Reviews

All 24 ports support the PoE+ standard (IEEE 802.3at), allowing you to transmit data and power simultaneously over a single network cable without the need for additional power outlets.
Easily powers high-performance IP cameras (such as PTZ pan/zoom models), video phones, smart lighting systems, and the latest Wi-Fi APs, ensuring stable and reliable power supply for your devices.

Model:
HSGQ-5830

Quantity:
Availability:





Inquiry Datasheet

poe switch cctv camera poe switch for reolink camera Multiple ports poe switch setup

Product Introduction

Technical Parameter

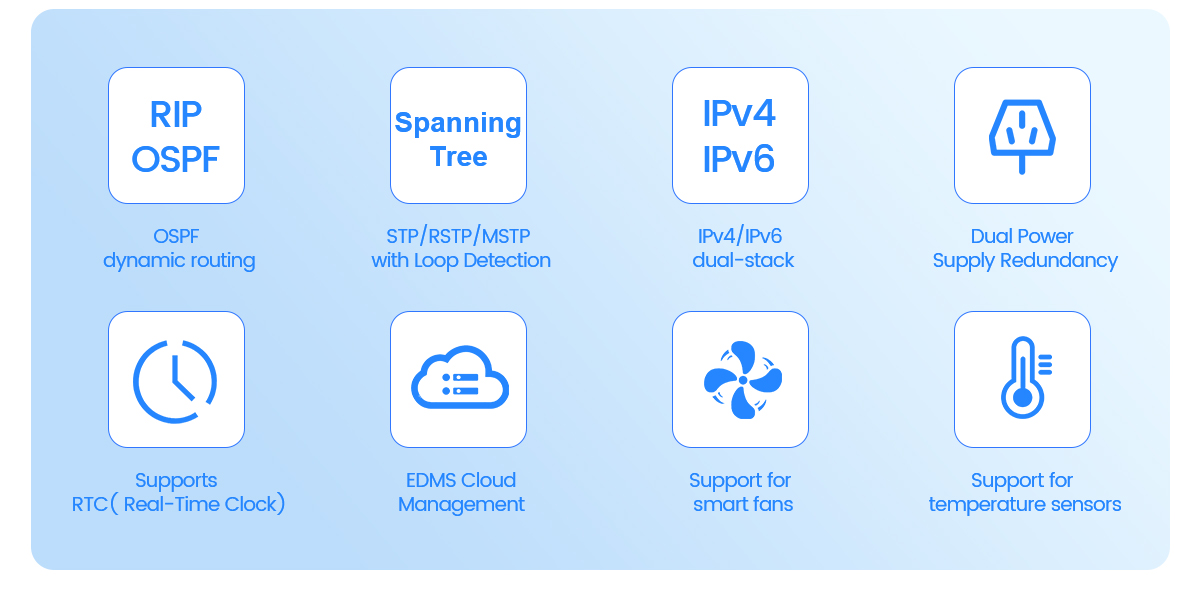

Key Feature

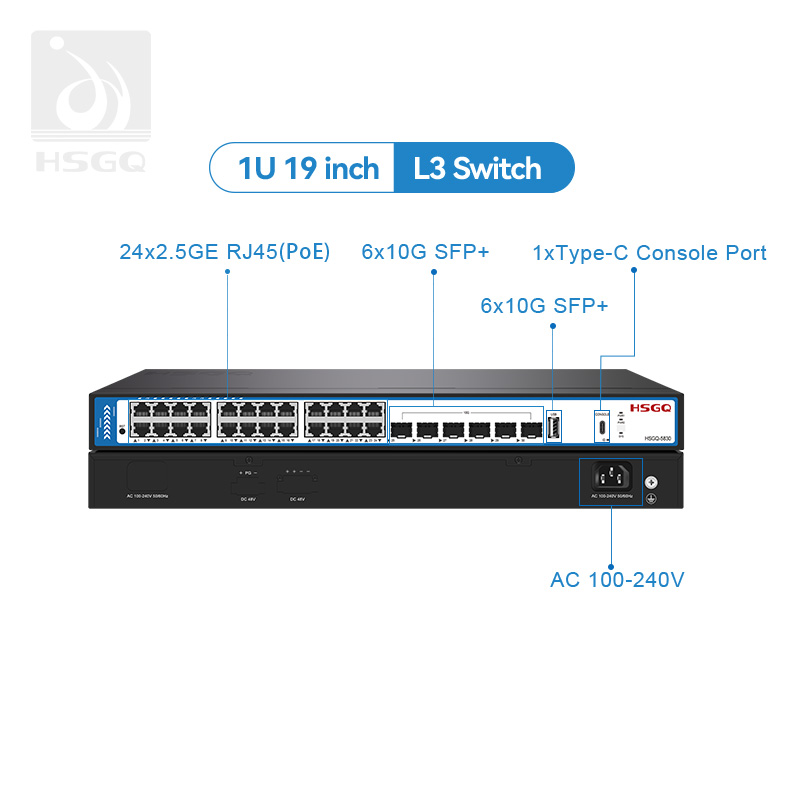

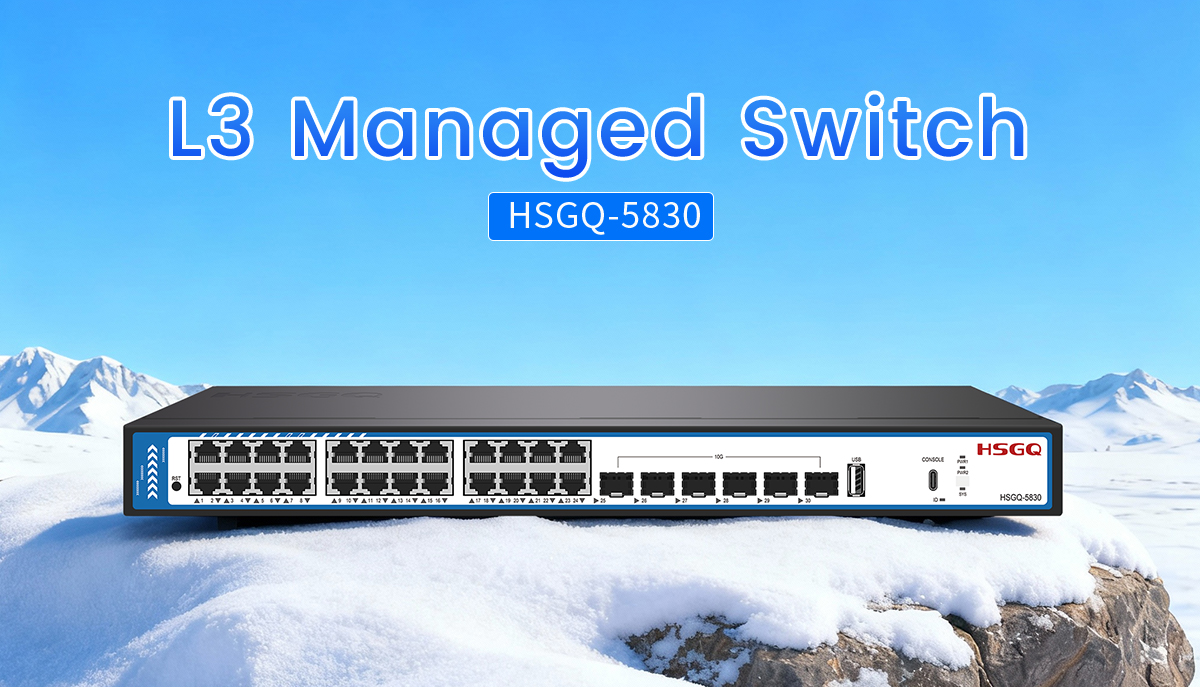

HSGQ 5830 is a L3 Managed Switch, it offers 24*2.5GE + 6*10G SFP+ port, 1*USB port and 1*Console port., providing complete security policy, perfect QoS policy and VLAN function, easy to manage and maintain, meeting the networking and access requirements of enterprises, communities, hotels,office networks and campus networks.

L3 managed switch poe switch

ethernet poe switch

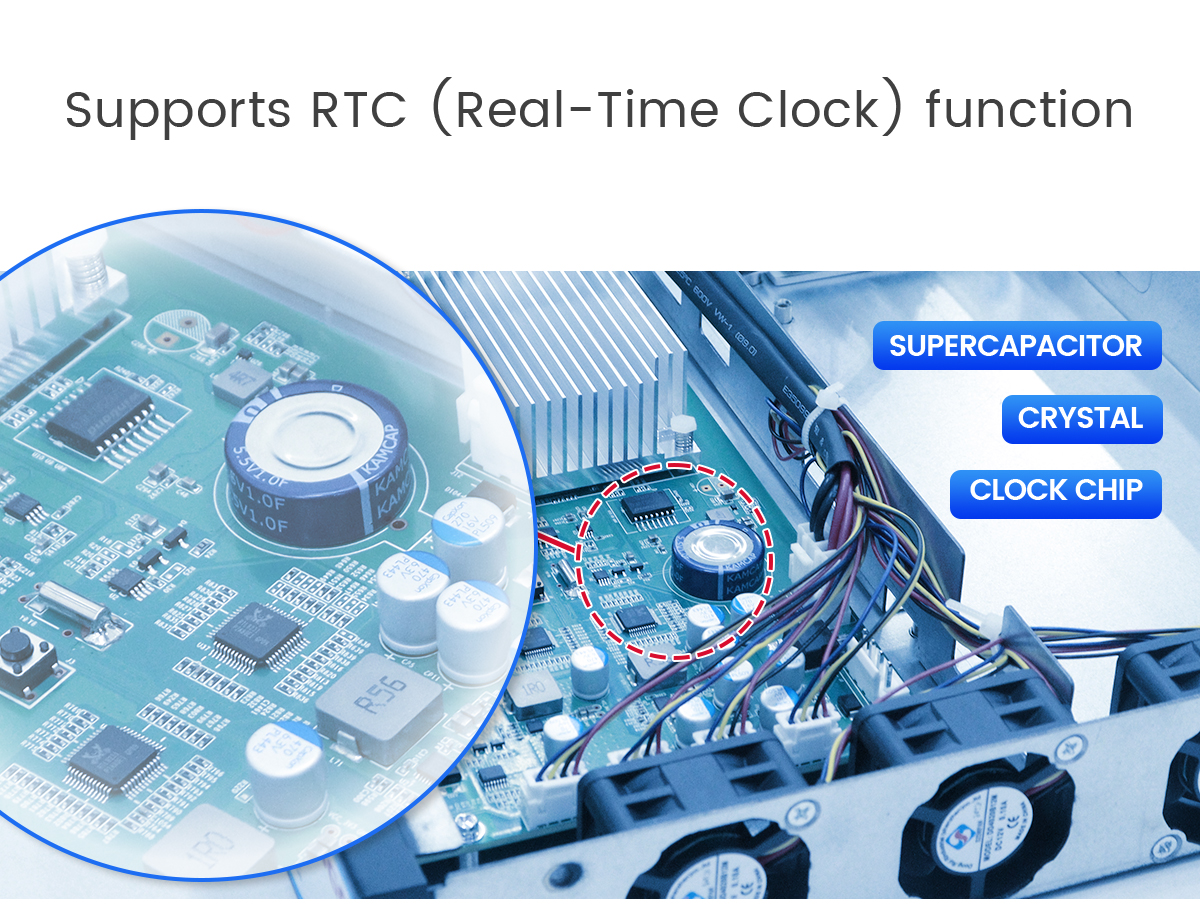

Design using (Crystal, Clock Chip, Super Capacitor) solutions, meeting industrial equipment requirements for continuous timekeeping.

Hardware and software redundancy design

long range poe switch

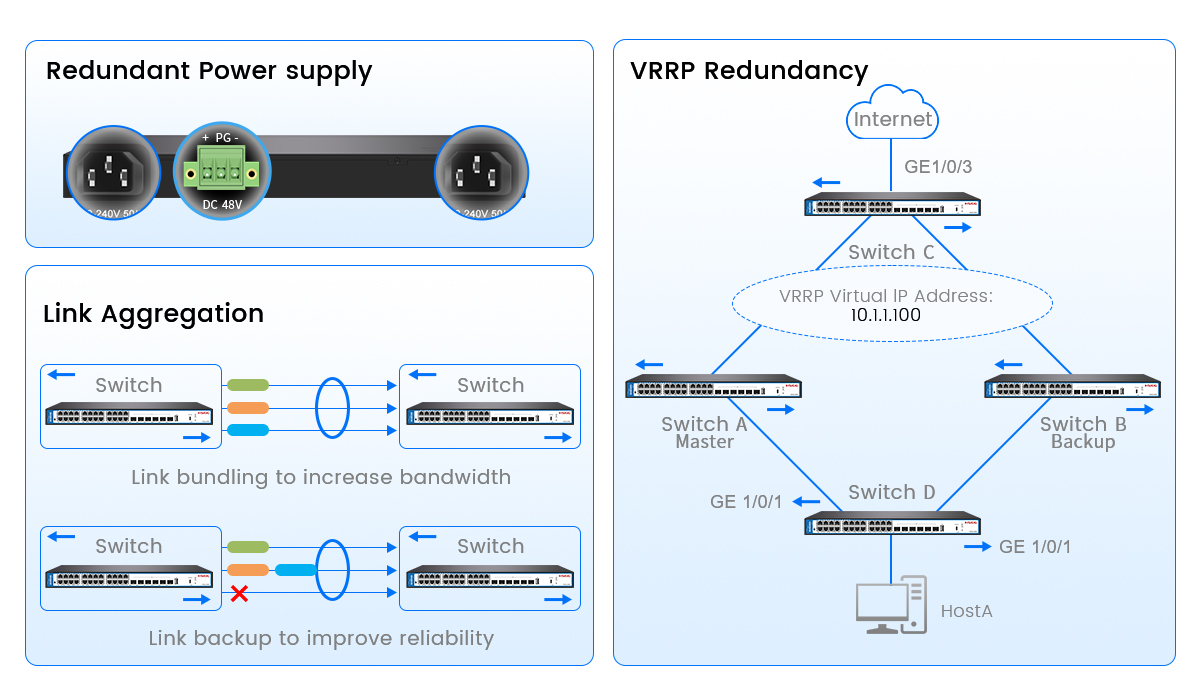

Redundancy Protection: Supports hardware and software redundancy design, including redundant power supplies, redundant link protection, and VRRP redundancy to ensure uninterrupted service.

Cybersecurity Network Solution

poe switch setup

Supports SSHv2, TLS, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection Protection, RADIUS, TACACS+ user account management, SNMPv3 authentication, and more, making it a comprehensive security solution.

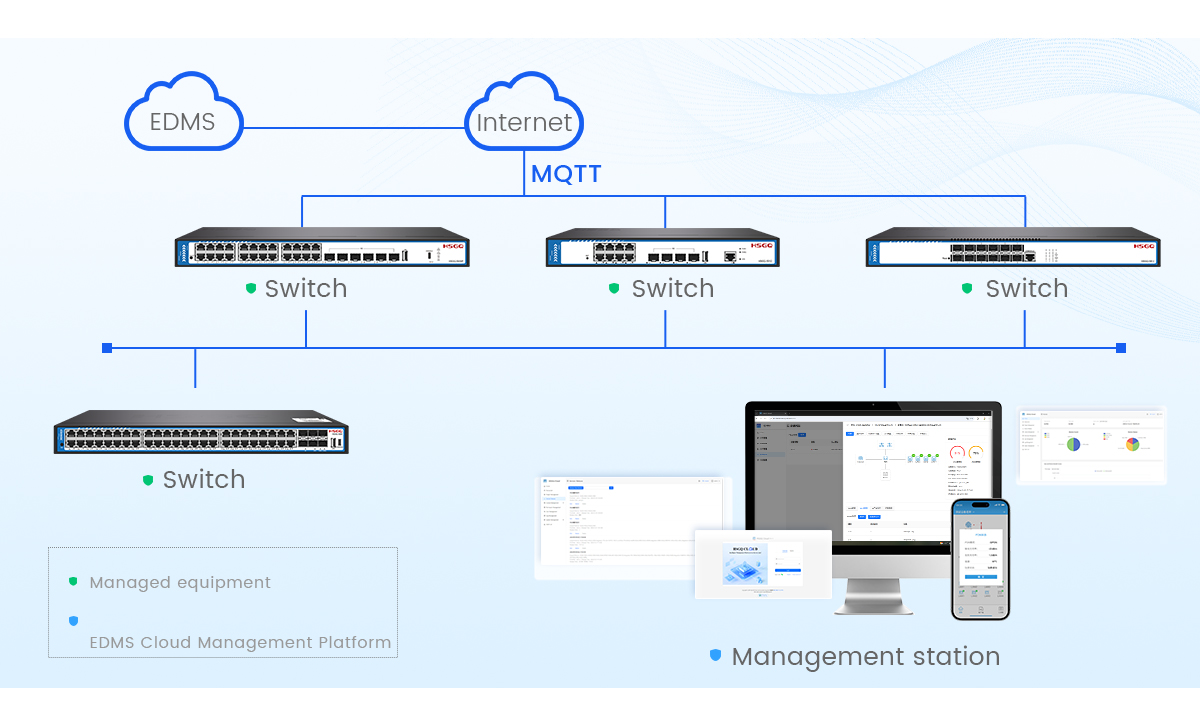

EDMS Cloud Management Platform

layer 3 poe switch

Built-in MQTT function module, supporting connectivity to the EDMS cloud management platform via MQTT/SNMP protocols. This enables unified centralized device management and facilitates remote operation and maintenance.

Item	HSGQ-5830
Interface
Downlink Ports	24*2.5GE RJ45
Uplink Ports	6*10G SFP+
Console	1*RS-232 （115200,8,N,1）
USB	1*USB 2.0
Switch Property
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D.
Forwarding Modes	Store and Forward
Packet Buffer	16Mbit
MAC Table	32k
Switching Capacity	240Gbps / non-blocking
Packet Forwarding Rate	178.56Mpps
Jumbo Frame	12KB
Power Supply
Input Voltage	AC100V-240V，50Hz/60Hz
Power Consumption	< 48W
Reliability
ESD Protection	8kV Contact Discharge, 15kV Air Discharge Standard: IEC61000-4-2
MTBF	10W h
MTBF Standards	Telcordia SR-332，25℃
Operating Temperature	-20℃~55℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%~95%(Non-condensing)
Physical Parameter
Led Indicators	2*power supply indicators
	1*system working indicator or PoE status indicator
	24*RJ45 status indicator
	6*optical port status indicator
Reset Button	Click change LED mode, press 3-10S reset user info, lPand password, long press >10s to reset the equipment
Dimensions (WDH)	44226044mm
Net Weight	2.85kG (Single power supply); 2.96kg (dual power supply)
Material	Stainless Steel
Desktop/DIN-rail/wall mounted	Desktop/rack-mounted

Support IEEE 802.1d, IEEE 802.1W, IEEE 802.1S, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae Standard and lEEE 802.3af/at.
L3 Management, Support DHCP Server, DHCP Snooping, DHCP Relay Static Routing, RIP and OSFP.
Support RSTP/MSTP.
Support VLAN function, Port VLAN, translation and Q-in-Q.
