1*port XGSPON OLT Optical FTTH Access

5 0 Reviews

High-Speed Bandwidth Adaptation: Designed specifically for gigabit and 2000Mbps broadband packages. The 10G port fully unlocks the potential of 10G fiber optic connections, eliminating the bottleneck of traditional gigabit ports.
Ultra-Low Latency: Utilizes a high-performance SoC chip for hardware-level acceleration of online gaming and remote conferencing, significantly reducing jitter and packet loss.
Energy-Saving Design: Compared to multi-port devices, the dual-port design consumes less power and provides more stable heat dissipation, making it suitable for 24/7 operation.
Compatibility: Backward compatible with GPON and 10G PON networks, facilitating smooth upgrades for operators.

Model:
HSGQ-T01

Quantity:
Availability:





Inquiry Datasheet

xgspon olt xgspon onu xgs pon vs gpon

Product Introduction

Technical Parameter

Key Feature

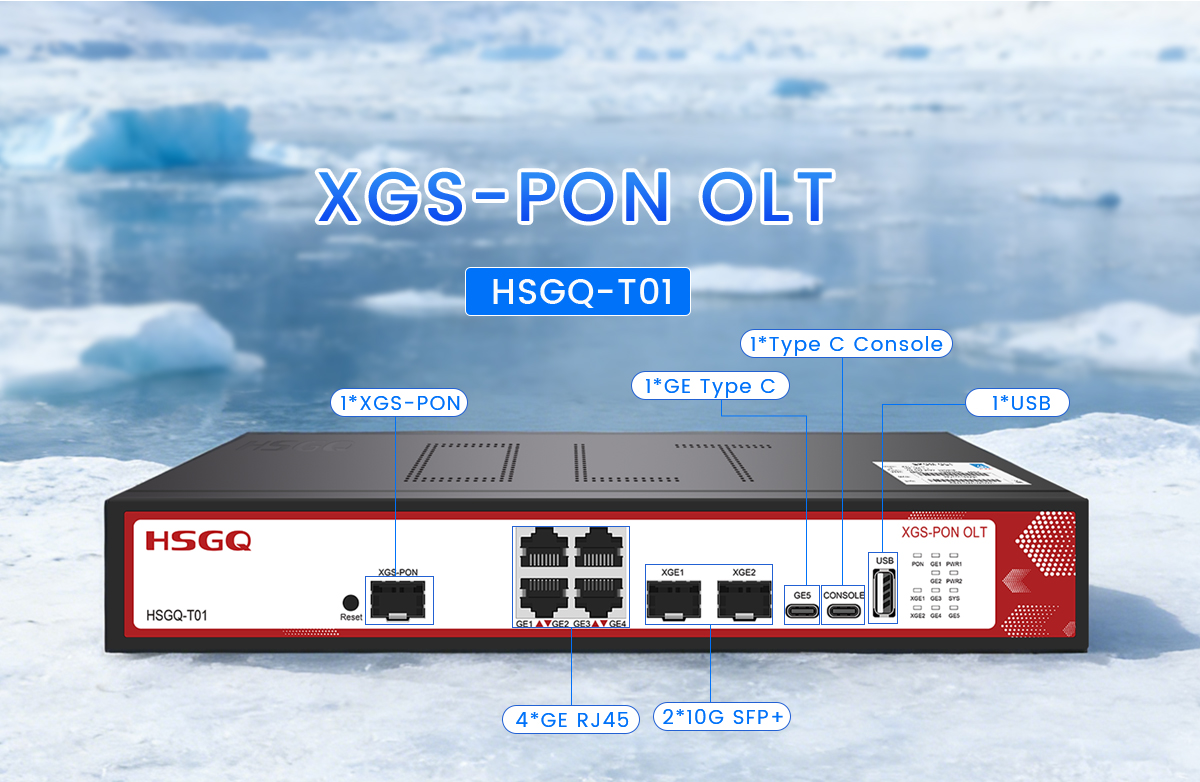

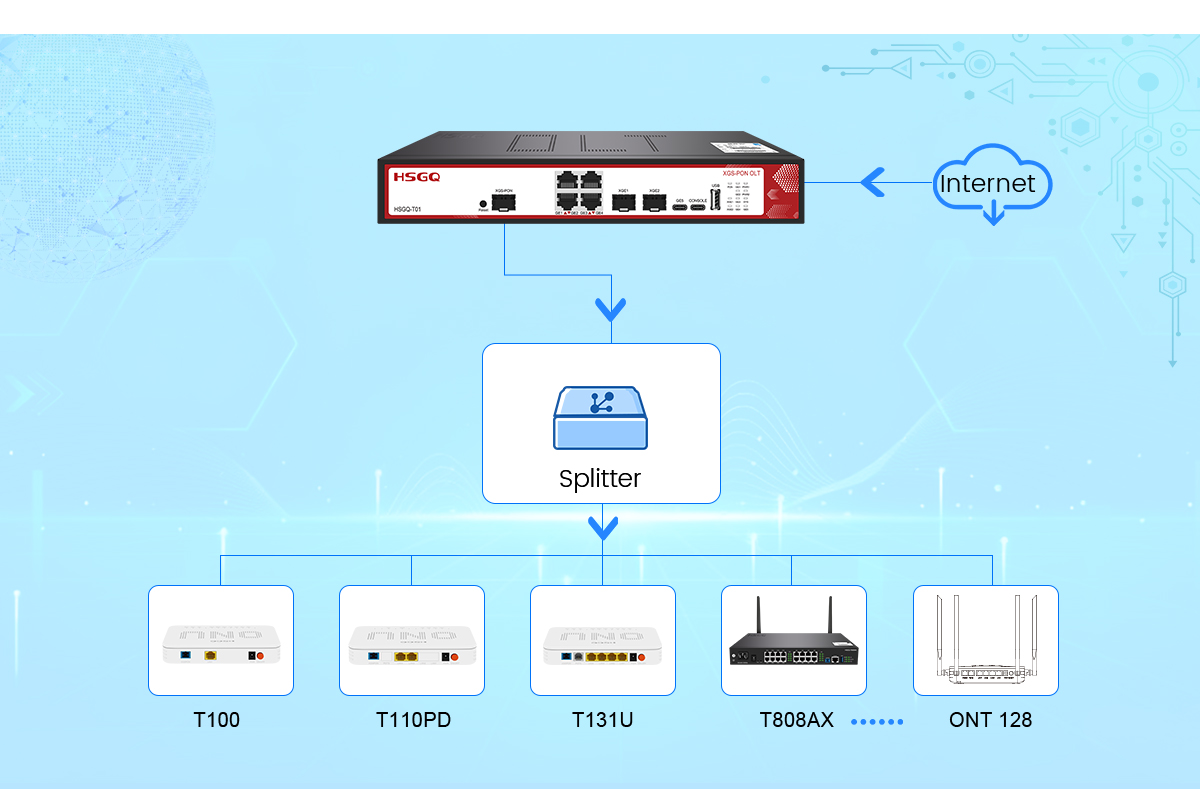

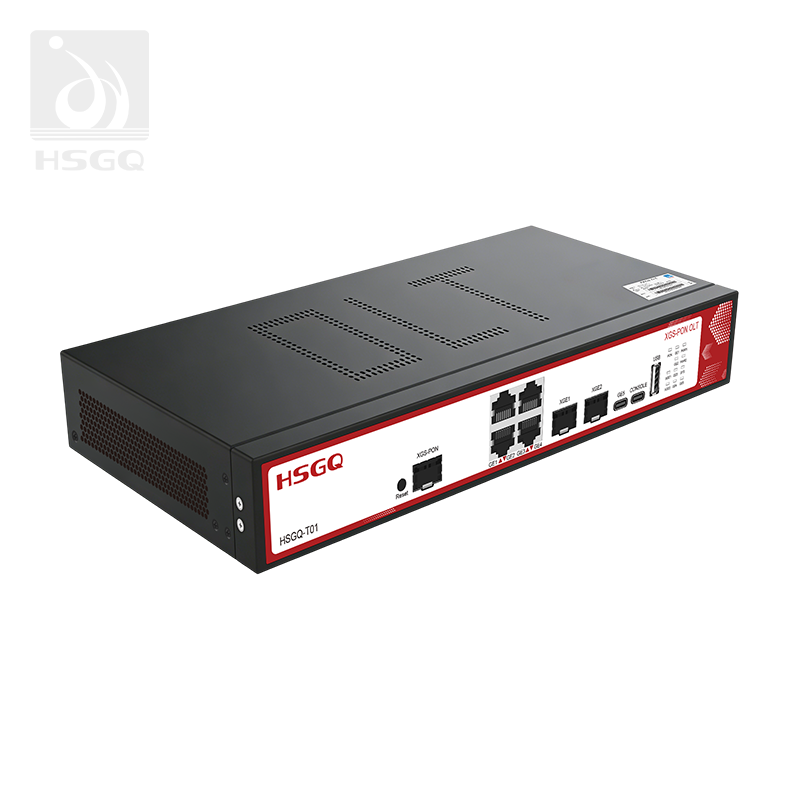

HSGQ-T01 is a box type XGS-PON/XG-PON OLT. The system has good stability and high reliability. Supports multiple management methods such as CLI, WEB, and SNMP. The product provides 1*XGS-PON/XG-PON ports, 4" GE RJ45, 1*GE type-c uplink ports and 2*10G SFP+ Slots. Users can quickly deploy, configure, and monitor the device via the cloud management, greatly reducing labor and time costs during network construction. Suitable for sparsely populated and budget limited areas, smart industrial parks, commercial buildings, FTTR, etc. Each PON port supports a maximum split ratio of 1:128, supports up to 128 users, 1U height is convenient for installation and maintenance. It is an excellent choice for operators to migrate from GPON to 10G PON.

xgspon olt

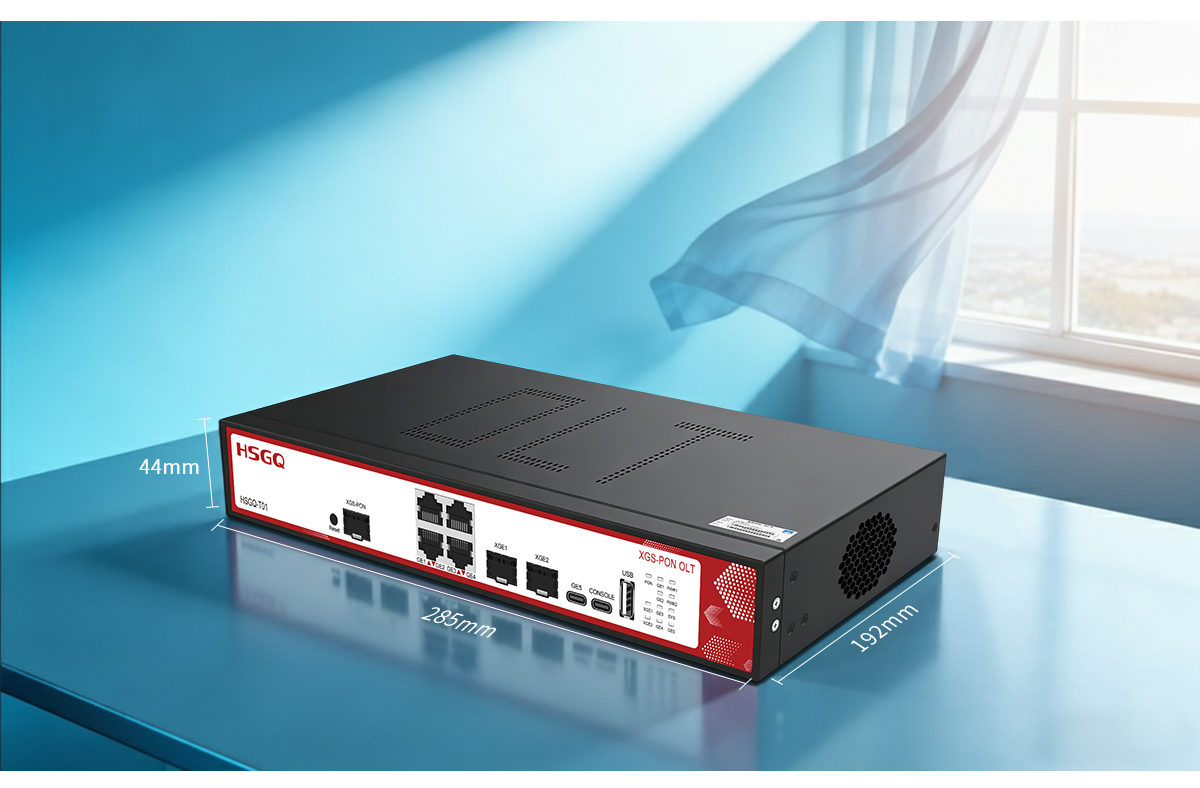

13-inch design flexible installation

xgspon olt

13-inch compact chassis, suitable for desktop placement, hallway installation, and small cabinet mounting in low-voltage electrical shafts, 1U standard height.

XGS pure 10 Gigabit interface

xgspon olt

Meets the telecommunications equipment requirements of gigabit broadband, satisfies the needs of next-generation home and commercial applications, and is tailor-made for high-bandwidth application scenarios such as 4K/8K/VR/live streaming.

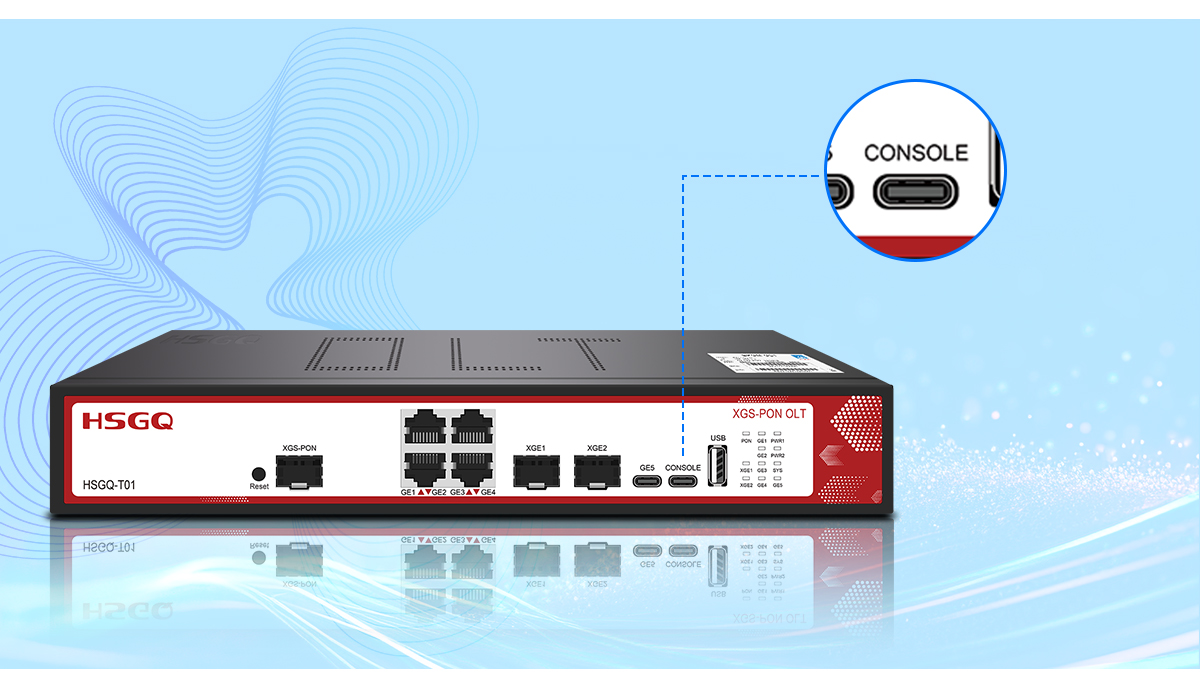

Using Type-C Console Port

xgspon olt

Using a Type-C Console, device configuration management can be solved in one cable.

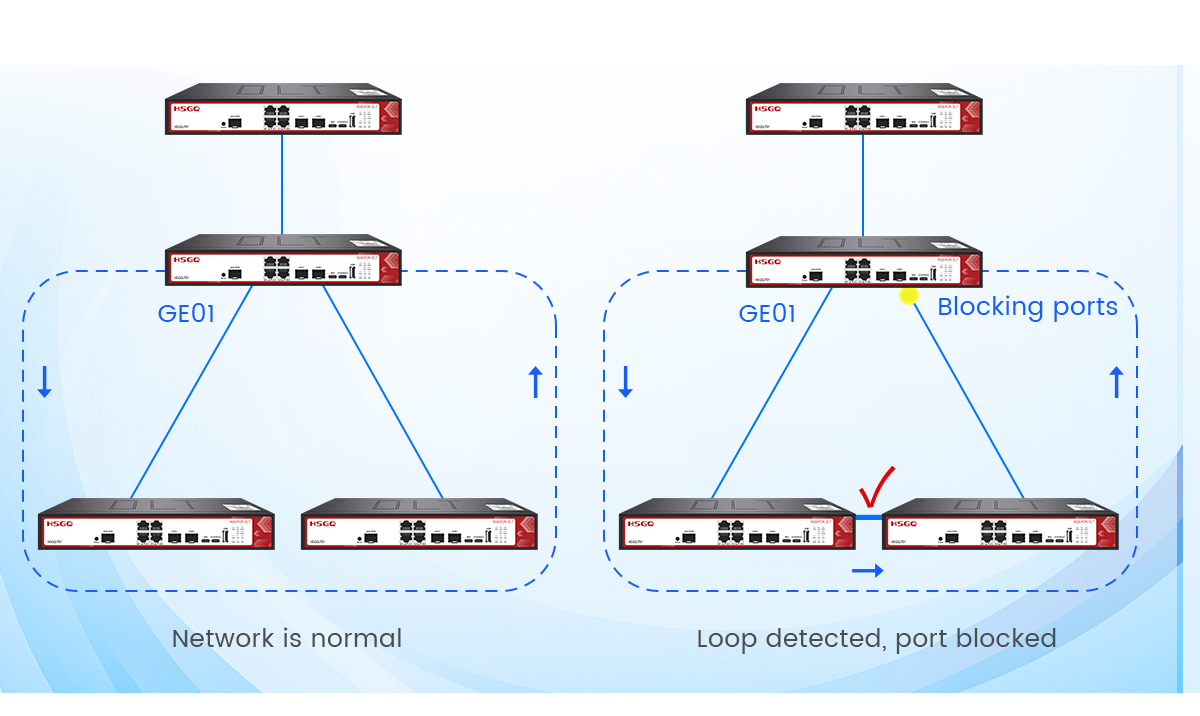

Loopback Detection

xgspon olt

Equipped with loop detection function, automatic release mechanism, and achieving intelligent self-healing of the network

1. When there is a loop in the network, automatically block the loop port to avoid the problem of the entire network being paralyzed due to broadcast storms.

2. When the loop in the network is released, the port automatically returns from a blocked state to a normal state, and the port resumes normal communication.

Supports EDMS cloud

platform management

xgspon olt

Built-in MQTT function module, supporting connectivity to the EDMS cloud management platform via MQTT/SNMP protocols. This enables unified centralized device management and facilitates remote operation and maintenance.

Interface	1*XGSPON/XG-PON/GPON
	4*GE RJ45
	1*GE Typе-С
	2*10G SFP+
	1* USB 2.0
PON	PON port: PON SFP+ slot (20 pin)
	Type: XG(S)-PON: Class N1/N2
	Split Ratio: 1:128 (Maxmium)
Bandwidth	XGSPON: Upstream 9.953Gbps@1270nm; Downstream 9.953Gbps@1577nm
Bandwidth	XGPON: Upstream 2.488Gbps@1270nm; Downstream 9 953Ghns@1577m
Flash	32MB
DDR	512MB
Dimensions	28519244mm
Weight	1*Type-C Console
Power Supply	AC 100V-240V, 50Hz/60Hz; DC 12V
Environment	Work Temperature: -10°C~60°C
	Storage Temperature: -40°C~80°C
	Humidity: 10%~95% (Non condensing)
Power Consumption	<50W
PON Features	Support auto register
	ONU white and deny list
	DBA Configuration
	P2P
Cloud Management	Device List
	Project Management
	Version Release
	License Management
	Alarm List
Configuration and Monitoring	CLI, WEB, SNMP/NMS, CLOUD
	Firmware Upgrade
	Ping and debug
	Support User, log and alarm management
L2 Function	VLAN transparent, translate, QinQ
	IGMP Snooping/proxy
	Port Isolation
	MSTP, RSTP
	ERPS, LLDP, LACP
L3 Function	DHCP
	Static Route
	OSPF, RIP
	VRRP
	PIM
