In fiber optic access network deployments, the selection of appropriate terminal equipment directly impacts network costs, deployment efficiency, and equipment integration.
Revolutionizing FTTx Deployment: How HSGQ Power over Fiber (PoF) ONUs Solve the Last Mile Power Problem. Learn how the HSGQ-F100P and HSGQ-F400P PoF ONUs transmit optical data and DC power up to 300 meters via hybrid optical cables, and feature 30W PoE output and cloud management capabilities.
HSGQ Mini OLTs are compact optical line terminals designed for small-scale GPON, FTTH, and FTTx access networks. By integrating PON access, uplink connectivity, and subscriber management into a space-saving chassis, a Mini OLT provides a practical alternative to larger OLT platforms for projects with limited users, restricted installation space, or a smaller deployment budget.
Compared with a full-size OLT, a compact Mini OLT can reduce the need for large equipment rooms, rack space, dedicated cooling, and complex on-site installation. It is well suited to small hotels, guesthouses, offices, security monitoring networks, and rural FTTH deployments.
A single-port Mini OLT is designed for focused access projects that require one PON interface in a compact form factor. It can be used for small FTTH networks, guesthouses, small office buildings, surveillance projects, and point-to-point broadband deployments in rural or remote areas.
A single-port mini GPON OLT can simplify network construction while leaving more flexibility for future expansion through its uplink and subscriber-side interfaces. The actual ONU capacity depends on the model, optical budget, split ratio, and traffic requirements.
A two-port Mini OLT is suitable for projects that need additional PON capacity or separate access zones. It can support applications such as small enterprise broadband, multi-floor buildings, residential access, and security monitoring networks.
The 2-Port GPON OLT for FTTH access combines two GPON ports with Ethernet and optical uplink options. Selected models may also support 10G SFP+ uplinks, console access, remote management, and higher ONU capacity.
A 1-port or 2-port Mini OLT should be selected according to the number of subscribers, required split ratio, uplink bandwidth, service type, and expected network growth.
Mini OLTs are built for installation environments where space, power, and cooling capacity are limited. The compact desktop chassis can be placed in a small network cabinet, weak-current box, office equipment area, or other protected installation location.
The HSGQ Mini OLT design uses a galvanized steel enclosure that provides mechanical protection and helps improve resistance to electromagnetic interference. Depending on the model, the equipment may use fanless or low-noise thermal management to support stable operation in confined areas.
The compact construction helps reduce the infrastructure normally associated with a larger OLT, including:
Large equipment racks
Dedicated equipment-room space
Complex ventilation systems
Additional installation hardware
Extensive on-site maintenance work
Although Mini OLTs are designed for compact deployments, the installation environment should still provide suitable ventilation, temperature control, grounding, and protection from dust and moisture.
The Mini OLT range is primarily designed for GPON fiber access applications. Selected models support one or two PON interfaces for connecting downstream ONUs through passive optical splitters.
Depending on the model, supported functions may include:
GPON fiber access for FTTH and FTTx networks
Layer 2 switching and VLAN segmentation
QoS traffic control
IGMP snooping and multicast management
ONU discovery, authentication, and registration
Optical link diagnostics
Ethernet or SFP/SFP+ uplink connectivity
Web, CLI, SNMP, NMS, or cloud-based management
Basic security and port control features
The exact management functions, uplink interfaces, and ONU capacity vary by product. Before ordering, confirm the required PON standard, number of PON ports, uplink bandwidth, optical budget, ONU compatibility, and management method.
For projects using a different PON standard, compare the dedicated GPON OLT and EPON OLT product ranges.
A Mini OLT is designed to make initial deployment easier for small network projects. After the uplink, VLAN plan, ONU profiles, and authentication settings are prepared, basic configuration can usually be completed quickly through the supported management interface.
Depending on the model, network administrators may be able to:
Configure PON and uplink interfaces
Register and manage ONUs
Create VLAN and service profiles
Set bandwidth and QoS policies
Monitor optical link status
Review alarms and port status
Perform remote maintenance and software updates
The phrase “plug and play” should be understood as simplified deployment rather than zero configuration. The OLT still needs to be matched with compatible ONUs, optical splitters, VLAN settings, and upstream network services.
Mini OLTs are suitable for network deployments that need reliable fiber access without the size and cost of a large chassis platform.
A Mini GPON OLT can connect guest rooms or separate building areas through passive optical fiber infrastructure. Its compact size helps reduce equipment-room requirements in properties with limited technical space.
For small office areas, retail sites, and commercial buildings, a Mini OLT can provide centralized fiber access and support multiple ONU terminals without requiring a large rack-based access platform.
Fiber access can help extend connectivity between cameras, monitoring rooms, and remote equipment locations. A Mini OLT can serve as a compact access device where the network scale does not justify a larger OLT.
Mini OLTs are also suitable for small rural broadband projects and localized FTTH deployments. Their compact size, low installation requirements, and flexible PON capacity make them easier to deploy in remote or space-constrained locations.
For FTTB, FTTO, and other localized FTTx applications, a Mini OLT can provide centralized fiber access while keeping the network architecture simple and easy to maintain.
The price of a Mini OLT depends on more than the physical size of the device. Before requesting a quotation, consider:
Number of PON ports
GPON or EPON compatibility
Maximum ONU capacity
Required optical split ratio
Ethernet or SFP/SFP+ uplink requirements
Layer 2 and management functions
Power supply options
Installation environment
Required ONU, splitter, and fiber accessories
A single-port Mini OLT may be suitable for a small, focused deployment, while a two-port model can provide additional capacity and network segmentation. Comparing the complete access solution is more useful than comparing the device price alone.
HSGQ Mini OLTs are designed for network operators, system integrators, installers, and engineering companies that need compact fiber access equipment for small and medium-sized projects.
Key advantages include:
Compact form factor for space-constrained installations
Metal housing for improved mechanical protection
Low-noise or fanless thermal design on selected models
Flexible 1-port and 2-port GPON configurations
Layer 2 switching, VLAN, and QoS capabilities
Support for different uplink options depending on model
Remote management options on selected products
Suitable for FTTH, FTTx, enterprise, hospitality, and surveillance applications
Lower infrastructure requirements than many full-size OLT deployments

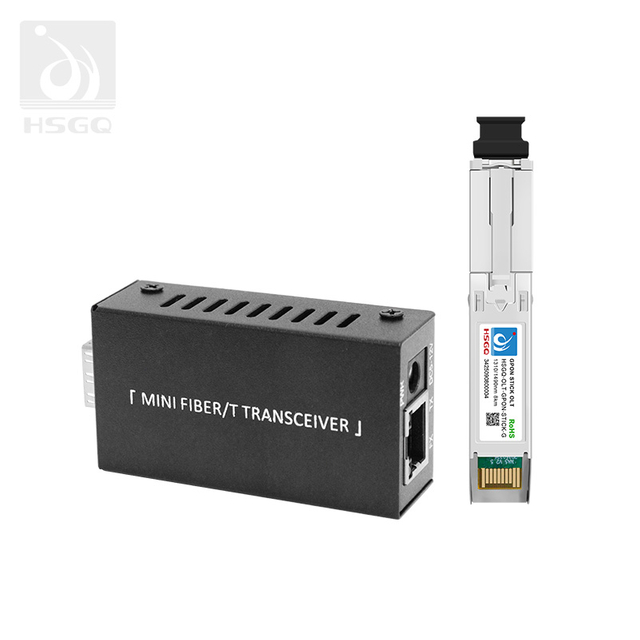

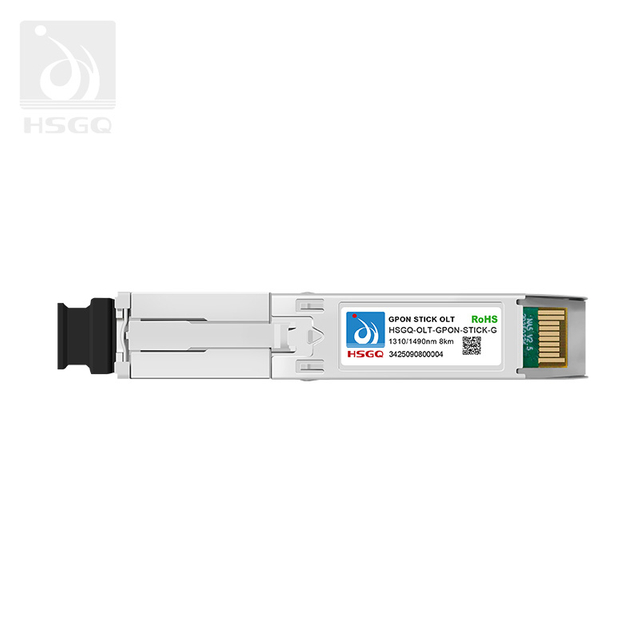

If you specifically need an SFP-form-factor PON solution rather than a desktop Mini OLT, view the GPON Stick OLT range.
The supported ONU capacity depends on the Mini OLT model, number of PON ports, optical split ratio, optical budget, and traffic requirements. A two-port model generally provides more access capacity than a single-port model, but the exact limit should be confirmed in the product specifications.
Yes. Mini OLTs are designed for compact FTTH and FTTx deployments such as small hotels, guesthouses, offices, retail sites, and localized broadband networks. They are especially useful when a full-size OLT would require more rack space and infrastructure than the project needs.
A 1-port Mini OLT uses one PON interface and is suitable for smaller or more concentrated access networks. A 2-port Mini OLT provides additional PON capacity and may support separate access zones or future expansion. The best option depends on subscriber count, network layout, and planned growth.
No. The OLT and ONU must be compatible in terms of GPON standard, optical wavelength, optical budget, authentication method, OMCI behavior, VLAN configuration, and service profiles. Confirm compatibility before deploying ONUs from different vendors.
A Mini OLT can simplify installation, but it still requires basic configuration. The uplink, VLANs, ONU authentication, bandwidth policies, and service profiles must be prepared before the network is put into operation.
A Mini OLT should not be installed outdoors without suitable protection. If it is placed in a weak-current cabinet or outdoor enclosure, confirm the operating temperature, humidity control, dust protection, surge protection, grounding, and enclosure rating required for the installation.
Start with the required PON standard, number of subscribers, number of PON ports, expected split ratio, uplink bandwidth, ONU type, management method, and power conditions. For an accurate quotation, provide the intended application, estimated ONU quantity, fiber distance, and required uplink interface.
