HSGQ-X411AX
| Quantity: | |
|---|---|

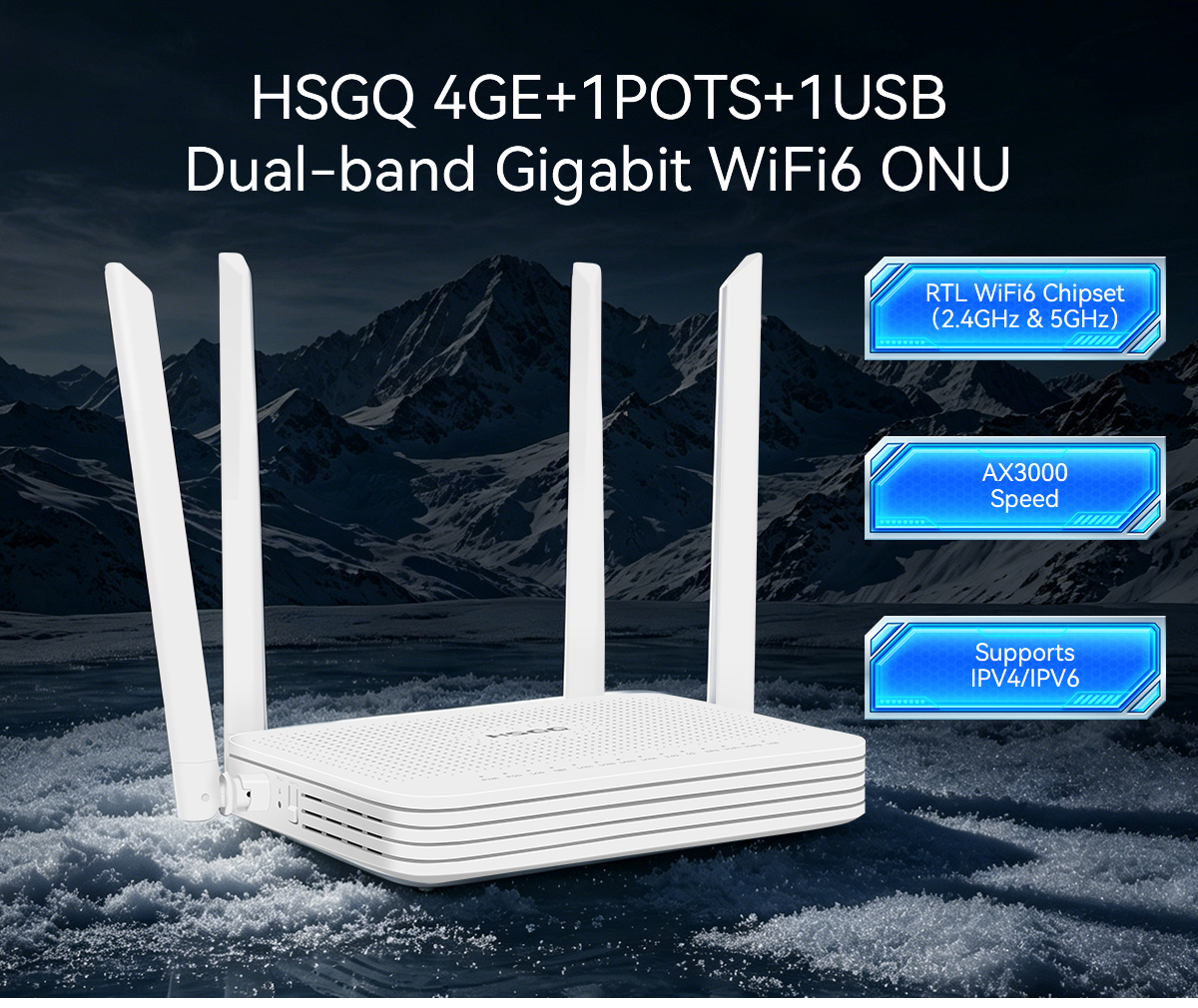

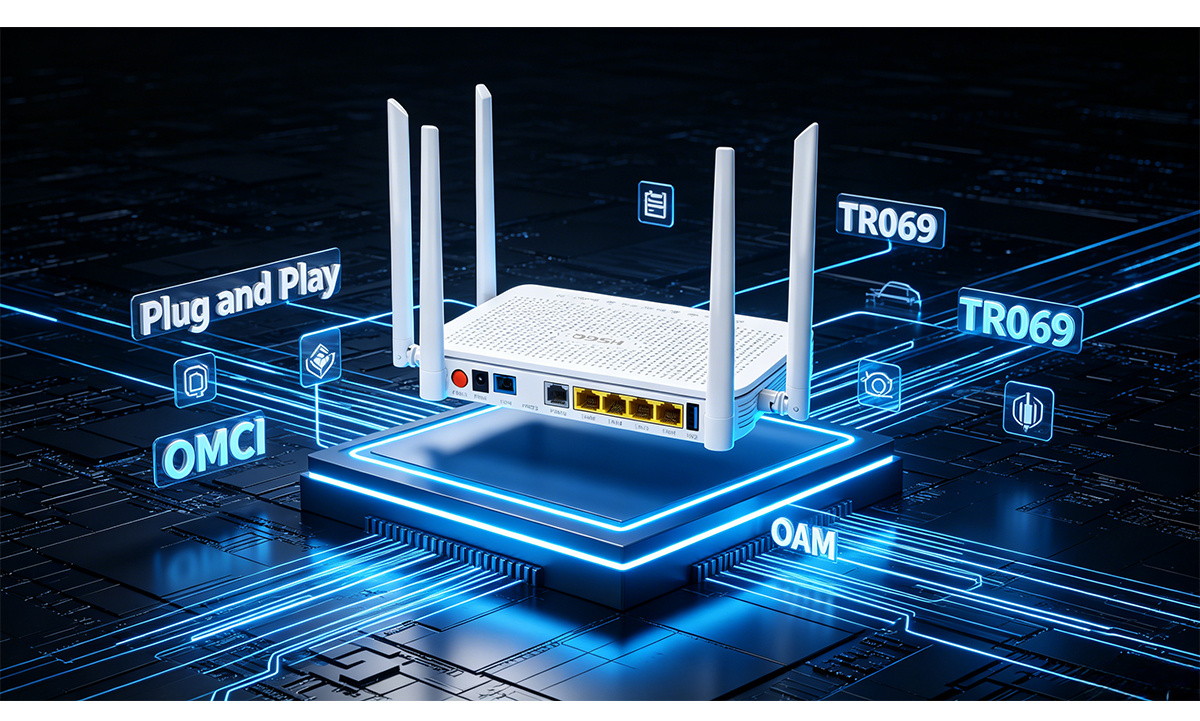

X411AX is an intelligent routing passive optical network terminal in FTTH solution. X411AX provides 4 GE LAN port, 1 POTS, 1 USBport and AX3000 WiFi, high access speed up 2.5Gbps downstream and 1.25Gbps upstream. lt is widely compatible with the globamainstream OLT brand, supports plug-and-play, OMCl and TR069 remote maintenance features.
Extremely Fast Fiber
Optic Essential for Home Access

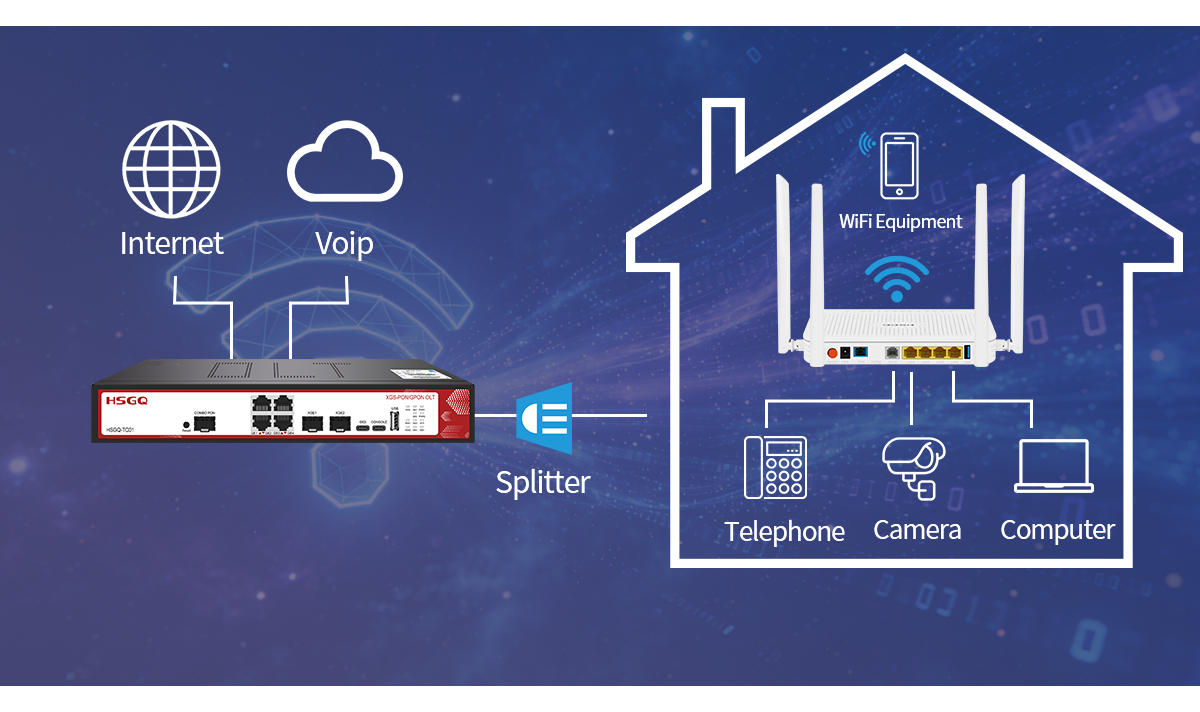

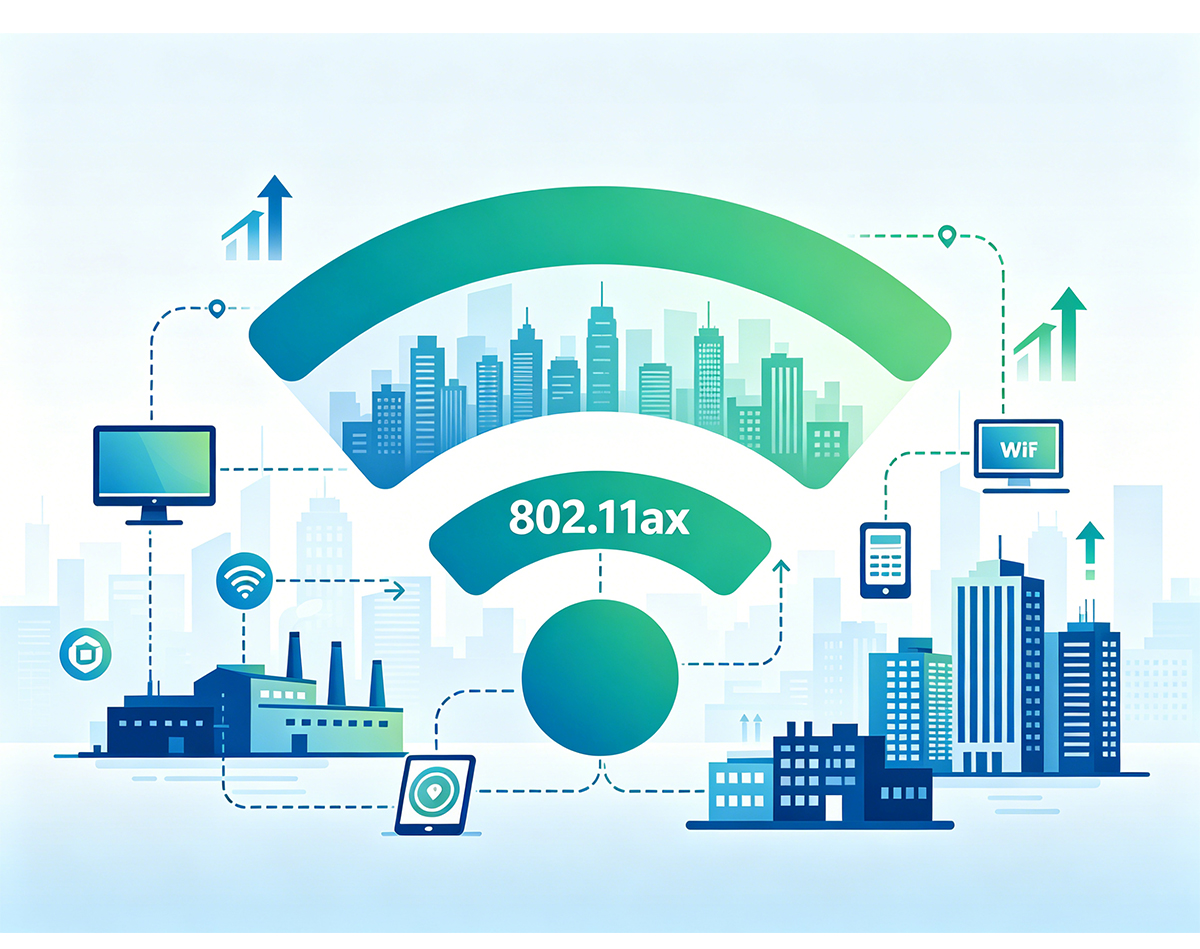

HSGQ-X411AX combines the advantages of WiFi6 technology and fiber-optic communication to meet the needs of fixed network operators for FTTH and triple-play services, provide multi-functional services based on E/GPON networks, and provide users with high-speed, stable and reliable network connections.
High-Speed Internet Access
Provides up to Gigabit Ethernet interface, which can meet the needs of home users for high-speed network. Whether it is downloading high-definition movies, playing online games or video conferencing, you can get a smooth network experience.
HSGQ-X411AX is equipped with a voice interface, supports traditional telephone services, and meets the needs of users for voice communication. Through advanced voice processing technology, the optical modem can provide high-quality voice communication services to ensure the clarity and fluency of user calls.
Realize Multi Scenario Use
HSGQ-X411AX has a wide range of application prospects in home networks, enterprise networks, public places and commercial scenarios, as well as special application scenarios. Its high speed, stability, security and intelligence make it one of the first choices for modern network access devices.

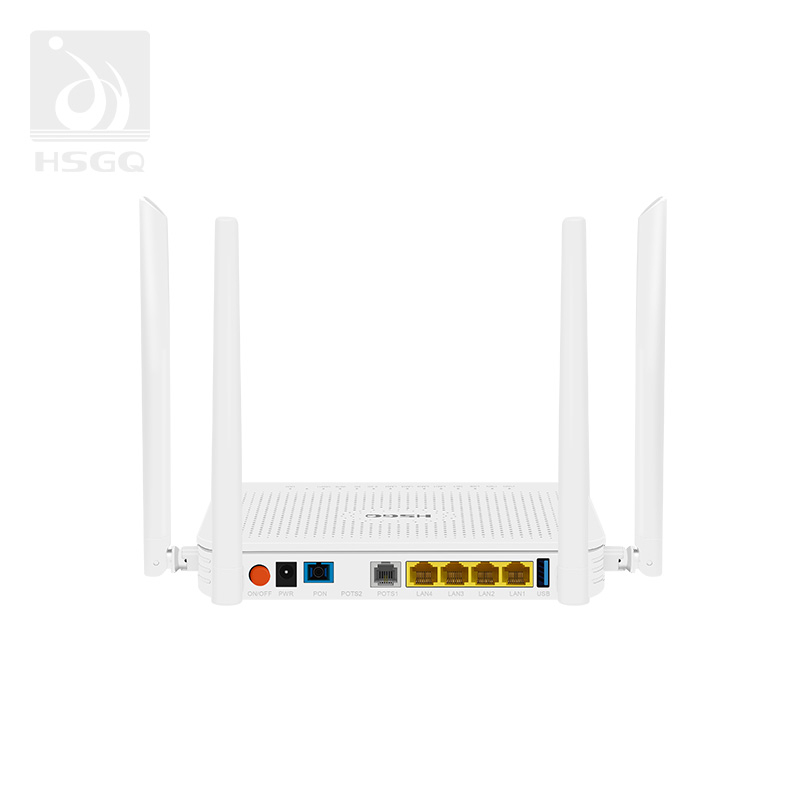

| User interface | 4*GE RJ45 port 1*POTS 1*USB 2.4GHz:574Mbps 5.8GHz:2402Mbps |
| PON | EPON&GPON mode adaptive Interface Type: SC-APC/SC-UPC Network coverage radius: 20KM GPON: upstream 1.25Gbps/ downstream 2.5Gbps Optical receive power: -7dBm~-28dBm Transmitting optical power: 0dBm~4dBm EPON: upstream 1.25Gbps/downstream 1.25Gbps Optical receive sensitivity: -7dBm~ -27dBm Transmitting optical power: 0dBm~4dBm |
| Ethernet | 4*10/100/1000M auto-negotiation Full/ half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |

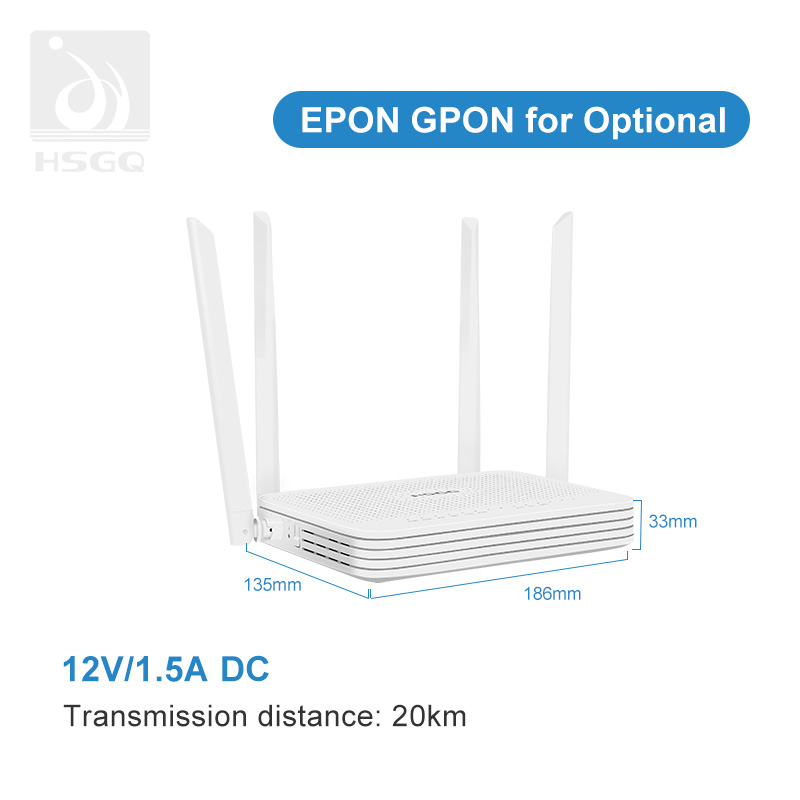

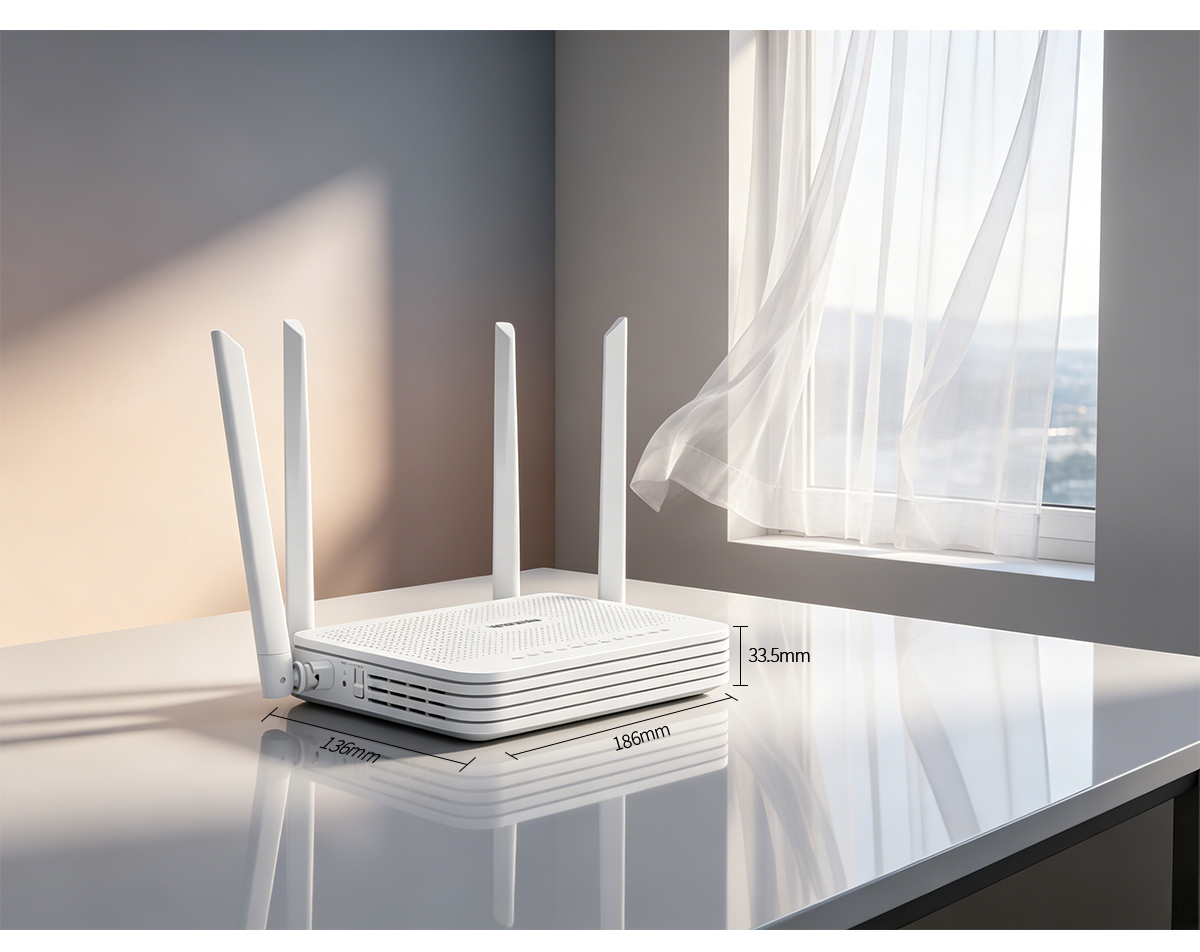

| Size | 186mm(L)×136mm(W)×33.5mm(H) |
| Environmental | Operating temperature: 0℃～50℃ Operating humidity: 10%～85% (non-condensing) Storage temperature: -40℃～80℃ Storage humidity: 5%～95% (non-condensing) |
| Power supply | 12V/ 1.5A DC power interface size: 2.1mm/ 5.5mm |
| Power | < 18W |

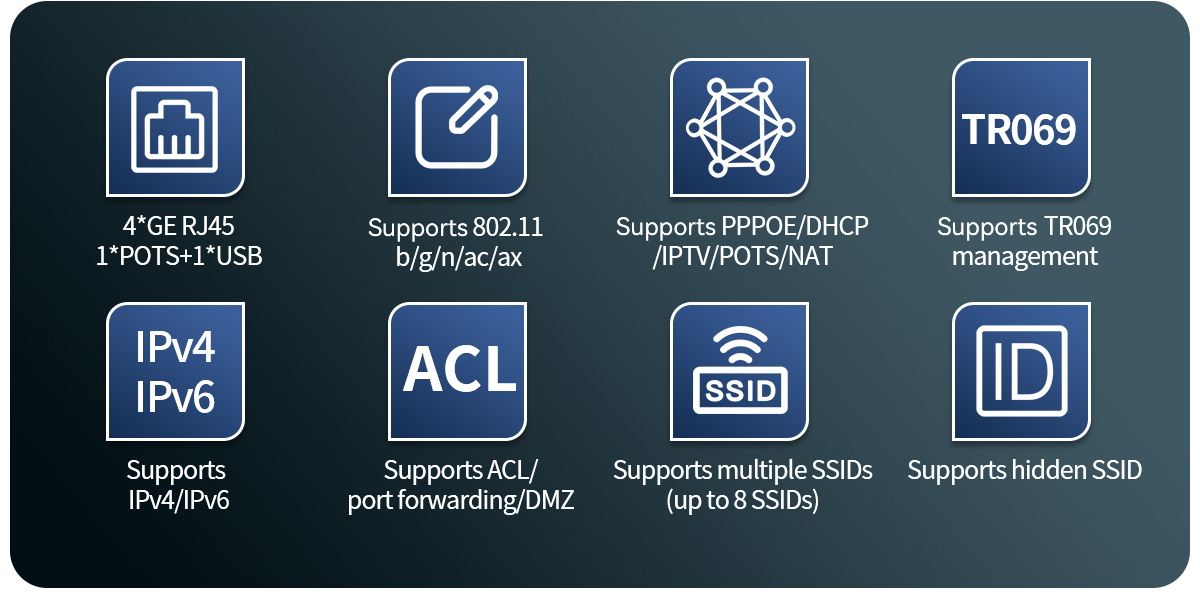

Support device - based rate limitation and bandwidth control.
In compliant with IEEE802.3ah & ITU-T G.984.x standard.
Up to 20KM transmission distance.
Support data encryption, group broadcasting, port Vlan separation, etc.
Support Dynamic Bandwidth Allocation (DBA).
Support ONU auto - discovery/ Link detection/ remote upgrade of software.
Support port VLAN configuration.
Support power - off alarm function, easy for link problem detection.
Support QOS configuration.
Support port binding.
Support port flowarding.
Support ACL to configure data packet filter flexibly.
Specialized design for system breakdown prevention to maintain stable system.
Support software online upgrading.
Support TR069 for ACS (Auto Config Server).
Support PPPoE/ DHCP Server/ IPTV/ POTS/ NAT.
Support multi-SSlD (Maximum 4 SSlD).
Support automatic channel selection.
Support hide SSlD.
Support wireless security of 64/128 bit WEP,802.1x,WPA and WPA2
Support Easy Mesh.
Support IPv4/ IPv6.
| Indicator | Description | |
| POWER | Power Status | On: The ONU is power on |
| Off: The ONU is power off | ||
| PON | ONU Register | On: Success to register to OLT |
| Blinking: ln process of registering to OLT | ||
| Off: Fail to register to OLT | ||
| LOS | Optical Signals | On: Optical link is abnormal |
| Off: Optical in normal | ||
| 2.4G | 2.4G WiFi Status | On: WiFi function opens |
| Blinking: Data is being transmitted | ||
| Off: WIFI functions closes | ||
| 5G | 5G WiFi Status | On: WiFi function opens |
| Blinking: Data is being transmitted | ||
| Off: WIFI functions closes | ||
| NET | Internet Status | On: ONU can access internet |
| Off: ONU can not access internet | ||
| GE | GE Port status | On: Ethernet connection is normal |
| Blinking: Data is being transmitted | ||
| Off: Ethernet connection is not set up | ||
| VOIP | POTS Status | On: POTS port Registered |
| Off: POTS port not Registered | ||
| USB | USB Status | On: USB connection is normal |
| Off: USB connection is not set up | ||
