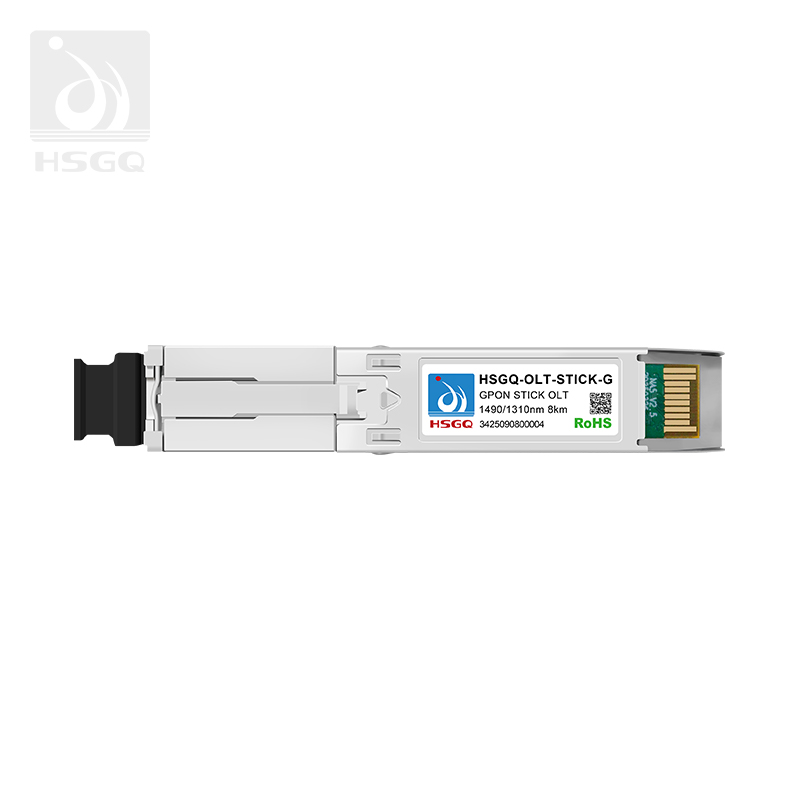

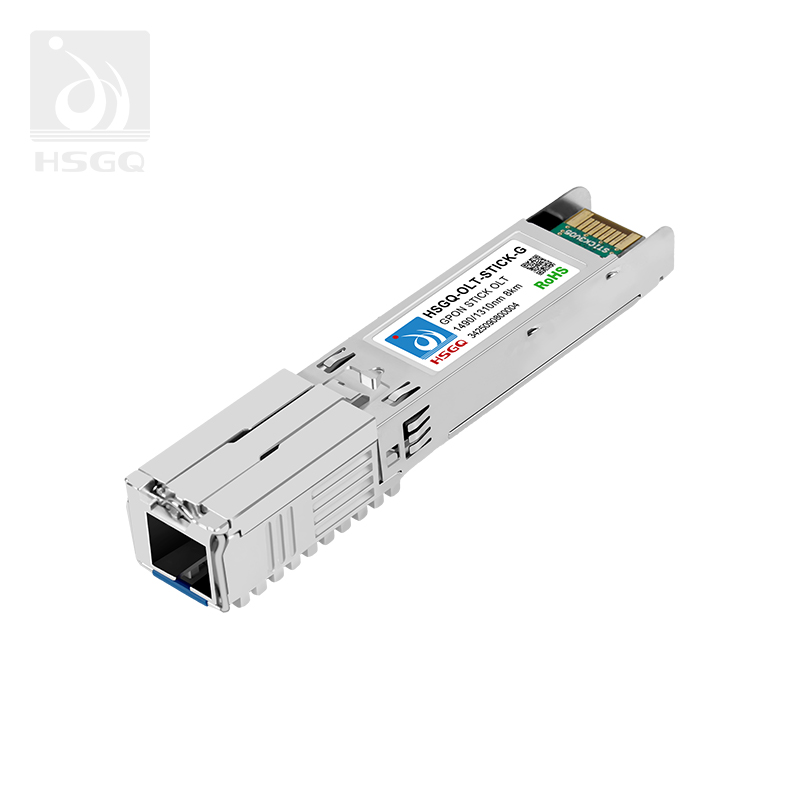

HSGQ-OLT-GPON-STICK-G
| Quantity: | |
|---|---|

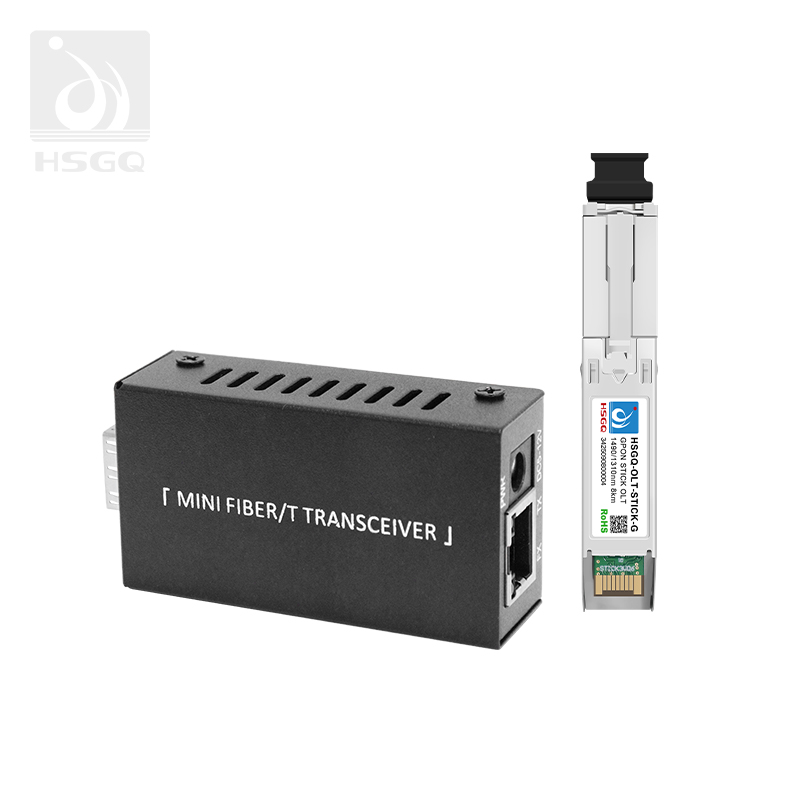

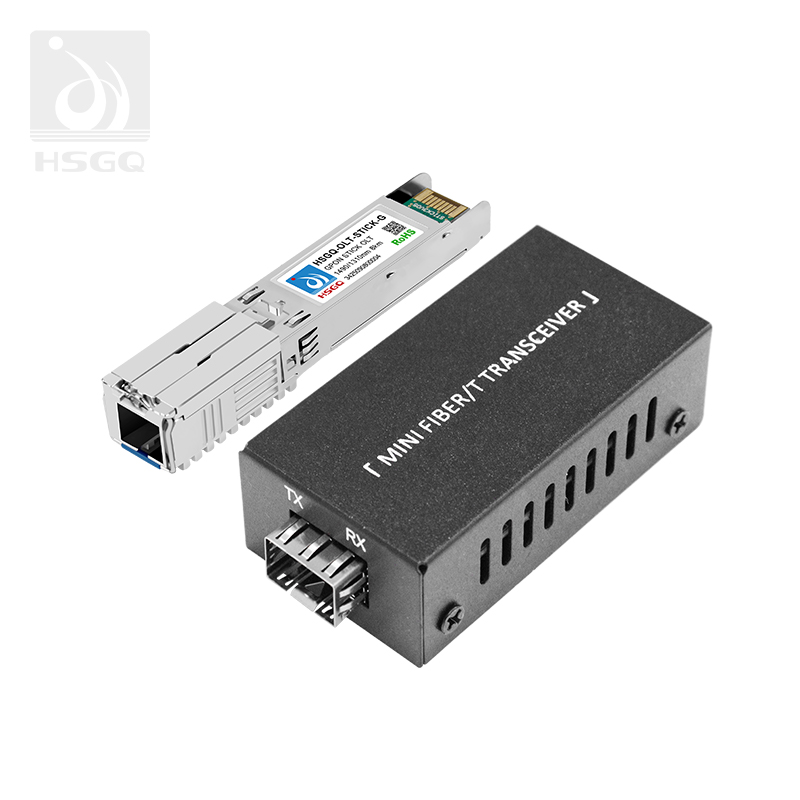

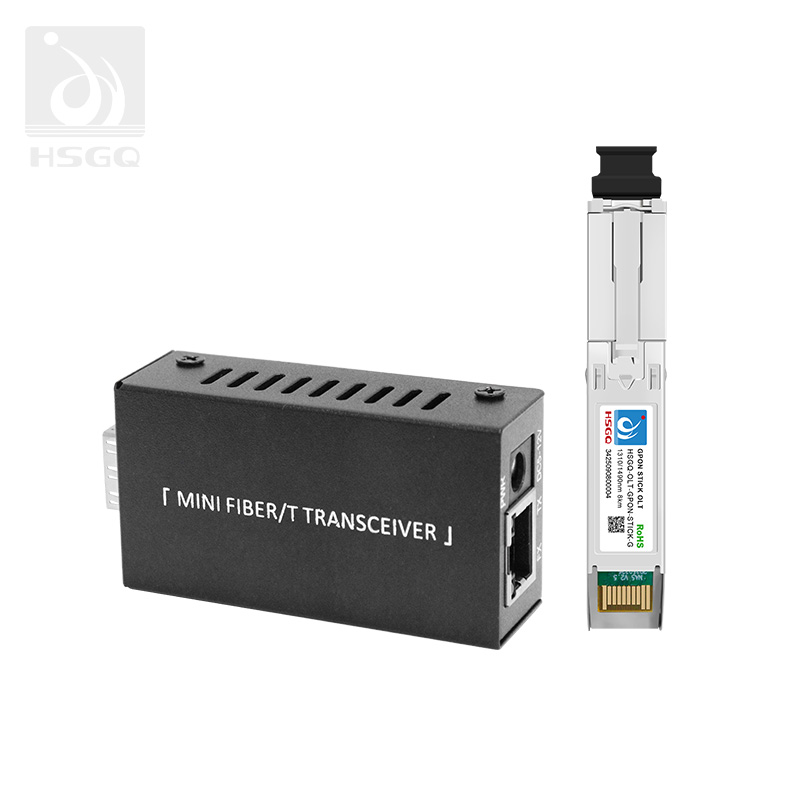

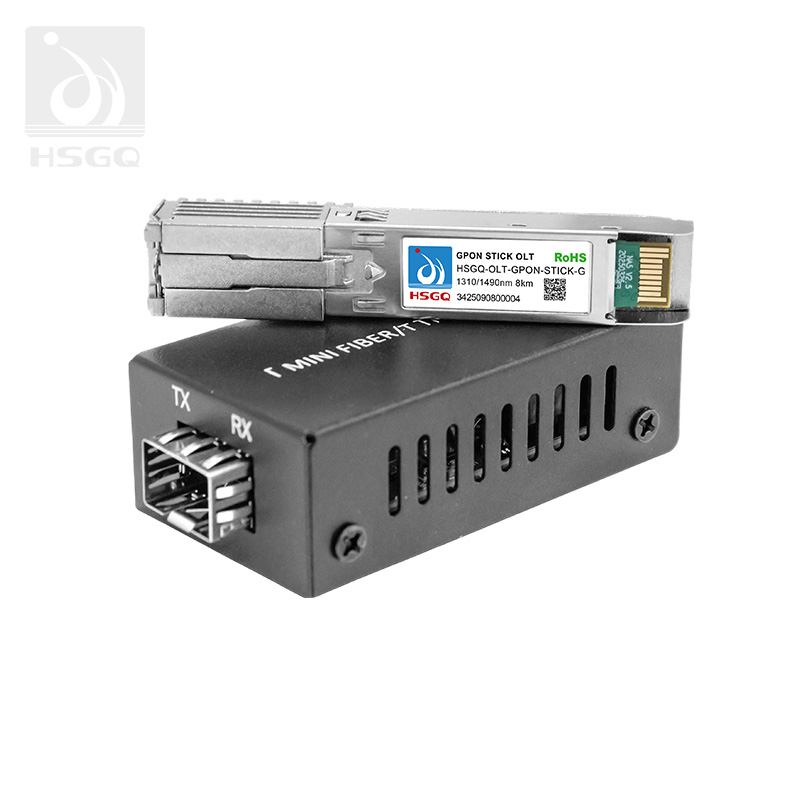

HSGQ-GS01KIT is a product composed of an optical fiber transceiver and a GPON OLT stick, aimed at solving the problem of rapid upgrade from traditional data communication network equipment to POL all-optical network equipment. lt uses flexible module design to make port configuration more convenient, accurately adapt to different business needs in different scenarios, facilitate troubleshooting and maintenance, reduce costs, and help the network transition efficiently and smoothly to the era of all-optical networks.
Much smaller
lighter and more portable than before
Multi Scene Adaptation
Thicken "Goldfinger" design
Nano plating Hard gold plating
Plug and play debugging free digital
communication device
ONU terminal plug and play, fully automatic registration,
transparent transmission of all VLANs

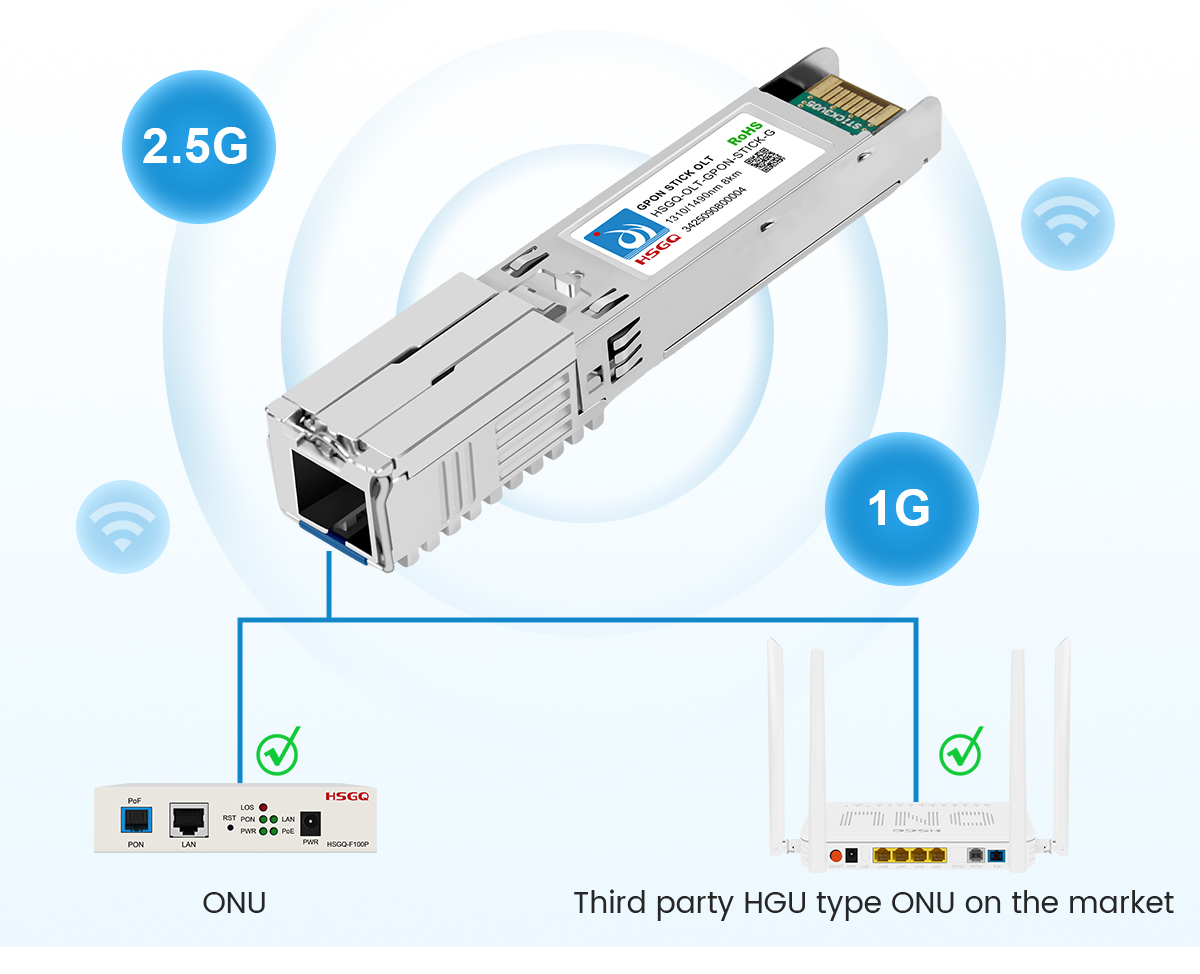

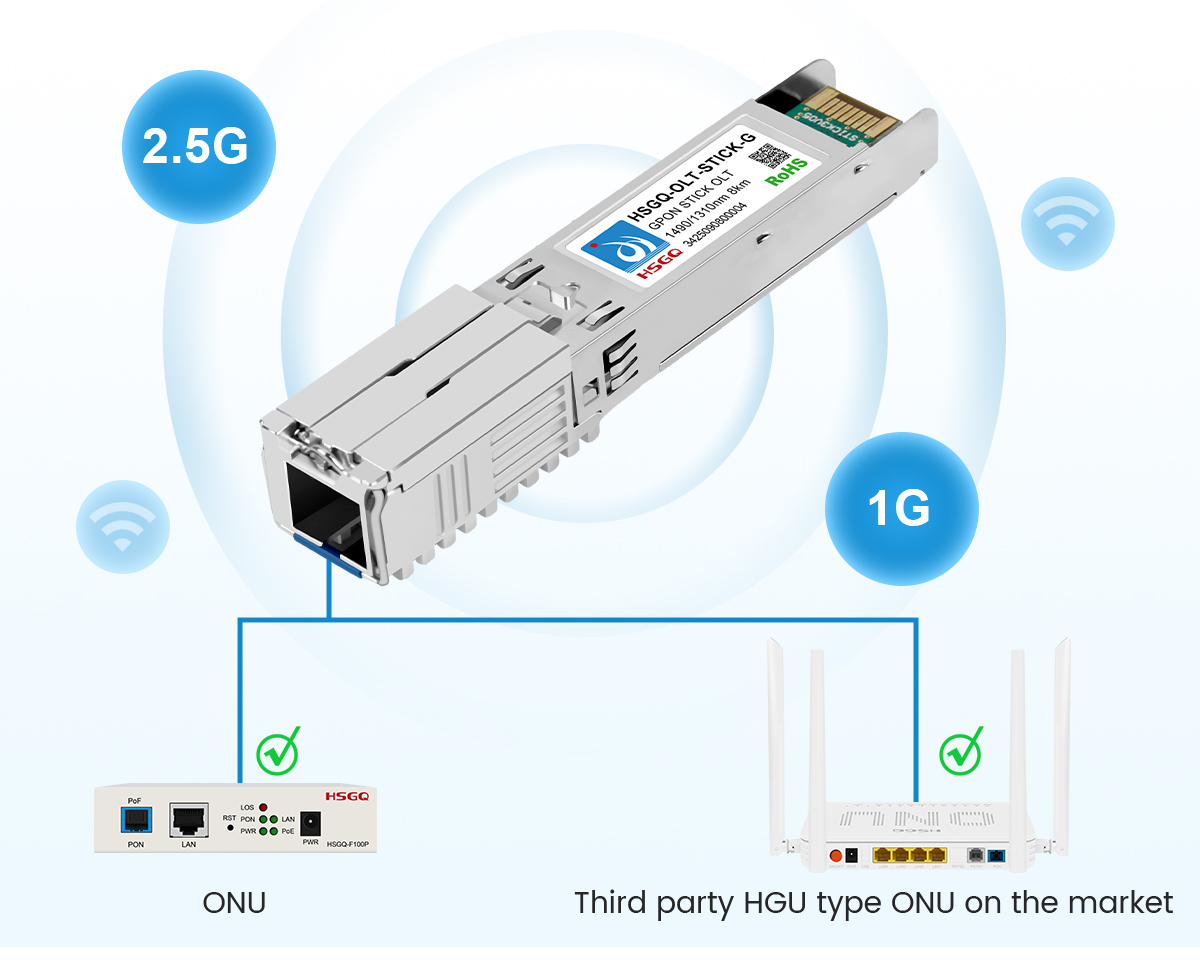

Compatible with third-party HGU type ONU
Adhere to the standard GPON protocol, compatible with the vast majority of HGU type ONU terminals on the market, and compatible with all GPON terminals
Single PON port of virtual OLT
It allows operators to flexibly expand and manage PON networks without requiring significant hardware investment.
Compatible with any third-party network device
Compatible with any third-party switches, routers, and firewalls with optical ports Can be used in different host environments to improve device utilization and flexibility.

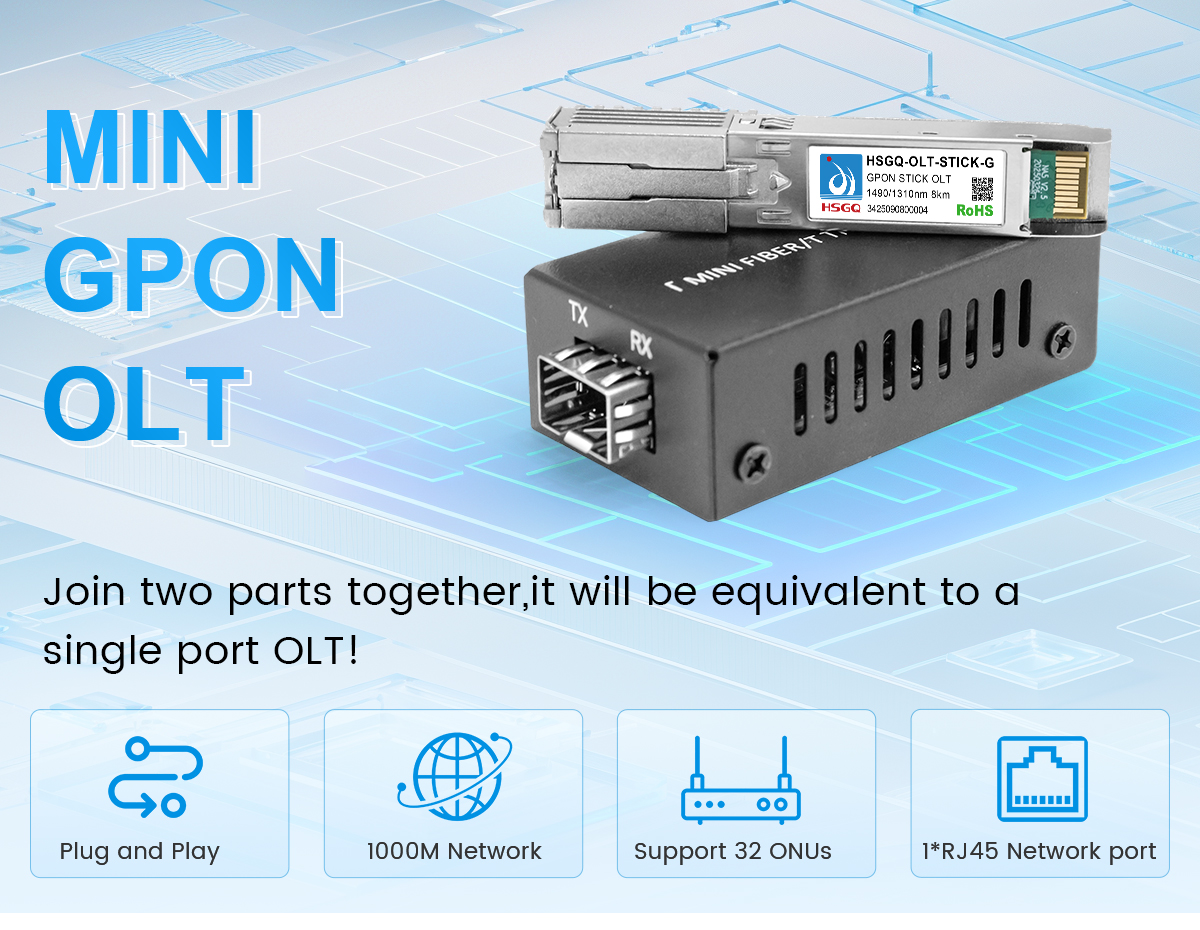

HSGQ-OLT-GPON-STICK-G combines an optical fiber transceiver with a GPON OLT Stick to help upgrade traditional data communication equipment to an all-optical access network.
Its modular design makes port configuration more flexible and allows the GPON function to be integrated into compatible network equipment with optical ports. This can reduce the need for a separate OLT chassis in distributed or space-limited deployments.
The GPON OLT Stick is designed to support easier installation, troubleshooting, replacement, and maintenance. It can also help operators adapt the access network to different business requirements while controlling equipment space and deployment costs.
When planning a complete fiber access network, the HSGQ GPON product range includes GPON OLTs, ONUs, and related optical access equipment.
Item | HSGQ-GS01KIT |
User Interface | 1*GPON |
1*GE RJ45 | |
PON | PON port: PON SFP+ slot (20 pin) |
Type GPON: Class B+ | |
Split Ratio: 1:32 (Maxmium) | |
Bandwidth | Upstream 1.244Gbps; Downstream 2.488Gbps |
Distance | 8km |
Dimensions | 75*12*22mm |
Environment | Work Temperature: -10°C~40°C |
Storage Temperature: -20°C~85°C | |
Humidity: 10%~95% (non-condensing) | |
Power Supply | DC 5V |
Power Consumption | ＜3W |
Platform Features | Support auto register |
Manually activate the ONU | |
P2P | |
Mandatory Rate | |
Cover Offline | |
Display | Support fault display |
Support status display | |
Configuration and Management | WEB |
Firmware Upgrade | |
Batch upgrade of up to 5 ONU devices |

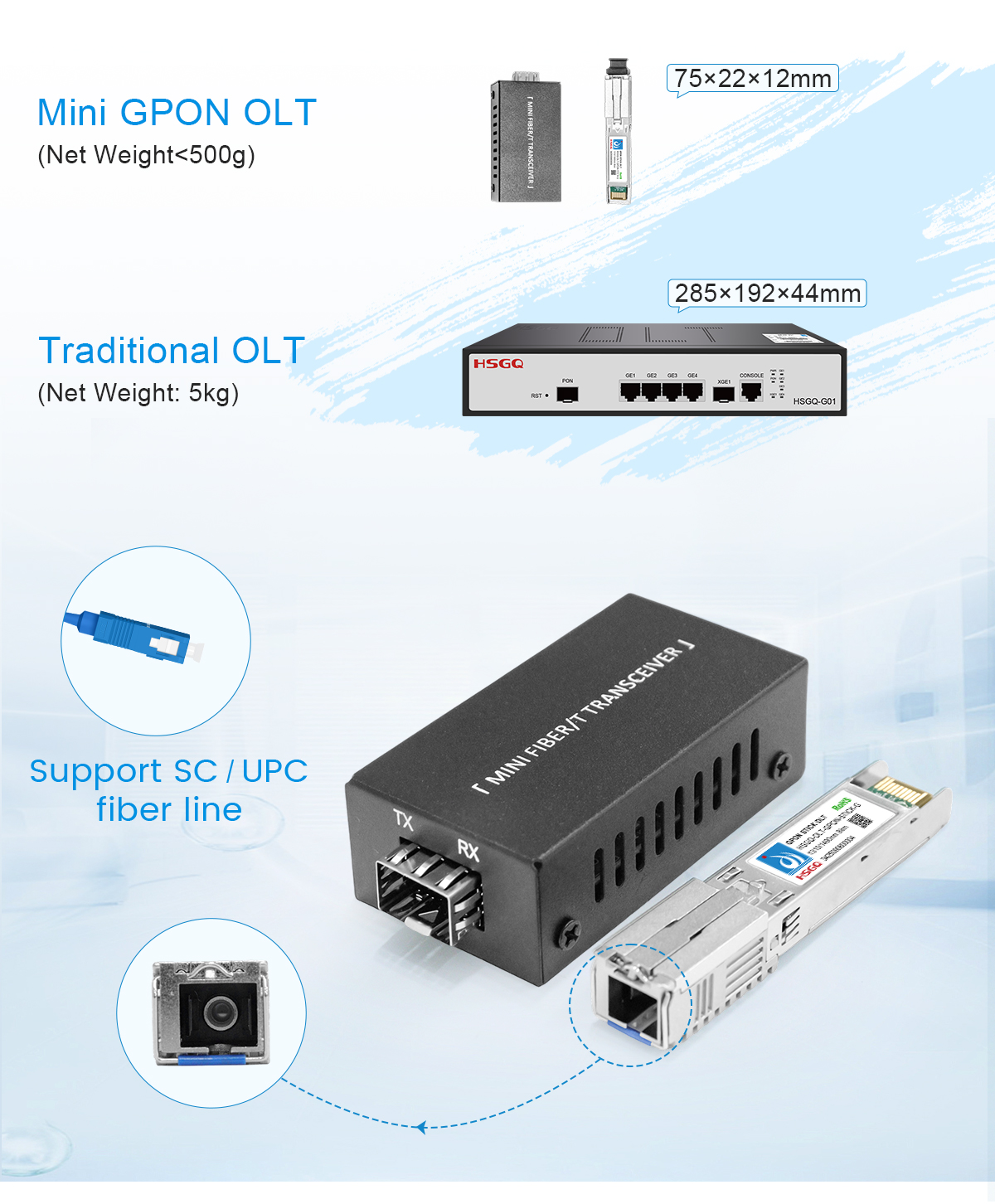

Compared with a traditional standalone OLT, the GPON OLT Stick is much smaller and lighter. Its compact design is suitable for existing switches, routers, firewalls, edge devices, and local network cabinets where installing a full-size OLT is inconvenient.

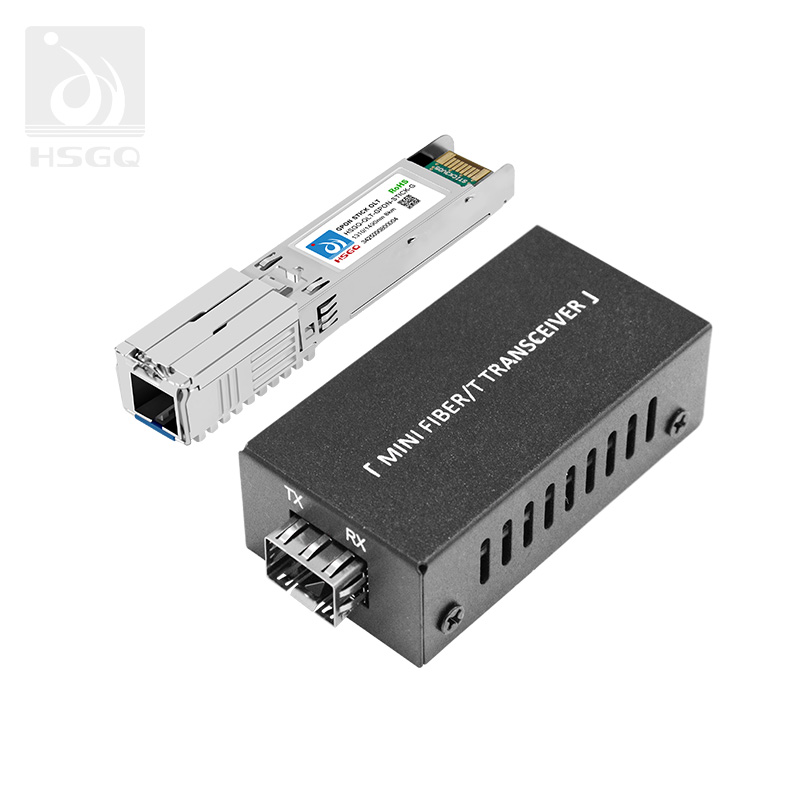

The combination of an SFP+ GPON OLT Stick and optical transceiver provides a more portable way to add GPON access to compatible host equipment. This can be useful for:
Small network rooms
Remote equipment cabinets
Building-level access points
Enterprise branches
Small ISP edge sites
Temporary or phased deployments
Distributed FTTH and FTTx networks
The final host compatibility should be checked before installation because the host optical port must support the required module format, power, and management conditions.
The compact GPON OLT Stick can be used in different network environments where fiber access, low equipment volume, and flexible deployment are important.
Typical application environments include:
Office buildings
Hospitals and healthcare facilities
Shopping malls
Libraries
Parking lots
Public gardens
School and campus networks
Small enterprise branches
Community broadband networks
In these environments, the GPON OLT Stick can provide a localized GPON access point without requiring a separate traditional OLT chassis at every site. The actual network structure depends on the host device, optical distribution system, ONU terminals, and management method.

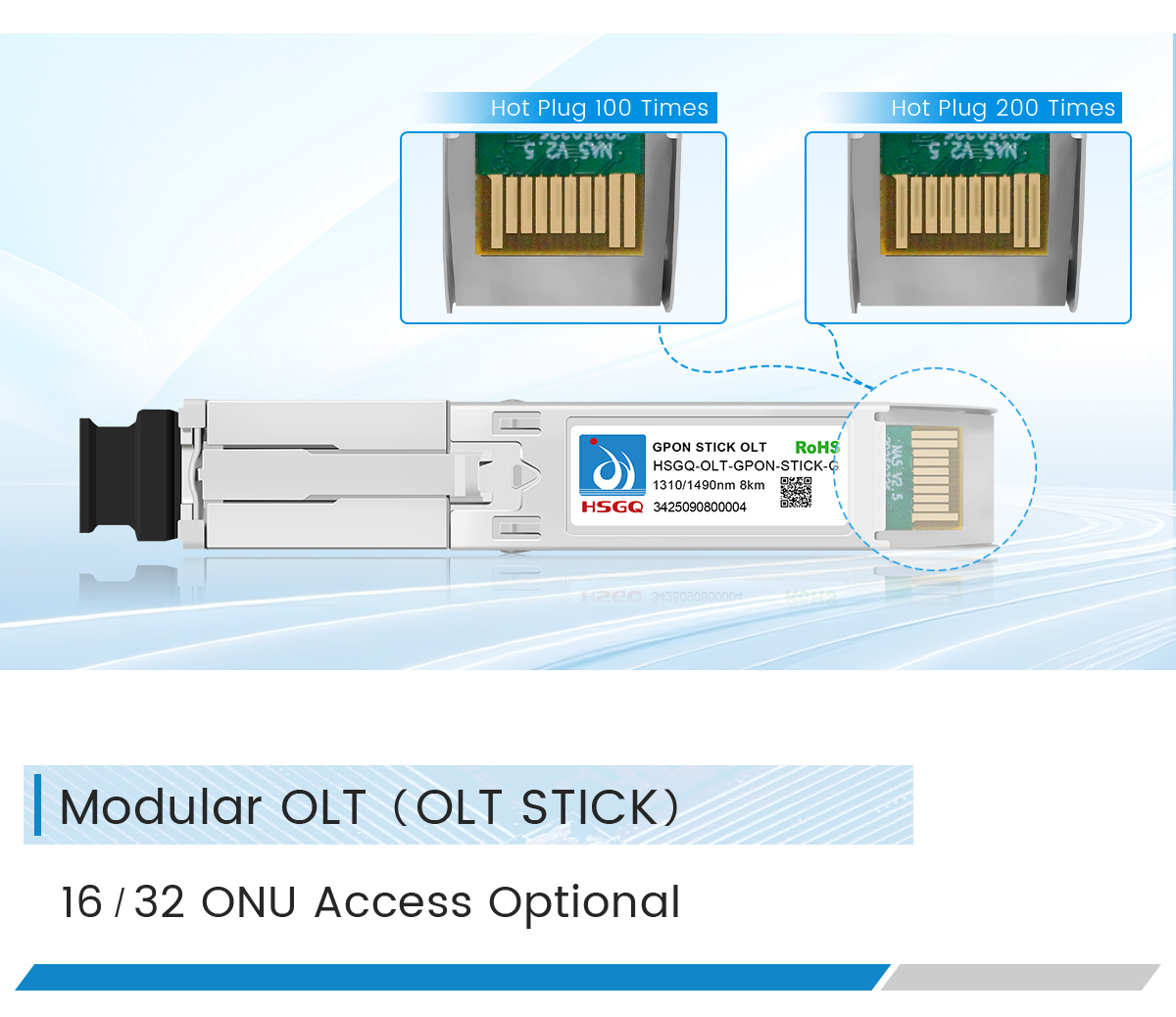

The HSGQ GPON OLT Stick uses a thicker gold-finger contact design with hard-gold plating. The enhanced contact surface is intended to provide more reliable electrical contact during insertion, removal, and replacement.
This design is useful in networks where modules may need to be replaced during maintenance or where different optical access configurations are tested during deployment.
To protect the contact surface, the module should be installed and removed according to the host equipment instructions. Operators should also avoid touching the gold-finger area directly and should keep the optical and electrical interfaces clean.
The modular OLT Stick supports plug-and-play deployment in compatible host equipment. After the module and optical connection are installed, the network administrator can configure the GPON access function and register the required ONU terminals.
The available ONU capacity can be selected for 16 or 32 terminals according to the product configuration and network requirements. ONU terminals can be automatically registered when the required authentication and access settings are prepared.
The GPON OLT Stick also supports transparent VLAN transmission as configured by the host network. This makes it suitable for projects that need to pass existing service VLANs between the GPON access network and the upstream Ethernet network.
The HSGQ GPON OLT Stick follows the standard GPON protocol and is designed to support a wide range of GPON ONU and HGU-type ONU terminals.
It can be considered for networks that use third-party HGU devices, wireless ONUs, fiber ONUs, or other GPON terminal equipment. Compatibility may depend on OMCI behavior, authentication method, VLAN configuration, firmware, and service profile.
For larger terminal deployments, buyers can review the HSGQ ONU and ONT product range and confirm the required ONU models before ordering.
The GPON OLT Stick provides a virtual single-PON OLT function through a compatible optical host device. This allows operators to expand or manage a PON access network without installing a complete standalone OLT chassis at the edge location.
The solution can be useful when a switch, router, or firewall already provides the required optical port and network management environment. The GPON OLT Stick adds the PON access function while the host device continues to provide the upstream network connection.
This approach can help reduce equipment duplication in distributed networks and provide a more flexible path for expanding GPON access to remote buildings or localized service areas.

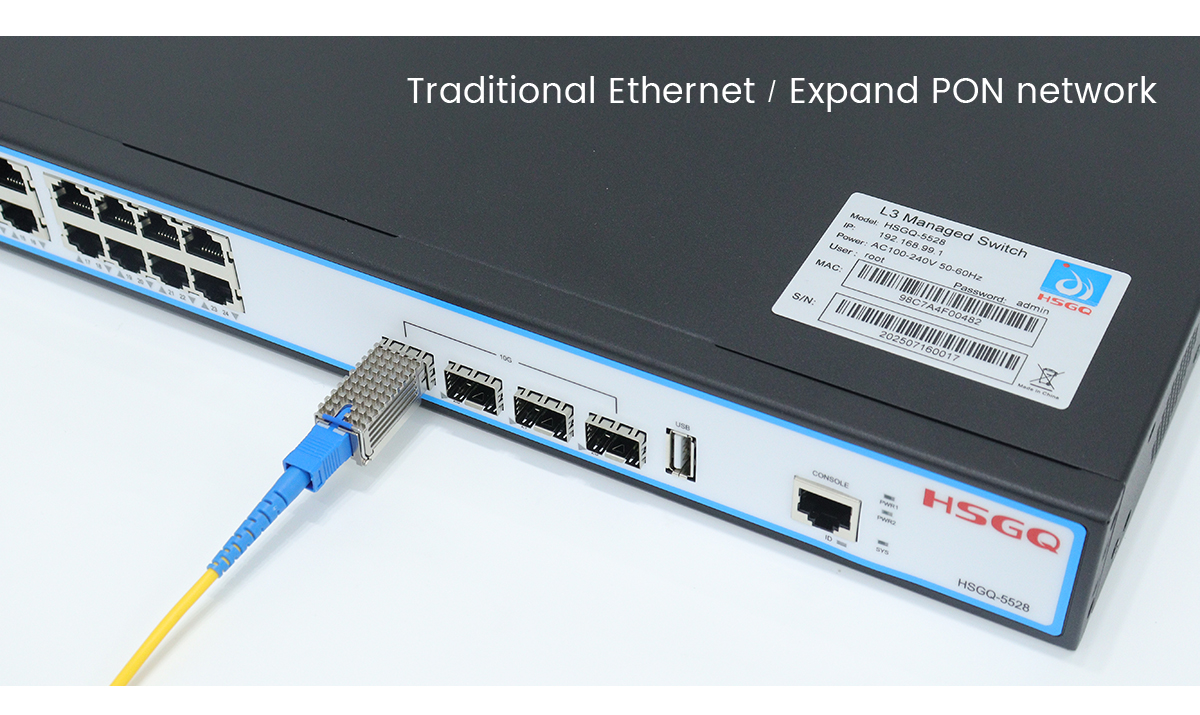

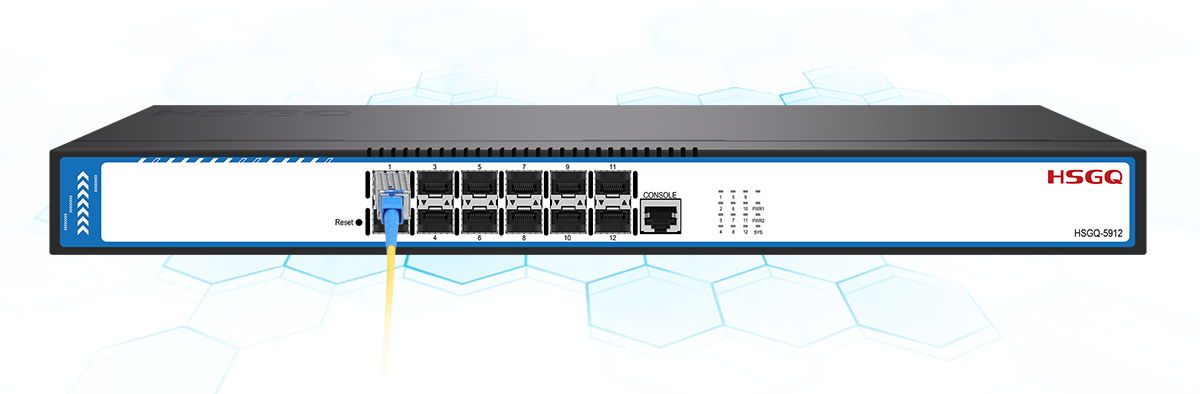

The GPON OLT Stick is designed for use with compatible third-party switches, routers, and firewalls that provide suitable optical ports.
It may be used in different host environments, including:
Ethernet aggregation switches
Optical network switches
Routers with compatible SFP+ ports
Firewalls with optical uplink interfaces
Edge network equipment
Distributed access devices
Compatibility should be checked based on the host port type, module recognition, power supply, firmware, optical wavelength, management method, and network configuration. The phrase “third-party compatible” should be understood as compatibility with suitable devices rather than a guarantee for every optical device on the market.
Item | GPON OLT Stick | Standalone Mini GPON OLT |
|---|---|---|
Form Factor | SFP+ module with optical transceiver | Independent OLT chassis |
Host Requirement | Requires a compatible switch, router, firewall, or optical host | Operates as a standalone network device |
Installation | Inserted into a compatible optical port | Installed separately in a cabinet, rack, or equipment room |
Power Consumption | Less than 2.5W for the OLT Stick | Higher overall equipment power depending on model |
Space Requirement | Very compact and portable | Larger than an SFP+ module |
ONU Capacity | 16 or 32 terminals according to configuration | Capacity depends on the number of PON ports |
Best Application | Edge upgrades, distributed access, and rapid deployment | Centralized FTTH, FTTx, or small ISP access networks |
Main Advantage | Adds GPON functionality to existing optical equipment | Provides an independent OLT platform with more standalone functions |
The GPON OLT Stick is more suitable when the network already has compatible optical host equipment. A standalone Mini GPON OLT may be more appropriate when the project requires an independent OLT, multiple local interfaces, or a larger dedicated management platform.
The GPON OLT Stick supports bidirectional data transmission over a single optical fiber. It provides downstream data rates of up to 2.488Gbps and upstream data rates of up to 1.244Gbps.
The module is equipped with a GPON MAC function for GPON access processing and communication with compatible ONU terminals.

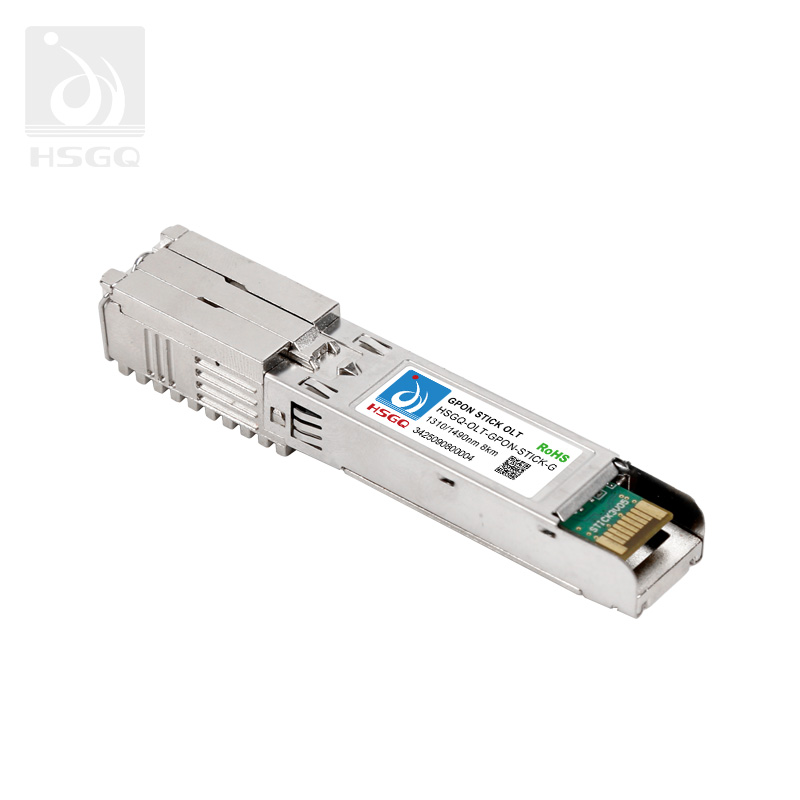

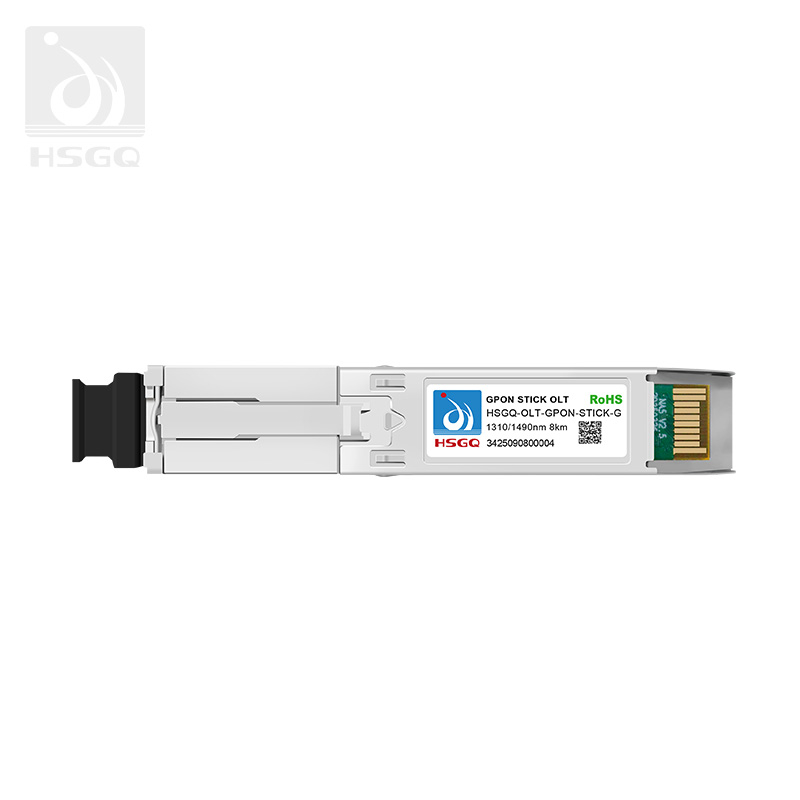

The OLT function is integrated into an SFP+ package for flexible installation in compatible optical equipment. The optical side uses an SC interface for connection to the single-mode fiber link.
The SC interface and optical path should be matched with the selected fiber connector, optical budget, and ONU deployment.
The GPON OLT Stick supports hot-swappable installation for easier replacement and maintenance. This allows a faulty or outdated module to be replaced without removing the complete host device.
Hot swapping should be performed according to the host equipment’s operating instructions. Service interruption may still occur if the removed module is carrying an active PON link.
The GPON OLT Stick supports transmission distances of up to 8km over single-mode fiber. Actual distance depends on optical power, connector loss, fiber quality, splitter configuration, and the optical budget of the complete GPON network.
The module consumes less than 2.5W, helping reduce power requirements in edge devices, compact cabinets, and distributed network locations.
Low power consumption is especially useful when multiple optical modules are installed in the same host device or when the deployment site has limited power capacity.
The HSGQ-OLT-GPON-STICK-G operates in GPON mode and is designed for connection to compatible GPON ONU or HGU terminals.
It should not be treated as an EPON, XGS-PON, or multi-mode PON module unless the specific product version has been confirmed for that technology.
The GPON OLT Stick supports up to 16 or 32 ONU terminals according to the product configuration. The actual number of active ONUs should be planned together with the split ratio, optical budget, bandwidth requirements, authentication method, and ONU compatibility.
The shell temperature range is specified as -40°C to 85°C. The actual installation and operating conditions should follow the technical parameter table and the requirements of the host equipment.
Before installing the GPON OLT Stick, buyers and network engineers should confirm:
The host device provides a compatible SFP+ or optical port.
The host supports the required module power and operating conditions.
The module can be recognized by the host platform.
The host network supports the required VLAN and Ethernet configuration.
The SC fiber connection matches the planned optical path.
The GPON OLT Stick and ONU terminals use compatible authentication and management settings.
The host equipment provides sufficient ventilation.
The optical budget is suitable for the planned fiber distance and splitter design.
These checks are particularly important when the module is installed in a third-party switch, router, or firewall.
The GPON OLT Stick supports 8km single-mode fiber transmission and up to 16 or 32 ONU terminals according to the configuration.
Before deployment, the following items should be reviewed:
Number of ONUs to be connected
Required split ratio
Fiber distance
Optical connector type
Total insertion loss
Optical power budget
ONU authentication method
GPON service profile
VLAN and traffic requirements
Expected downstream and upstream usage
The maximum terminal quantity and transmission distance should not be considered separately. A higher split ratio, longer fiber route, or additional passive components may reduce the available optical margin.
A typical installation process includes:
Confirm that the host switch, router, firewall, or optical device supports the required module.
Insert the GPON OLT Stick into the compatible optical port.
Connect the SC single-mode fiber to the PON interface.
Connect the optical transceiver or host-side network interface as required.
Configure GPON mode and the required access parameters.
Register or authorize the ONU terminals.
Configure VLAN transmission and upstream Ethernet settings.
Check PON status, optical link status, and ONU registration.
Test data traffic and service continuity.
The module should be handled carefully during insertion and removal. Optical connectors should be protected from dust and contamination during installation.
The GPON OLT Stick is a practical option for organizations that need to add GPON access to existing optical network infrastructure.
It can be considered for:
Distributed FTTH and FTTx access
Small ISP edge deployment
Office branch connectivity
Hospital and public facility networks
Small campus and library networks
Parking and public garden monitoring
Enterprise optical network upgrades
Remote equipment rooms
Pilot GPON projects
Mobile or edge backhaul applications where GPON access is suitable

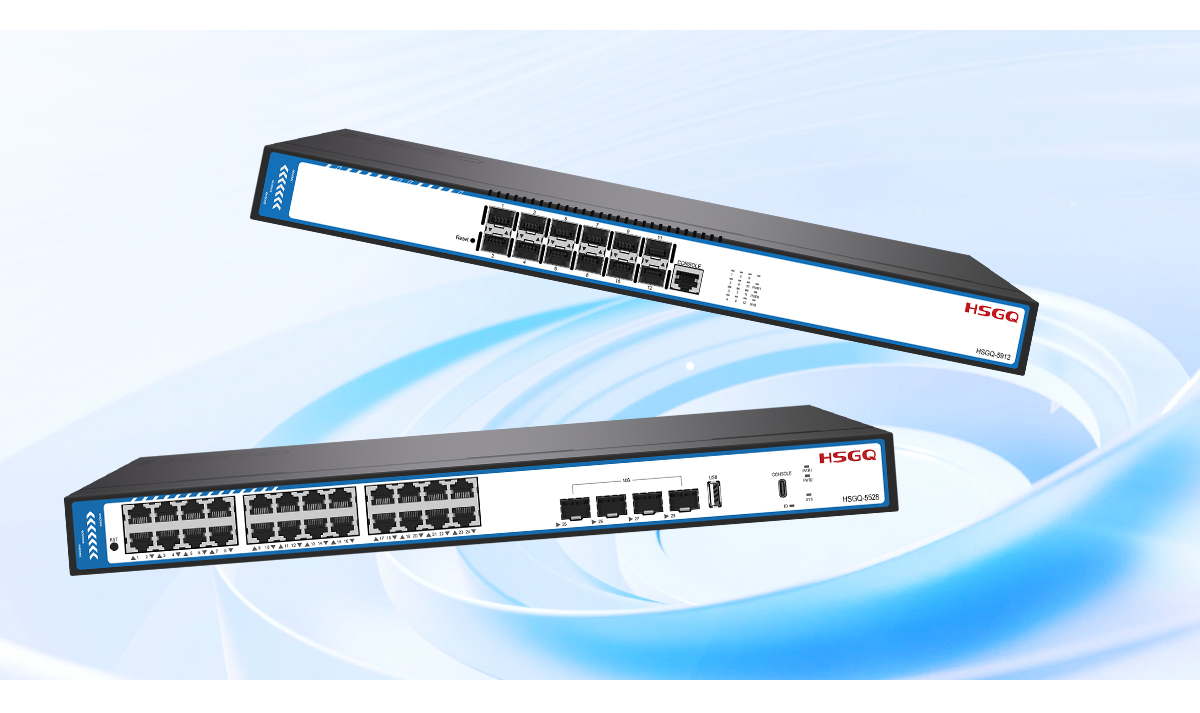

For larger centralized deployments, the HSGQ OLT product range includes standalone Mini OLT, GPON OLT, EPON OLT, and XGS-PON options.
A GPON OLT Stick is a compact OLT device in an SFP+ package. It provides GPON access functionality through a compatible optical host device instead of requiring a separate full-size OLT chassis.
No. The host device must support the required module format, power, optical interface, module recognition, and network management conditions. Compatibility should be confirmed before installation.
A GPON OLT Stick includes GPON OLT processing and MAC functionality, while a standard SFP module generally performs optical transmission only. The OLT Stick can provide a PON access function when installed in a suitable host platform.
The product supports up to 16 or 32 ONU terminals according to the configuration. The final number depends on the selected version, split ratio, optical budget, bandwidth, and ONU compatibility.
The GPON OLT Stick supports up to 8km over single-mode fiber. Actual transmission distance depends on optical power, fiber loss, connector quality, splitters, and the optical budget of the complete network.
It is designed to support a wide range of GPON and HGU-type ONU terminals. Specific compatibility depends on OMCI, authentication, VLAN settings, firmware, and the required service profile.
Yes. The GPON OLT Stick supports hot-swappable installation. However, removing an active module may interrupt the PON service connected to that module, so maintenance should be scheduled appropriately.
It can be used with compatible third-party switches, routers, and firewalls that provide suitable optical ports. The host device should be checked for module support, power, firmware, optical interface, and management compatibility.
The HSGQ-OLT-GPON-STICK-G is a GPON-mode product. It should be used with compatible GPON ONU terminals and should not be assumed to support EPON or XGS-PON.
The product uses an SC interface and should be matched with the correct SC fiber connector and optical configuration. The required connector type and optical path should be confirmed before deployment.
A standalone Mini GPON OLT is generally more suitable when the project needs an independent OLT platform, more local interfaces, a larger ONU capacity, or a dedicated management system. The GPON OLT Stick is better suited to compact upgrades and compatible optical host devices.
Planning to upgrade a switch, router, firewall, or edge device with GPON access? Share your host device model, ONU quantity, fiber distance, and network requirements with the HSGQ team.
