In today's rapidly evolving digital transformation, whether it's small and medium-sized ISPs, enterprise campus networks, or home network enthusiasts seeking the ultimate solution, everyone faces the same challenge: how to maximize network bandwidth while minimizing equipment costs and space usage?
Traditional networking methods typically require a bulky external optical modem (wifi ONU/ONT) with its own power supply, connected to a switch or router via network cables. This not only makes the weak current box or server rack look cluttered but also increases potential points of hardware failure.
What is a GPON STICK?

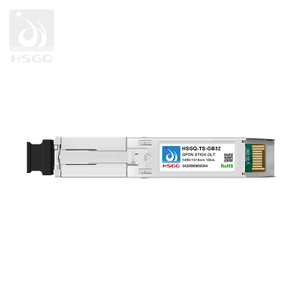

A GPON STICK (such as HSGQ-TS-GB32) is an innovative hardware component that encapsulates all the chips and functions of a traditional GPON ONU (optical modem) into a standard SFP module. One end has a standard SC fiber optic interface for connecting to the operator's PON fiber optic cable; the other end has a standard SFP interface, essentially functioning as an "invisible optical modem."
Why choose a direct connection solution of "switch + GPON STICK"?

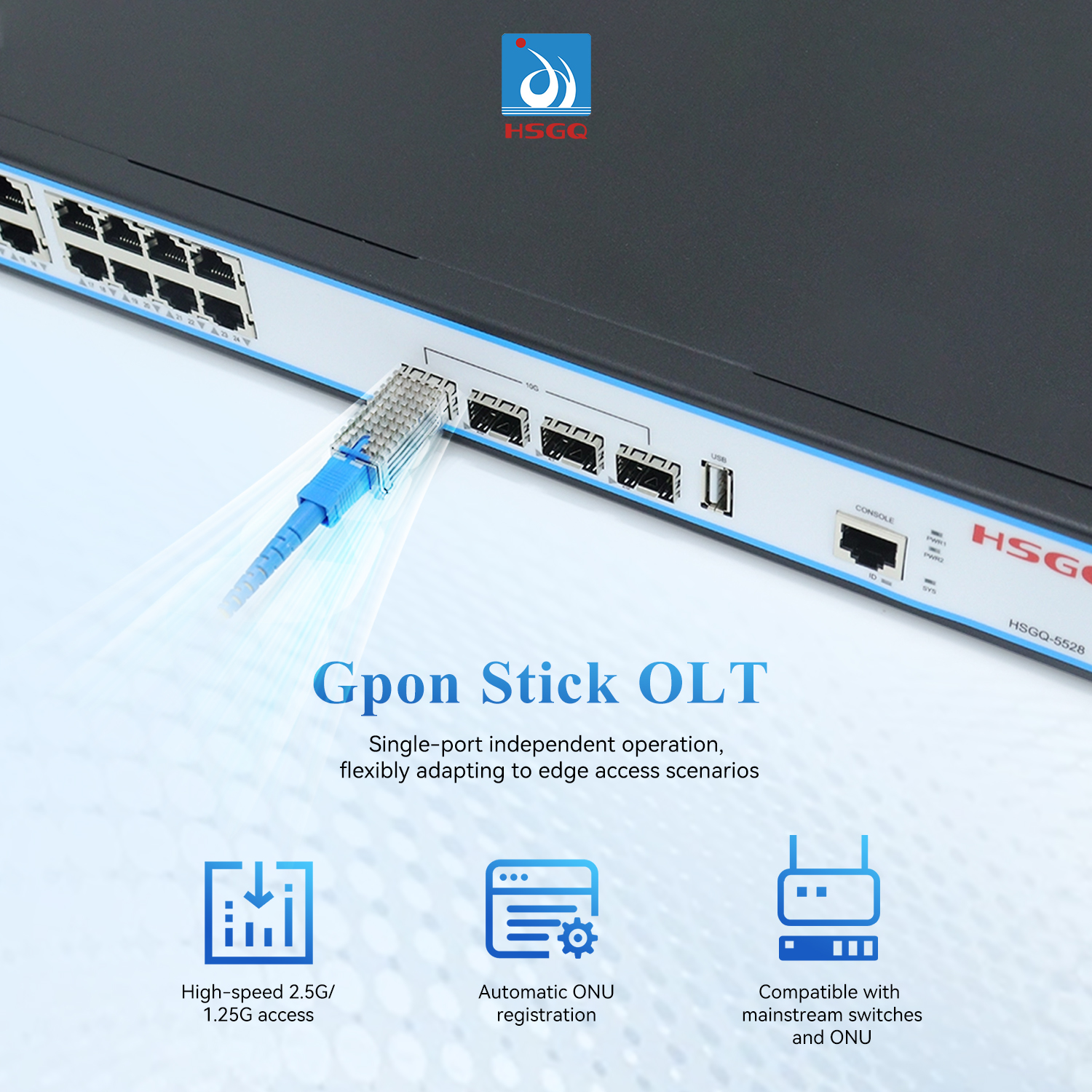

Plug a GPON STICK directly into an L2/L3 intelligent managed switch with SFP ports, bringing revolutionary changes to network deployment:
1. Significantly Reduced Burden on Server Rooms and Weak Current Boxes
Since the GPON STICK is directly powered by the switch's SFP ports, the entire network completely eliminates the need for traditional optical modem power adapters. Without redundant network cables and messy power cords, the space utilization of server room racks or home weak current boxes is greatly improved.
2. Significantly Reduced Capital Expenditure and Operating Costs
For scenarios such as multi-tenant apartments, smart hotels, or small parks, there is no need to purchase a separate optical modem for each access point. Utilizing a single high-speed fiber optic switch in conjunction with a GPON STICK for wide-area uplink, and distributing downlink directly through dense Ethernet ports, significantly reduces hardware procurement costs and subsequent maintenance funds.
3. Powerful Multi-Service Isolation and Network Management
With the powerful VLAN segmentation, QoS priority control, and security policies of managed switches, engineers can precisely control uplink traffic directly on the switch side. Whether it's an office network, a monitoring network, or guest Wi-Fi, perfect physical and logical isolation can be achieved with a single fiber optic cable upstream.
Key Advantages
**Extreme Space Saving**
**Eliminate Bulk Optical Modems:** It compresses all the functions of traditional optical modems into an SFP module. After being directly plugged into a switch or router, the physical optical modem that previously occupied space completely disappears.
**Zero Redundant Cables:** No more power adapters or network cables connecting the optical modem and the switch are needed, making server racks in server rooms or home electrical boxes extremely clean.
**Green Energy Saving and Unified Power Supply**
The GPON STICK is directly powered by the SFP port of the switch or router. This not only reduces the occupation of power strip slots but also allows for remote hard rebooting of the module's ports via a managed switch, greatly improving maintenance convenience.
**Breaking Through the Gigabit Bottleneck (Some Advanced Modules)**
Traditional gigabit optical modems typically only have 1Gbps LAN ports (actually reaching around 940Mbps at full speed). Some GPON STICKs supporting 2.5G bus speeds, when plugged into switch ports supporting 2.5G or 10G SFP+, can perfectly utilize the bandwidth provided by the operator (e.g., 1000M broadband actually delivered as 1200M), breaking through the bottleneck of gigabit physical network ports.
High Architectural Flexibility
For enterprise POL (all-optical campus) or multi-tenant networks, engineers can directly perform multi-service VLAN segmentation, QoS priority configuration, and firewall policy control on the GPON STICK's uplink WAN traffic at the switch end. No need for multiple layers of cumbersome mapping between the optical modem and the switch.
Potential Disadvantages & Challenges
Extremely High Heat Generation (The Core Pain Point)
Highly concentrated heat: The GPON STICK is essentially a complete ONU running a miniature Linux system. Crowding high-power photoelectric conversion chips and processors into a small SFP metal casing results in operating temperatures typically reaching 60°C-80°C, or even higher.
Strict heat dissipation requirements: If the installed switch lacks active fan cooling or is located in a sealed, poorly ventilated weak current box, the module is highly susceptible to overheating, leading to packet loss, slow network speeds, disconnections, or even hardware burnout.
High technical barrier and relatively complex configuration:
Traditional optical modems can be used simply by plugging in fiber optic cable and entering a broadband account. However, GPON STICKs are "hardcore" devices. Users typically need some network knowledge to manually clone the original optical modem's LOID, SN (serial number), MAC address, and other authentication information via SSH/Telnet or a hidden web interface. They may even need to configure complex port rate negotiation and VLAN service pass-through on the switch.
Port rate compatibility issues:
Most GPON STICKs have a physical bus speed of 1Gbps or 2.5Gbps. If plugged directly into an enterprise-grade 10G SFP+ switch port that is limited to 10Gbps and does not support backward compatibility, the system will not recognize the module at all. Both the device hardware and firmware need to support forced rate switching (e.g., manually locking it at 1000Mbps).
**Relatively Simple Functionality:** Traditional optical modems typically integrate Wi-Fi signal transmission, multiple LAN ports, and a voice port (POTS) for connecting landlines. GPON STICK, however, simply provides a standard fiber-to-data channel, without any Wi-Fi functionality or extra interfaces. Subsequent wireless coverage and terminal access must rely entirely on the connected switches and AP routers.
**Carrier Compatibility Risks:** Broadband operators in some regions (especially in certain provinces in China) have very strict control over optical modem terminals, performing dynamic encryption authentication or issuing specific service plugins at the OLT (Optical Terminal Level) in the data center. Third-party GPON STICK firmware may not be perfectly compatible with all brands of data center equipment, and occasionally the module may suddenly "disconnect" or be blacklisted after the operator's data center is upgraded.
Practical Guide: How to Connect a Switch to a GPON STICK?
To achieve perfect collaboration between the switch and the GPON STICK, the following four key steps are typically required:
Step 1: Physical Connection and Rate Negotiation
Plug the GPON STICK into the SFP port of the switch and connect the fiber optic cable to the module's optical port.
Note: Port rate compatibility is important. The GPON STICK's bus rate is typically 1Gbps. If you are using a switch with a 10G SFP+ port, be sure to log in to the switch's admin panel and manually lock the port's rate to 1000Mbps (1G). Otherwise, rate mismatch may cause the interface to be unrecognizable or its indicator lights to light up.
Step 2: Log in to the STICK Admin Panel and Clone Authentication Information
To allow the operator's OLT (Optical Line Terminal) to accept this new module, the original optical modem's authentication information must be cloned.
Connect your computer to the switch and set its IP address to a static IP address on the same subnet as the GPON STICK's default IP address (e.g., if the module's default IP is 192.168.1.1, set the computer's IP to 192.168.1.2).
Log in to the STICK management backend via a browser or SSH/Telnet.
Enter the original optical modem's LOID (broadband identification code), SN (serial number), and MAC address. Save and restart the module until the PON status displays as O5 (registered).
Step 3: Transmit VLANs on the switch
Internet services and IPTV from ISPs typically have specific VLAN tags.
In the switch's backend, locate the SFP port where the GPON STICK is inserted.
Configure this port in Trunk mode (or Hybrid mode as needed) and allow the ISP's Internet service VLAN IDs to pass through. This ensures that dial-up traffic is accurately transmitted to the upstream equipment room.
Step 4: Terminal Device Dial-up Internet Access
After VLAN pass-through is completed, the software router, firewall, or main router connected to the switch can directly dial up to the Internet via PPPoE by entering their broadband account and password.
Key Considerations: Heat Dissipation and Stability
Because the GPON STICK integrates a highly integrated optical modem chip in an extremely small space, its heat generation is greater than that of ordinary optical modules (typically operating at 60°C - 80°C).
When selecting a switch, it is recommended to use an industrial-grade or enterprise-grade managed switch with excellent heat dissipation performance and active fan cooling.
Ensure good ventilation in the server room or weak current box to avoid network packet loss or disconnection due to module overheating.
Conclusion
The all-optical access solution of direct connection of the switch to the GPON STICK, with its extremely high space integration, excellent cost performance, and flexible service flow control capabilities, is becoming a popular trend for next-generation POLs and small and medium-sized ISPs. Choosing high-quality communication hardware equipment can make the smooth upgrade of your 10 Gigabit fiber optic network easier and more efficient.
