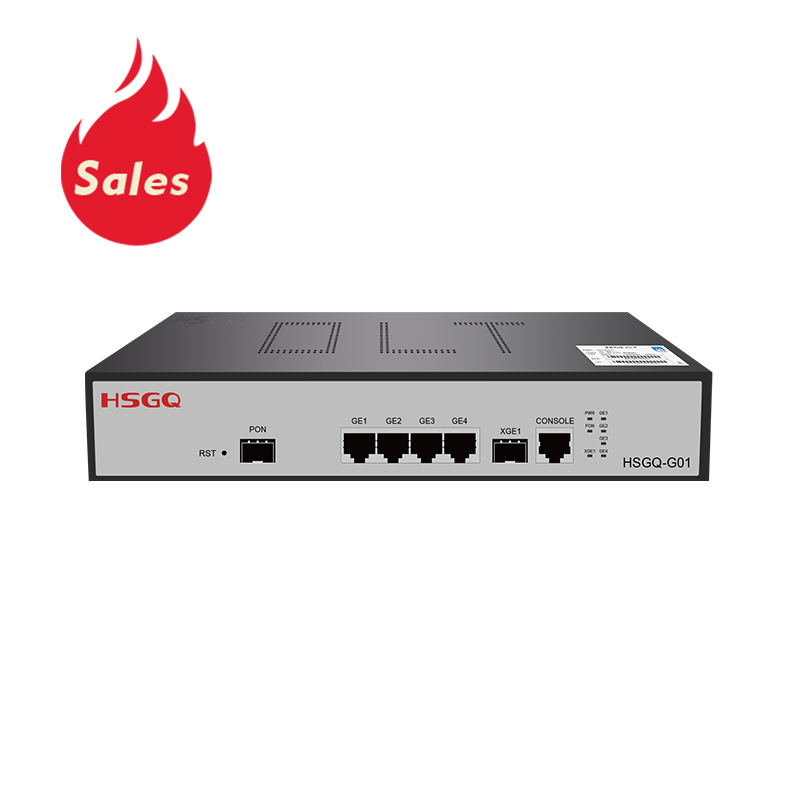

HSGQ-G01
| Quantity: | |
|---|---|
G01 is a small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/ Unicom GPON, with super GPON access capacity, carrier-class reliablity and the complete security function. lt can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and fexible network mode. G01 can be used with network management system so as to provide userswith the comprehensive access and perfect solution.
Small size products can support up to 128 GPON users greatly meet the needs of general micro projects.
Convenient and Efficient
An independent cloud management platform - HSGQ Cloud, enables cloud management of devices, allowing for easy and efficient operation of devices at any time.
High Speed Transmission
Experience lightning-fast data transfer speeds with our efficient transfer rate solutions! Utilize the latest cutting-edge technology to maximize network bandwidth utilization and ensure seamless, fast data transfer. Say goodbye to frustratingly slow file transfers. Whether you're uploading, downloading, or streaming large files, you're guaranteed unparalleled performance, saving you valuable time and increasing your productivity. Don't settle for slow data transfers - upgrade to our solutions today and unleash the full potential of your network!
All-Round Efficient Heat Dissipation
The porous position and the opposite setting form the convection effect and accelerate the heat dissipation of the equipment.
VALN Port Isolation
VLANs, or Virtual Local Area Networks, are the ultimate solution for optimizing network performance and security! VLANs allow you to divide your network into multiple virtual networks, thereby increasing control over traffic, improving network efficiency, and enhancing security measures. With VLANs you can isolate sensitive data, prioritize critical applications and easily streamline network management. Saying goodbye to network congestion and data leakage is the key to unlocking a faster, safer, and more reliable network environment.
Multiple Scenes
| Item | HSGQ-G01 |
| Interface | 1*GPON |
| 4*GE RJ45 | |
| 1*10G SFP+ | |
| PON | ITU.T G.984.x/G.988; |
| Password authentication modes | |
| Terminal access up to 60km on a single fiber | |
| 1: 128 split ratio on single PON port | |
| DBA algorithm, and the particle is for 64Kbit/s | |
| Standard OMCI management function | |
| ONU batch software upgrade | |
| PON port optical parameter detection | |
| Auto registration ONU bound with default profile | |
| Flash | 16MB |
| DDR | 512MB |
| Size | 250mm x 180mm x 44mm |
| Weight | ＜5kg |
| Management Ports | Console port |
| Environment | Operating temperature:-10°C~55°C |
| Storage temperature:-40°C~70°C | |
| Storage humidity:5%~95% (non-condensing) | |
| Power Supply | DC 12V |
| Power Consumption | ＜10W |
| Platform Management Features | Device list |
| Project management | |
| Version Release | |
| Lisense management | |
| Permission management | |
| User management | |
| Configuration and Management | CLI, WEB, SNMP, NMS and CLOUD |
| Software and bootrom Upgrade by TFTP and FTP | |
| Chinese/English command prompt | |
| Ping and Debug diagnosis | |
| User/Log/Alarm management | |
| Status | PON Status |
| Uplink Status | |
| Performance Monitor | |
| System Monitor | |
| L2 Function | Support VLAN |
| Support Port mirror | |
| Support Storm control | |
| Support IGMP Snooping/proxy | |
| Support MAC Black Hole | |
| Support Port isolation | |
| Encrytion of PON port transmitting data |
16K MAC address table.
Support flexible DBA, up and down traffic speedcontrol.
Support port aggregation.
Support port-based traffic control, traffic shaping.
Support ONU automatic identification, auto-discovery, and auto-registration.
Support VLAN.
Flexible and controllable multicast support.
Support IGMP snooping.
Support Cloud Management.
Optical link diagnosis: Complete warning mechanism.
High reliability: Support dual power supply.
Dimension: 1U cassette save space, low power consumption.
Uplink: Support electrical and optical modules, can be flexibly configured according to different networking.
Capacity: Each PON supports up to 128 terminals, the whole device supports up to 128 ONUs under full configuration.
