HSGQ-X410DW
Availability: | |
---|---|
Quantity: | |

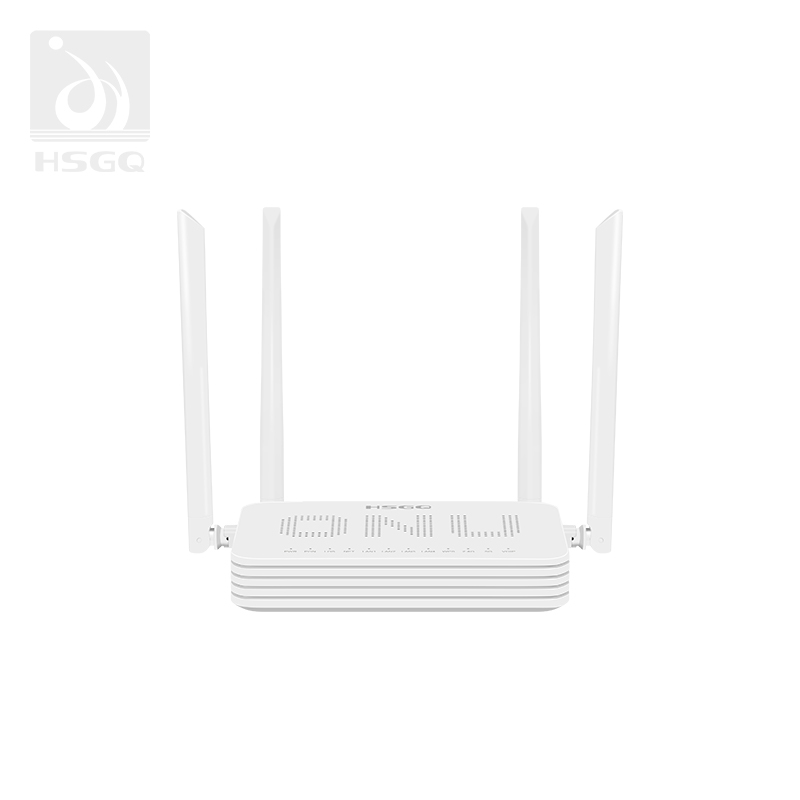

HSGQ-X410DW is the flagship model in FTTH projects, also for commercial use is high level model. It offers 4 Lan port and 1 voice port with dual band wifi. No matter wireless access and wire access all have good experience. Besides the voice port, all Internet/ Video/ Voice service can be loaded.
Extremely Fast Fiber
Optic Essential for Home Access
HSGQ-X410DW is ideal for Fiber-to-the-Home (FTTH) and Fiber-to-the-Office (FTTO) deployments. It provides versatile data transmission, video conferencing, and multimedia entertainment capabilities through E/GPON networks. With the ability to support multiple devices simultaneously, it ensures stable performance while offering seamless connectivity to the internet.
If Your Broadband Access is Fiber Optic
HSGQ-X410DW GPON Optical network terminal device, commonly known as "ONU", is an essential network equipment for optical fiber to homes and offices.
2.4GHz & 5GHz Dual-Band Concurrent
Maximize Network Performance
Surf the Internet, watch videos, play games fast and powerful processor, making web drama new faster, video playback more smooth, game delay shorter.
4×5dBi Antennas
Equipped with 4x5dBi enhanced antennas and utilizing scientific component layout to achieve excellent signal penetration, achieving complete signal coverage over a wide area.
Convenient and Efficient
An independent cloud management platform - HSGQ Cloud, enables cloud management of devices, allowing easy and efficient operation of devices at any time.
4 Full Gigabit Ports
1 Voice Port
The HSGQ-410DW features four full Gigabit LAN ports to ensure maximum utilization of every bandwidth, making it ideal for users with broadband connection speeds ranging from 100Mbps to 1000Mbps. It also provides a VolP voice interface for high-quality voice communications using optical fiber.
User interface | 1*10/100/1000M RJ45 port 1*POTS 300 Mbps (2.4GHz)/866 Mbps (5GHz) |
PON | EPON&GPON mode adaptive Interface Type: SC-APC/SC-UPC Security: ONU authentication mechanism Network coverage radius: 20KM GPON: upstream 1.25Gbps/ downstream 2.5Gbps Optical receive power: -7dBm~-27dBm Transmitting optical power: 0.5dBm~5dBm EPON: upstream 1.25Gbps/downstream 1.25Gbps Optical receive sensitivity: -7dBm~ -27dBm Transmitting optical power: 0dBm~4dBm |
Ethernet | 4*10/100/1000M auto-negotiation Full/ half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |
Size | 160mm(L)×110mm(W)×25mm(H) |
Environment | Operating temperature: 0℃~60℃ Operating humidity: 10%~85% (non-condensing) Storage temperature: -40℃~80℃ Storage humidity: 5%~95% (non-condensing) |
Power supply | 12V/ 1.5A DC power interface size: 2.1mm/ 5.5mm |
Power | < 12W |
Management | WEB/ TELNET/ TR069/ OMCI/ OAM |
POTS Port | 1*RJ11 Max 1km distance Balanced Ring, 55V RM |
Support device - based rate limitation and bandwidth control.
In compliant with IEEE802.3ah & ITU-T G.984.x standard.
WiFi series meet 802.11a/b/g/n/ac technical standards.
Up to 20KM transmission distance.
Support data encryption, group broadcasting, port Vlan separation ,etc.
Support Dynamic Bandwidth Allocation (DBA).
Support ONU auto - discovery/ Link detection/ remote upgrade of software.
Support port VLAN configuration.
Support power - off alarm function, easy for link problem detection.
Support QOS configuration.
Support port binding.
Support port flowarding.
Support ACL to configure data packet filter flexibly.
Specialized design for system breakdown prevention to maintain stable system.
Support software online upgrading.
Support TR069 for ACS (Auto Config Server).
Support PPPoE/ DHCP Server/ IPTV/ POTS/ NAT.
Support IPv4/ IPv6
Indicator | Description | |
POWER | Power status | On: The ONU is power on |
Off: The ONU is Power off | ||
PON | ONU Register | On: Success to register to OLT |
Blinking: ln process of registering to OLT | ||
Off: Fail to register to OLT | ||
LOS | Optical Signals | On: Optical link is abnormal |
Off: Optical in normal | ||
LAN | LAN Port status | On: Ethernet connection is normal |
Blinking: Data is being transmitted | ||
Off: Ethernet connection is not set up | ||
2.4G | 2.4G WiFi Status | On: WiFi function opens |
Blinking: Data is being transmitted | ||
Off: WIFI functions closes | ||
5G | 5G WiFi Status | On: WiFi function opens |
Blinking: Data is being transmitted | ||
Off: WIFI functions closes | ||
NET | Internet Status | On: ONU can access internet |
Off: ONU can not access internet | ||
WPS | WPS Status | On: Terminal has connected |
Blinking: Terminal is connecting | ||
Off: Terminal not connected | ||
POTS | POTS status | On: Voice account registered |
Off: Voice account not registered |
