Cost-Effectiveness: 25G provides a more cost-effective upgrade path, especially in terms of leveraging existing cabling infrastructure.
Backward Compatibility: Many SFP28 modules support dual-rate and can be compatible with both 10GbE and 25GbE, providing greater flexibility for network upgrades.
Easy Deployment and Maintenance: As a hot-swappable module, the SFP28 module is very easy to install, replace and maintain.
Digital Diagnostic Function: Allows users to monitor various parameters of the module in real time, such as optical power, temperature, voltage, etc., which is convenient for troubleshooting and network management.

Model:
SFP28-25G-10LR-27/33B

Quantity:
Availability:





Inquiry Datasheet

25G sfp module sfp module 20 km sfp module full form

Product Introduction

Key Feature

General Description

25 gig sfp modules

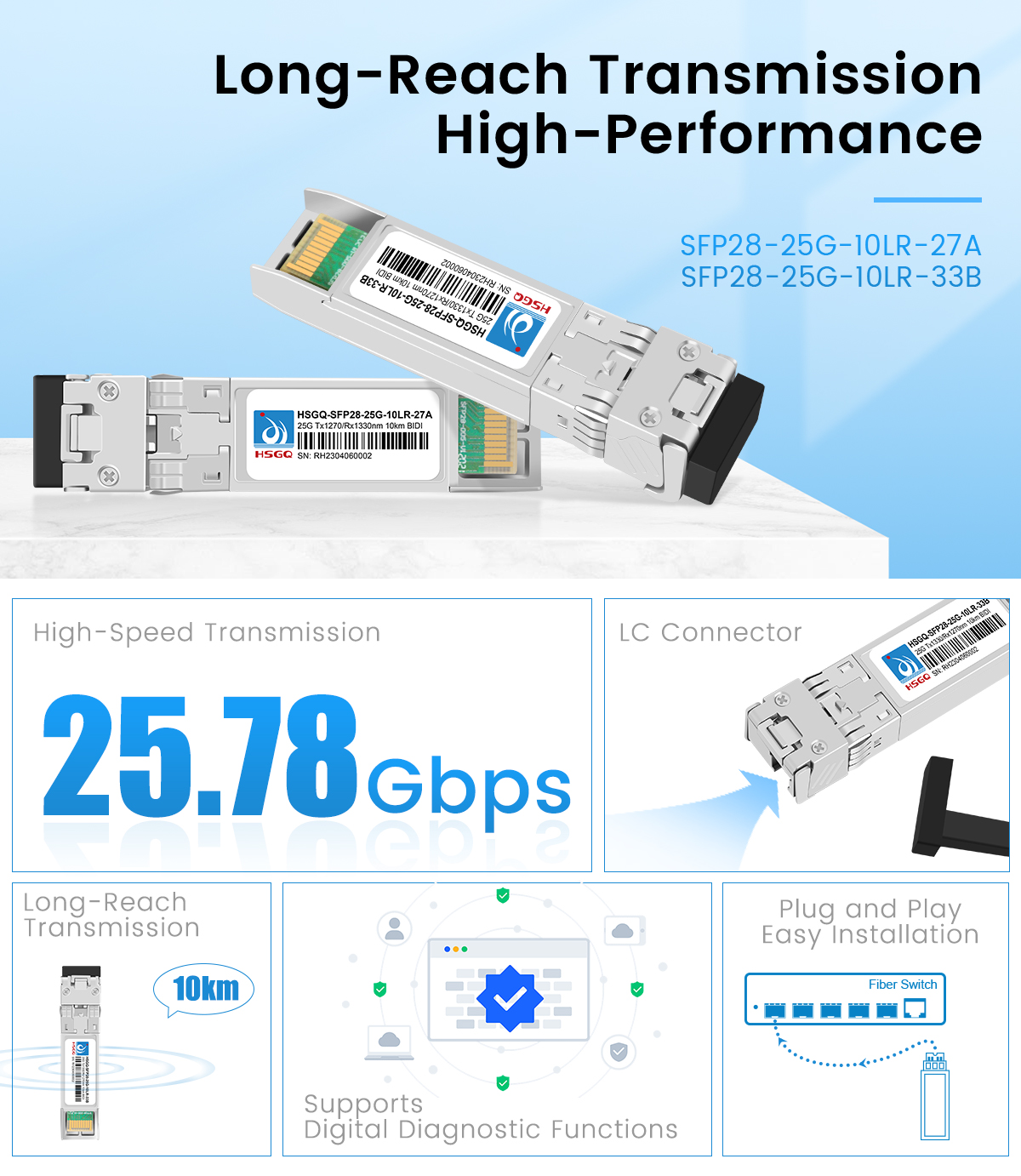

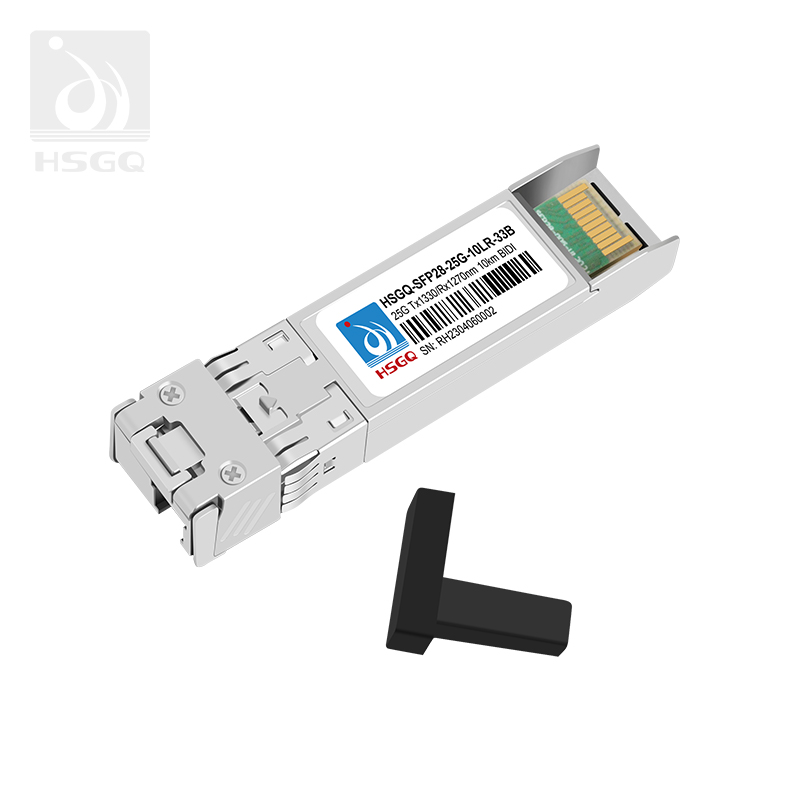

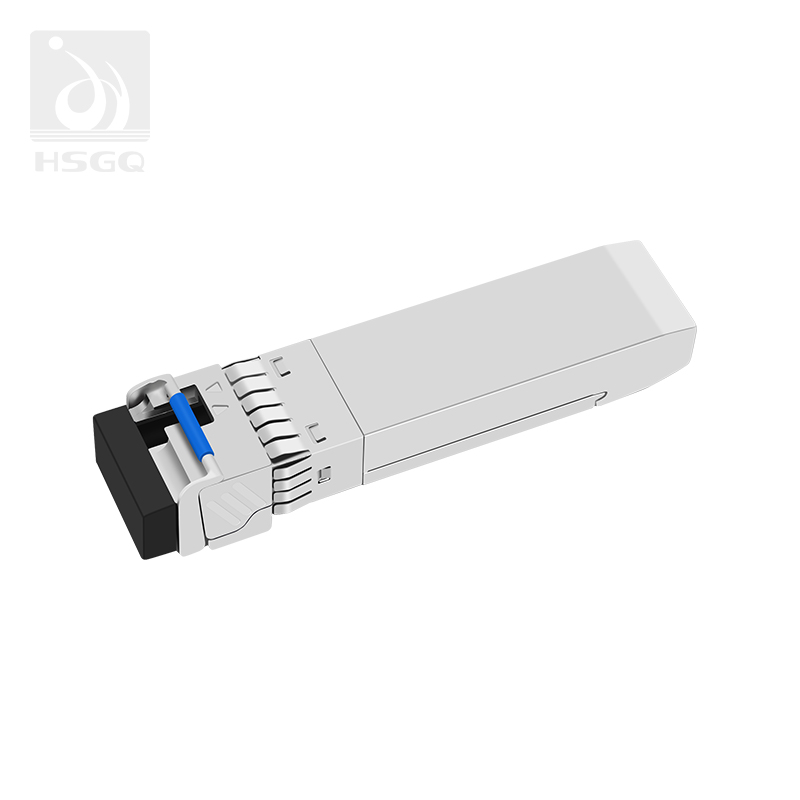

The SFP28 25G Single-Fiber Single-Mode is a high-performance 25G BIDI optical module that supports long-reach transmission up to 10 kilometers. Utilizing advanced DFB lasers, it provides data transmission rates of up to 25.78Gbps. This module complies with the IEEE 802.3cc standard and supports digital diagnostic functions, making it suitable for a variety of applications including data centers, 5G networks, and enterprise networks.

High-Speed Transmission, Low Latency

sfp module

The SFP28 25G Single-Fiber Single-Mode supports data transmission rates of up to 25.78Gbps, meeting the high-speed data transmission needs of data centers, 5G networks, and enterprise networks. Its advanced DFB lasers ensure efficient data transmission and low latency, making it suitable for applications that require large amounts of data transmission, such as high-definition video conferencing, big data analysis, and cloud computing.

Intelligent Diagnostics

Real-Time Monitoring

25G sfp module hot swappable

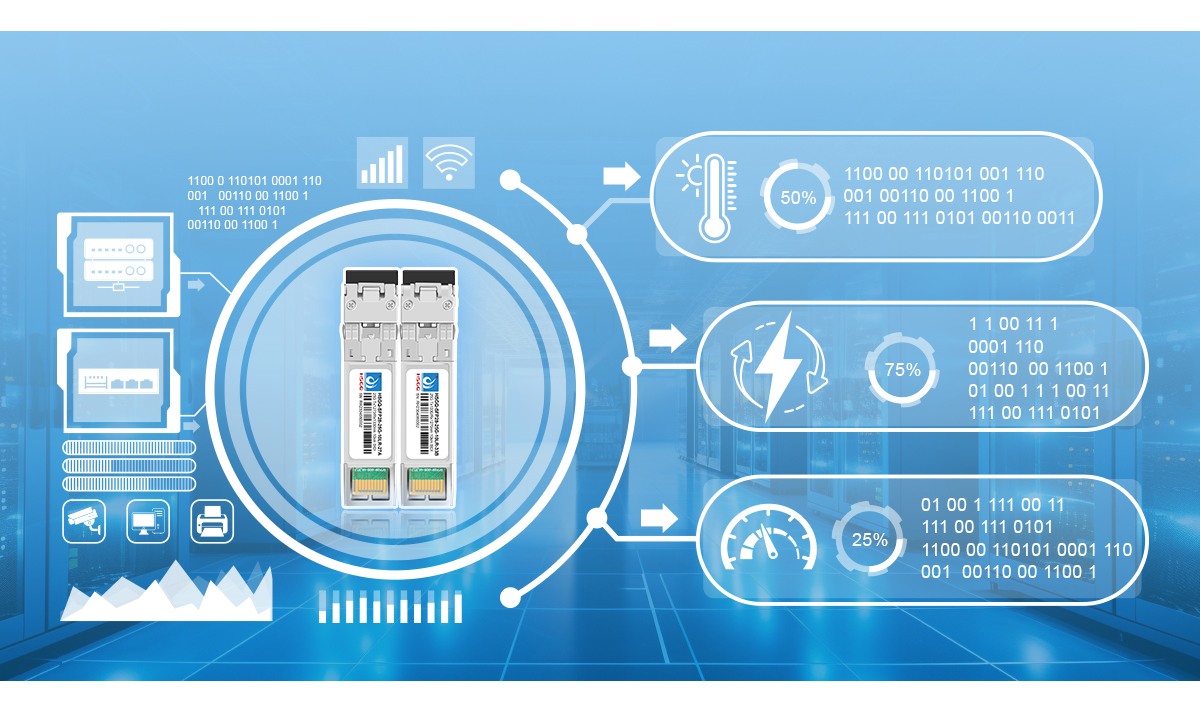

The SFP28 25G Single-Fiber Single-Mode supports digital Digital Diagnostic Monitoring(DDM), allowing users to monitor key parameters such as temperature, voltage, and optical power in real-time through the module's management interface. These functions not only enhance the reliability of the module but also facilitate troubleshooting and maintenance.

Low-Power Design

fiber optic sfp modules

The SFP28 25G Single-Fiber Single-Mode features a low-power design with a maximum power consumption of only 1W. This design not only reduces the module's operating costs but also enhances its heat dissipation performance, ensuring stable operation in high-temperature environments.

Diverse Network Needs

sfp module 10 km

Compliantwith SFF-8431 andSFF-8472
Compliant with SFP28 MSA Specification
Digital Diagnostic Monitoring available
Uncooled 1270nm DFB Laser
Uncooled 1330nm DFB Laser
Up to 25.78Gb/s bi-directional data links.
Up to 10km on 9/125um SMF
Simplex LC connector compliant
Single +3.3V DC power supply
Hot-pluggable SFP footprint
Class 1 laser safety certified
Low power dissipation
RoHS compliance.
Operating temperature Options: Commercial: 0 to 70℃: Industrial: -40 to 85°C

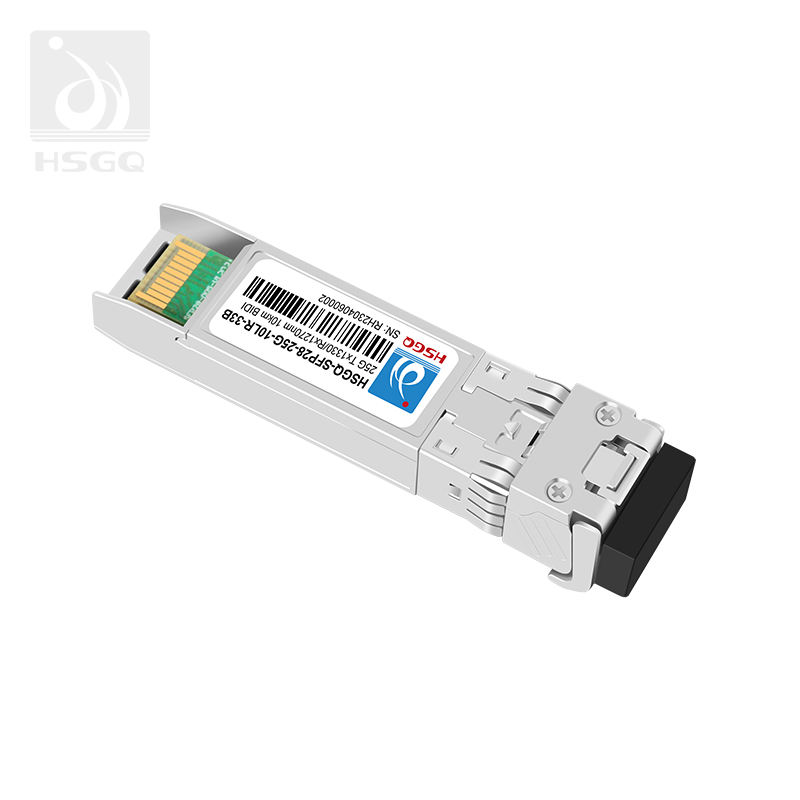

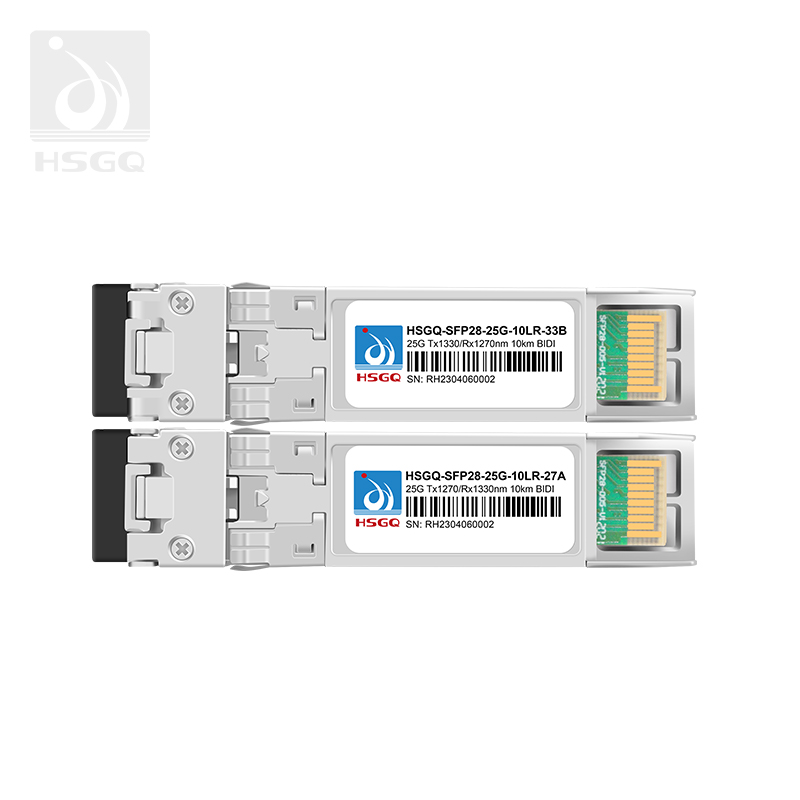

HSGQ-SFP28-25G-10LR-33B/HSGQ-SFP28-25G-10LR-27A is a highperformance, cost effective module, which is transmission distance up to10km. The transceiver consists of two sections:

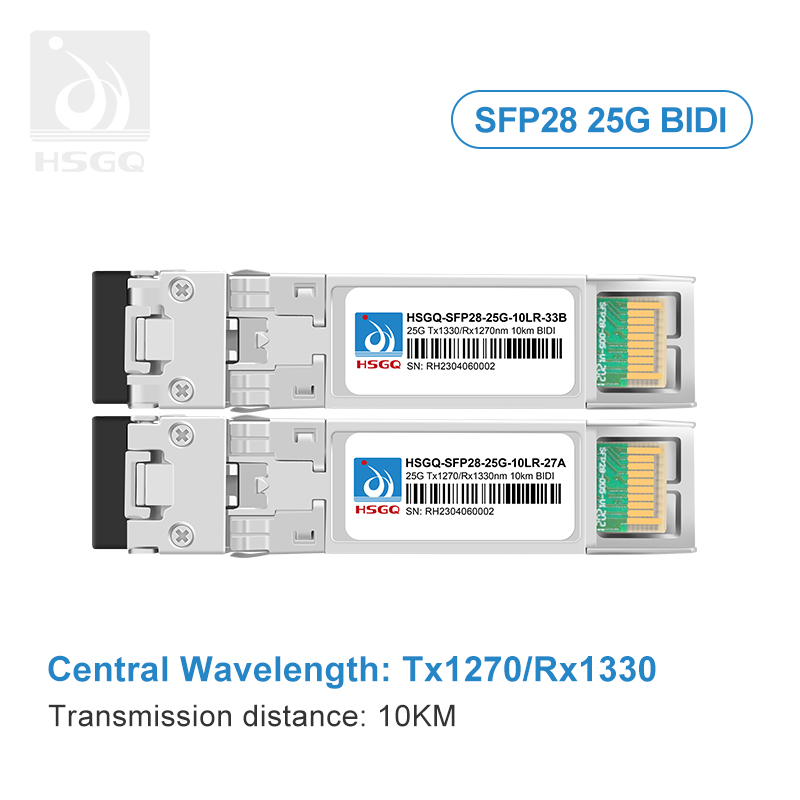

The transmitter of HSGQ-SFP28-25G-10LR-27A section incorporates a 1270nm DFB driver.
The transmitter of HSGQ-SFP28-25G-10LR-33B section incorporates a 1330nm DFB driver.
The receiver section consists of a PlN photodiode integrated with atransimpedance preamplifier (TlA).
The module is hot pluggable into the 20-pin connector.
All modules satisfy class l laser safety requirements. Digital diagnosticsfunctions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such astransceiver temperature,aser bias current, transmitted optical power, receivedoptical power and transceiver supply voltage.
