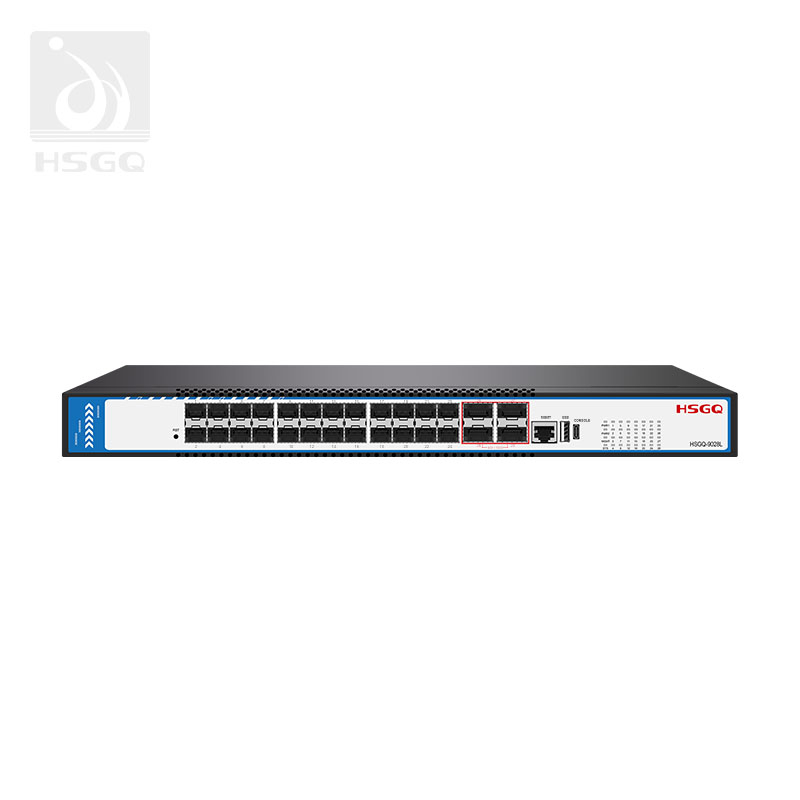

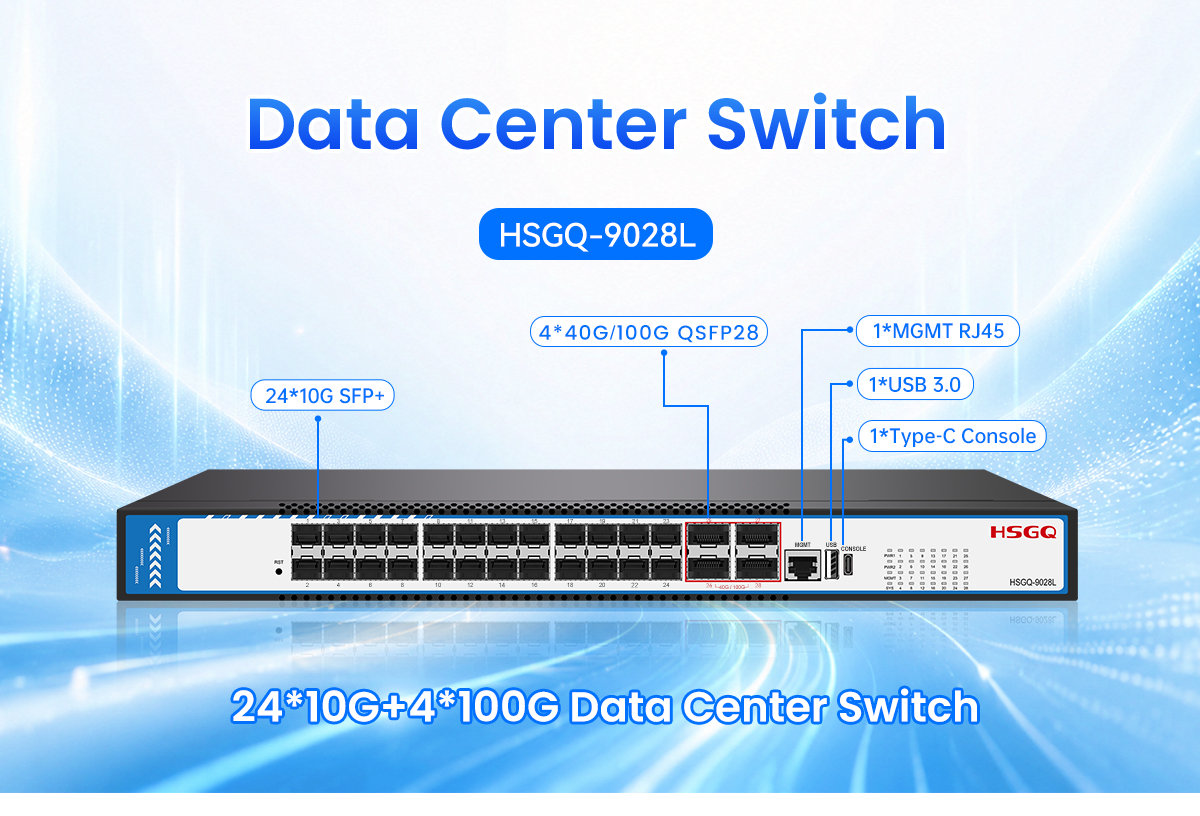

HSGQ-9028L is a next-generation high-performance data center switch designed forhigh-performance cloud computing, data centers, and high-end campus networks. It features 24*SFP+ 10 Gigabit fiber module slots, 4*40G/100G QSFP28 ports, 1*MGMT out-of-band management RJ45 interface, 1*Type-C Console management interface, and 1*USB 3.0 interface. It supports IPv4 / IPv6 dual protocol stacks, static routing, DHCP Server, DHCP Relay, and DHCP Snooping. It supports Layer 3 routing protocols, including RIP, RIPng, OSPFv2/v3, BGP-4 dynamic routing, and VRRP virtual routing redundancy protocols. It provides comprehensive security policies, robust QoS policies, and rich VLAN functionality, making it easy to manage and maintain, and meeting the networking needs of enterprise networks, campus network aggregation, carrier edge computing, and other application scenarios.

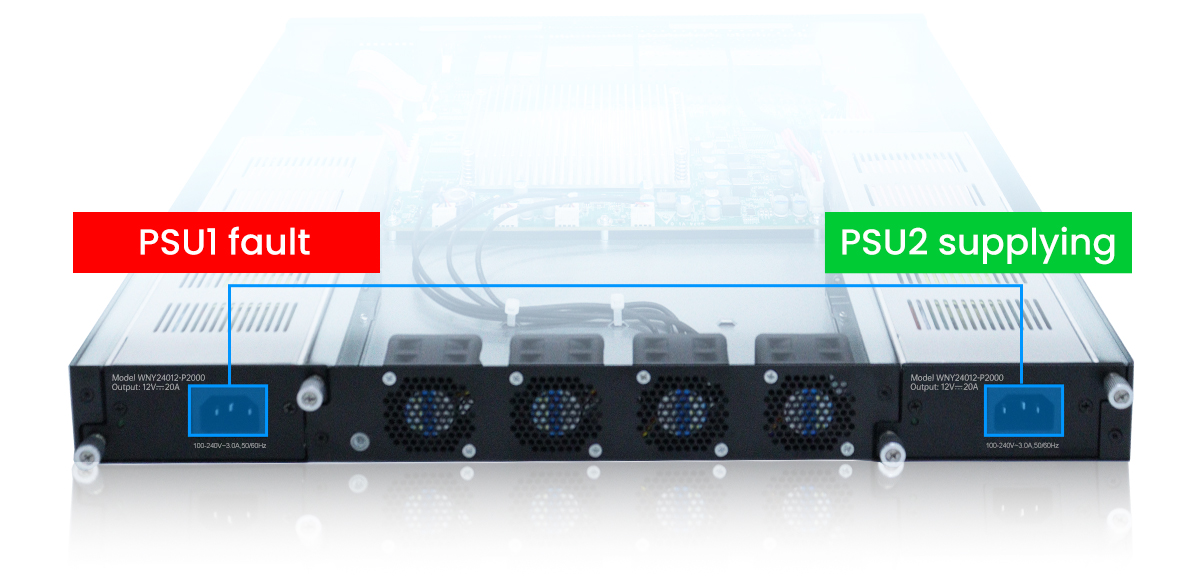

Dual-power supply redundancy design
Two hot-swappable AC 100-240V power supplies with 1+1 redundancy. Upon failure, seamless switchover ensures uninterrupted stable operation.

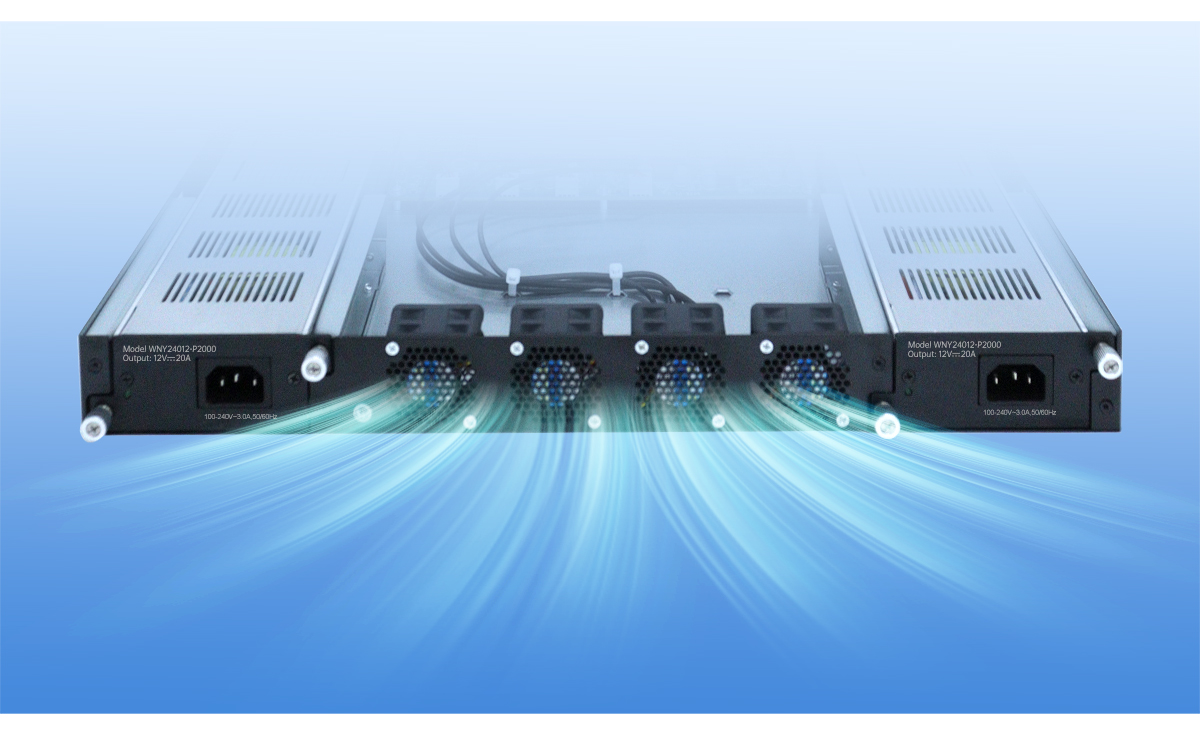

Front and rear ventilation
Front and rear ventilation design, with 4 smart fans that can adjust their speed intelligently based on the temperature sensors.

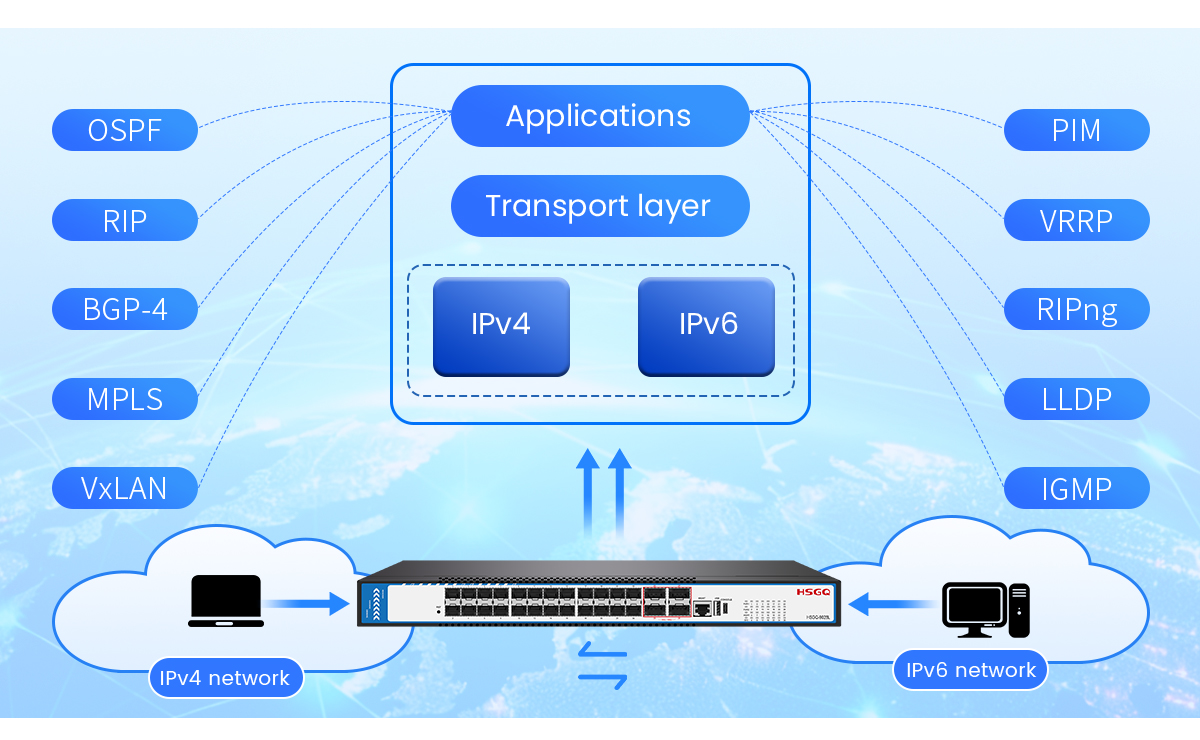

IPv4/IPv6 dual-stack
IPv4/IPv6 dual-stack, static routing, RIP, RIPng, OSPFv2/v3, BGP-4, VRRP, DHCP, PIM, IGMP Snooping, MPLS, VxLAN, EVPN.

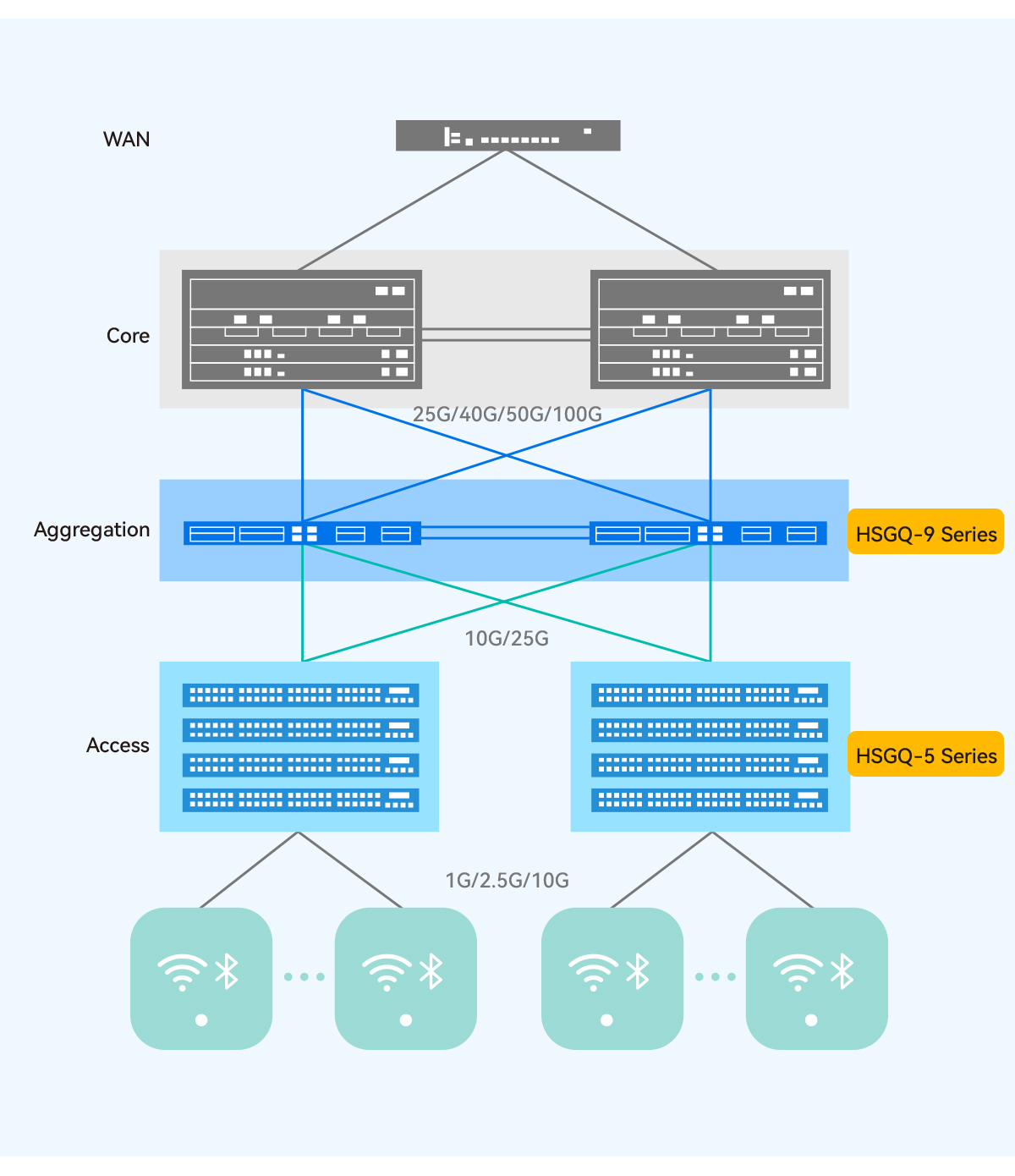

Park Network Solution – Core Switch
HSGQ-90 series switches offer 10G downstream and 100G upstream connectivity, serving as either an aggregation or core layer in a campus network topology.
M-LAG (Multichassis Link Aggregation Group) has the advantages of increasing bandwidth, improving link reliability, and load balancing, improving link reliability from the single board level to the device level. This horizontal virtualization technology significantly simplifies network topology.
