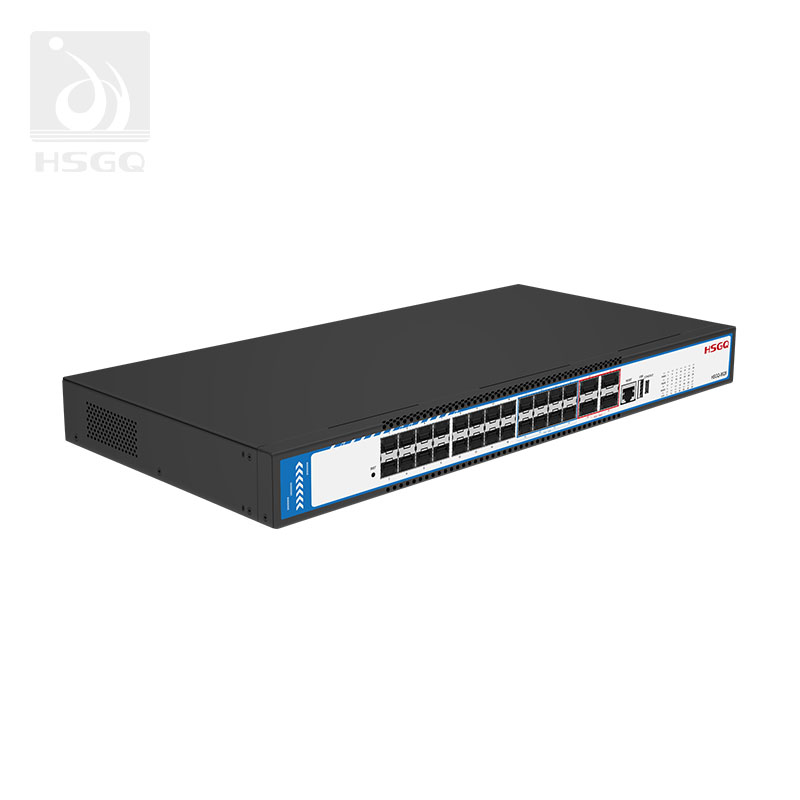

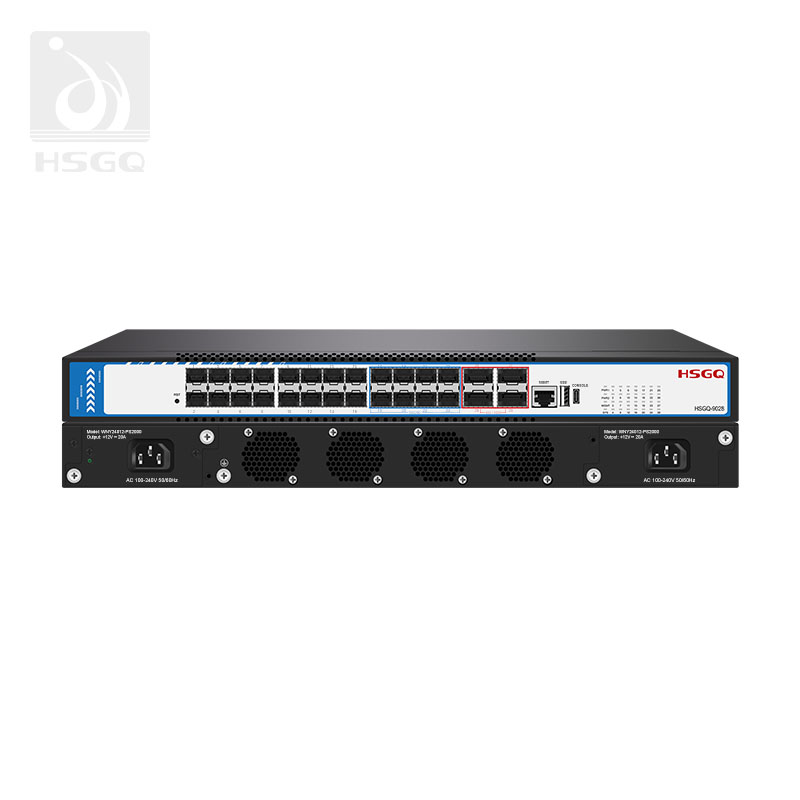

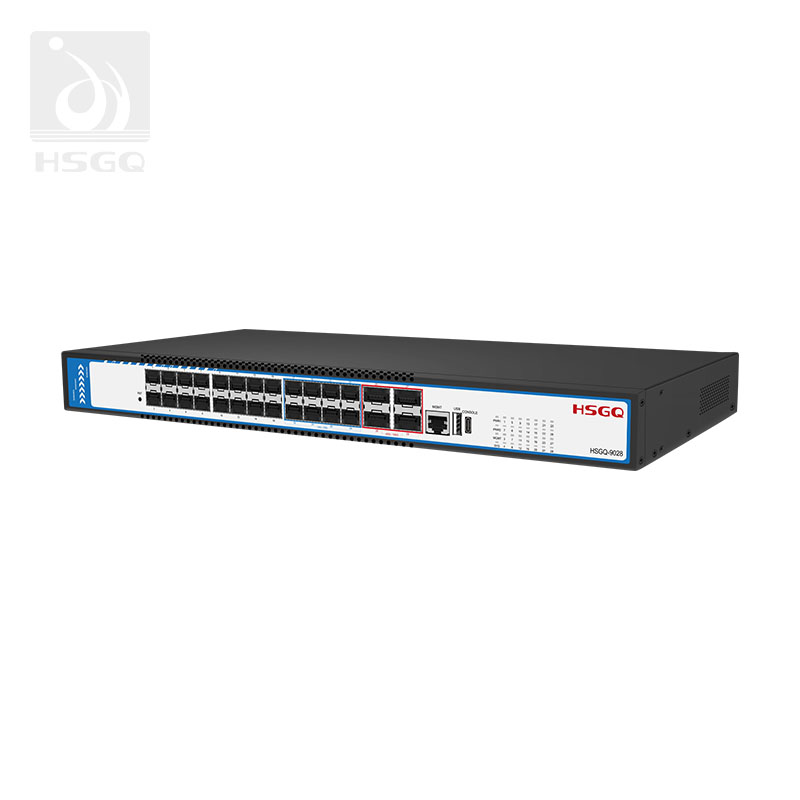

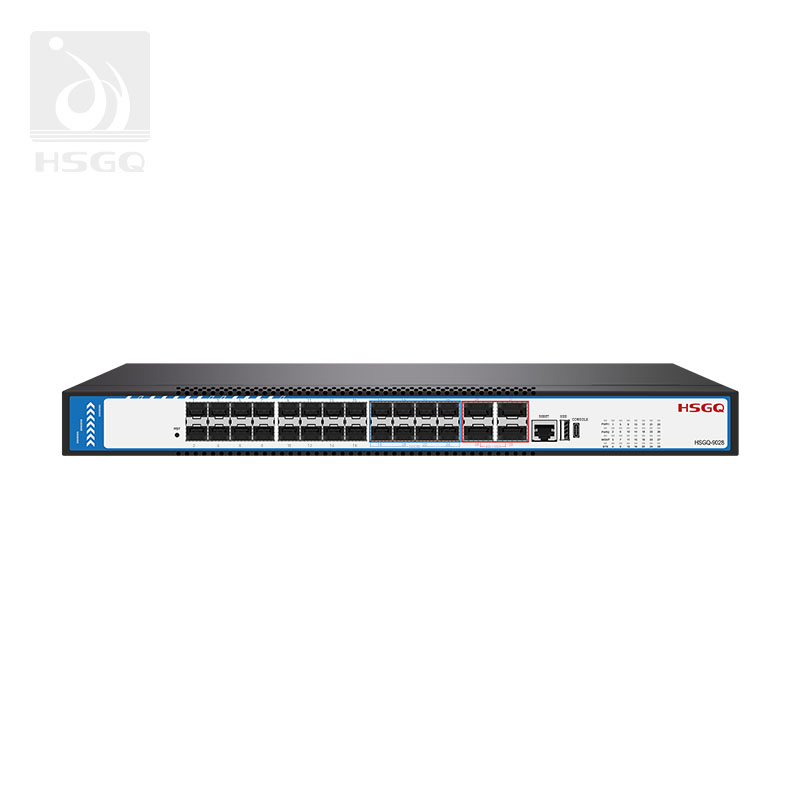

1610G SFP+ 825G SFP28 + 4*40G/100G QSFP28 Data Center Switch

5 0 Reviews

Model:
HSGQ-9028

Quantity:
Availability:





Inquiry Datasheet

Data Center Switch

Product Introduction

Technical Parameters

Key Feature

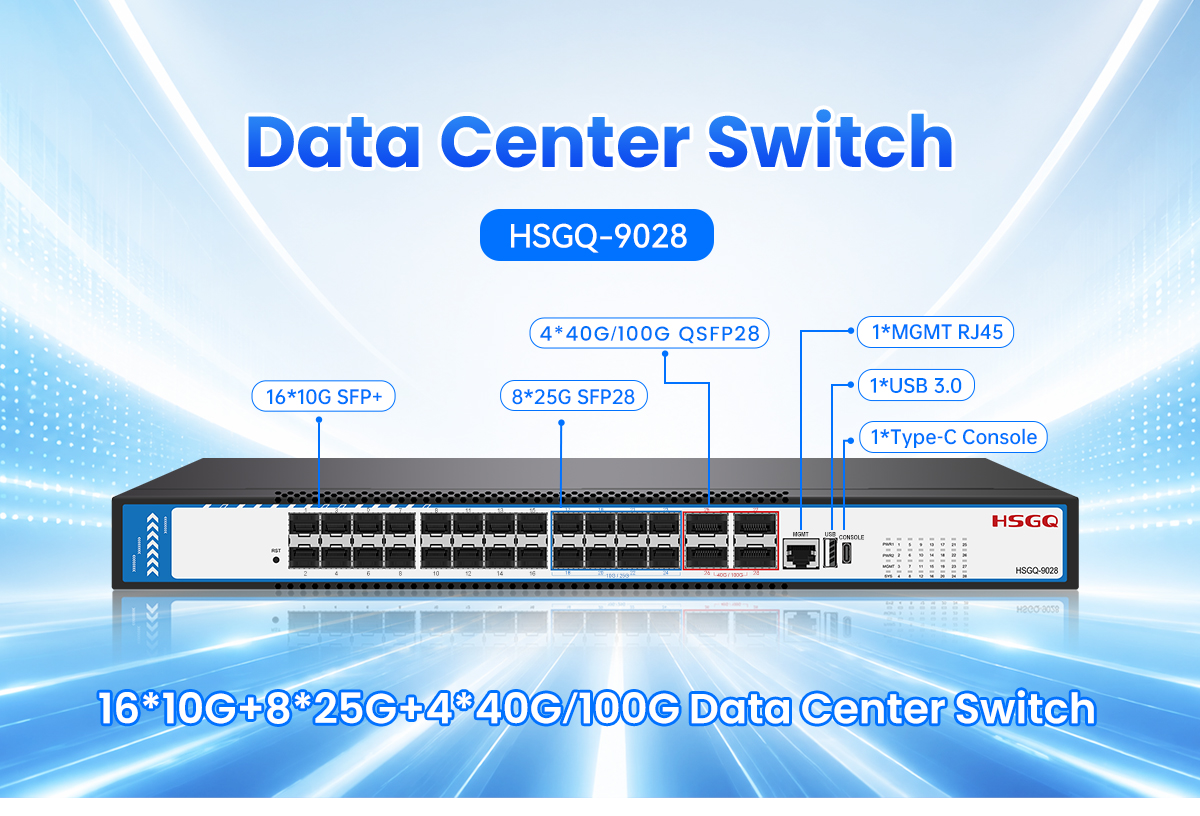

HSGQ-9028 is a next-generation high-performance data center switch designed for high-performance cloud computing, data centers, and high-end campus networks . It features 16*SFP+ 10 Gigabit fiber module slots, 8*25G SFP28 ports, 4*40G/100G QSFP28 ports, 1*MGMT out-of-band management RJ45 interface, 1*Type-C Console management interface, and 1*USB 3.0 interface. It supports IPv4 / IPv6 dual protocol stacks, static routing, DHCP Server, DHCP Relay, and DHCP Snooping. It supports Layer 3 routing protocols, including RIP, RIPng, OSPFv2/v3, BGP-4 dynamic routing, and VRRP virtual routing redundancy protocols. It provides comprehensive security policies, robust QoS policies, and rich VLAN functionality, making it easy to manage and maintain, and meeting the networking needs of enterprise networks, campus network aggregation, carrier edge computing, and other application scenarios.

9028英文详情页_01 9028英文详情页_02

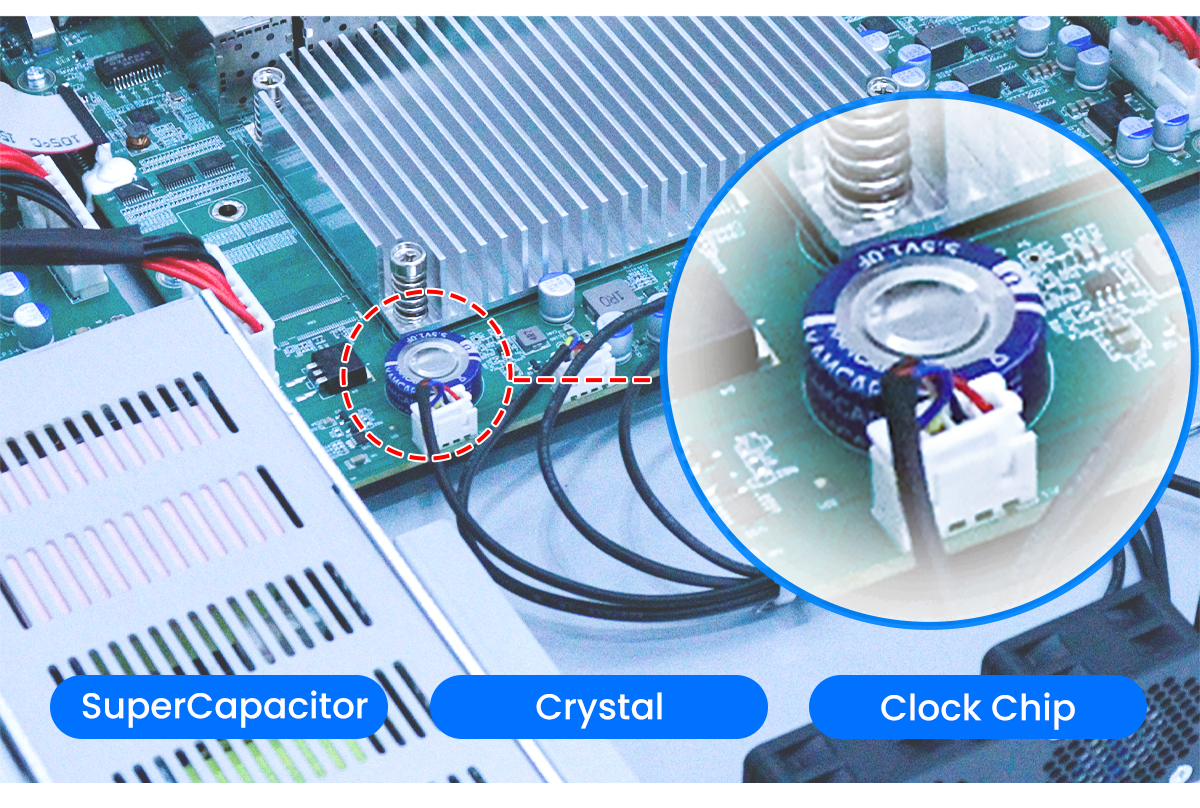

RTC support

9028英文详情页_06

Supports RTC using crystal, clock chip & supercapacitor; ensures continuous time for industrial equipment.

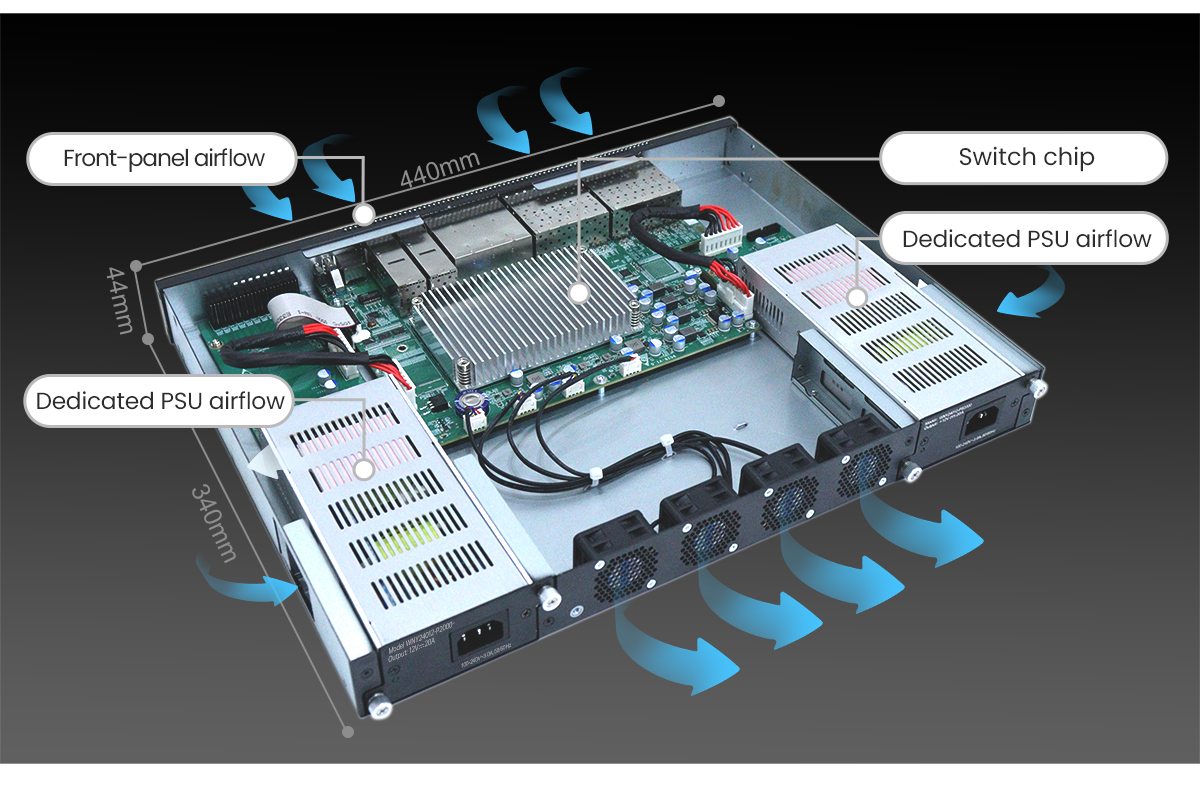

Hardware Design

9028英文详情页_10

Data-center & server-grade hardware, optimized layout.

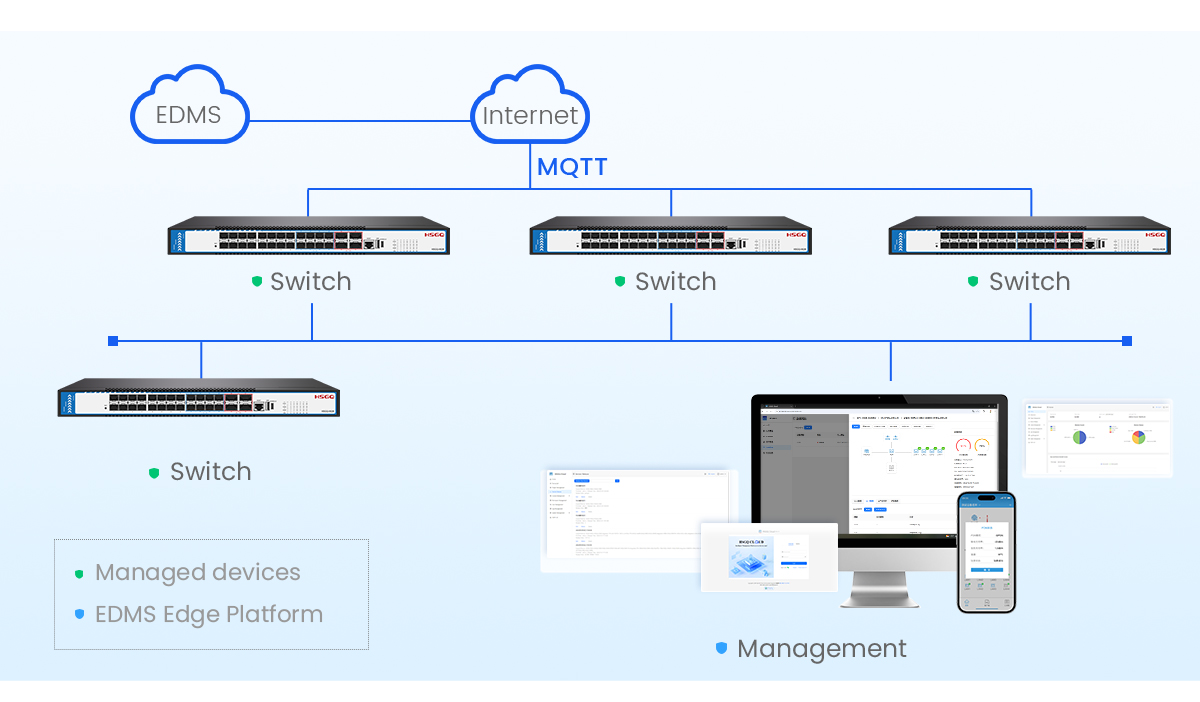

EDMS Cloud

9028英文详情页_14

Switch with built-in MQTT, supports MQTT/SNMP to EDMS Cloud for centralized device management and remote maintenance.

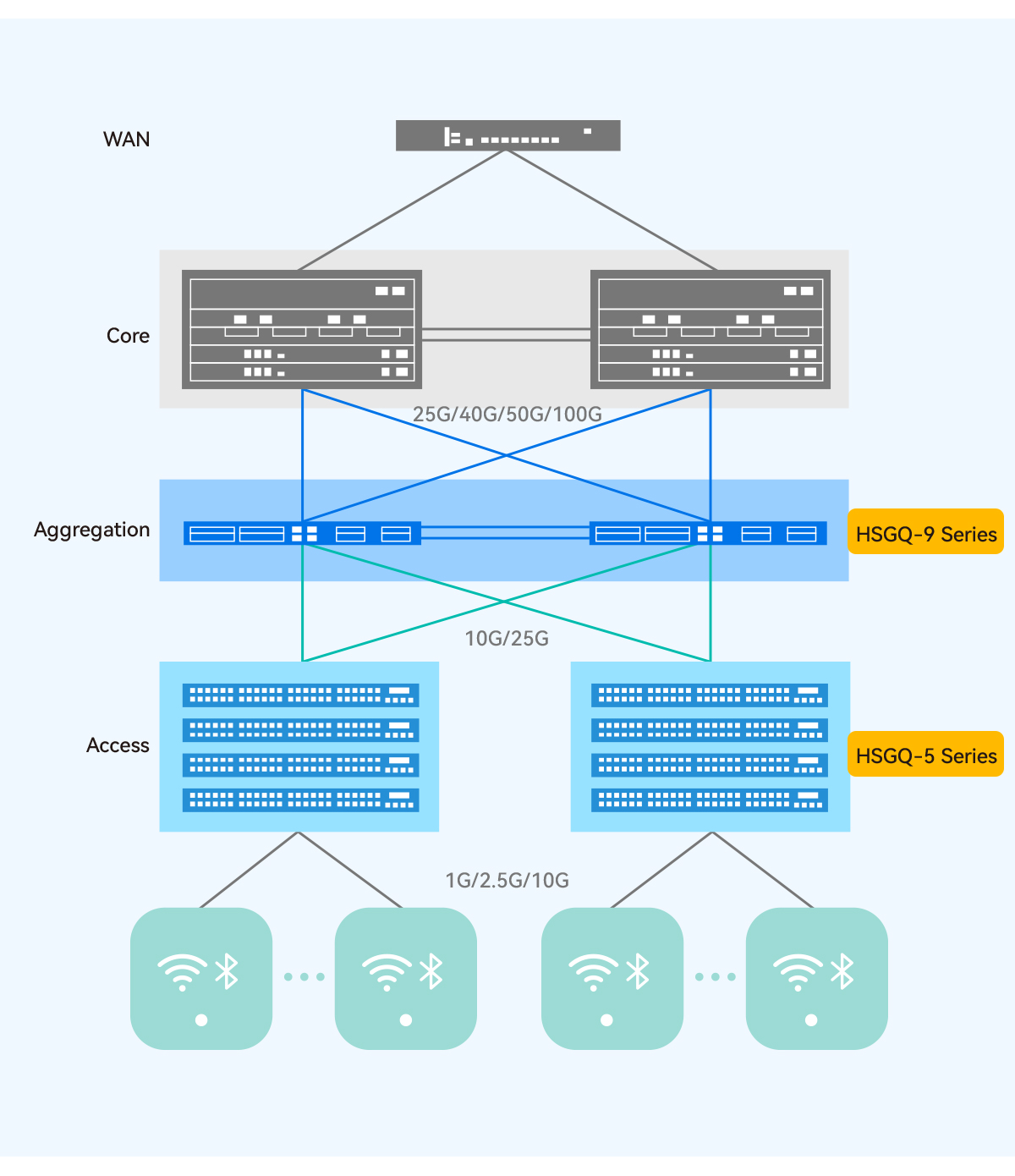

Park Network Solution – Core Switch

9028英文详情页_16

HSGQ-90 series switches offer 10G downstream and 100G upstream connectivity, serving as either an aggregation or core layer in a campus network topology.

M-LAG (Multichassis Link Aggregation Group) has the advantages of increasing bandwidth, improving link reliability, and load balancing, improving link reliability from the single board level to the device level. This horizontal virtualization technology significantly simplifies network topology.

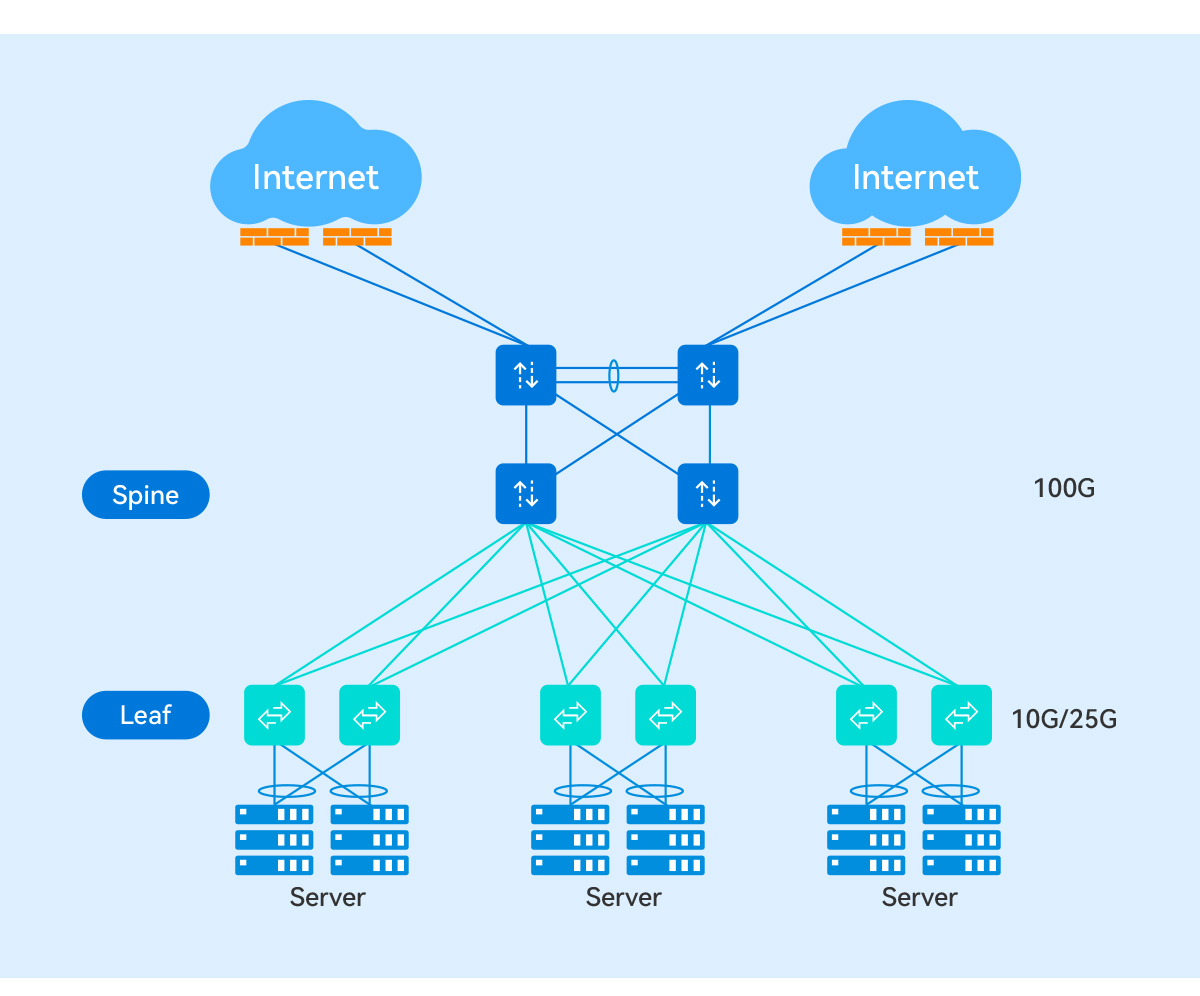

Spine-Leaf Data Center Network Solution

9028英文详情页_18

Efficient Virtualization: VxLAN encapsulates L2 frames into L3 UDP packets, supporting up to 16 million isolated logical networks across a physical IP fabric.

Seamless Workload Mobility: Maintains L2 connectivity during VM or container migration across physical hosts, ensuring uninterrupted service delivery.

Items	HSGQ-9026
Network Standards	IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3ae, IEEE 802.3bq, IEEE 802.3ba , IEEE802.3x, IEEE802.1x, IEEE802.1q, IEEE802.1p, IEEE802.1d, IEEE802.1w, IEEE802.1s, IEEE802.3ad , IEEE 802.1a
Interface	16SFP+ 10 Gigabit Fiber Optic Module Slots 825G SFP28 ports 440G/100G QSFP2 8-port 1MGMT out-of-band management RJ45 interface 1Type-C Console interface (115200,8,N,1) 1USB 3.0 port
LED indicator light	PWR 1 (green), PWR 2 (green), MGMT (green), SYS (green), Port LED (green)
MAC Address Table	112 K
Jumbo Frame	12K Byte
Packet buffer	8MB
Forwarding mode	Store-and-forward
Switching Capacity	1.52Tbps
Packet Forwarding Rate	1140Mpps
Power Supply	240W
Power Input	Standard configuration includes one hot-swappable AC100-240V power supply, 50Hz ±10%. Optional two hot-swappable AC100-240V power supplies, 50Hz ±10%
Fan	Built-in 4 smart fans, providing front and rear ventilation
Static electricity standards	Contact ±6KV, air ±8KV
Working Environment	Operating Temperature: -10℃ ~ 45℃;
	Storage Temperature: -40℃ ~ 70℃;
	Operating Humidity: 10% ~ 90%, non-condensing
	Storage Humidity: 5% ~ 90%, non-condensing
MTBF	50,000 hours
Dimensions (LWH)	440mm340mm44mm (WDH)

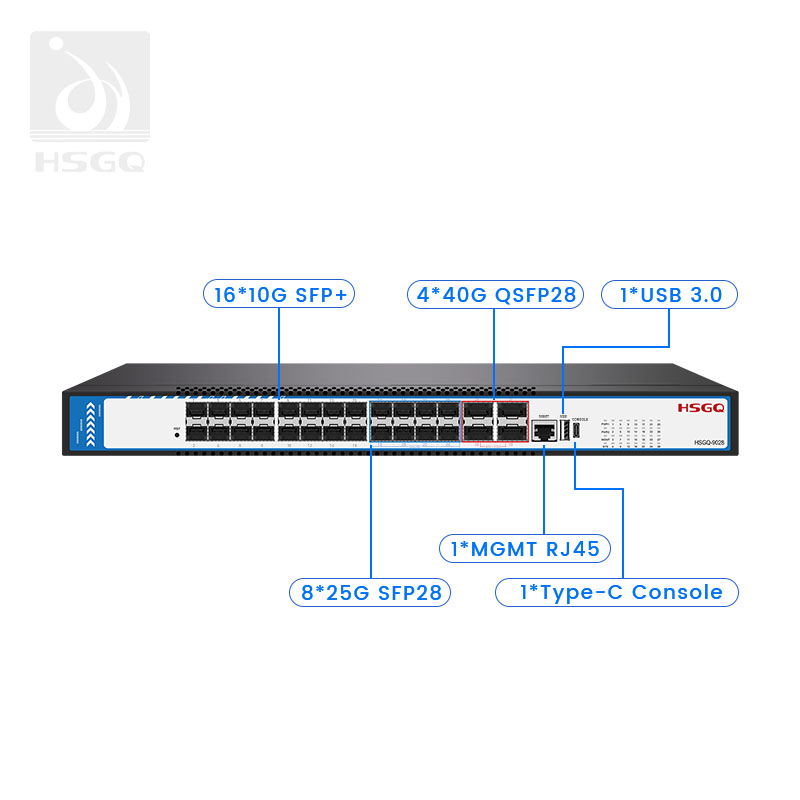

16*(SFP+) 10 Gigabit optical ports + 8*25G SFP28 ports + 4*40G/100G QSFP28 ports + 1*Type-C Console interface + 1*MGMT out-of-band management port + 1*USB 3.0 interface;
It adopts an ARM dual-core processor and supports a switching capacity of up to 880Gbps, meeting the requirements of data centers for high performance, high capacity, high density and scalability;
Standard configuration includes one hot-swappable AC100-240V power supply, two hot-swappable AC100-240V power supplies are optional.
It supports RTC real-time clock function to meet the time continuity requirements of industrial equipment;

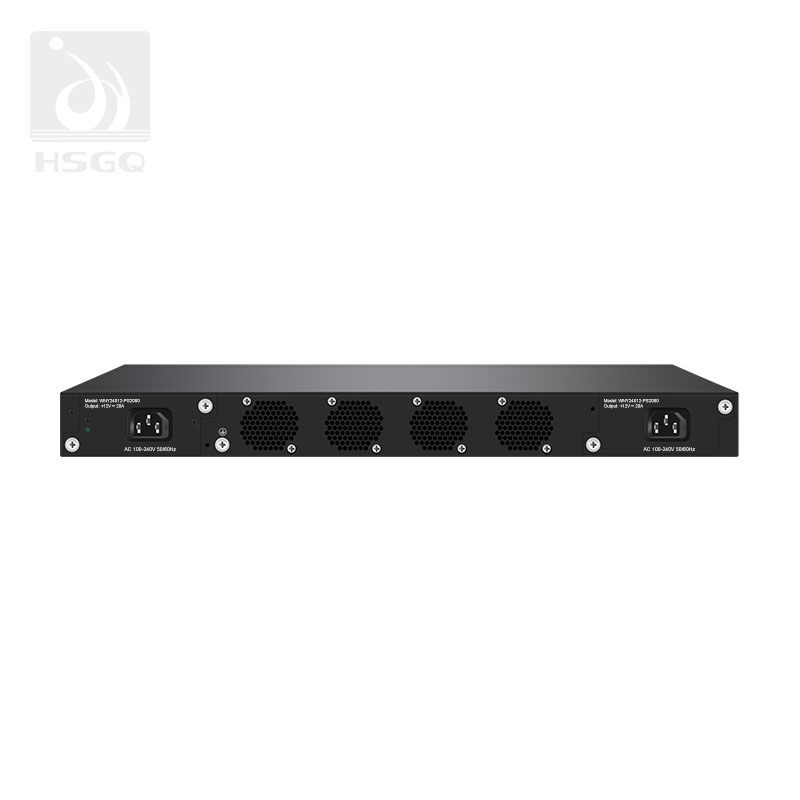

Standard data center front and rear cooling airflow design;
Supports temperature sensor and smart fan; built-in 4*smart fans;
The intelligent fan management system supports automatic fan speed adjustment, effectively reducing fan speed, noise, and extending fan life;
Supports STP/RSTP/MSTP link protection technologies and ERPS ring network protocol;
It supports two aggregation modes: static link aggregation and LACP dynamic link aggregation, which effectively increases link bandwidth and improves link reliability, while also enabling load balancing and link backup.
Supports IPv4 / IPv6 dual protocol stack, static routing, DHCP Server, DHCP Relay, and DHCP Snooping ;
Supports Layer 3 routing protocols, including RIP, RIPng, OSPFv2/v3, BGP-4 dynamic routing, and VRRP virtual route redundancy protocol;
It has loop detection capabilities and adopts an intelligent resolution mechanism to achieve intelligent network self-healing;
It supports Layer 2 and Layer 3 MPLS VPNs, and can build large-scale MPLS VPN core networks to meet the access needs of industry private network VPN users and enterprise network VPN users.
It supports a high-precision BFD bidirectional link detection mechanism, and through linkage with Layer 2 and Layer 3 protocols, it can achieve millisecond-level fault detection and service recovery, thereby enhancing the reliability of the network system.
Supports multiple management methods including Type-C Console, MGMT, Web CLI, Telnet, SSH, and SNMP (v1/v2c/v3);
Supports bilingual (Chinese and English) web interface management, making product debugging simpler and more efficient;
Supports MQTT protocol connection to EDMS cloud management platform, cloud platform supports local deployment and cloud deployment;
Supports full firmware version upgrades via HTTP, TFTP, and FTP transfer methods
