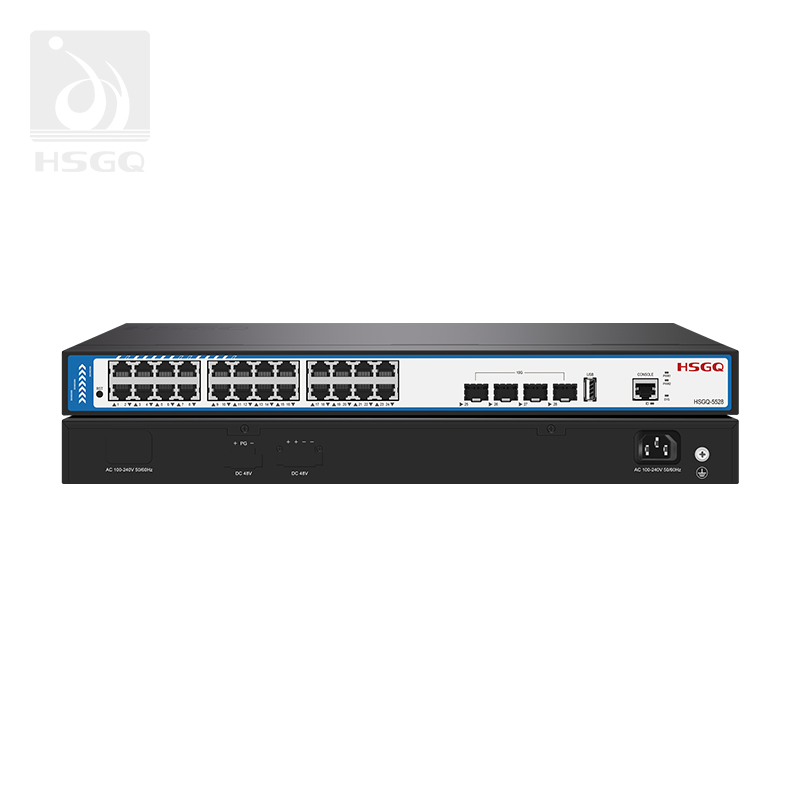

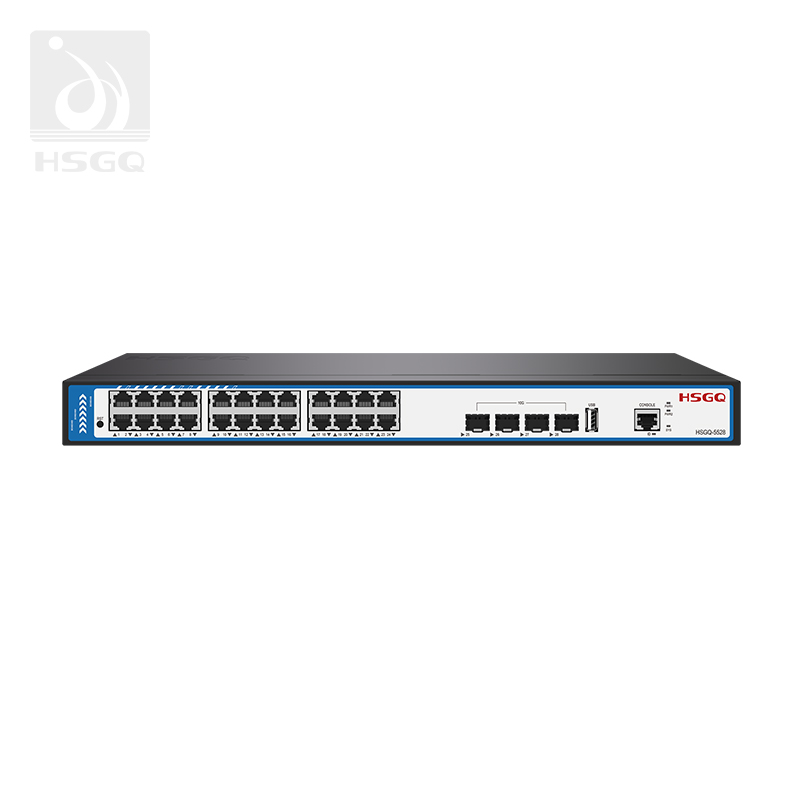

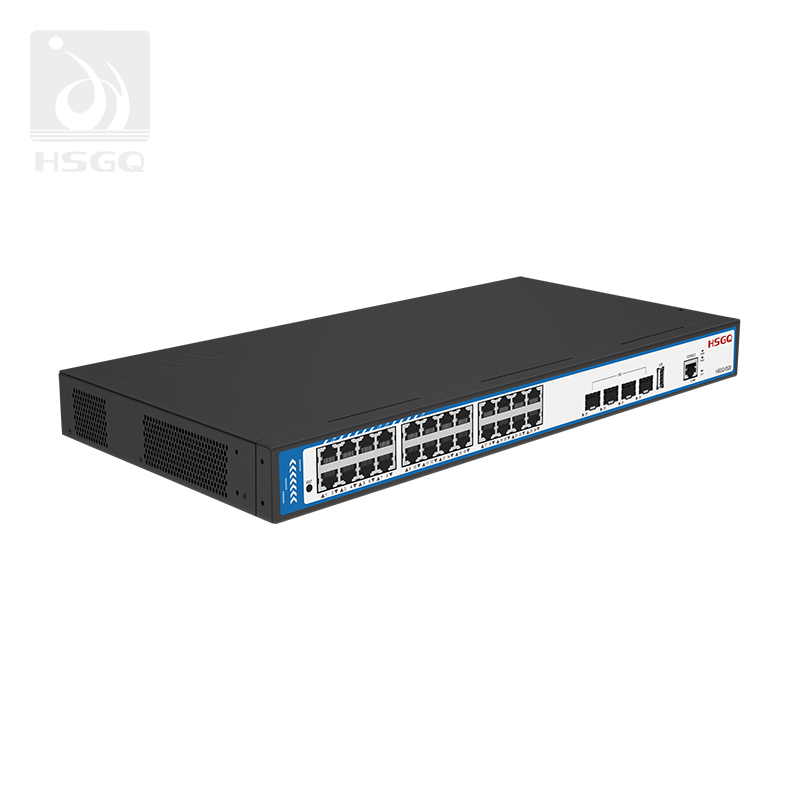

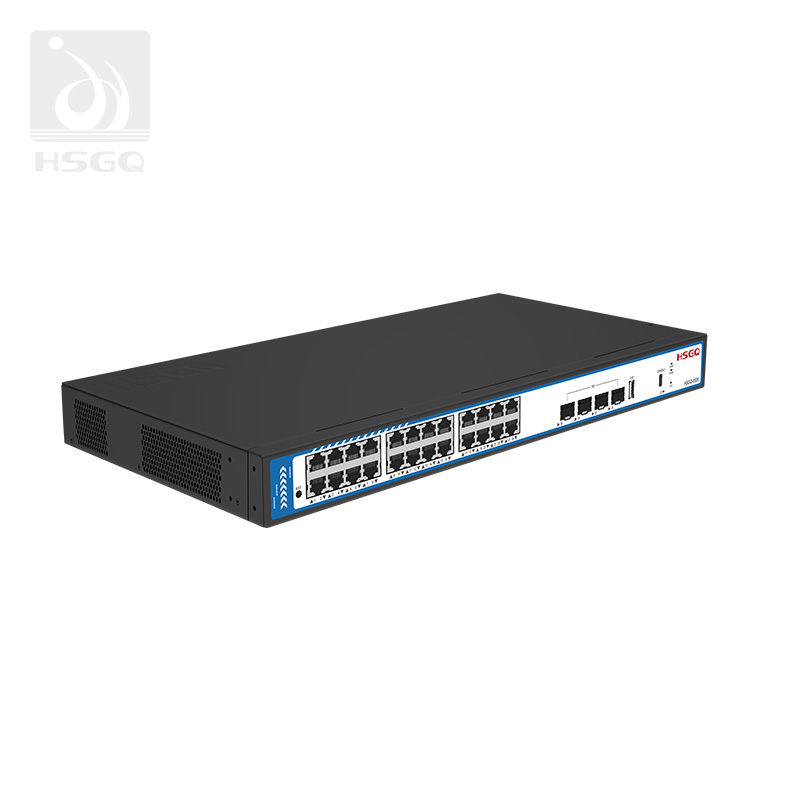

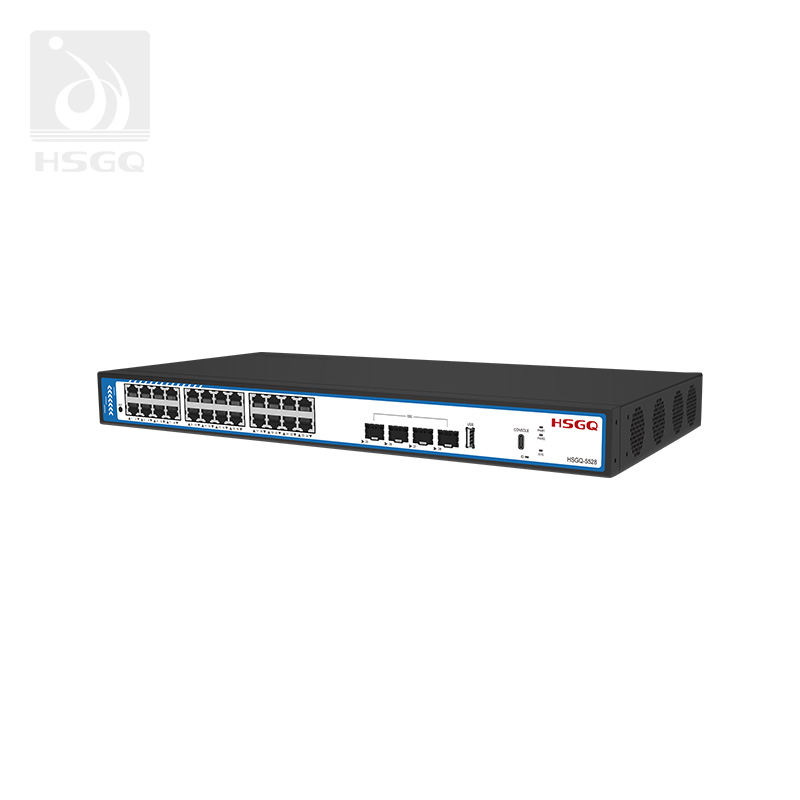

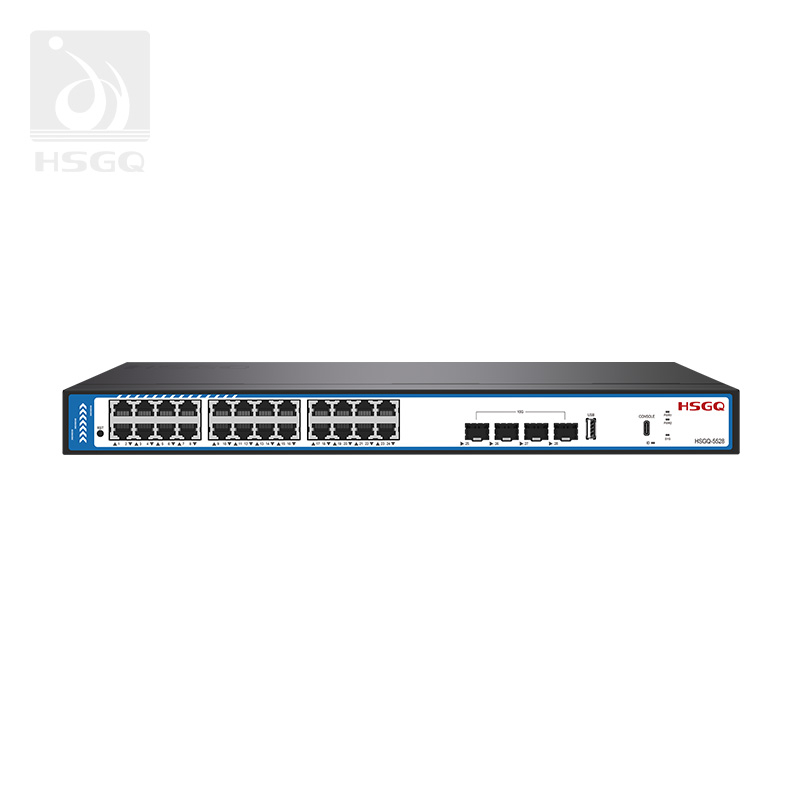

HSGQ-5528: 24port LAN port; 4pcs SFP+ uplink port; none-Fan design; L3 management, support: VLAN/IPv6/DHCP/ACL etc.


Contact Us for a Quote
24Port L3 Core Switch

Product description

Product Features

MAC Switch

Support static configuration and dynamic MAC address learning

Support MAC address review and clear

Support MAC address dynamic replacement

Support MAC address learning configuration

Support MAC address filtering


Support 4K VLAN entries

Support GVRP

Support QinQ function

Support Private VLAN

Support Voice Vlan

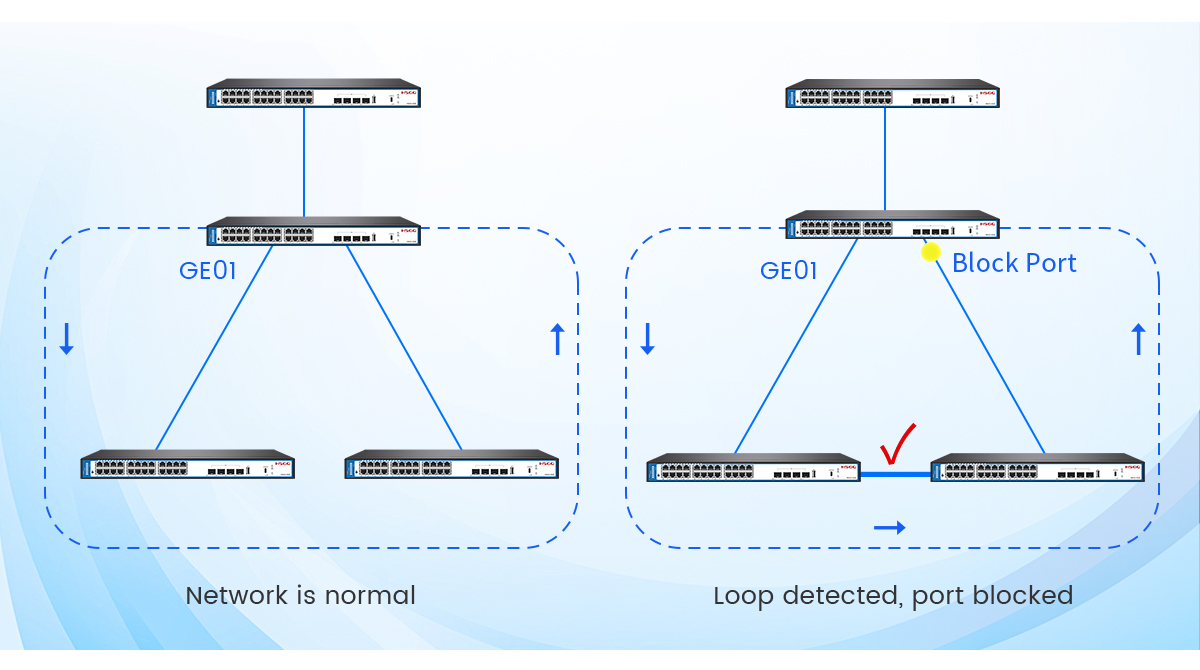

Loop Protection

Support 802.1D (STP)/ 802.1W(RSTP)/ 802.1S(MSTP)

Support BPDU protection/ Root protection/ Loop Protection


Support IGMP v1/v2/v3

Support IGMP Snooping

Support IGMP Fast Leave

Support multicast group policy and quantity limitation

Support cross-VLAN duplication of the multicast flow

IP routing

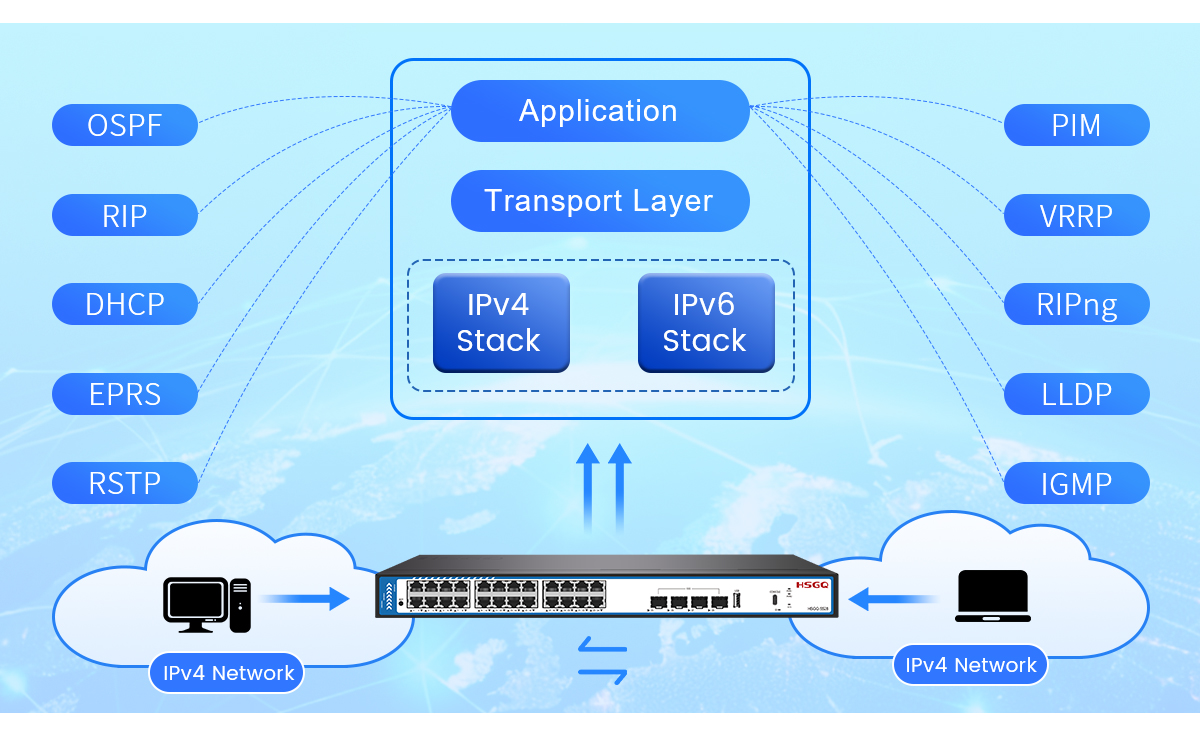

Support ipv4/ipv6 double stack protocol

Support static routing

Support RIP/ OSPF dynamic routing


Support ICMPv6/ DHCPv6/ ACLv6/ IPv6 Telnet

Support IPv6 neighbor discovery

Support Path MTU discovery

Support MLD v1/v2

Support MLD Snooping

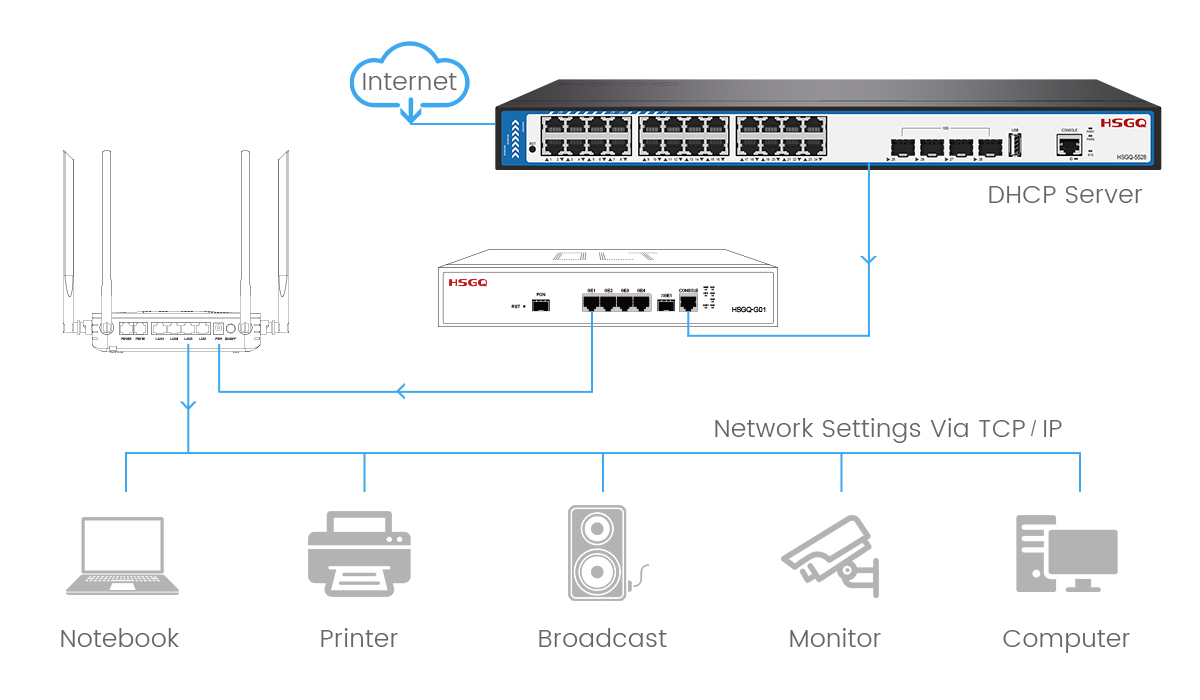

Support DHCP Server

Support DHCP Relay

Support DHCP Client

Support DHCP Snooping


Support second/third/fourth ACL

Support IPv4/ IPv6 ACL

Support VLAN ACL


Support traffic classification based on L2/ L3/ L4 protocol header

Support CAR traffic limiting

Support 802.1P/DSCP priority rescaling

Support SP, WRR, SP+WRR queue scheduling

Support Tail-Drop, WRED congestion avoidance mechanism

Support traffic policing and traffic shaping

Security Features

Support ACL traffic identification and security filtering based on L2, L3, L4

Support defence of the DDoS attacks, TCP SYN Flood attacks, UDP Flood attacks, ect

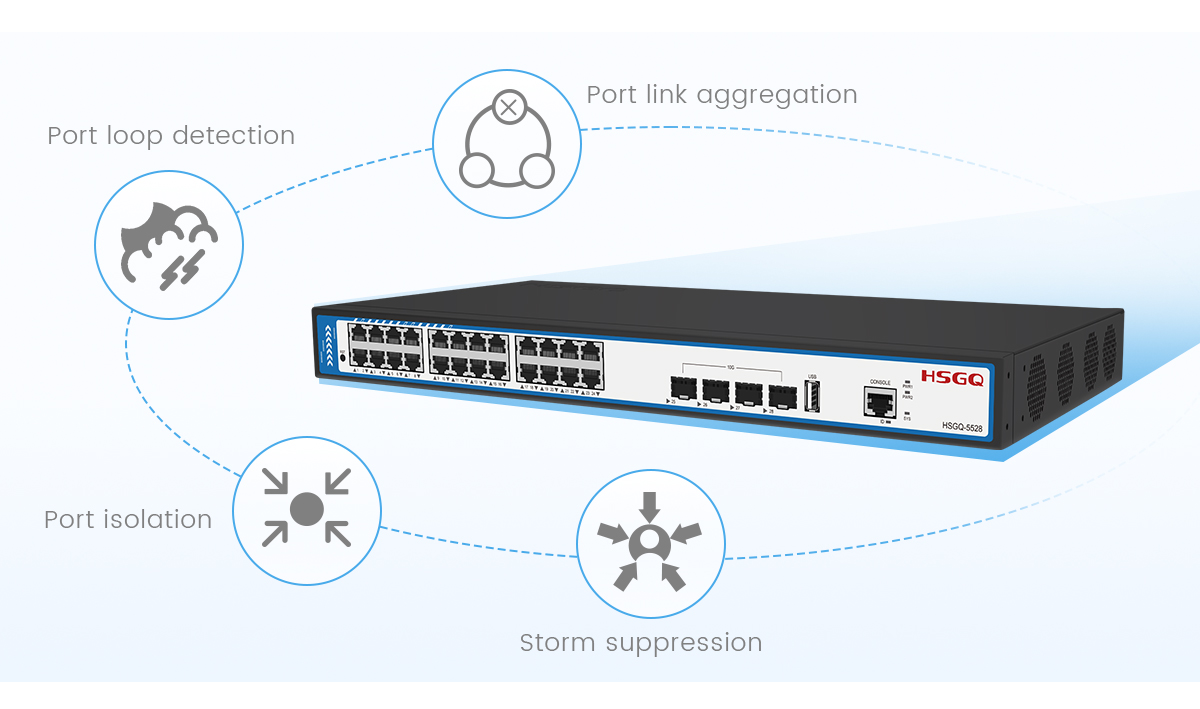

Support suppression of multicast, broadcast, and unknown unicast packets

Support port isolation

Support port security, IP+MAC+Ports binding

Support DHCP sooping and DHCP option82

Support IEEE802.1x authentication

Support Radius, BDTacacs+ authentication

Support hierarchical command line protection


Support static/ LACP link aggregation

Support unidirectional UDLD link detection

Support Ethernet OAM

Support  ISSU service uninterrupted system upgrade

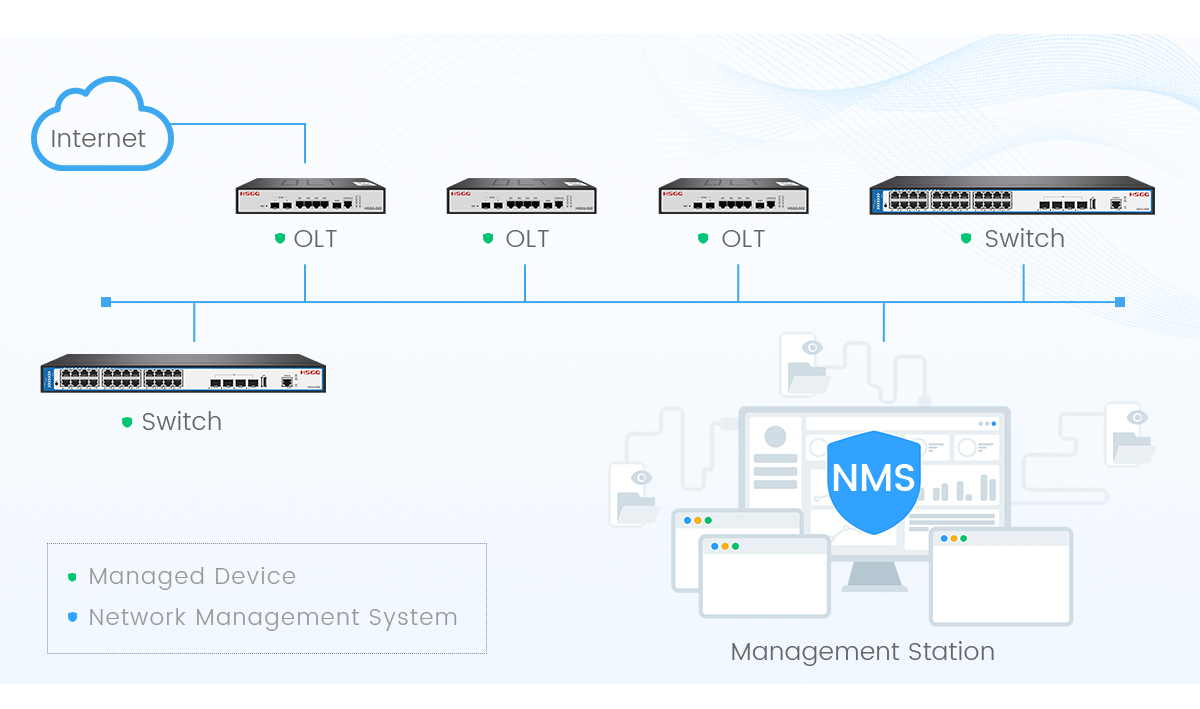

Support Console, Telnet, SSH2.0

Support WEB browser-based management

Support the SNMP v1/ v2/ v3

Support file upload and download through TFTP

Support historical records of RMON events

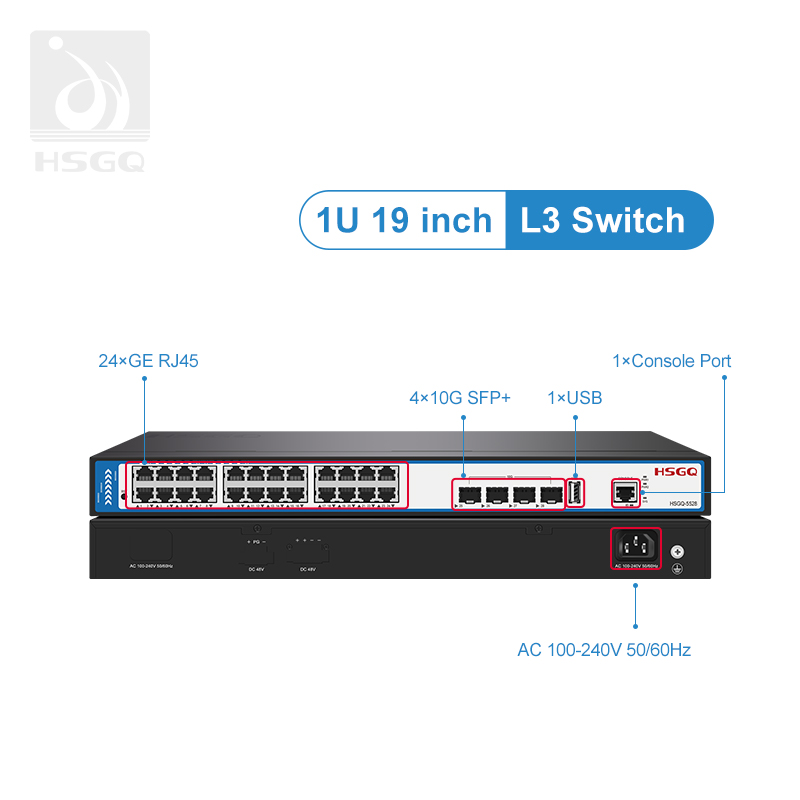

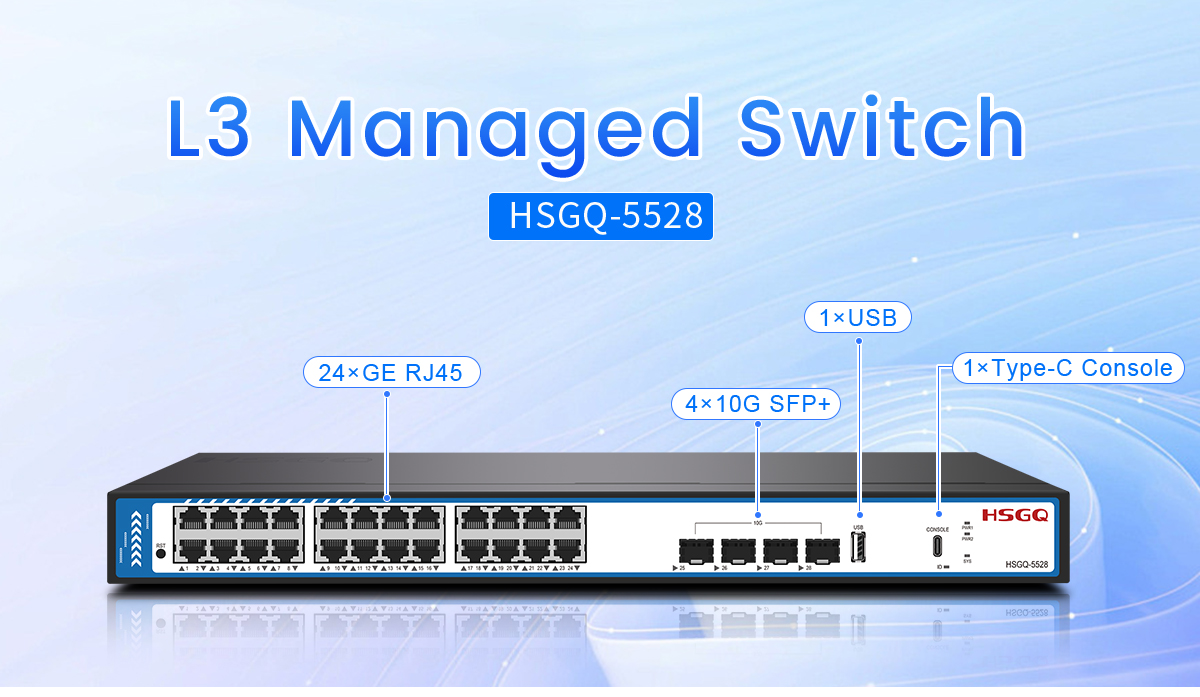

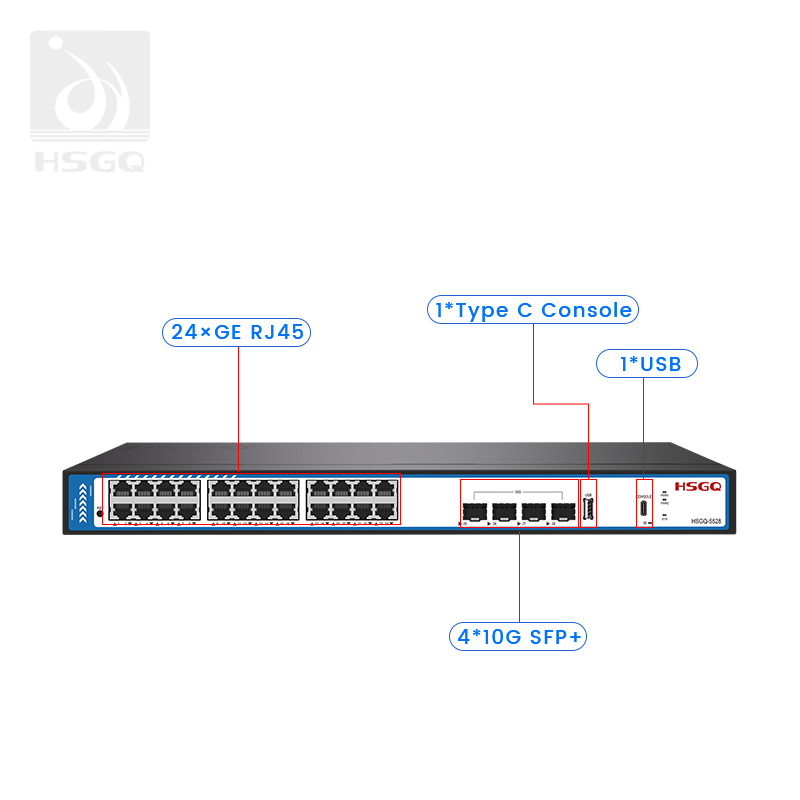

Downstream ports: 24-ports of 10/100/1000 Base-T RJ45

Uplink ports: 4-ports of 1000/10G Base-X SFP+

Switching Capacity128Gbps
Packet forwarding Rate95Mbps

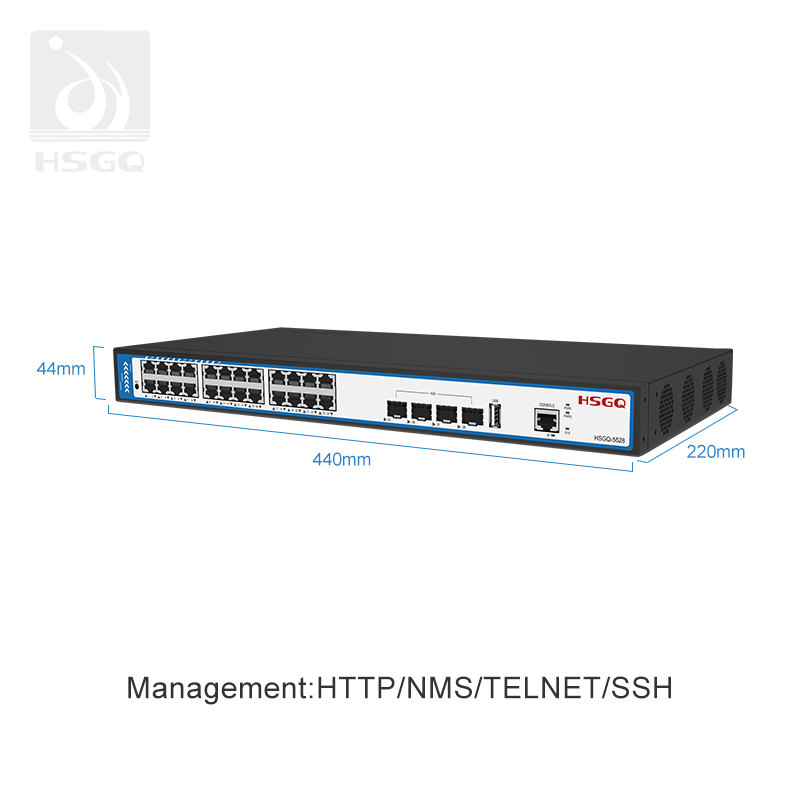

DimensionsWidth*Depth*Height: 440*220*44mm
Power Consumption<35W

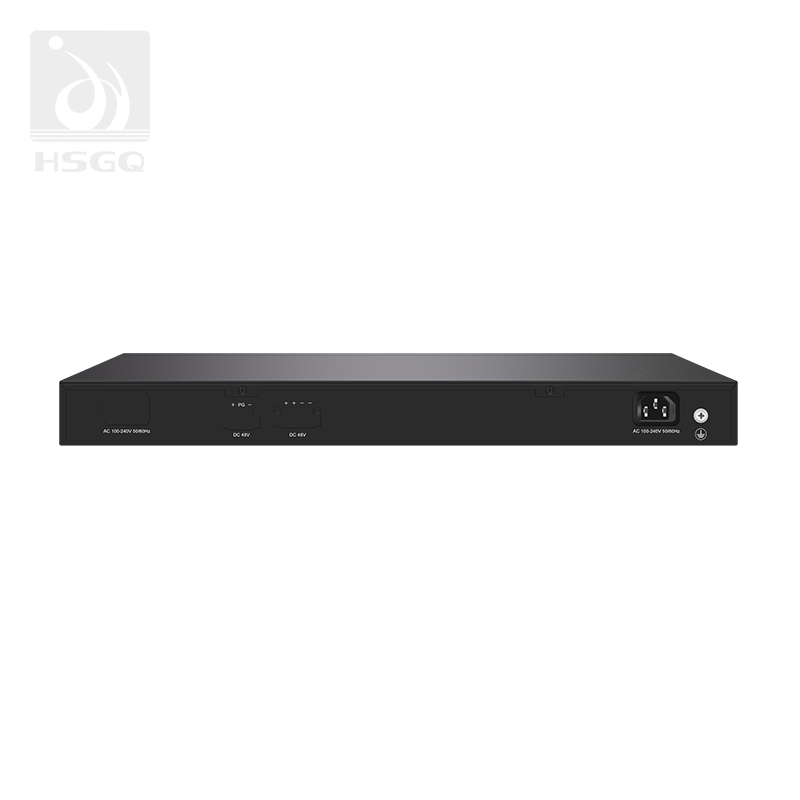

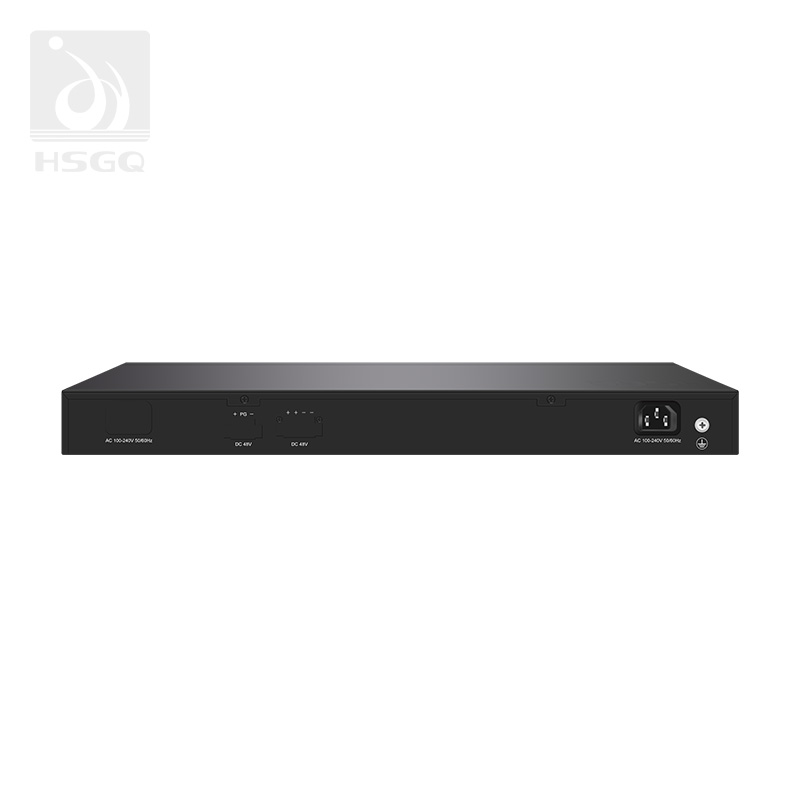

Power SupplyAC: 100V-240V, 50Hz/60Hz
Environmental Requirements

Working temperature:-10C~55C, Relative humidity:10%~90%,non-condensing

Storage temperature:-40C~70C, Relative humidity:5%~95%,non-condensing

Industrial Environmental Requirements

Working temperature:-40C~85C, Relative humidity:10%~90%,non-condensing

Storage temperature:-40C~85C, Relative humidity:5%~95%,non-condensing
