HSGQ-5830P
| Availability: | |
|---|---|
| Quantity: | |

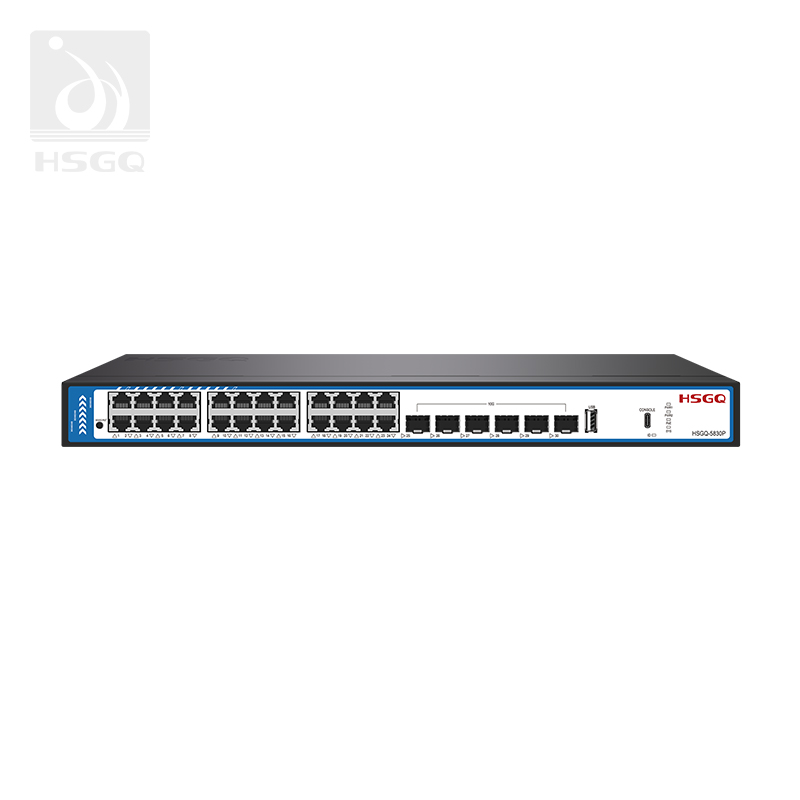

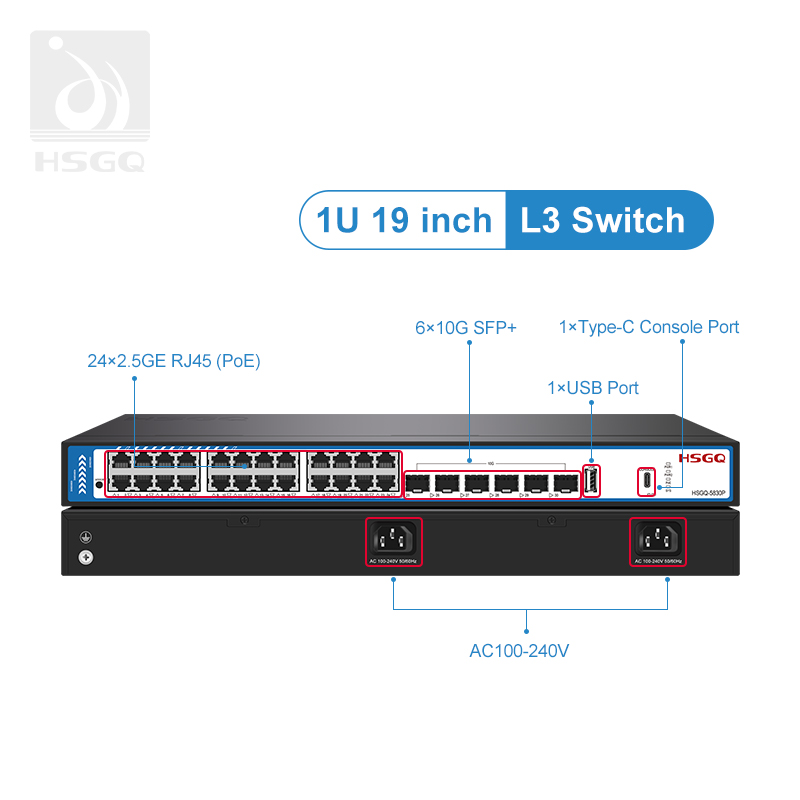

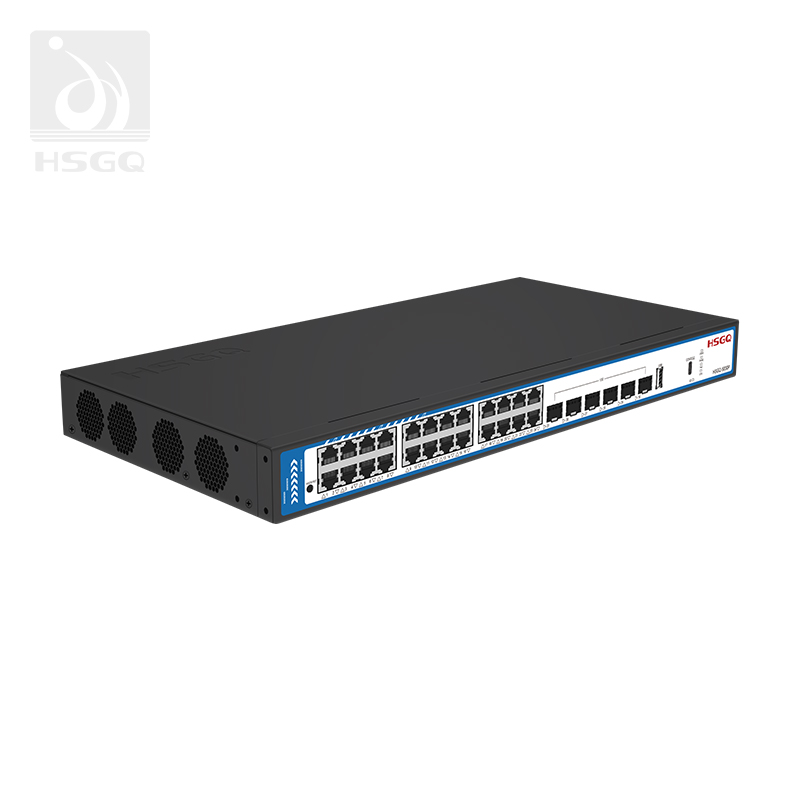

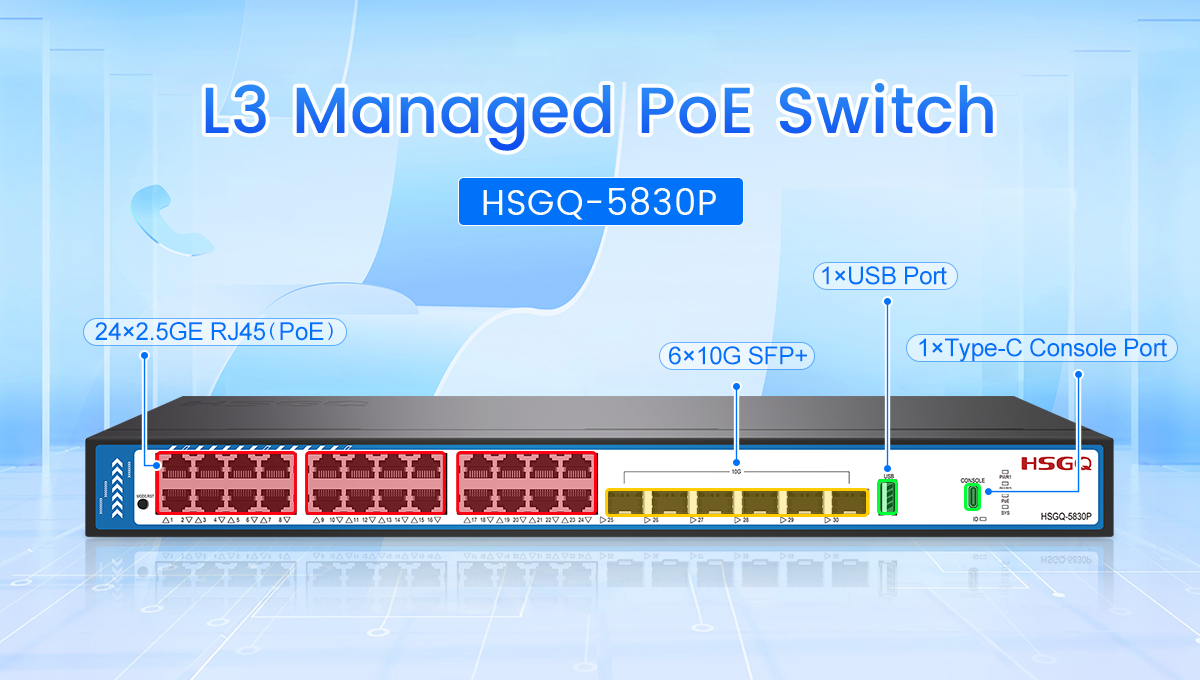

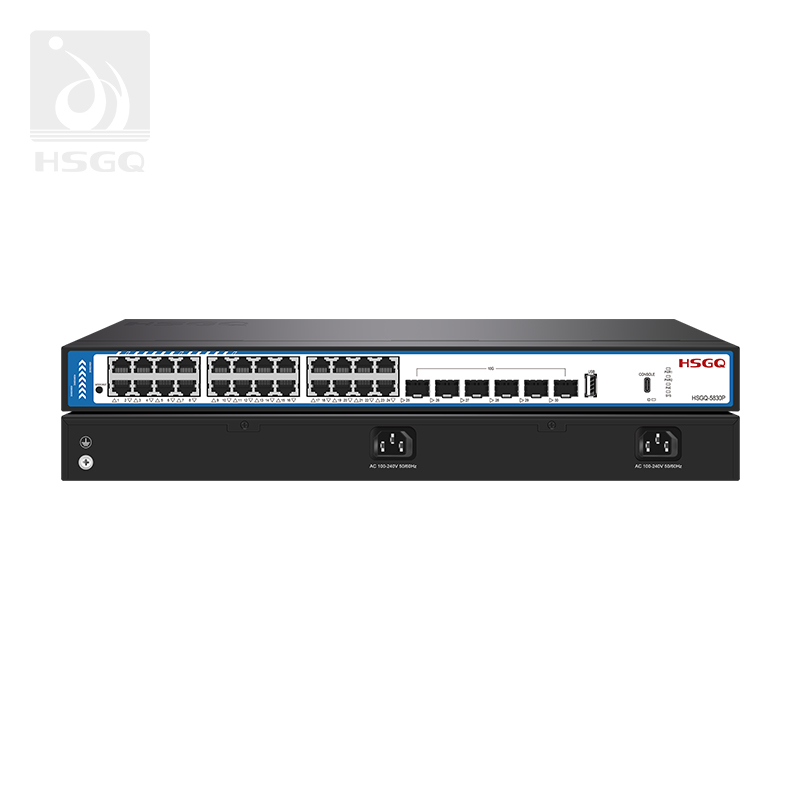

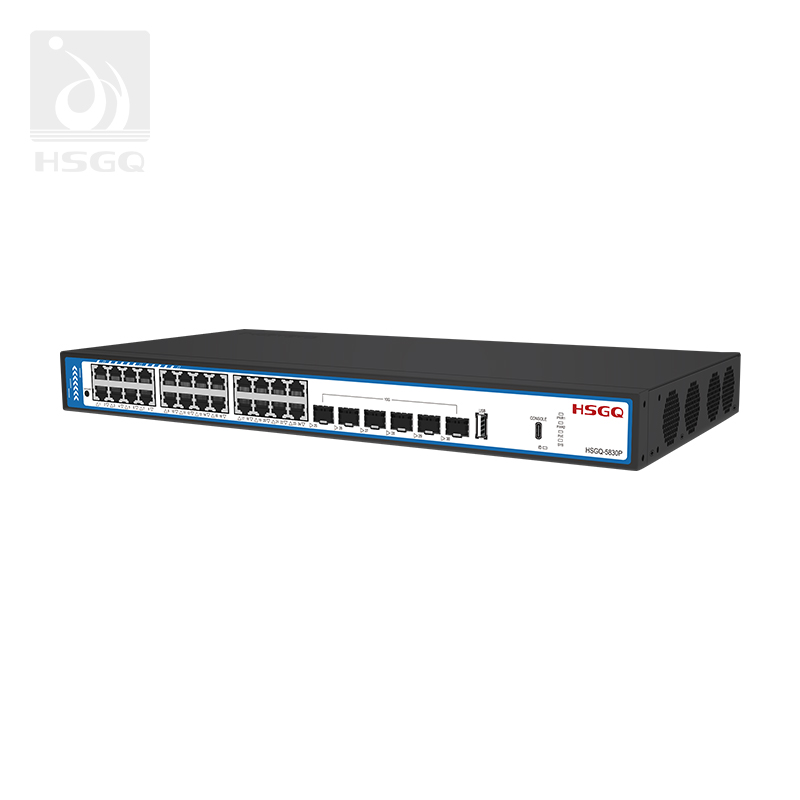

HSGQ-5830P is a L3 Managed PoE Switch, it offers 24*2.5GE PoE+ 6*10G SFP+ port, 1 USB port and 1 Console port, providing complete security policy, perfect QoS policy and VLAN function, easy to manage and maintain, meeting the networking and access requirements of enterprises, communities, hotels, office networks and campus networks.

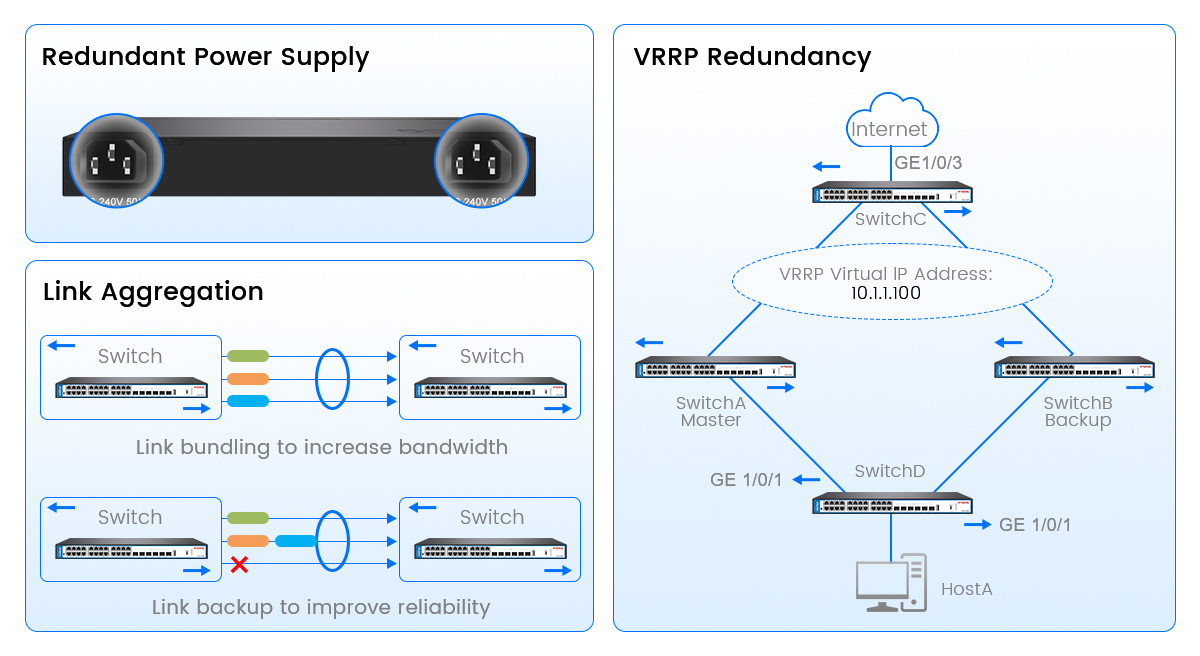

Hardware and software
redundancy design

Redundancy Protection: supports hardware and software redundancy design, including redundant power supplies, redundant link protection, and VRRP redundancy to ensure uninterrupted service.

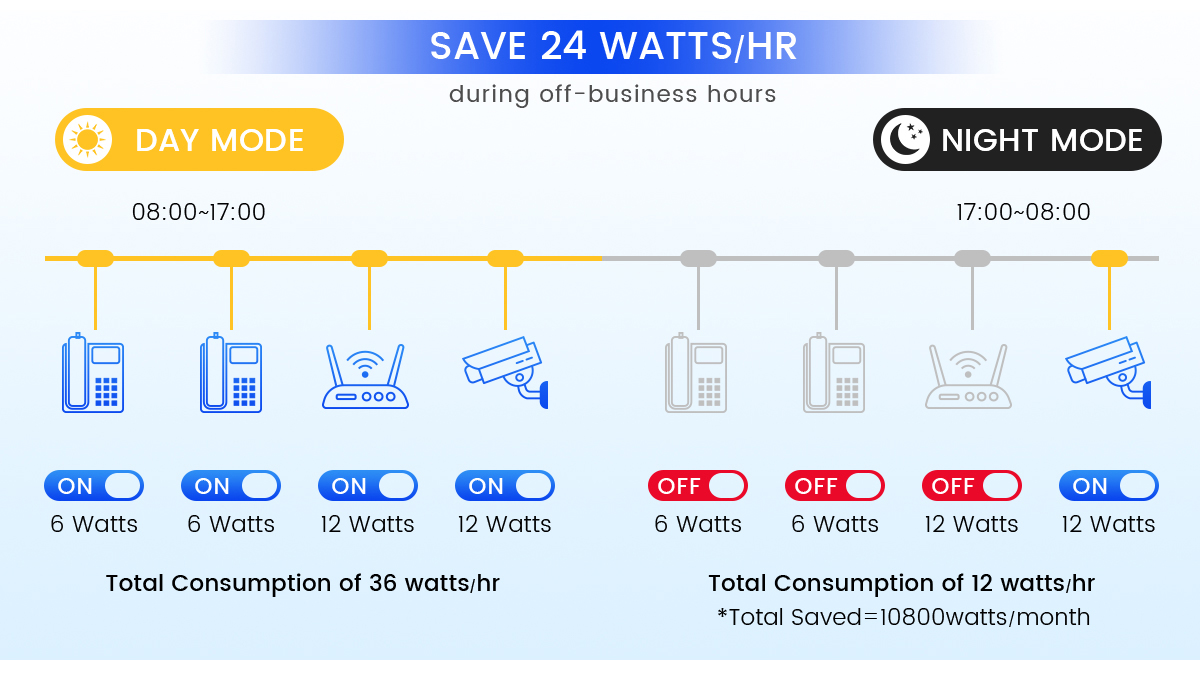

PoE Schedule Support

PoE Scheduling function enables flexible control over power status of each PoE port during specified time periods. This feature not only reduces energy costs but also enhances electrical safety.

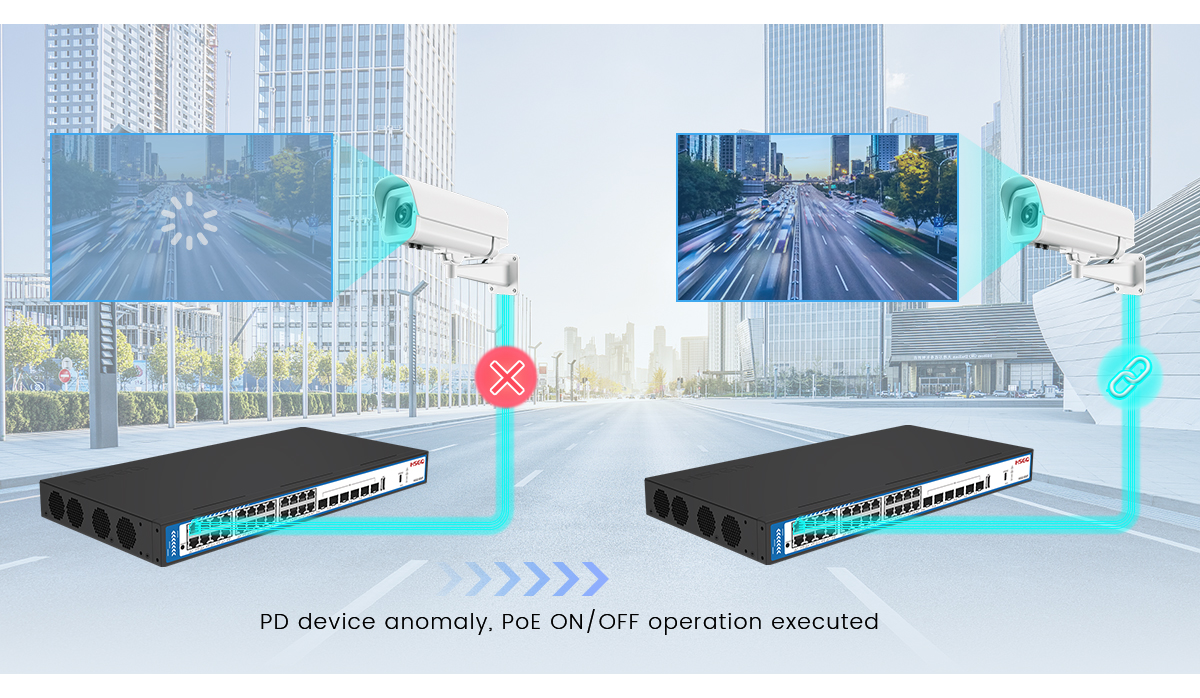

PD-Alive Function

Execute port power cycling when PD offline is detected. Automatically restore normal operation through device reboot, eliminating manual maintenance and reducing operational costs.

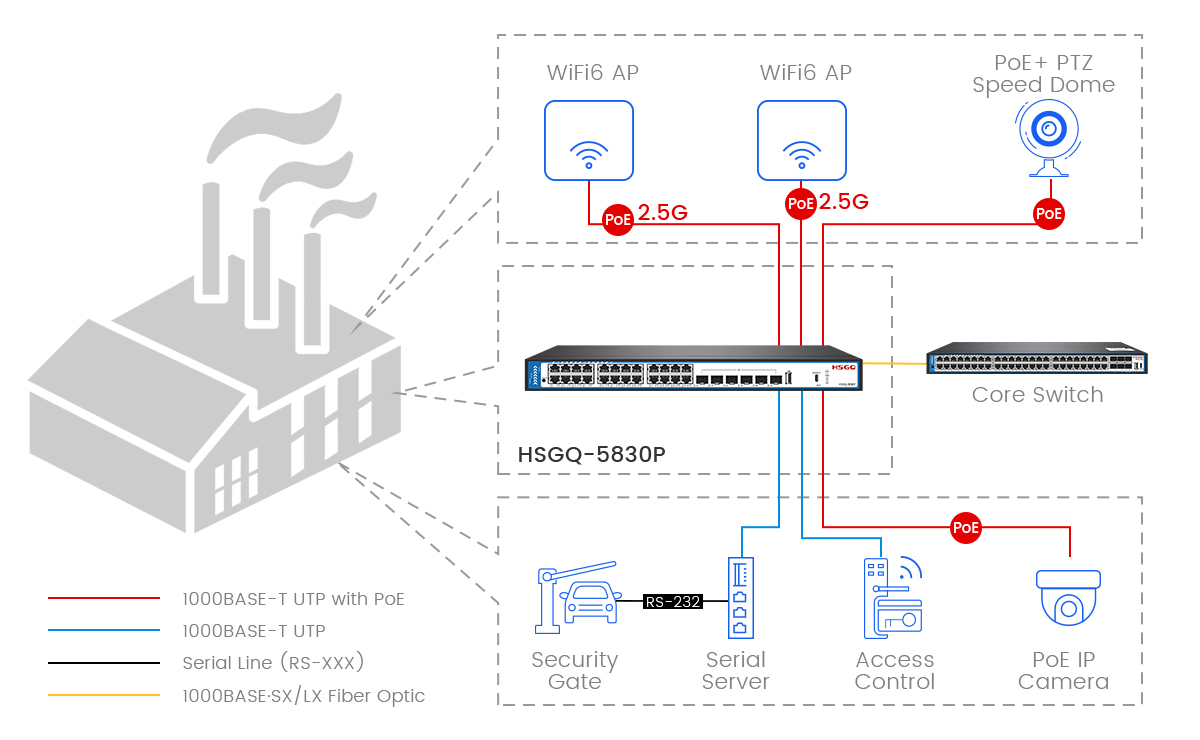

Application Scenarios

Typical Applications: Widely used for surveillance cameras and Wifi coverage with AP devices. (Industrial Parks, medium-sized enterprises, factories, real estate, hospitals, government, banking, and campuses, etc)
Downlink Ports | 24*2.5 GE RJ45 |
Uplink Ports | 6*10G SFP+ |
Console | 1*RS-232 (115200, 8, N, 1) |
USB | 1*USB 2.0 |
| PoE | |
| PoE Standard | IEEE802.3af/at (PSE) |
| PoE Power Supply Type | End-span |
| PoE in Assignment | 1/2(-), 3/6(+) |
| PoE Power Output | 46~55VDC |
| PoE Power | 30W max for each port, 360W max |
| Switch Property | |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1P, IEEE802.3ad, IEEE 802.1D, IEEE 802.1x, IEEE 802.3 af/at |
Forwarding Modes | Store and Forward |
Packet Buffer | 16Mbit |
MAC Table | 32K |
Switching Capacity | 240Gbps/non-blocking |
| Packet Forwarding Rate | 178.56Mpps |
Jumbo Frame | 12KB |
| Power Supply | |
Input Voltage | AC100V-240V, 50Hz/60Hz |
Power Consumption | <48W |
| Reliability | |
ESD Protection | 8kV Contact Discharge, 15kV Air Discharge Standard: IEC61000-4-2 |
MTBF | 100,000 hour |
MTBF Standards | Telcordia SR-332, 25℃ |
| Operating Temperature | -20℃~55℃ |
Storage Temperature | -40℃~85℃ |
Operating Humidity | 5%~95% (Non-condensing) |
| Physical Parameter | |
| Led Indicators | 2*power supply indicators |
1*system working indicator | |
24*RJ45 status indicator or PoE status indicator | |
6*optical port status indicator | |
| Reset Button | Click change LED mode, press 3-10S reset user info, IP and password, long press >10s to reset the equipment |
Dimensions(W*D*H) | 330*240*44mm |
Net Weight | 3.5 kg (Single power supply); 4.1kg (dual power supply) |
Material | Stainless Steel |
Installation | Desktop/rack-mounted |
Support IEEE 802.1d, IEEE 802.1W, IEEE 802.1S, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, EEE 802.3ae Standard and IEEE 802.3af/at
L3 Management, Support DHCP Server, DHCP Snooping, DHCP Relay Static Routing, RIP and OSFP
Support RSTP/MSTP
Support VLAN function, Port VLAN, translation and Q-in-Q
