4*port PoF ONU Fiber for Home

5 0 Reviews

Supports PoF hybrid fiber optic cable access, supporting PoF voltage input of 48V-57V. Data and power are transmitted synchronously via fiber optic cable, truly achieving a "passive mode" from the server room to the terminal, greatly simplifying cabling and space occupation.
Equipped with one G/EPON adaptive SC optical network port, supporting adaptive compatibility with GPON and EPON modes. Downlink speeds reach up to 2.5Gbps, and uplink speeds reach 1.25Gbps, easily meeting diverse broadband needs such as 4K/8K video, whole-house smart home systems, and high-speed downloads.
The unit provides four Gigabit RJ45 network ports, supporting PoE/PoE+ power supply output according to the IEEE 802.3af/at standard. The maximum power supply power of a single port can reach 30W, with a total power of up to 120W.

Model:
HSGQ-F400P

Quantity:
Availability:





Inquiry Datasheet

PoF ONU 4 port onu 1*G/EPON+4ge(poe) onu

Product Introduction

Technical Parameter

Key Feature

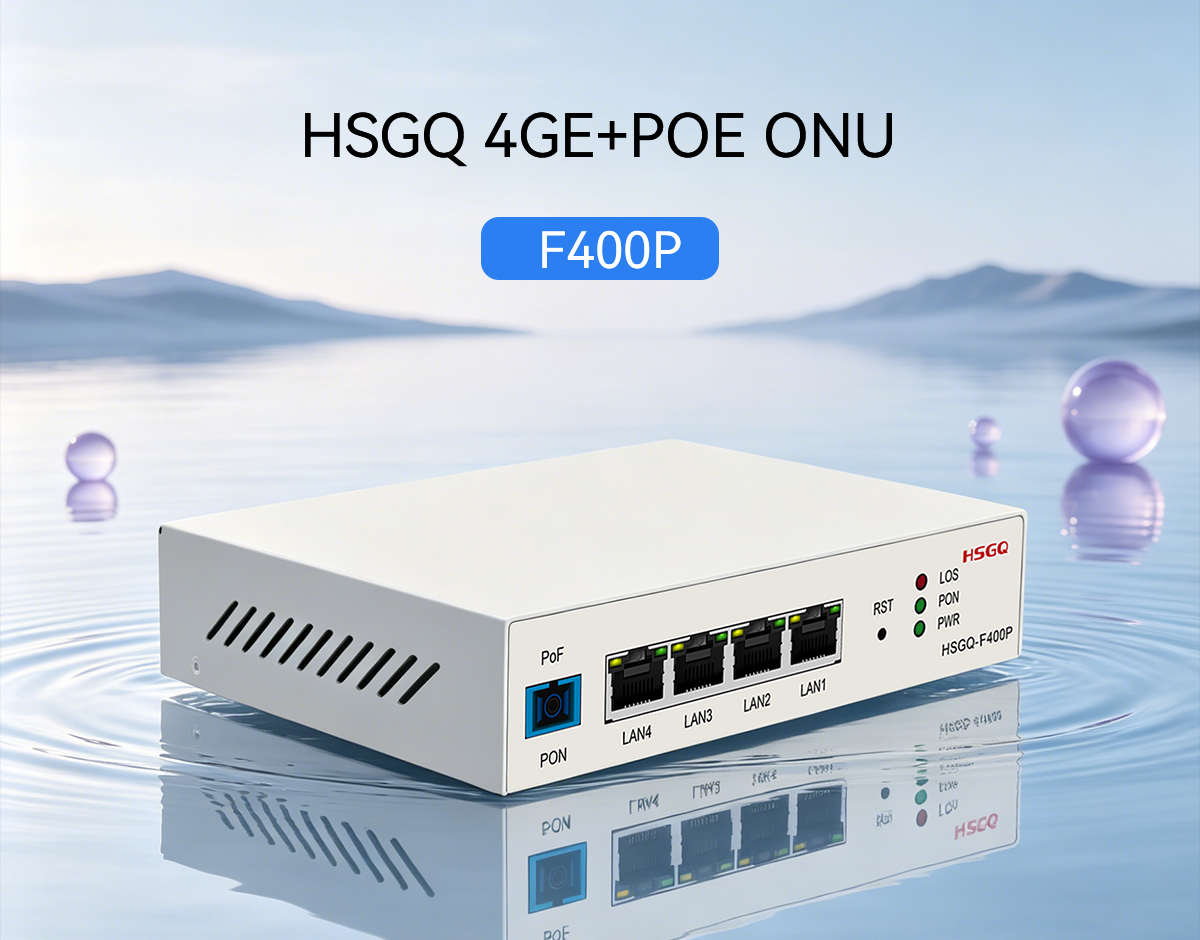

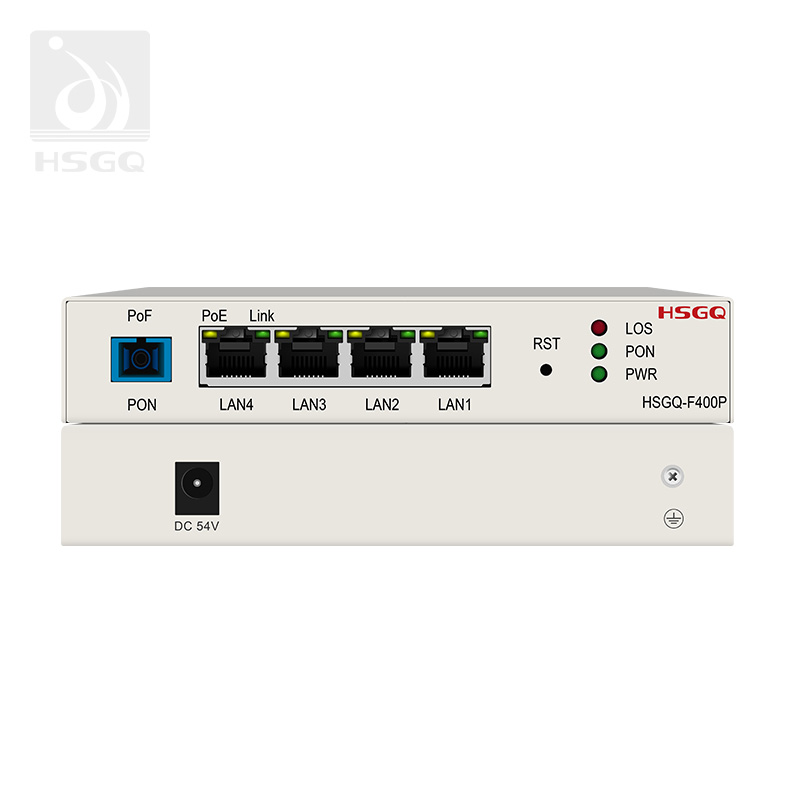

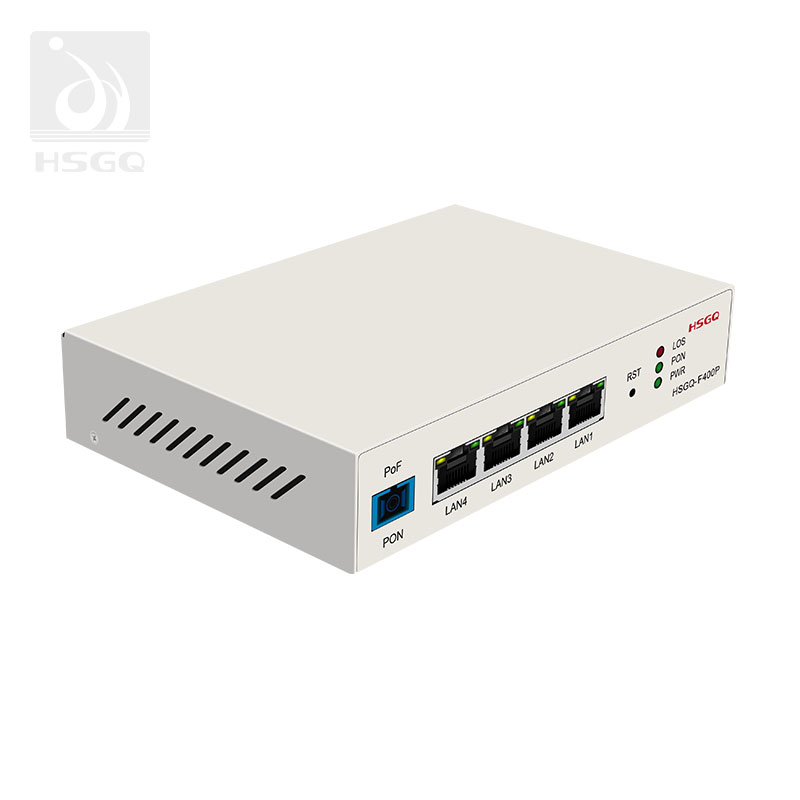

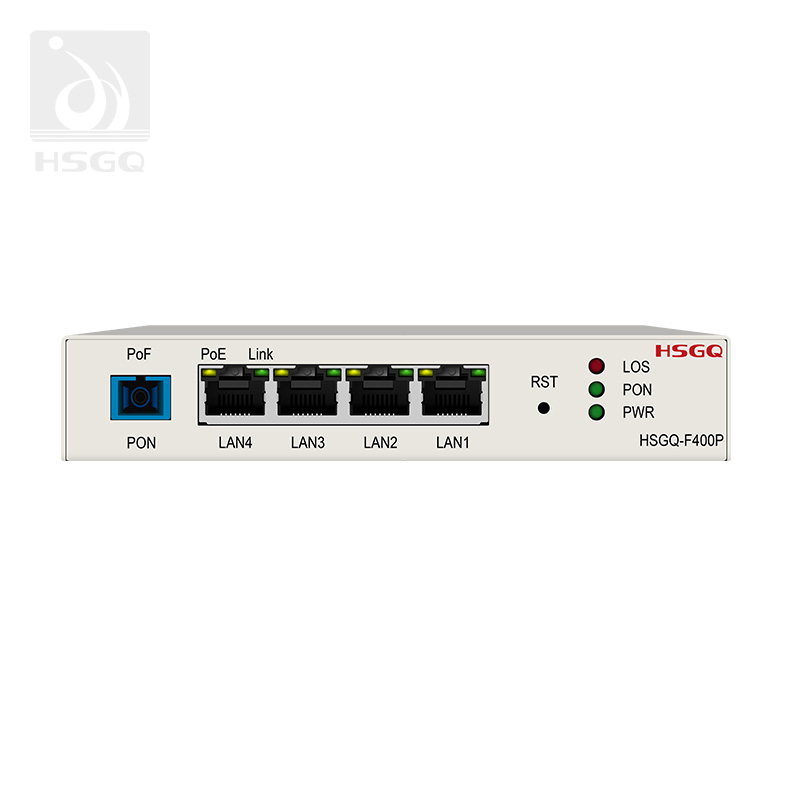

HSGQ-F400P is a PoF industrial ONU for all-optical network solution, providing 1*G/EPON adaptive SC port, 4*GE LAN port, high-speed access, downlink 2.5Gbps, uplink 1.25Gbps; support Plug & Play, OMCI remote config; PON port supports PoF optoelectronic hybrid cable access, RJ45 supports PoE 30W output, to achieve "No Power Mode" from the server room to the terminal.

PoF ONT

PoF ONU

Extremely fast fiber optic

essential for home access

PoF ONU

HSGQ-F400P ONT supports high-speed fiber optic transmission, meeting a wide range of network application needs for homes and small businesses, enhancing network experience and management efficiency.

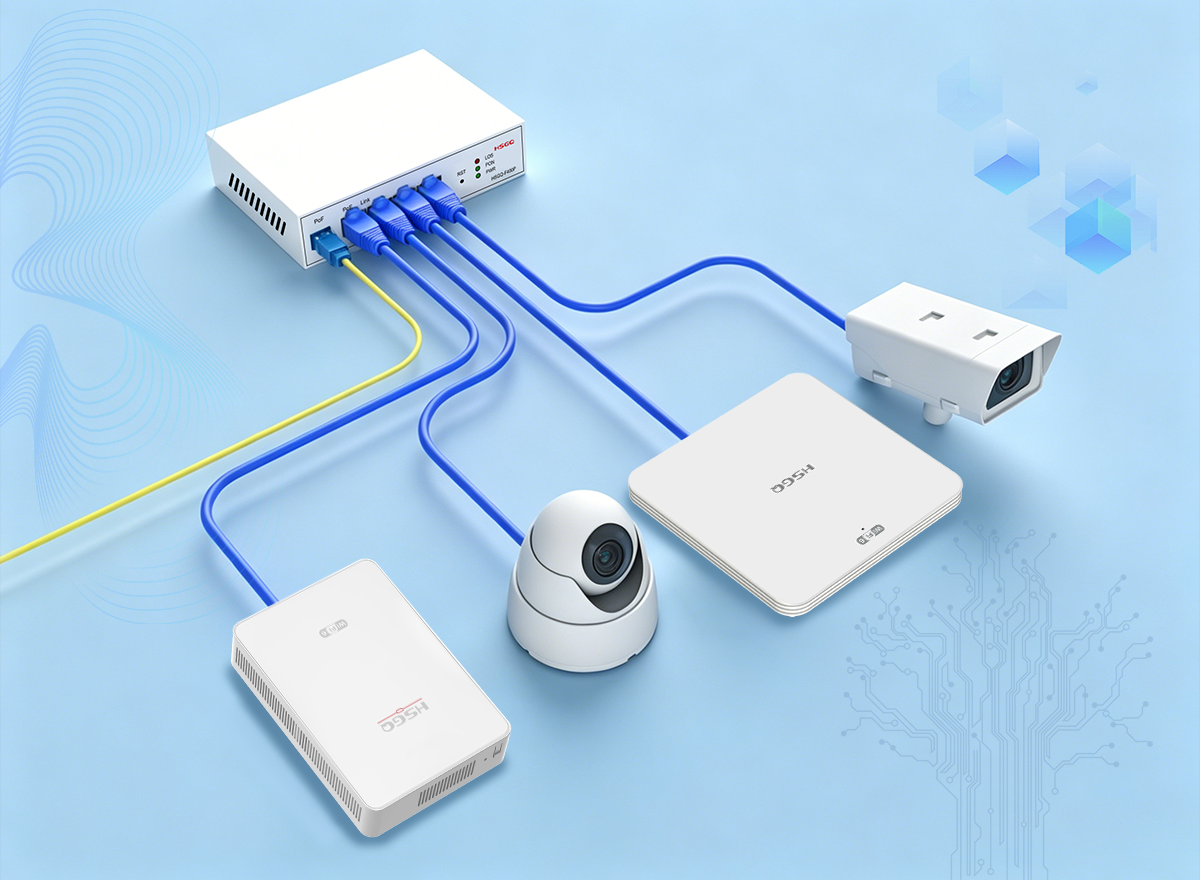

Power over Ethernet (PoE) functionality

PoF ONU

HSGQ-F400P supports providing DC power to powered devices (such as cameras, access points, IP phones, etc.) through Ethernet cables. It intelligently identifies the powered devices and automatically matches the power consumption of the connected devices to achieve energy savings. It supports standard PoE/PoE+ power supply, ensuring stable operation of the powered devices.

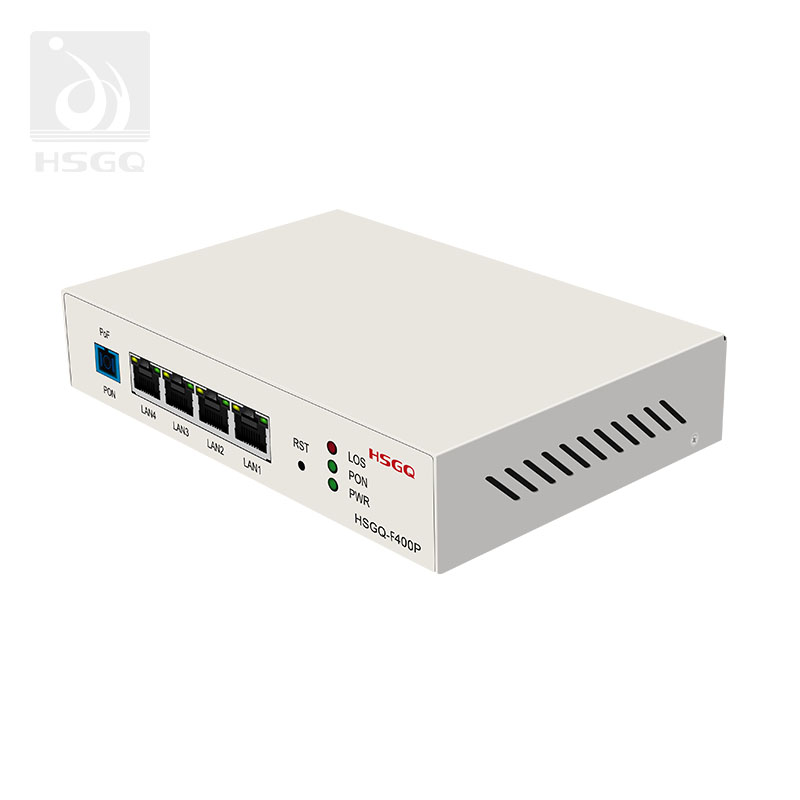

Classic White Outlook Creates Trends

PoF ONU

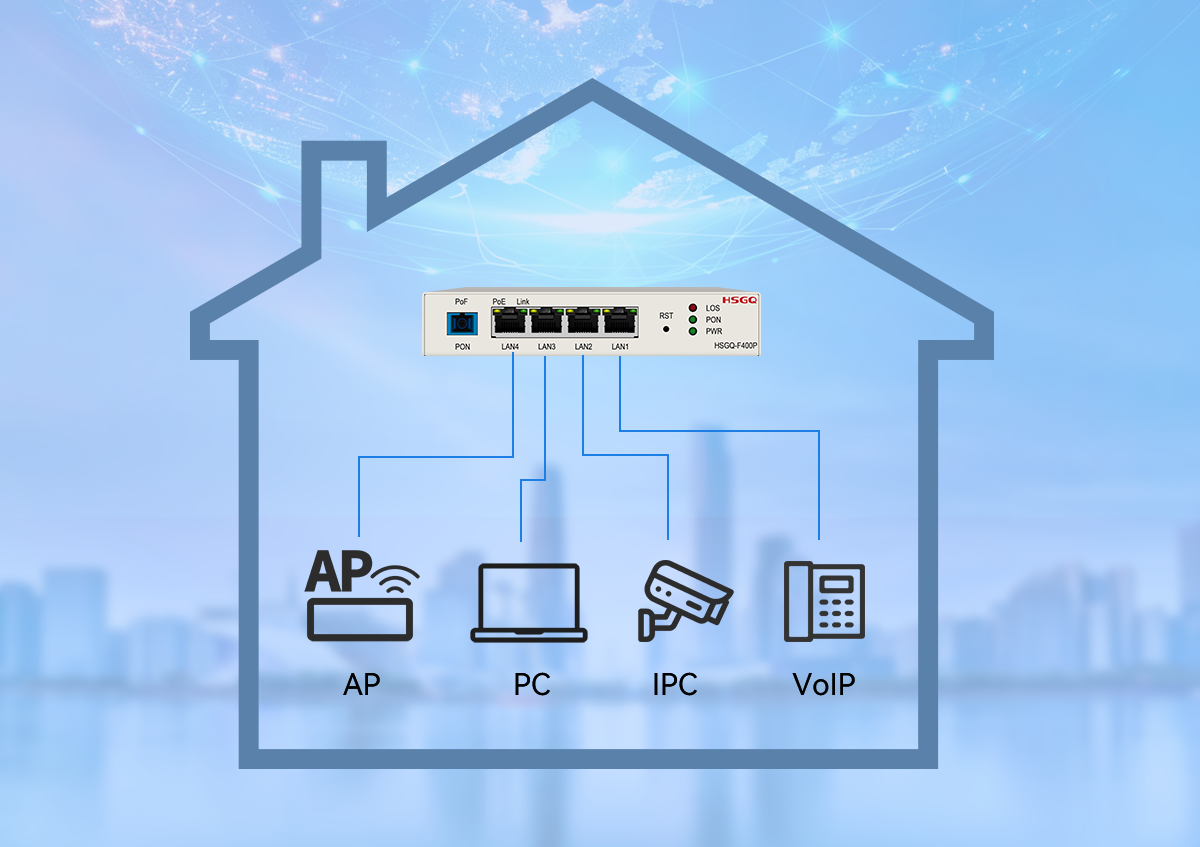

Multi-scenario Application

PoF ONU

HSGQ-F400P, leveraging its three core functions of 4 Gigabit Ethernet interfaces, PoE power supply (up to 30W), and PoF (Power over Fiber) fiber power supply, can significantly reduce cabling costs, enhance deployment flexibility, and is an ideal choice for scenarios such as homes, enterprises, hotels, and security/surveillance.

User interface	4*GE RJ45 Interface
PON	EPON&GPON mode auto-adaptive Interface Mode: Optical Composite Cable (PoF) GPON: upstream 1.25Gbps/ downstream 2.5Gbps Optical receive power: -7dBm~-28dBm Transmitting light power: 0.5dBm~4dBm EPON: upstream 1. 25Gbps/downstream 1.25Gbps Optical receive power: -7dBm~ -27dBm Transmitting optical power: 0dBm~4dBm PoF input voltage: 48V-57V
PoE Standard	IEEE 802.3af/at (PSE)
PoE PowerSupply Type	End-span
PoE Pin Assignment	1/2(+), 3/6(-)
PoE Power Output	48~57V DC
PoE Power	30W max for each port, 120W max in total

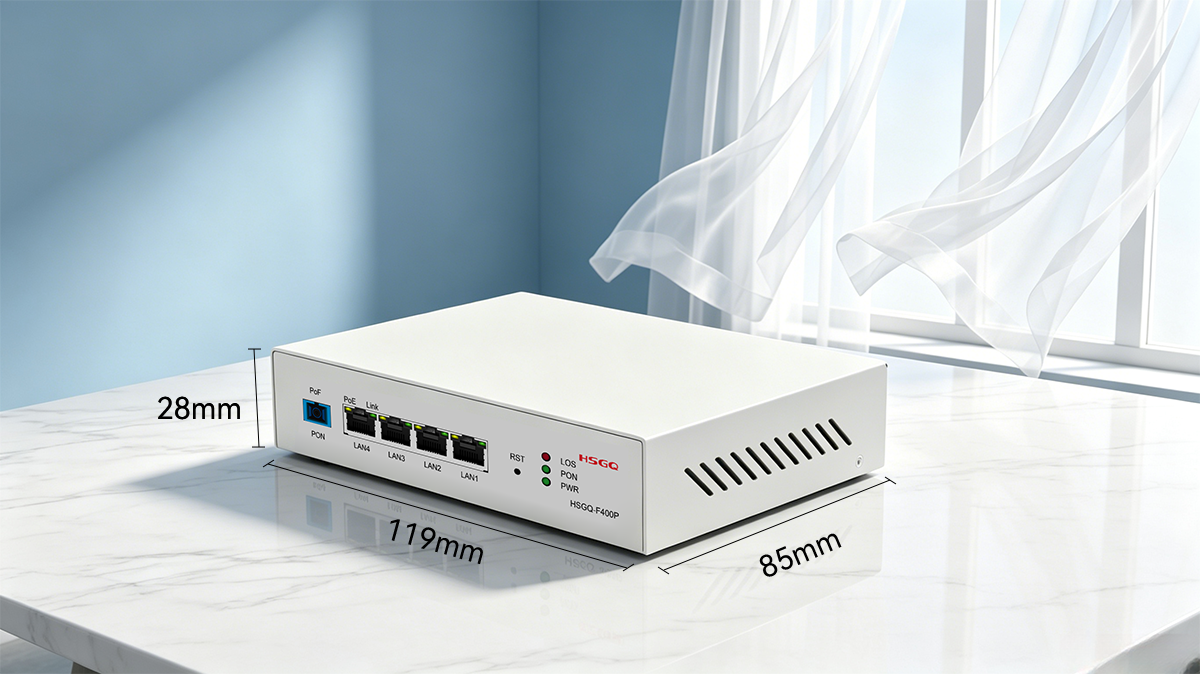

Sizes	1198528mm
Environmental	Working temperature: -30°C~70°C Operating humidity: 0%～85% (non-condensing) Storage temperature: -40℃～80℃ Storage humidity: 5%～95% (non-condensing)

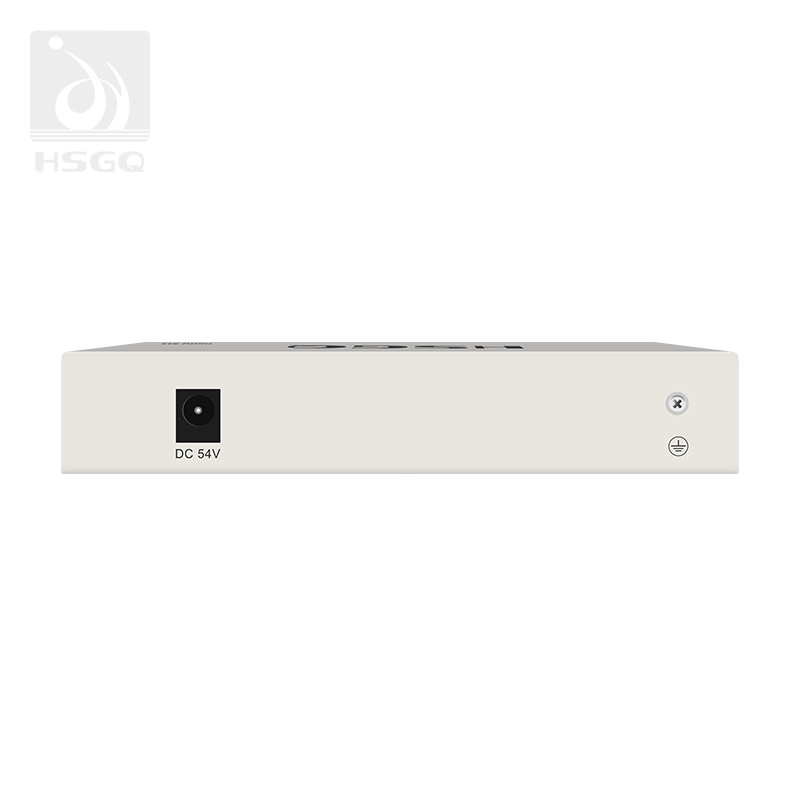

Input Voltage	PoF: 48V-57V DC: 48V-57V
Power Consumption	<130W

Adopts point-to-multipoint network topology, effectively collects and aggregates users' dispersed Ethernet services, and provides standardRJ45 Gigabit Ethernet interfaces on the user side.
Support vlan pass-through/tagging/translation/Qin-Q/trunk Multicast passthrough support.
Support IGMP multicast, effective use of broadband
Provide remote management via OLT, supports local web/telnet management.
Support line loopback detection for user-side Ethernet interfaces.
Support IEEE 802.1q VLAN Protocol.
Support broadcast storm suppression.
Support IEEE802.3x flow control (full duplex).
Support IEEE 802.1p, CoS protocols.
Support WR, SP queue scheduling algorithm.
Support port speed limit.
Support -30°C~70°C operating environment.
Support IPv4 and IPv6.
Support cloud management.
Support PoF.
