HSGQ-X421AX
| Quantity: | |
|---|---|

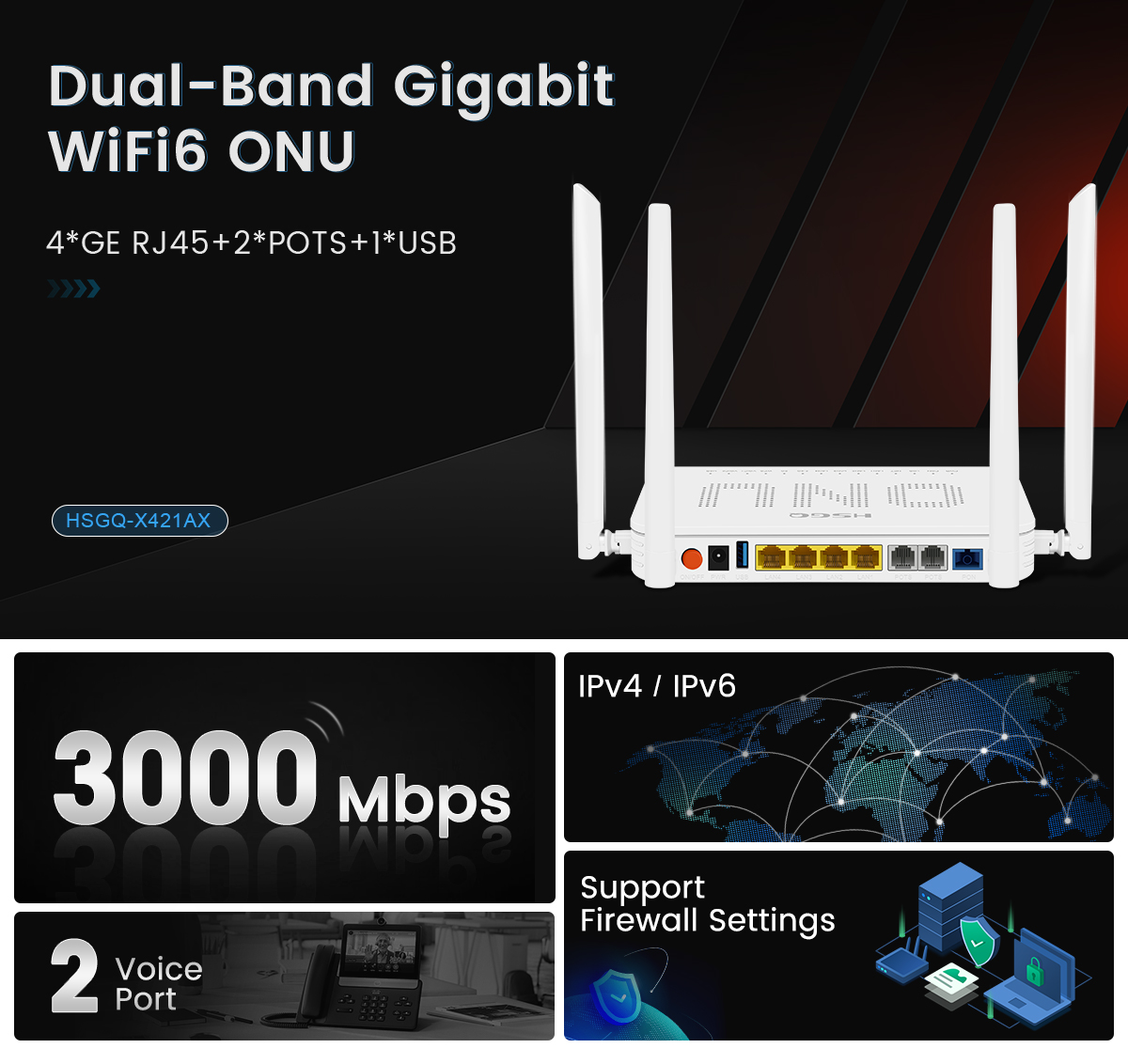

HSGQ-X421AX is FTTH ONU with WiFi 6 feature. It offers 4 Lan port, 2 voice port and 1 USB port. Integrated with WiFi 6 feature. This model is released in 2023, to meet for the market demand. This model only for Telecom tender and government projects by far.
Extremely Fast Fiber
Optic Essential for Home Access
HSGO-X421AX is an intelligent passive optical network terminal in FTTH solutions. It meets the needs of fixed network operators for FTTH and triple-play services, provides multi-functional data transmission, video conferencing, multimedia entertainment and other functions based on E/GPON networks, supports multiple devices to connect to the Internet at the same time, and maintains stable performance.
Dual-Band Intelligent Switching
Enjoy Stronger and More Stable Wi-Fi Signal
Support 2.4GHz and 5GHz dual band, intelligently switches to the optimal frequency band based on the connected device (such as smartphones, tablets, and other WiFi enabled devices), thereby enhancing the overall wireless connection experience.
High-Speed WiFi
Enjoy the Ultra-Fast Network Experience
HSGO-X421AX provides AX3000 WiFi high-speed access, fully complies with 802.11 n/b/g/ac/ax wireless standard protocols, built-in high-gain directional antenna, wireless transmission rate can reach 2400Mbps, with strong penetration and wide coverage.

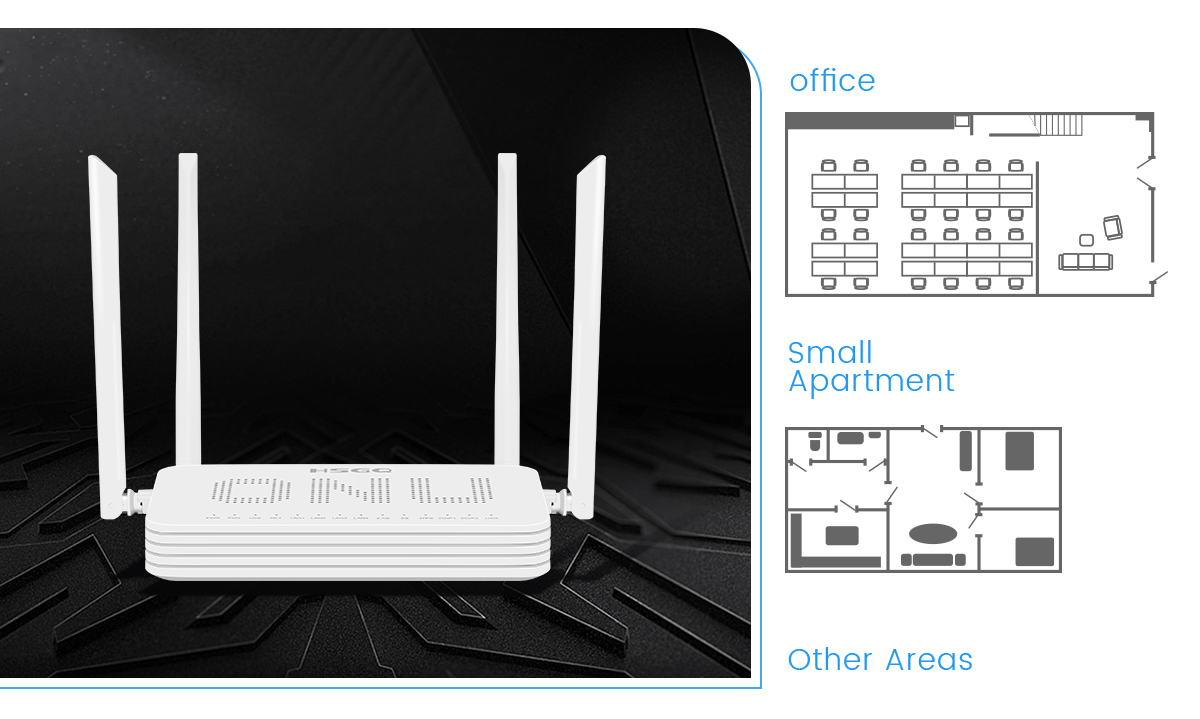

4×5dBi Antennas
It is equipped with 4x5dBi enhanced antennas, which use scientific component layout to achieve excellent signal penetration and complete signal coverage in a wide area. It supports both 2.4GHz and 5GHz frequency bands.
Multi-Scenario FTTX Solution
The application scenarios of WiFi 6 are very extensive, covering multiple fields such as home, business, office, public places, industrial Internet of things, etc. With the continuous development and popularization of technology, WiFi 6 will play a more important role in the future.
| User interface | 1*10/100/1000M RJ45 port 2*POTS 1*USB 3.0 1*EPON & GPON adaptive interface WiFi 6 AX3000 |
| PON | EPON&GPON mode adaptive Interface Type: SC-APC/SC-UPC Security: ONU authentication mechanism Network coverage radius: 20KM GPON: upstream 1.25Gbps/ downstream 2.5Gbps Optical receive power: -7dBm~-27dBm Transmitting optical power: 0.5dBm~5dBm EPON: upstream 1.25Gbps/downstream 1.25Gbps Optical receive power: -7dBm~ -27dBm Transmitting optical power: 0dBm~ 4dBm |
| Ethernet | 4*10/100/1000M auto-negotiation Full/ half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |
| Size | 186mm(L)×136mm(W)×33.5mm(H) |
| Environment | Operating temperature: 0℃～60℃ Operating humidity: 10%～85% (non-condensing) Storage temperature: -40℃～80℃ Storage humidity: 5%～95% (non-condensing) |
| Power Supply | 12V/ 1.5A DC Power interface size: 2.1mm/5.5mm |
| Power Consumption | < 12W |
| Management | WEB/ TELNET/ TR069/ OMCI/ OAM |
| POTS Port | 2*RJ11 Max 1km distance Balanced Ring, 55V RMS |
Support device - based rate limitation and bandwidth control.
In compliant with IEEE802.3ah & ITU-T G.984.x standard.
WiFi series meet 802.11a/b/g/n/ac technical standards.
Up to 20KM transmission distance.
Support data encryption, group broadcasting, port Vlan separation, etc.
Support Dynamic Bandwidth Allocation (DBA).
Support ONU auto - discovery/ Link detection/ remote upgrade of software.
Support port VLAN configuration.
Support power - off alarm function, easy for link problem detection.
Support QOS configuration.
Support port binding.
Support port flowarding.
Support ACL to configure data packet filter flexibly.
Specialized design for system breakdown prevention to maintain stable system.
Support software online upgrading.
Support TR069 for ACS (Auto Config Server).
Support PPPoE/ DHCP Server/ IPTV/ POTS/ NAT.
Support IPv4/ IPv6
| Indicator | Description | |
| POWER | Power Status | On: The ONU is power on |
| Off: The ONU is power off | ||
| PON | ONU Register | On: Success to register to OLT |
| Blinking: ln process of registering to OLT | ||
| Off: Fail to register to OLT | ||
| LOS | Optical Signals | On: Optical link lower than receiver sensitivity |
| Off: Optical in normal | ||
| LAN | LAN Port status | On: Ethernet connection is normal |
| Blinking: Data is being transmitted | ||
| Off: Ethernet connection is not set up | ||
| 2.4G | 2.4G WiFi Status | On: WiFi function opens |
| Blinking: Data is being transmitted | ||
| Off: WIFI functions closes | ||
| 5G | 5G WiFi Status | On: WiFi function opens |
| Blinking: Data is being transmitted | ||
| Off: WIFI functions closes | ||
| NET | Internet Status | On: ONU can access internet |
| Off: ONU can not access internet | ||
| WPS | WPS Status | On: Terminal has connected |
| Blinking: Terminal is connecting | ||
| Off: Terminal not connected | ||
| VOIP1 | VOIP Status | On: Voice account registered |
| Off: Voice account not registered | ||
| VOIP2 | VOIP Status | On: Voice account registered |
| Off: Voice account not registered | ||
| USB | USB Status | On: USB is link |
| Off: USB is not link | ||
