Higher speeds: Wi-Fi 6 routers support higher data transfer rates, allowing for faster wireless connection speeds.
Better network capacity: OFDMA technology has been introduced, which can divide the wireless channel into multiple sub-channels, allowing multiple devices to transmit data at the same time without interfering with each other.
Lower power consumption: Introducing a technology called Target Wake Time (TWT) that allows devices to sleep between data transfers, saving battery life.

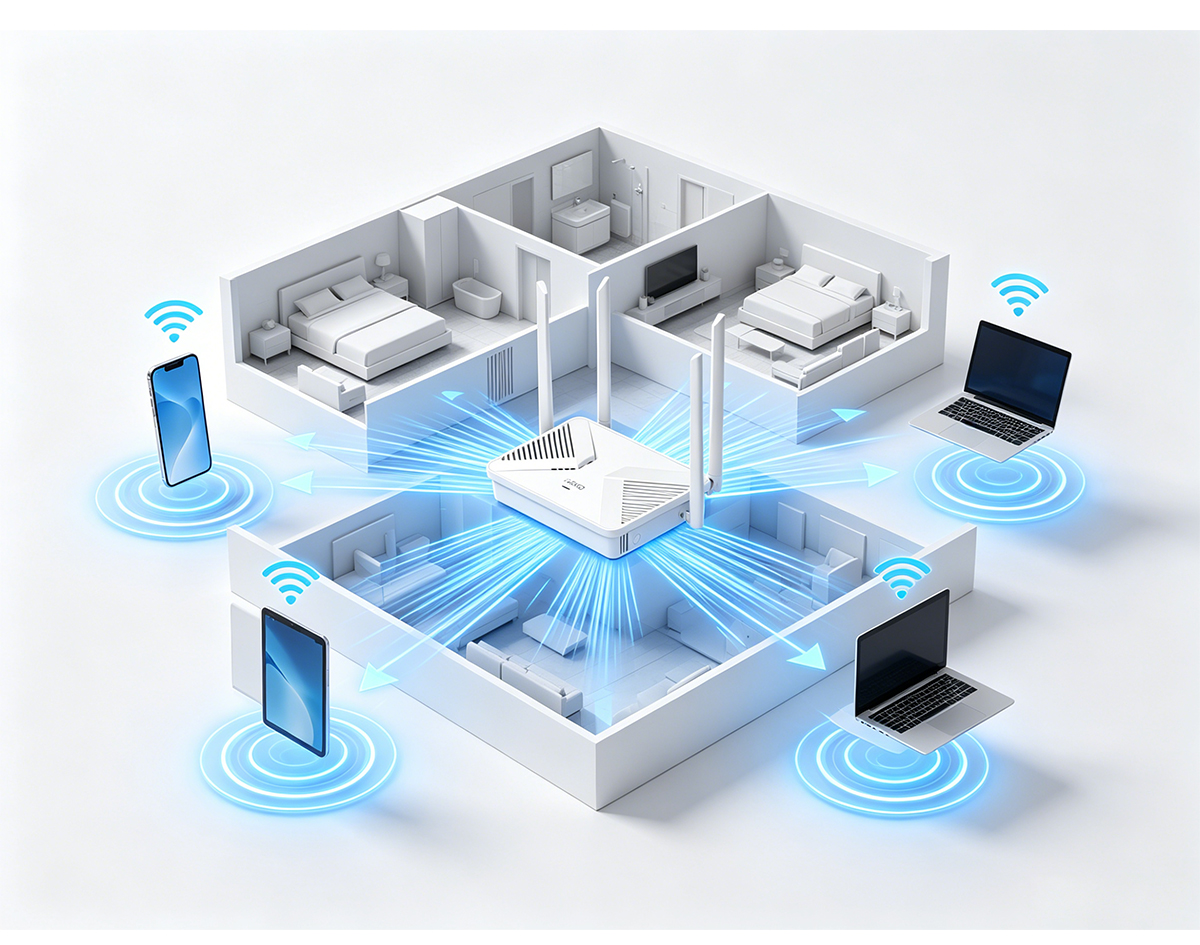

Better transmission distance: Using more advanced modulation and coding technology, it can provide better signal coverage.
Suitable for: House/ Office/ Street/ Mall

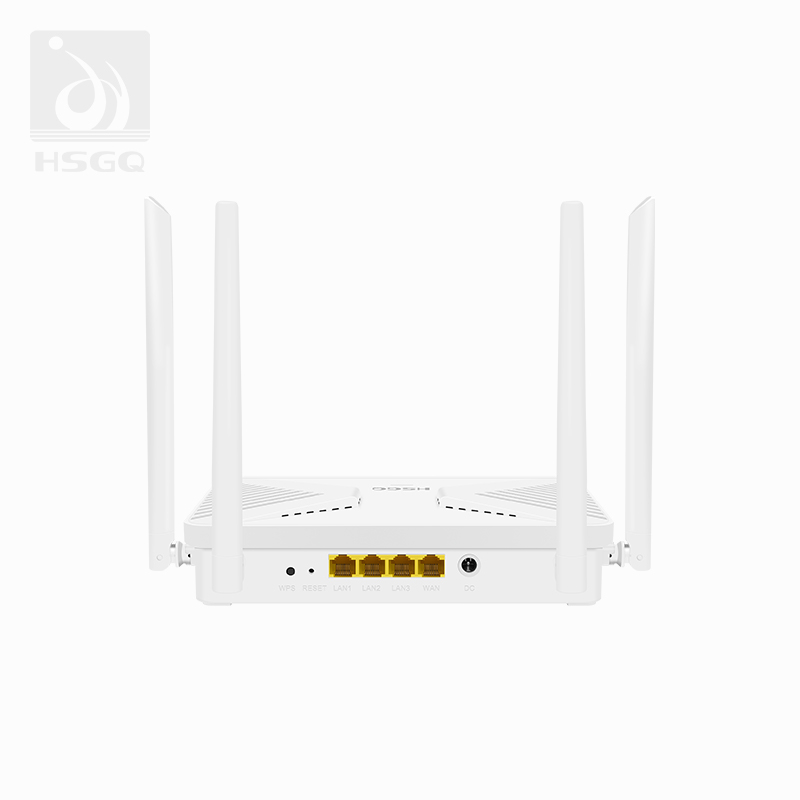

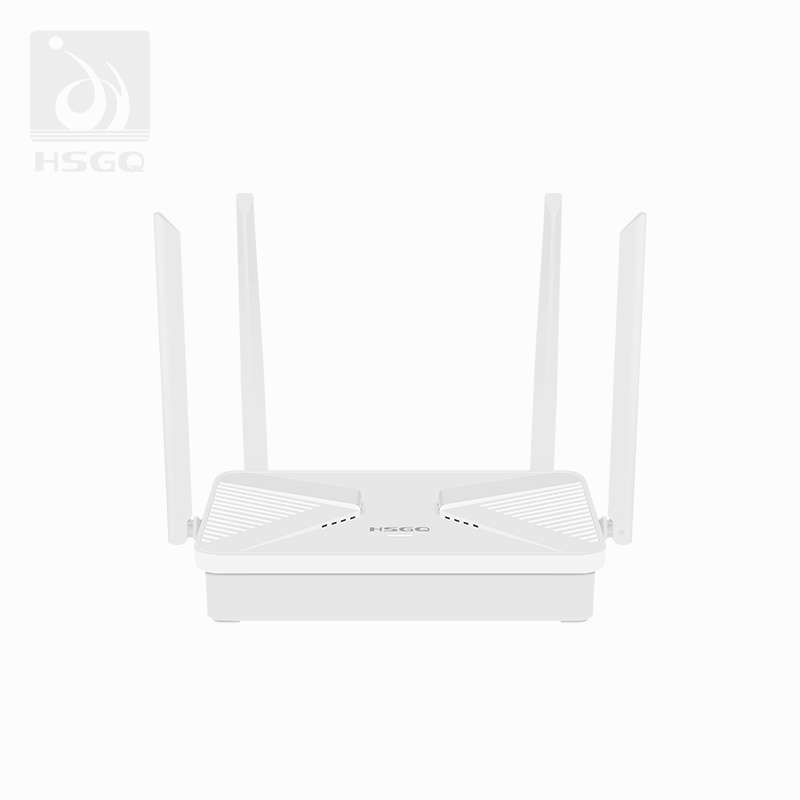

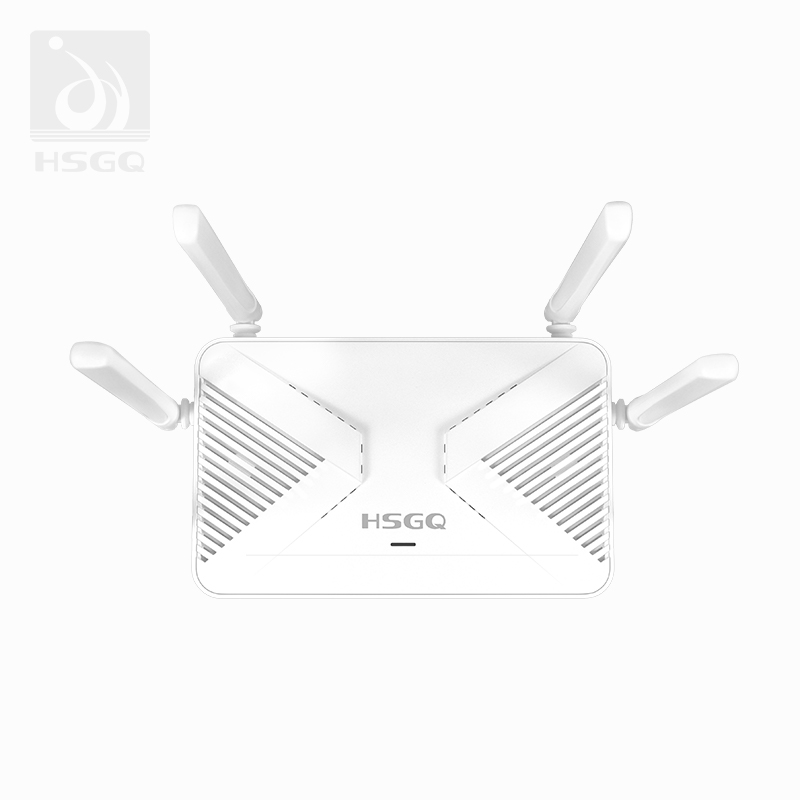

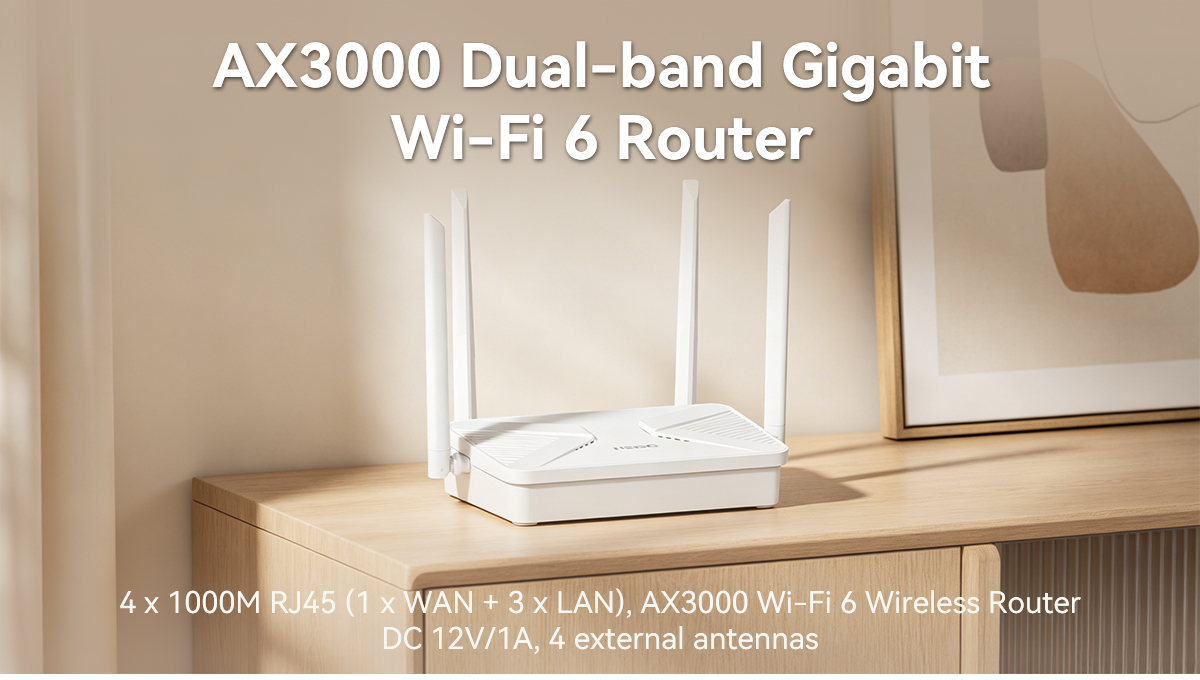

HSGQ-R3000
| Quantity: | |
|---|---|

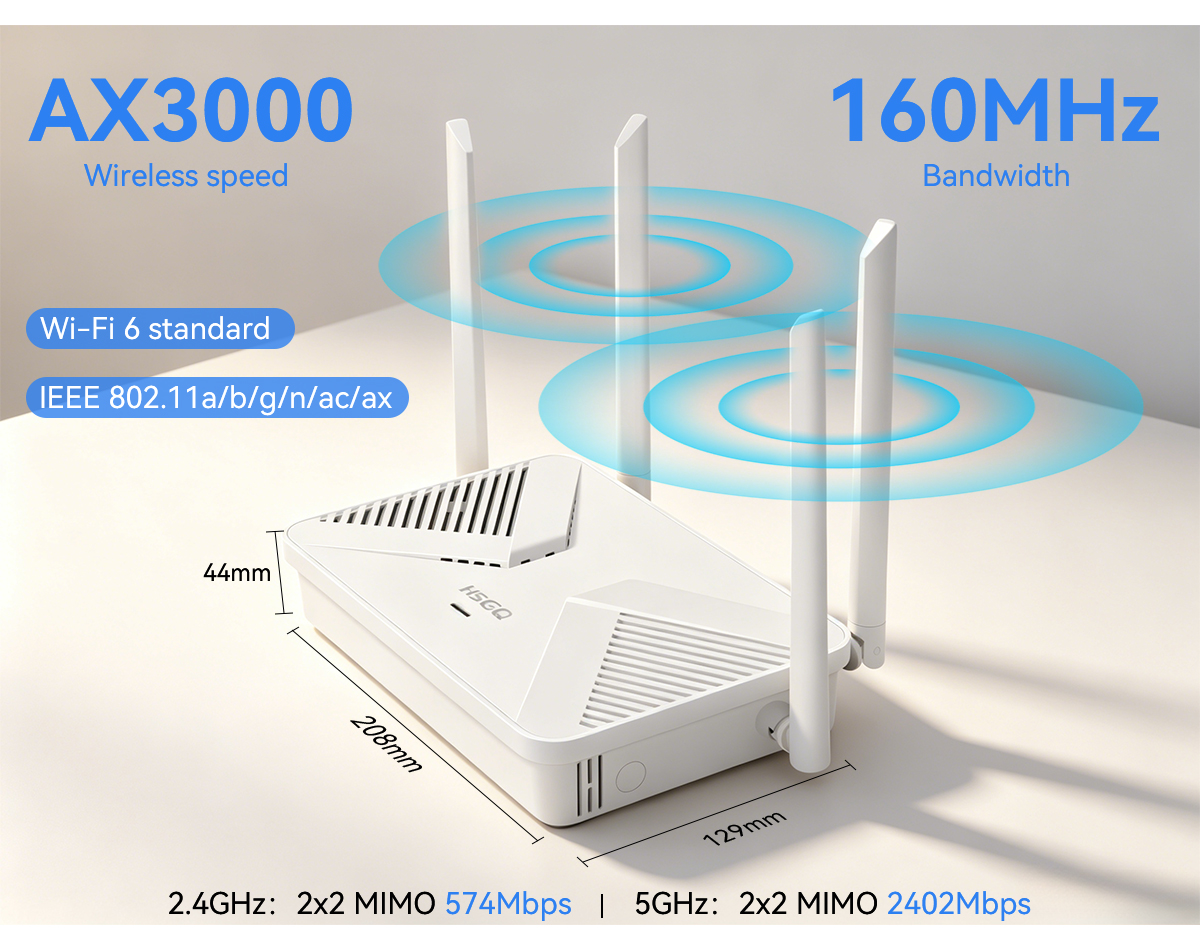

HSGQ-R3000 adopt the next generation 11ax technology, wireless speed up to 3000Mbps, support MU-MIMO. The 2.4GHz Band with long transmission distance, easily penetrates the wall, wide Wi-Fi signal coverage. The 5GHz band with less interference and smooth channels. Improve the efficiency of multi-user concurrent scenarios and easily cope with high-density access scenarios.
Supports 5G channels with an ultra-wide band of up to 160MHz. With WiFi6 technology, it provides wireless speeds up to 2976Mbps along with low latency ideal for HD gaming experiences. Additionally, it enables super fast caching allowing quick access to 4K movies and short videos.

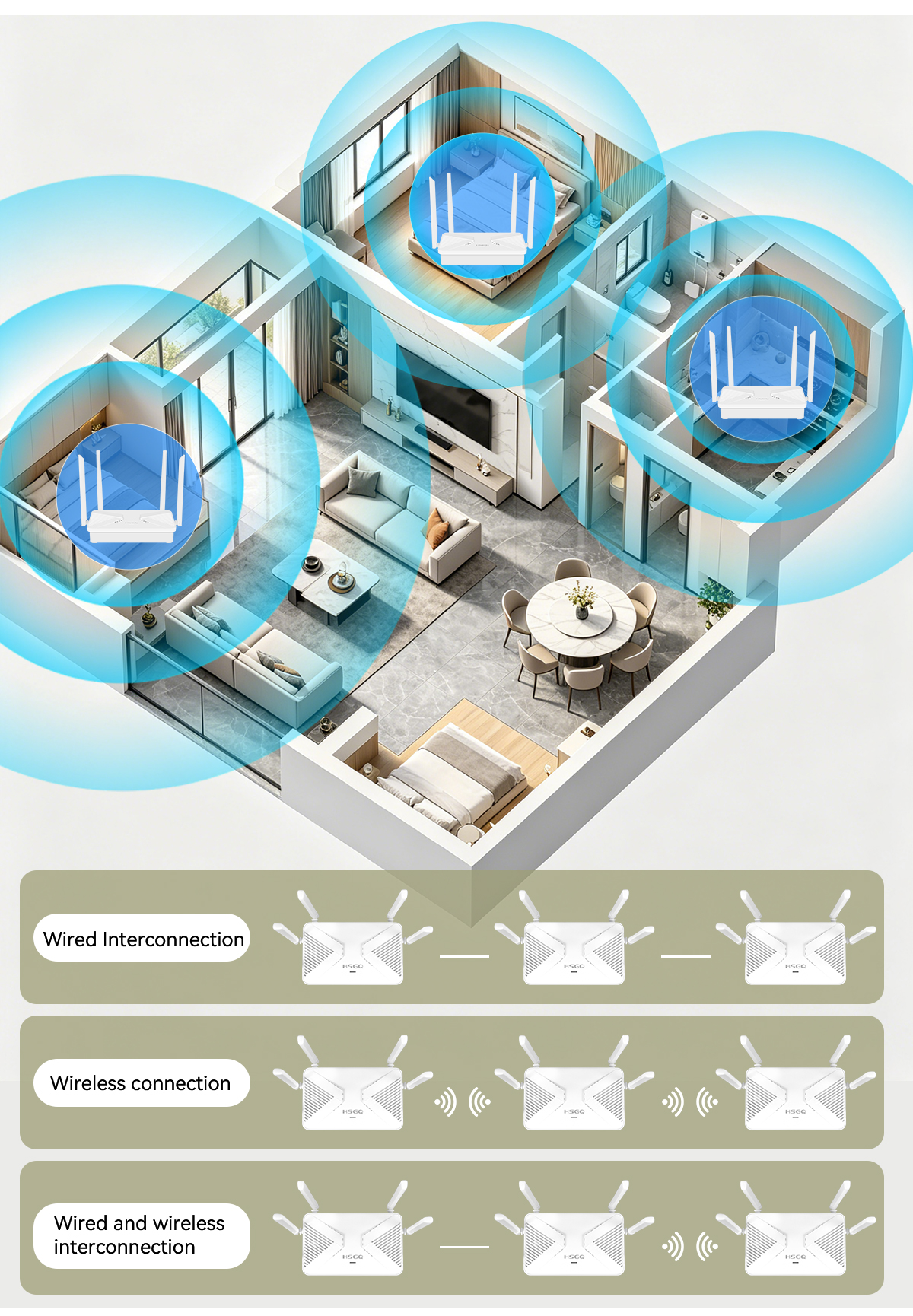

Ultra-wide Coverage with Mesh Function
Multiple routers seamless networking, oversized/multi-story villa adopt multiple routers through mesh function networking, to achieve a large range of wire-free coverage, the signal seamless connection. Networking anytime and anywhere.
6 External Indivdual Antennas
Longer transmission distance and wider coverage, the external 6 5dBi high-gain omnidirectional antennas can achieve greater isolation between the same band antennas within the limited shell space through a more scientific overall layout, effectively reduce the same band interference, and significantly enhance the anti-interference ability and signal coverage during data transmission.

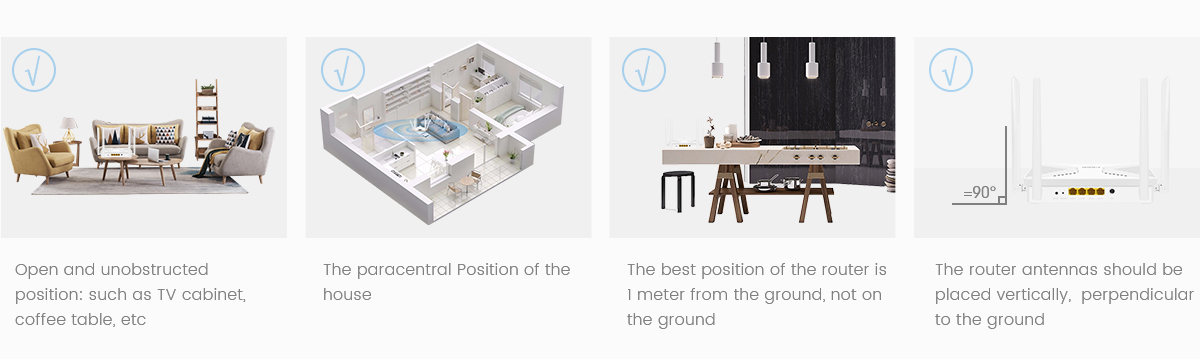

Suggested Position
Open and unobstructed position: such as TV cabinet, coffee table, etc
The paracentral Position of the house
The best position of the router is 1 meter from the ground, not on the ground
The router antennas should be placed vertically, perpendicular to the ground Not recommended Position
Metalloid Isolation box inside, such as ELV box, closed metal cabinet, etc.
Locations with more obstructions, such as built-in storage on the wall, corners blocked by furniture, etc.
Near electrical appliances with interference, such as microwave ovens, computer mainframes, generators, etc.
House edge Position, such as balcony, toilet, laundry room, etc. Core Parameters | CPU | MT7981BA (ARM Dual-core A53@1.3GHz)+MT7976CN |
| Flash/Memory | NAND 128MB+256MB DDR3 | |
| Antenna | 2.4G: 5dBi*3 5.8G: 5dBi*3 | |

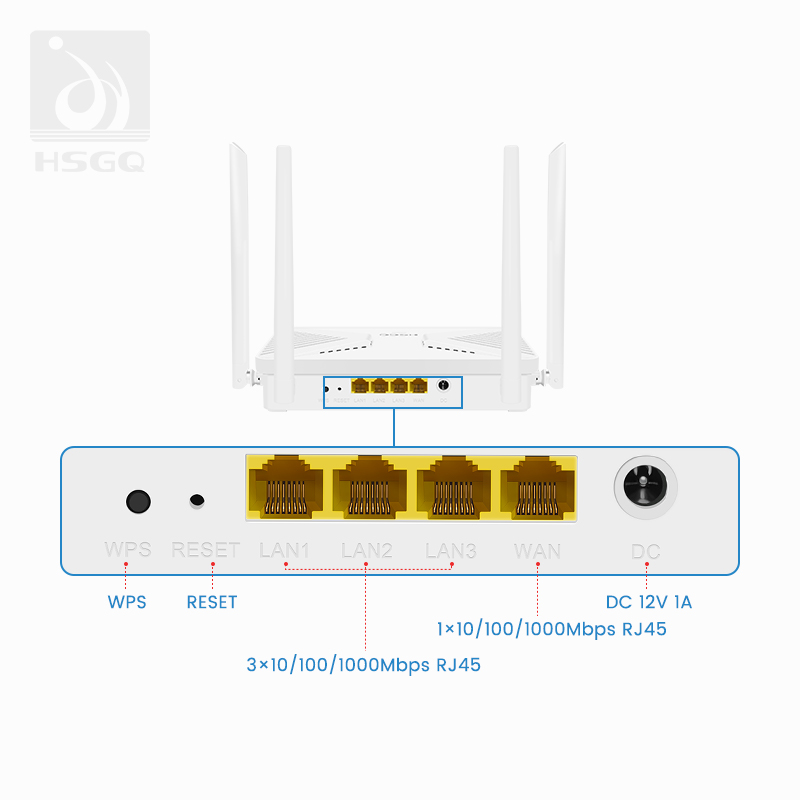

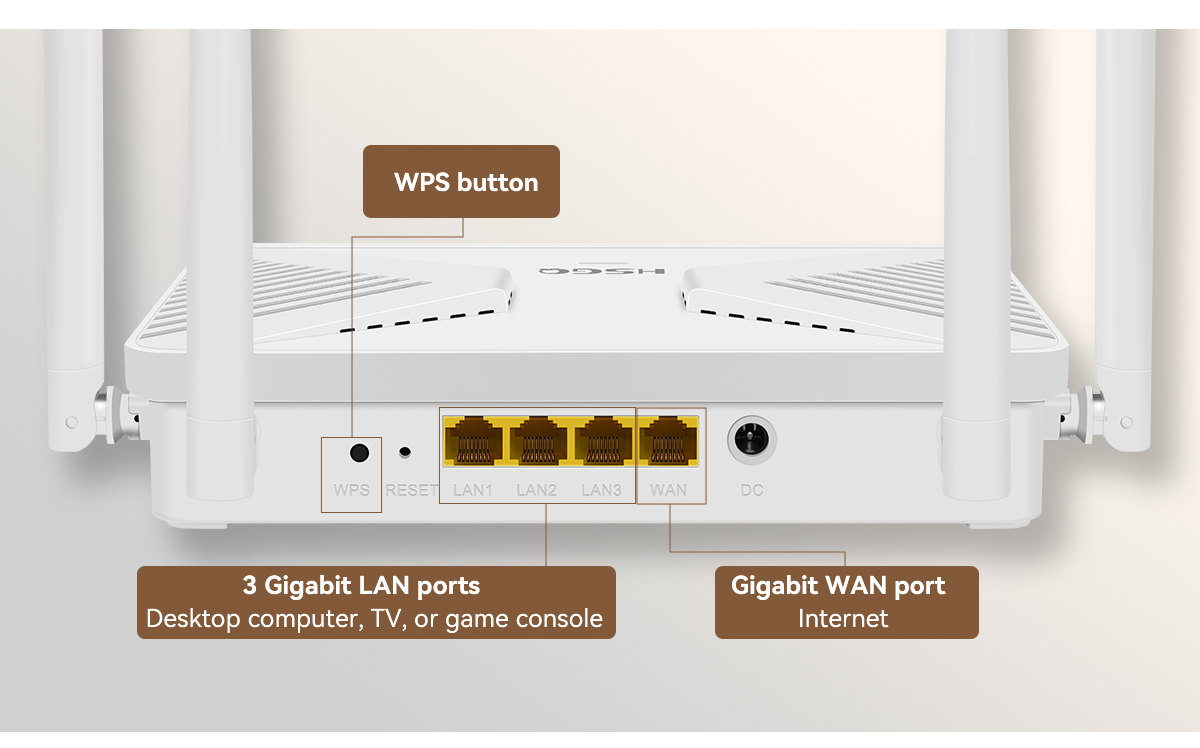

| Interface | 1*10/100/1000Mbps RJ45 WAN 3*10/100/1000Mbps RJ45 LAN | |
| Buttons | RESET, WPS/MESH | |
| Power Supply | DC 12V 1A | |
| LED Indicator | LED*1 (three colors, red, green, blue) | |
| Wireless | Standards | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| Operating Frequency | 2.4~2.4835GHz, 5.150GHz ~ 5.850GHz | |
| Features | Data Rate | Up to 3000Mbps |
| Channel | 2.4G: 1~13 5.8G: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165 | |
| Modulations | 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
| 802.11b: DSSS (DQPSK, DBPSK, CCK) | ||
| 802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | ||
| 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | ||
| 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) | ||
| 802.11ax: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM) | ||
| Encryption | WPA-PSK/WPA2-PSK, WPA3-SAE, WPA3-SAE/WPA2-PSK2 | |
| Transmit Power | 2.4G: 11b (CCK): 20dBm±2dBm@11Mbps | |
| 11g (OFDM): 20dBm±2dBm@6Mbps；17dBm±2dBm@54Mbps | ||
| 11n (HT40): 20dBm±2dBm@MCS0；17dBm±2dBm@MCS7 | ||
| 11AX (HE40): 20dBm±2dBm@MCS0 ；16dBm±2dBm@MCS11 | ||
| 5.8G: 11a (BW20): 18dBm±2dBm@6Mbps；15dBm±2dBm@54Mbps； | ||
| 11ac (VHT80): 18dBm±2dBm@MCS0；15dBm±2dBm@MCS9； | ||
| 11ac (VHT160): 18dBm±2dBm@MCS0；15dBm±2dBm@MCS9； | ||
| 11ax (HE80): 18dBm±2dBm@MCS0；15dBm±2dBm@MCS11； | ||
| 11ax (HE160): 18dBm±2dBm@MCS0；15dBm±2dBm@MCS11； | ||
| Receive Sensitivity | 2.4G: 11g: <-95dbm@ 6Mbps; <-77dbm@ 54Mbps； | |
| 11n (HT40): ≤-96dBm@MCS0, ≤-65dBm@MCS11 | ||
| 11ac (VHT40): ≤-96dBm@MCS0, ≤ -65dBm@MCS11 | ||
| 11ax (HE40): ≤-96dBm@MCS0, ≤ -65dBm@MCS11 | ||
| 5.8G: 11a (BW20): ≤ -94dBm@6Mbps; ≤ -77dBm@54Mbps | ||
| 11ac (VHT80): ≤ -88dBm@MCS0; ≤ -64dBm@MCS9 | ||
| 11ac (VHT160): ≤ -85dBm@MCS0; ≤ -60dBm@MCS9 | ||
| 11ax：(HE80):≤ -88dBm@MCS0; ≤ -57dBm@MCS11 | ||
| 11AX(HE160):≤ -85dBm@MCS0; ≤ -54dBm@MCS11 |
Dual frequency 3000Mbps, WiFi6+, HE160MHz, Meet the demand for high tape volume.
Dual-core ARM architecture CPU with 256MB large memory, faster and more stable.
WAN, LAN port full gigabit, support gigabit fiber broadband access, IPTV access.
External 6 antennas, precision layout, wider coverage, longer transmission distance.
Support guest network and device management functions, easily control your network.
Supports multiple security mechanisms such as blacklist, MAC address filtering, IP address. filtering, SSID hiding/encryption, and layer upon layer protection.
Support Mesh, 360° network full coverage without dead corners.
Support IPV6 large capacity, high efficiency, and greater security.
