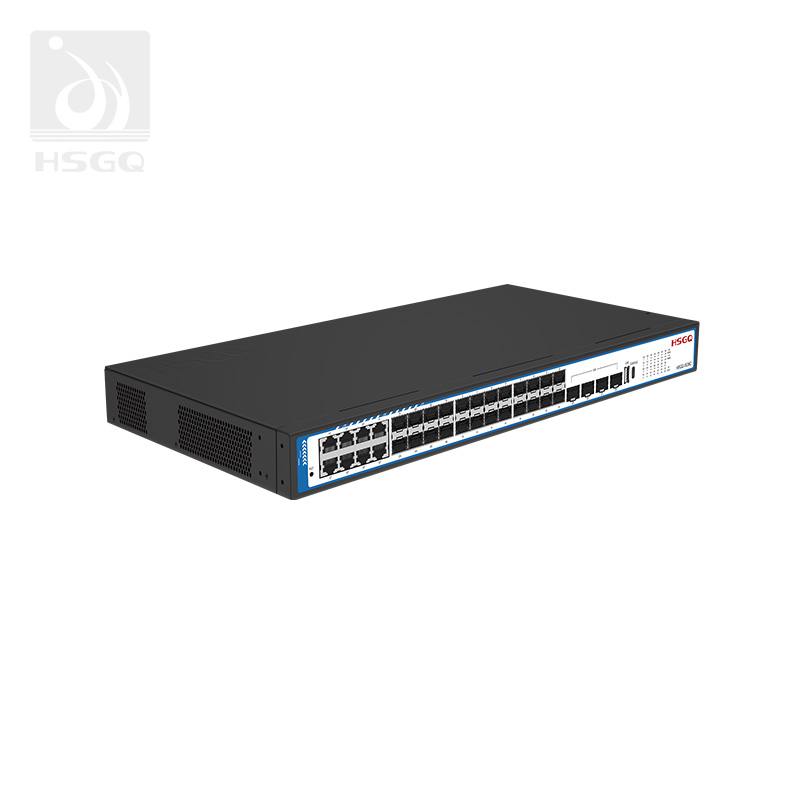

16*SFP Port L3 Switch Managed for Monitor

5 0 Reviews

Equipped with eight Gigabit Combo ports, network administrators can freely choose between cable (RJ45) or fiber optic (SFP) media depending on the actual environment.
Four built-in 10G SFP+ optical ports provide high-bandwidth backbone links, ensuring uninterrupted data transmission between core switches or server clusters and easily supporting high-load tasks such as video conferencing and big data backup.
It enables efficient cross-VLAN routing and forwarding, helping enterprises optimize network architecture, reduce gateway burden, and provide more granular security control and traffic isolation capabilities.
With a fully functional web-based graphical management interface, IT maintenance personnel can easily monitor device operating status, configure VLANs, set QoS policies, and view link faults, significantly improving operational efficiency.

Model:
HSGQ-5536C

Quantity:
Availability:





Inquiry Datasheet

layer 3 switch with firewall 10/100/1000m multilayer l3 switch in wall l3 switch in networking

Product Introduction

Technical Parameter

Key Feature

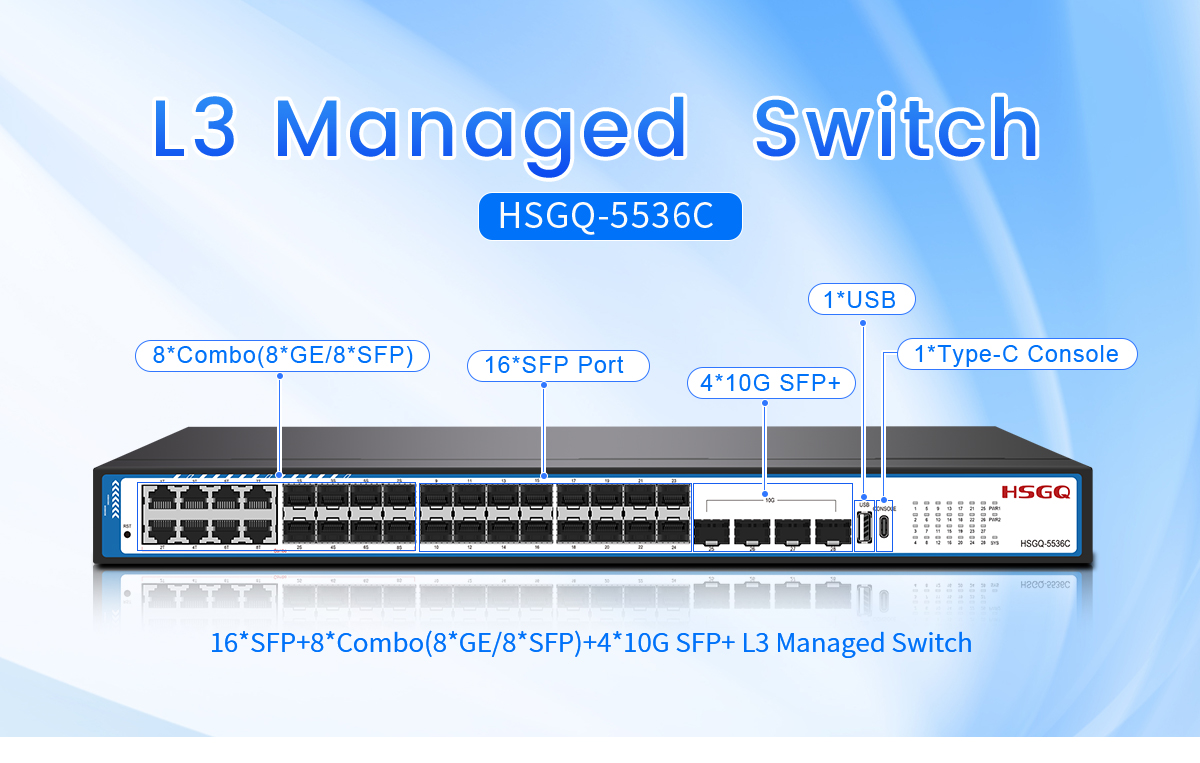

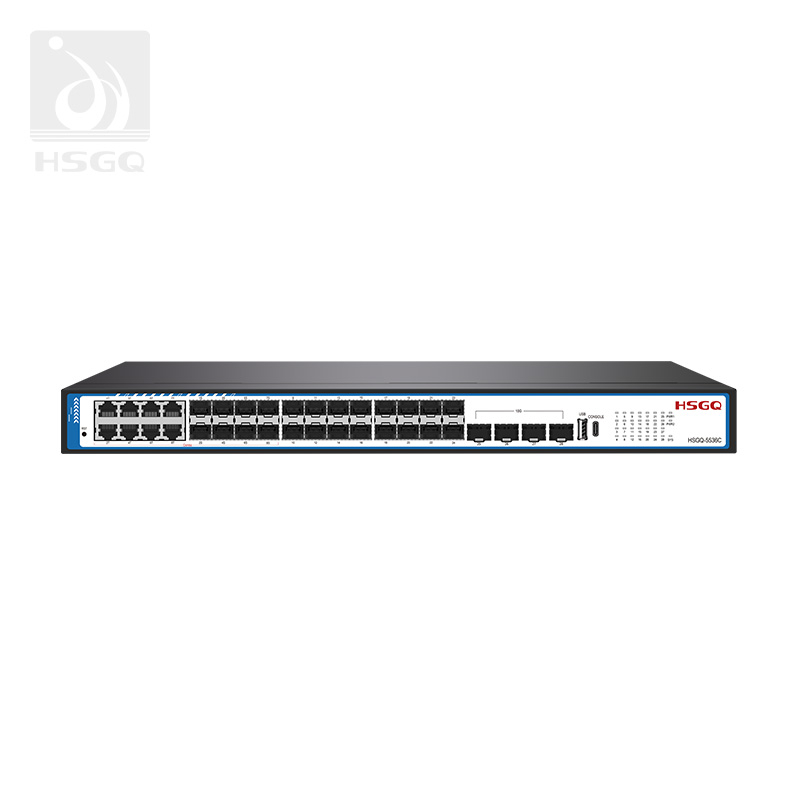

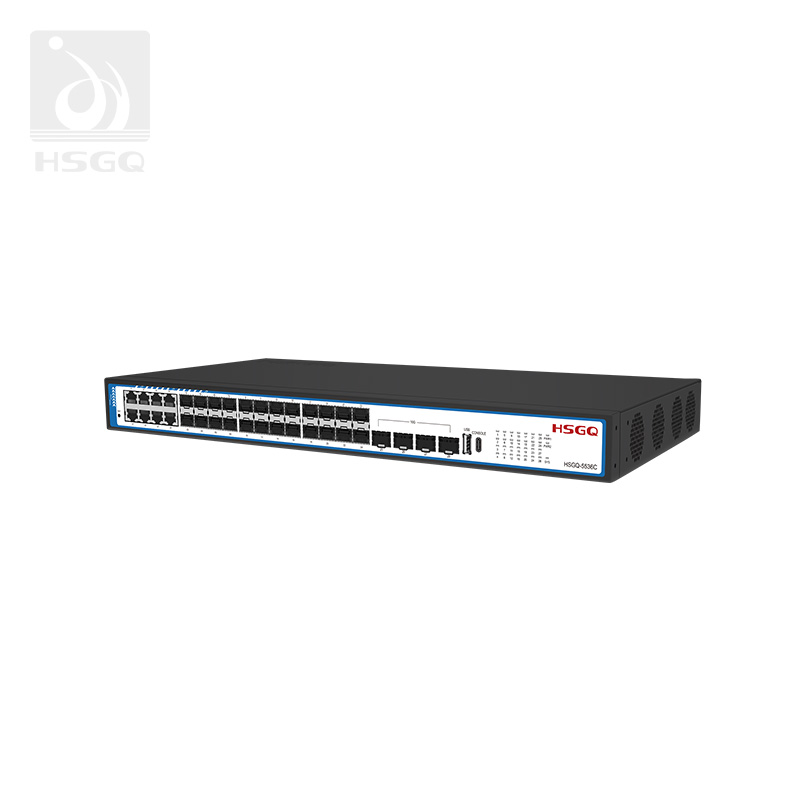

HSGQ-5536C is an L3 managed switch with 16*Gigabit SFP fiber optic module slots, 8*Gigabit Combo(8*GE/8*SFP), 4*SFP+ 10 Gigabit fiber optic module slots, and 1*Type-C console management interface. It supports IPv4 / IPv6 dual-stack, static routing, DHCP Server, DHCP Relay, and DHCP Snooping. It supports Layer 3 routing protocols, including RIP, RIPng, OSPF, OSPFv3 dynamic routing, and VRRP virtual routing redundancy protocols. It provides comprehensive security policies, robust QoS policies, and rich VLAN functionality, making it easy to manage and maintain, and meeting the networking access needs of enterprises, residential communities, hotels, office networks, and campus networks.

L3 Managed Switch

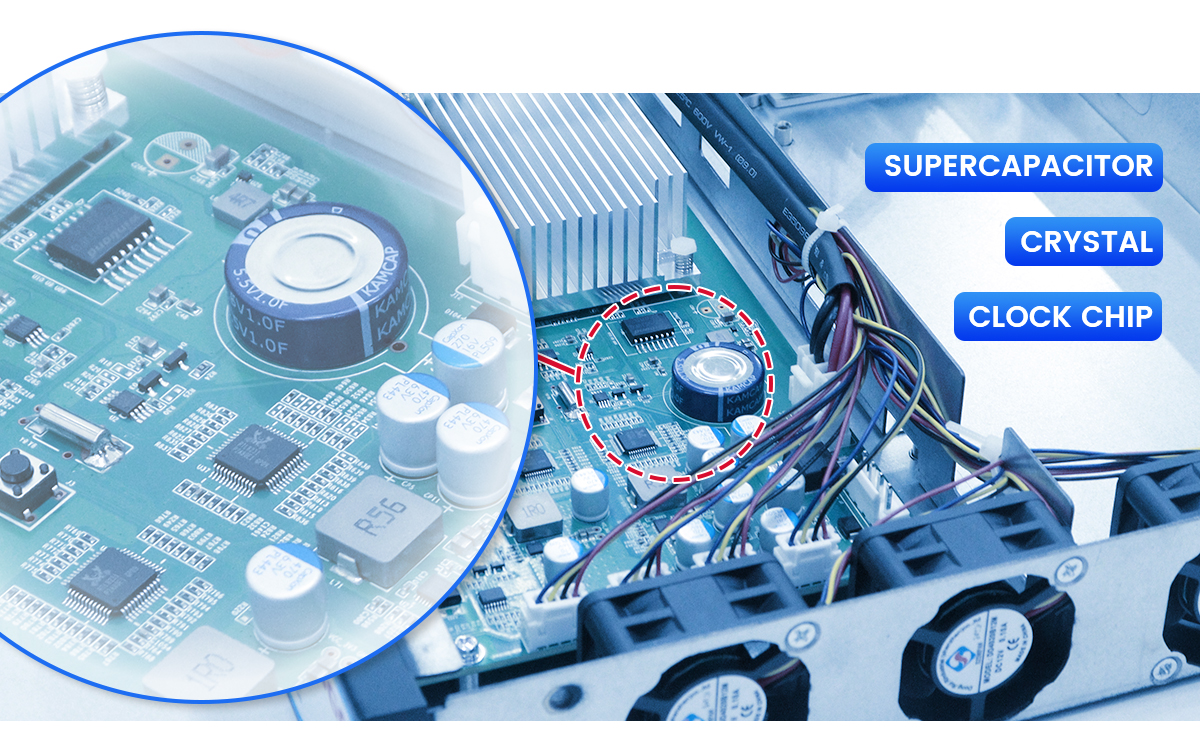

Supports RTC (Real-Time Clock) function

L3 Managed Switch

Design using (Crystal, Clock Chip, SuperCapacitor) solutions, meeting industrial equipment requirements for continuous timekeeping.

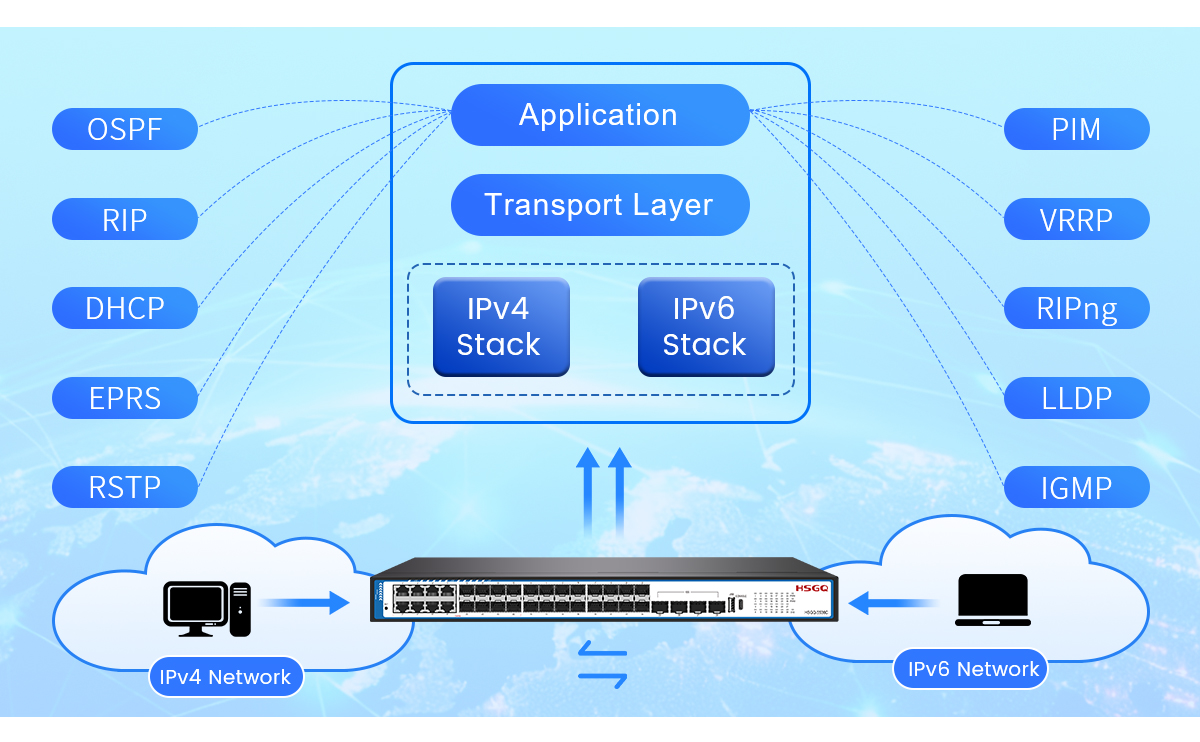

Layer 3 Routing Protocol Support

L3 Managed Switch

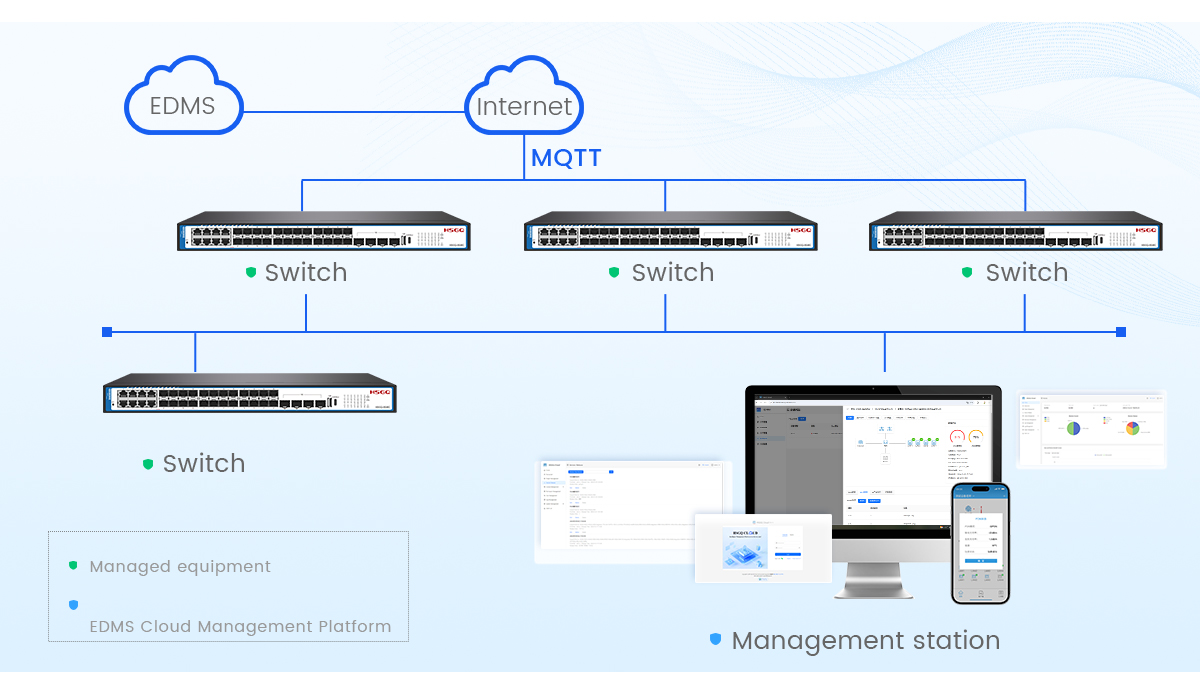

EDMS Cloud Management Platform

L3 Managed Switch

Built-in MQTT function module, supporting connectivity to the EDMS cloud management platform via MQTT/SNMP protocols. This enables unified centralized device management and facilitates remote operation and maintenance.

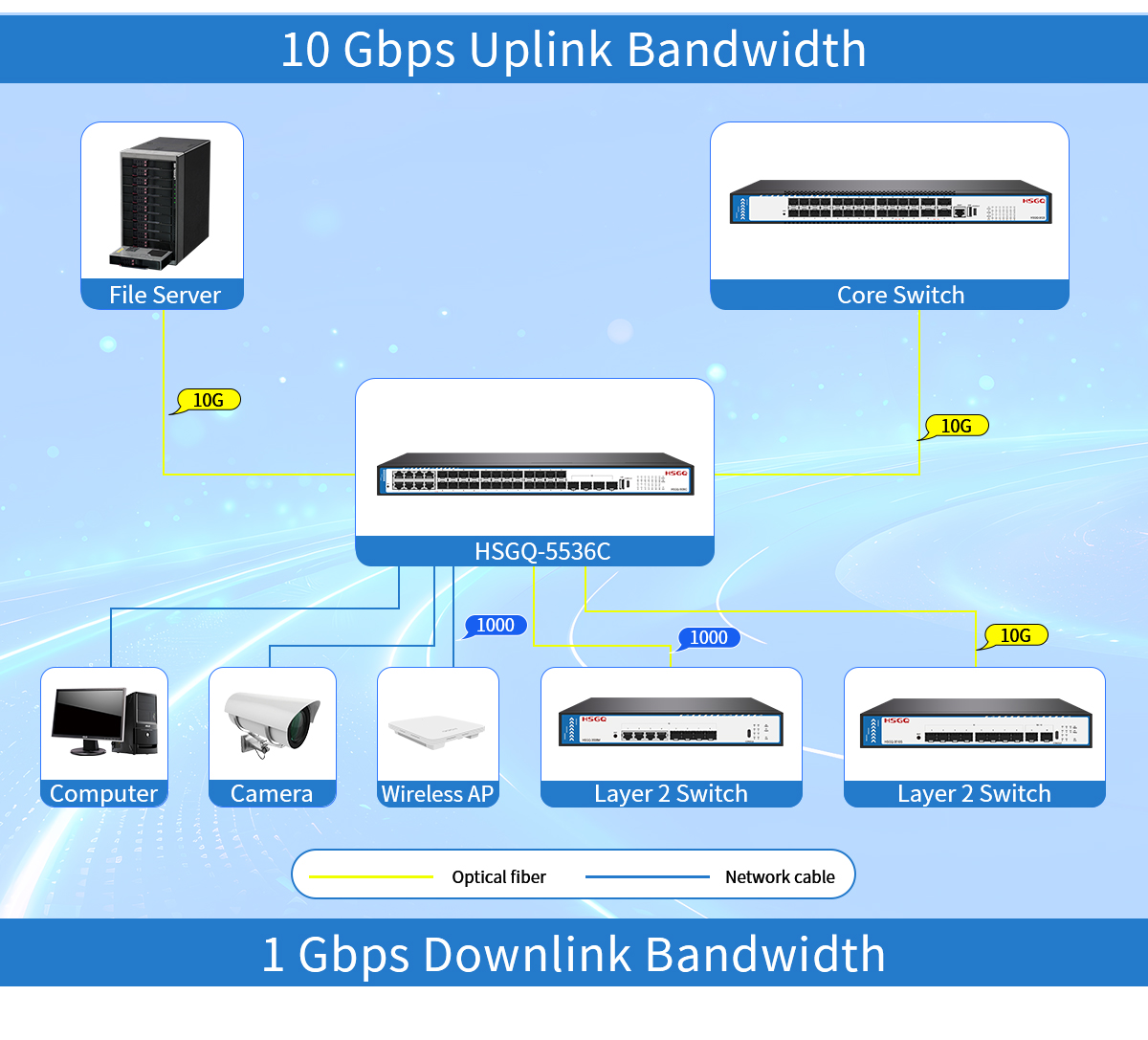

High-Performance Application Services

L3 Managed Switch

Typical applications: Widely used in industrial parks, medium-sized enterprises, factories, real estate, hospitals, governments, banks, campuses and other scenarios.

Network Standards	IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3ae, IEEE802.3x, IEEE802.1x, IEEE802.1q, IEEE802.1p, IEEE802.1d, IEEE802.1w, IEEE802.1s, IEEE802.3ad, IEEE802.1ab
Interface	16SFP Fiber Optic Module Slots 8Combo(8GE/8SFP) 4SFP+ 10 Gigabit Fiber Optic Module Slots 1Type-C Console interface (115200,8,N,1) 1*USB2.0 interface
LED indicator light	PWR 1 (green), PWR 2 (green), SYS (green), Port LED (green)
Network media (cables)	100BASE-TX: Cat 5, 5e and above unshielded twisted pair cable (≤100m) 1000BASE-T: Cat 5e, 6 and above unshielded twisted pair cable (≤100m) 1000BASE-X: MMF, SMF Modules 10GBASE-X: MMF, SMF Modules 10GBASE-SR: OM1/OM2/OM3 or higher MMF (2m～300m) 10GBASE-LR: IEC B1.1 and B1.3 SMF (2m~10000m)
MAC Address Table	16K
Jumbo Frame	12K Byte
Packet buffer	8.4Mbit
Forwarding Modes	Store-and-forward
Switching Capacity	128 Gbps
Packet Forwarding Rate	96 Mpps
Power Supply	96W

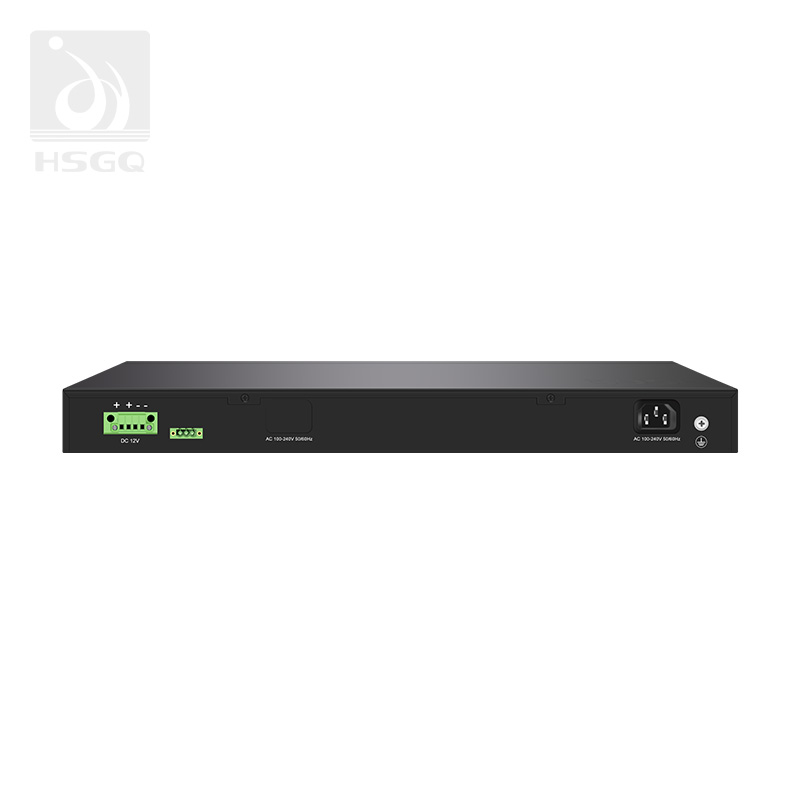

Power input	Standard configuration includes 1*AC100-240V power supply Optional AC+DC (12V/48V) dual power supply Optional AC+AC dual power supply
Fan	2
Dimensions (LWH)	440x261x44mm
Electrostatic Standard	Contact ±6KV, air ±8KV
Surge Protection	Common mode ± 6KV
Operating Temperature	-10℃~55℃
Storage Temperature	-40℃~85℃
Operating Humidity	10%~90% (Non-condensing)
Storage Humidity	5% ~ 90% Non-condensing
MTBF	50,000 hours

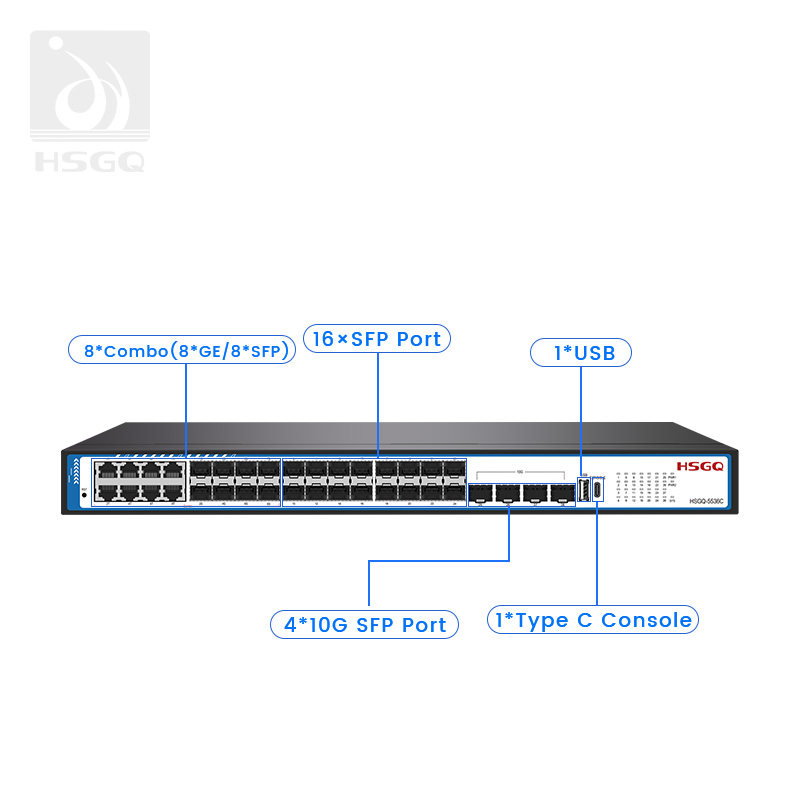

16*Gigabit SFP Optical+ 8*Combo(8*GE/8*SFP) + 4*(SFP+) 10 Gigabit optical ports + 1*Type-C Console interface + 1*USB 2.0 interface.
AC and DC dual power supply redundancy design; standard configuration includes 1*AC100-240V power supply, optional AC+DC (12V/48V) dual power supply, optional AC+AC dual power supply.
It supports RTC real-time clock function to meet the time continuity requirements of industrial equipment.
Optional support for temperature sensors and smart fans.
Supports STP/RSTP/MSTP link protection technologies and ERPS ring network protocol.
It supports two aggregation modes: static link aggregation and LACP dynamic link aggregation, which effectively increases link bandwidth and improves link reliability, while also enabling load balancing and link backup.
Supports IPv4 / IPv6 dual protocol stack, static routing, DHCP Server, DHCP Relay, and DHCP Snooping.
Supports Layer 3 routing protocols, including RIP, RIPng, OSPF, OSPFv3 dynamic routing, and VRRP virtual route redundancy protocol.
It has loop detection capabilities and adopts an intelligent resolution mechanism to achieve intelligent network self-healing.
Supports multiple management methods including Type-C Console, Web CLI, Telnet, SSH, and SNMP (v1/v2c/v3).
It supports bilingual (Chinese and English) web interface management, making product debugging simpler and more efficient.
Supports MQTT protocol connection to EDMS cloud management platform, which supports local and cloud deployment.
Supports full firmware version upgrades via HTTP, TFTP, and FTP transfer methods.
