24*Port PoE Switch Managed for IP Camera

5 0 Reviews

Enables efficient inter-VLAN communication and cross-subnet data exchange, reducing reliance on external routers and improving network performance and scalability.
Powers wireless APs, IP phones, HD cameras, and other devices via Ethernet cables, simplifying cabling and reducing deployment costs.
Provides granular traffic control, bandwidth allocation, and remote monitoring to ensure service quality for critical applications.
Strictly controls network access permissions to defend against malicious attacks and unauthorized access, protecting enterprise data security.

Model:
HSGQ-5528P

Quantity:
Availability:





Inquiry Datasheet

poe switch cctv camera poe powered switch poe switch for cctv

Product Introduction

Technical Parameter

Product Feature

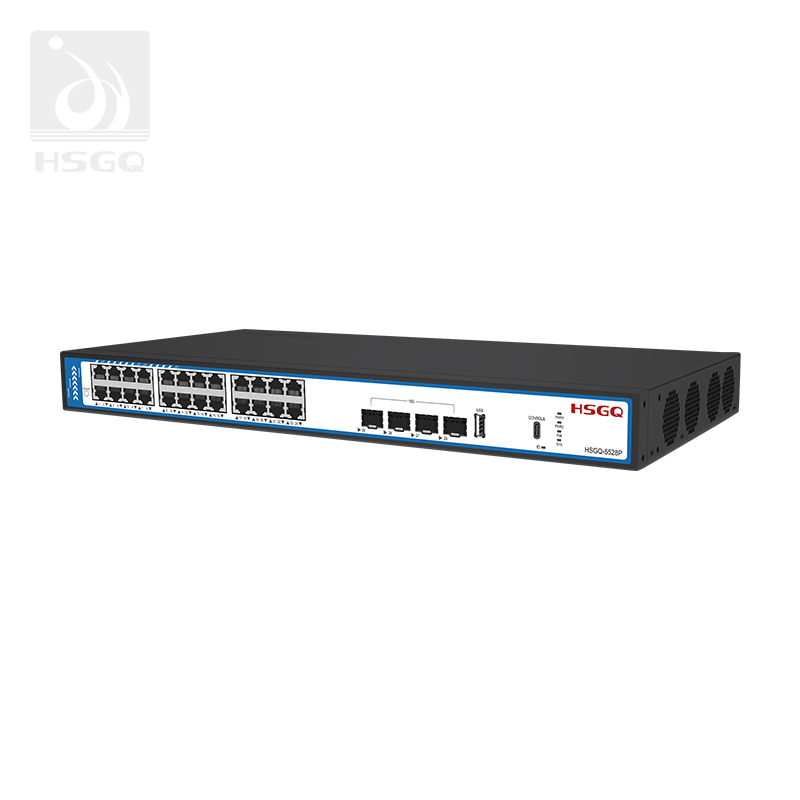

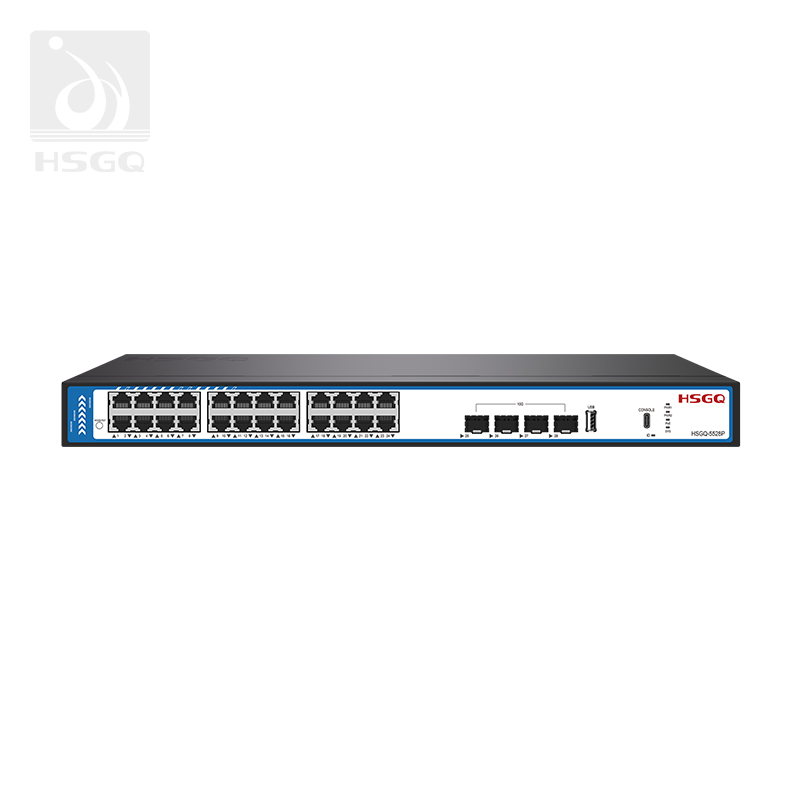

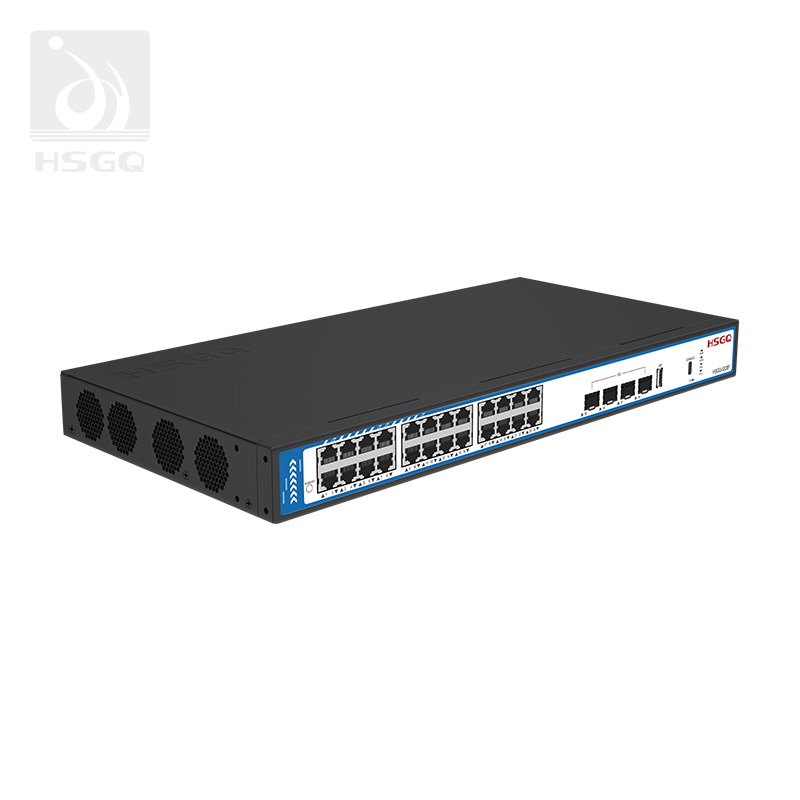

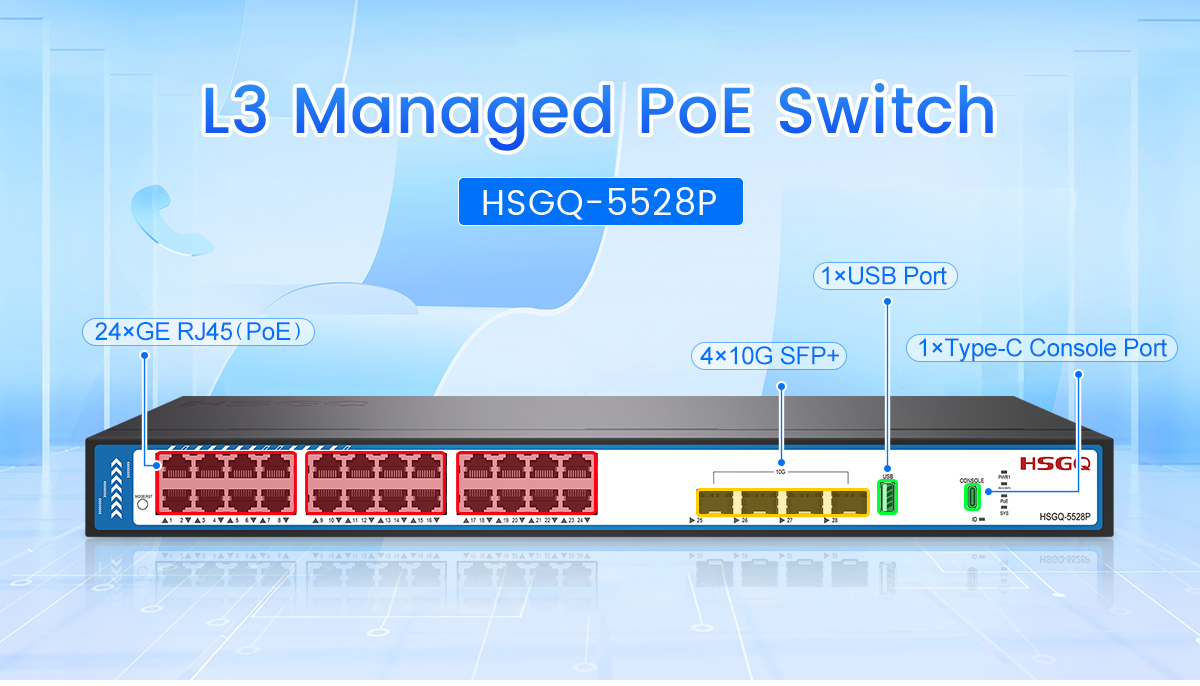

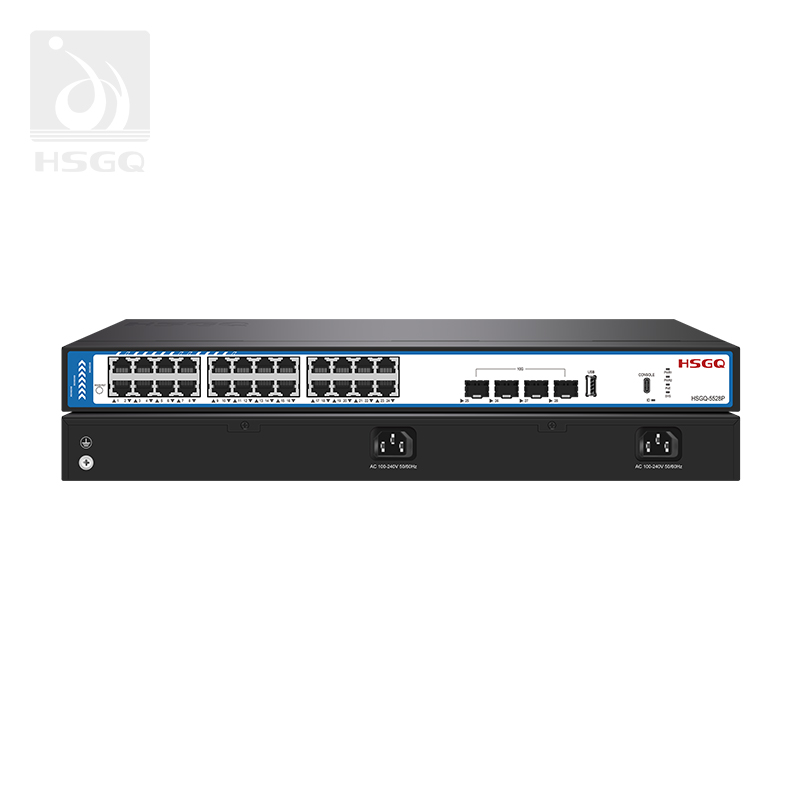

HSGQ-5528P is a latest PoE switch model of HSGQ Laver 3 managed switch series. it is commercial arade switch, belongs to HSGQ 5 series switch family. Integrated with 24 gigabit PoE port and 4 10G SFP slots. Suitable for small to medium capacity network like hotel, campus, market, office scenarios.

poe switch 24 port poe switch cctv camera poe switch for cctv

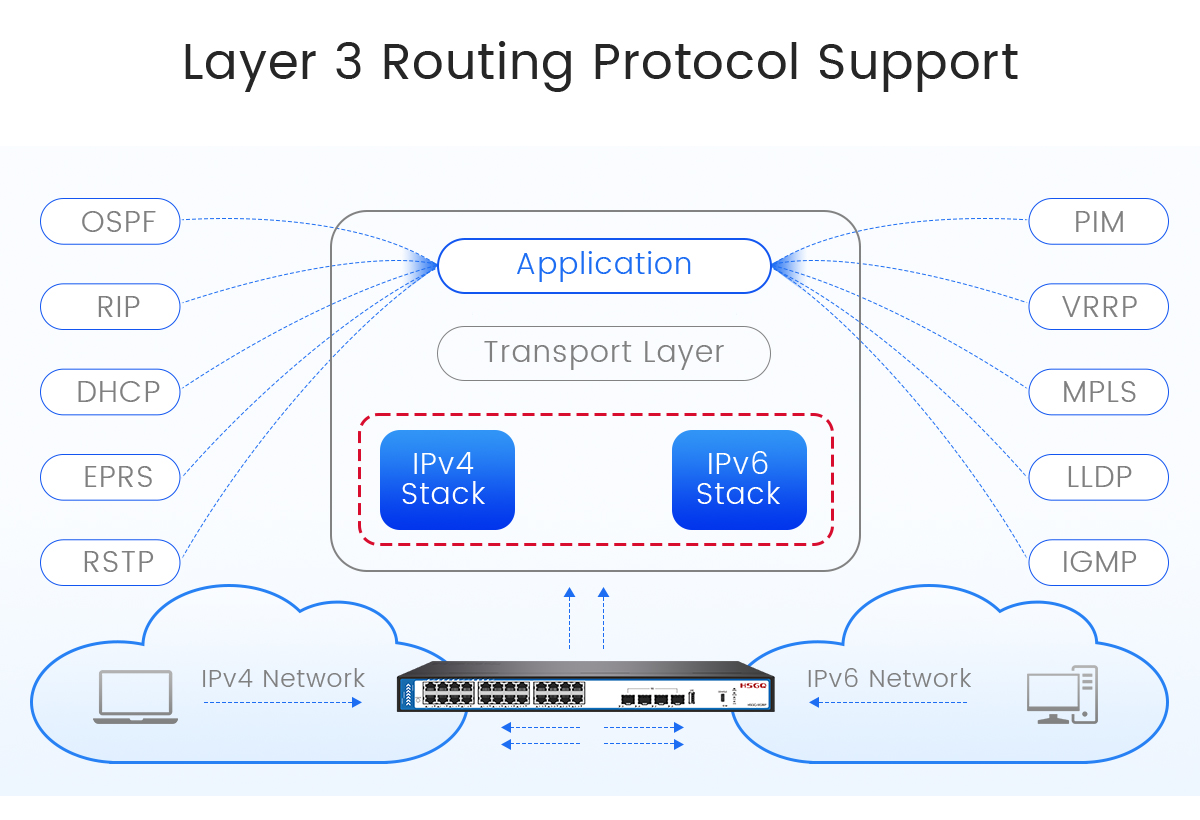

Protocol Support: IPv4/IPv6 dual stack, static routing, RIP, OSPF, VRRP redundancy, DHCP, PIM, IGMP Snooping, MPLS.

Hardware and software

redundancy design

poe switch for ip camera

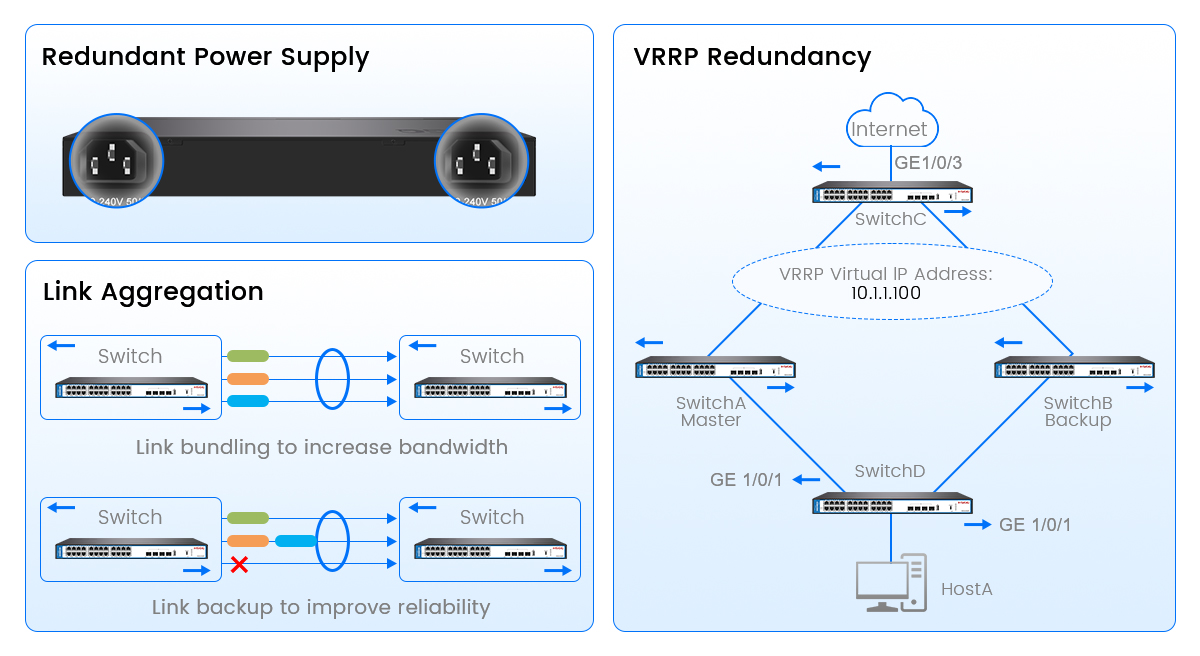

Redundancy Protection: Supports hardware and software redundancy design, including redundant power supplies, redundant link protection, and VRRP redundancy to ensure uninterrupted service.

PoE Schedule Support

poe switch in networking

PoE Scheduling function enables flexible control over power status of each PoE port during specified time periods. This feature not only reduces energy costs but also enhances electrical safety.

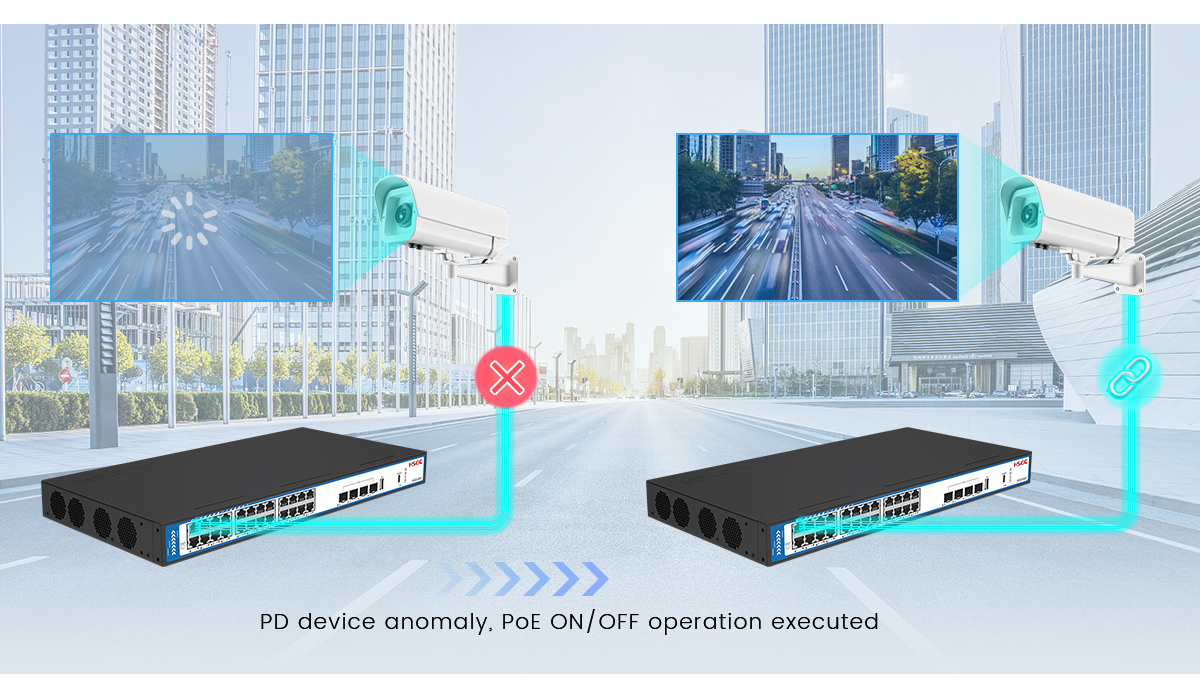

PD-Alive Function

poe switch 24v

Execute port power cycling when PD offline is detected. Automatically restore normal operation through device reboot, eliminating manual maintenance and reducing operational costs.

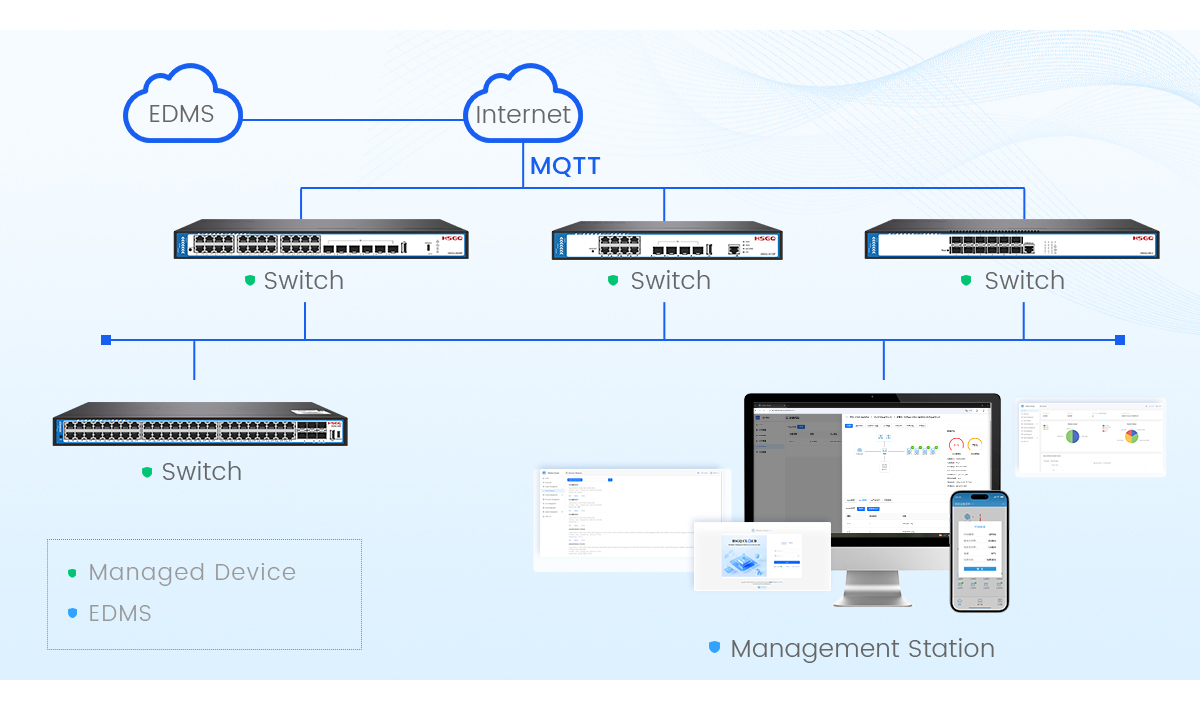

EDMS Cloud Management Platform ethernet poe switch

Built-in MQTT function module, supporting connectivity to the EDMS cloud management platform via MQTT/SNMP protocols. This enables unified centralized device management and facilitates remote operation and maintenance.

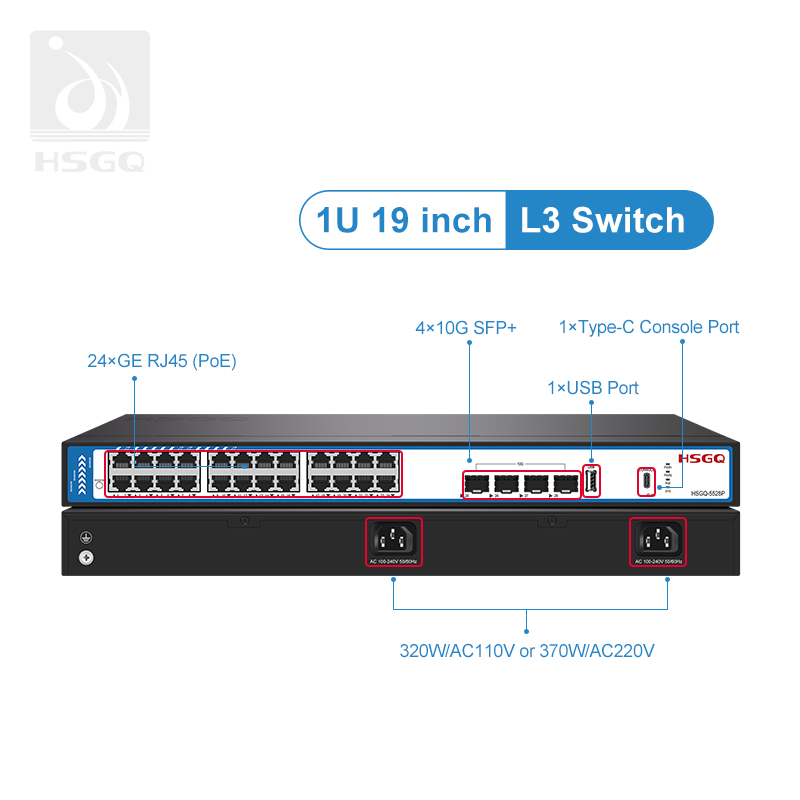

User Interface	24*GE PoE RJ45
	4*10G SFP+ slots
	1USB; 1Console
Vlan	4094
Mac address table	16K
MTBF	10000 hour
Switching capacity	128Gbps
Forwarding Rate	95.23Mpps
DDR	512MB
Flash	32MB
Power supply	AC 100~240V/50~60Hz
Power Consumption	≤40W PoE off
Power Consumption	≤400W PoE on
Dimensions	44026044mm
Weight	≤5kg
Environment
Working Temperature	-10℃~55℃
Storage Temperature	-40℃~75℃
Working Humidity	10%~90% (Non-condensation)
Storage Humidity	5%~90% (Non-condensation)
Service
Access	Access HTTP, HTTPS, Telnet, SSHv2
Security	MAC ACL,IPV4 ACL,IPv6 ACL
	IP Source Guard, Dynamic ARP inspection
	Anti DDos
Authenticate	Radius,802.1x, TACACS+, Port based auth, MAC, Local, WEB
Debug	Ping, Traceroute, UDLD, Log
