PoE Switch 8*port for CCTV Camera

5 0 Reviews

This 8-port PoE switch is designed for small offices, home networks, and scenarios requiring centralized power to a small number of devices. It combines data transmission and power supply, significantly simplifying your network deployment and cabling.

The ports typically support 10/100/1000 Mbps (gigabit) speeds, ensuring smooth file transfers, video conferencing, and streaming playback. Furthermore, it automatically identifies the speed and duplex mode required by connected devices, providing optimal performance.

Model:
HSGQ-5512P

Quantity:
Availability:





Inquiry Datasheet

poe switch managed 24v poe switch in attic ethernet poe switch

Product Introduction

Technical Parameter

Key Feature

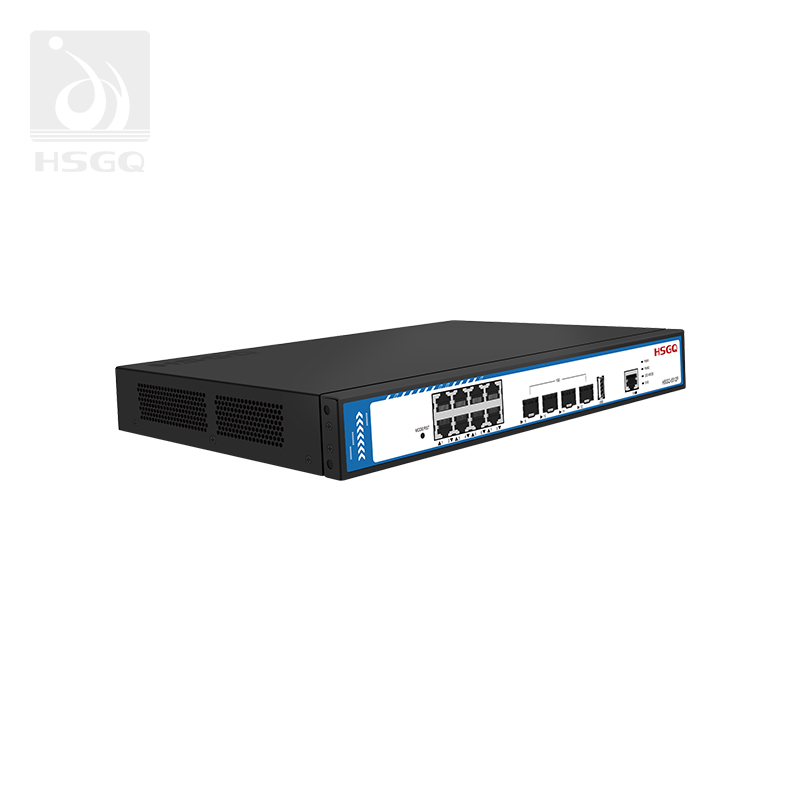

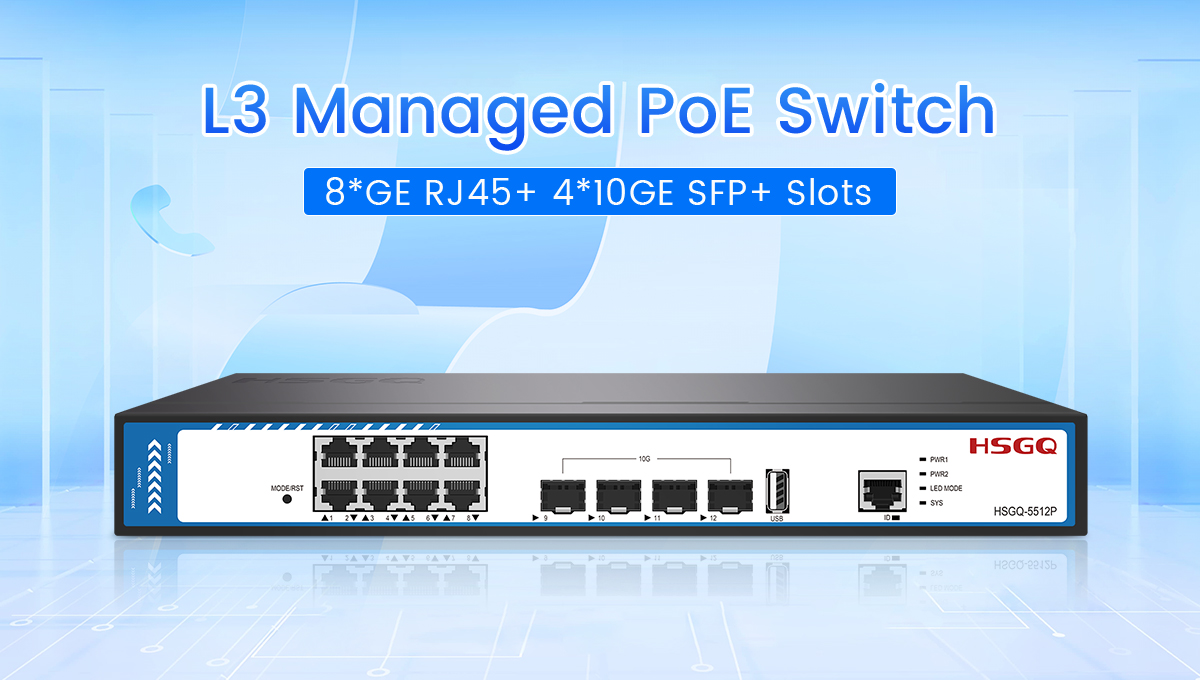

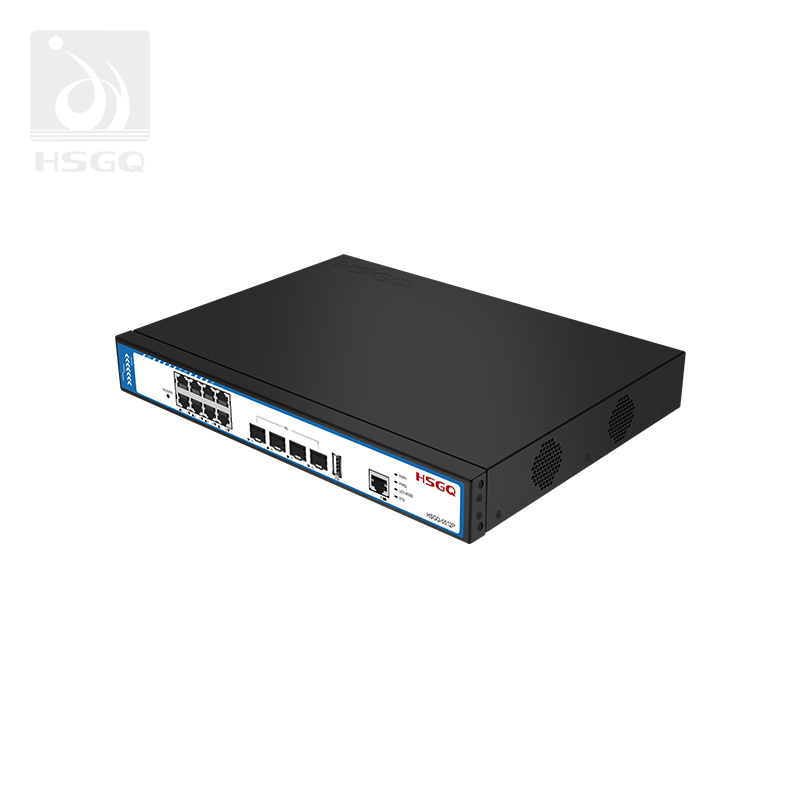

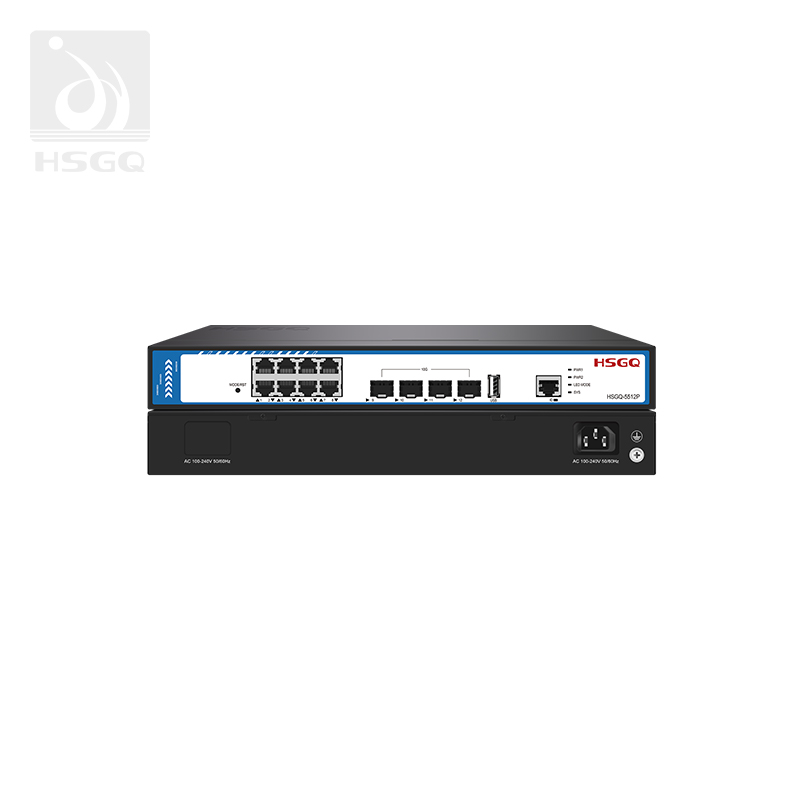

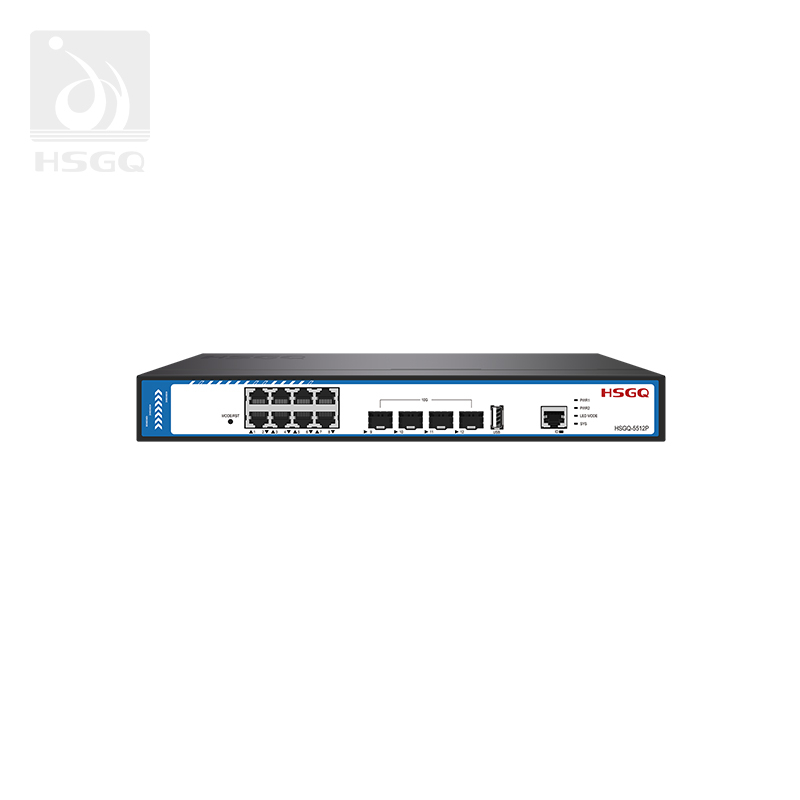

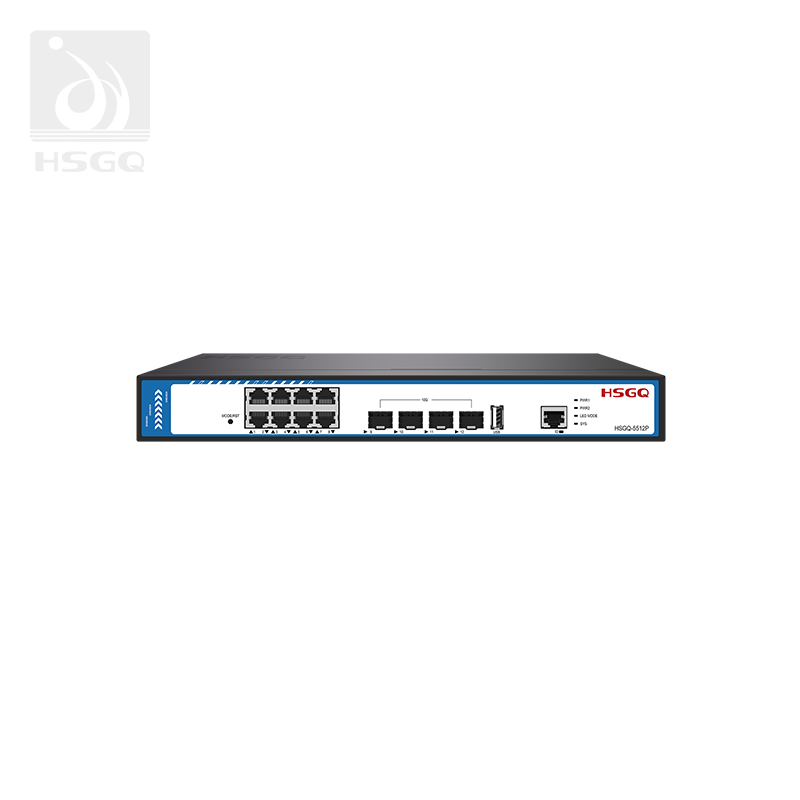

HSGQ 5512P is a L3 Managed PoE Switch, it offers 8*GE PoE + 4*10G SFP+port, 1 USB port and 1 Console port, providing complete security policy, perfect QoS policy and VLAN function, easy to manage and maintain, meeting the low density networking and access requirements of enterprises, communities hotels, office networks and campus networks.

poe switch

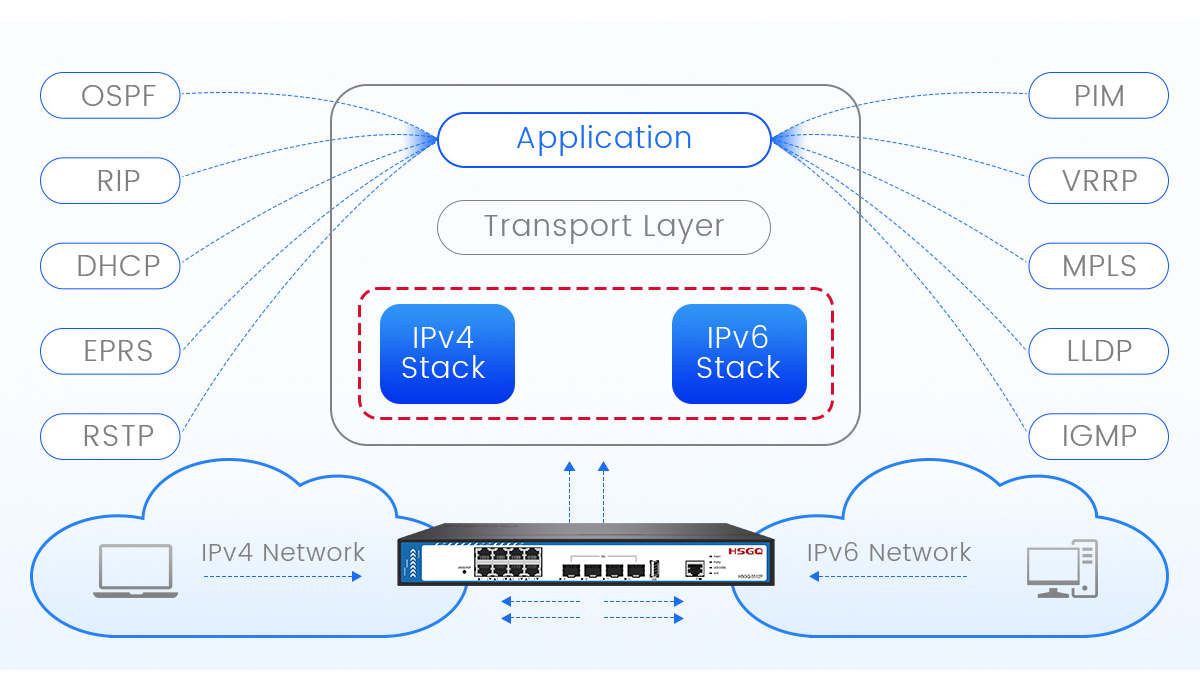

Layer 3 Routing Protocol Support

poe switch setup

Protocol Support: IPv4/IPv6 dual stack, static routing, RIP, OSPF, VRRP redundancy, DHCP, PIM, IGMP Snooping, MPLS.

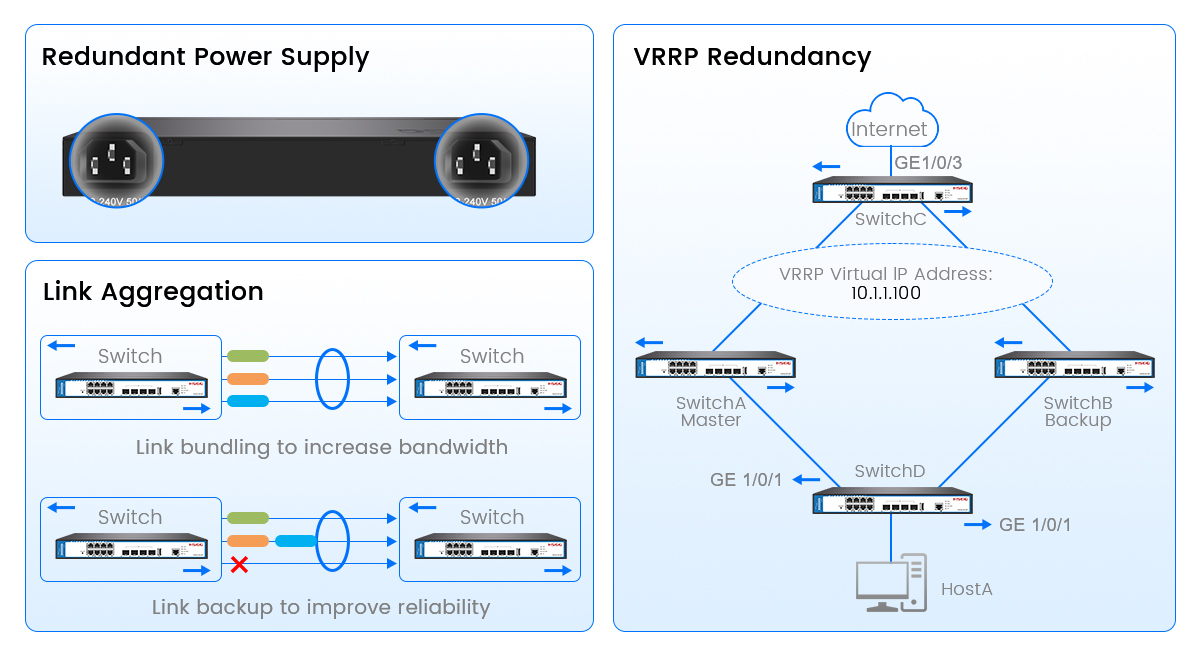

Hardware and software

redundancy design

layer 3 poe switch

Redundancy Protection: Supports hardware and software redundancy design, including redundant power supplies, redundant link protection, and VRRP redundancy to ensure uninterrupted service.

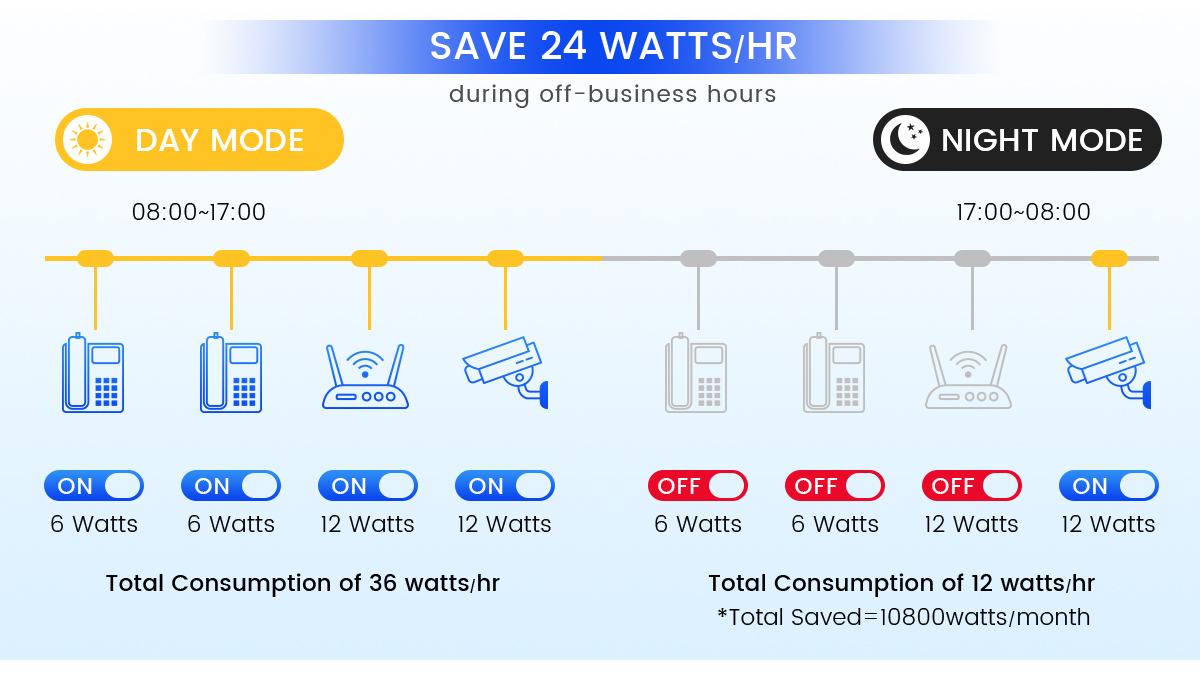

PoE Schedule Support

fanless poe switch

PoE Scheduling function enables flexible control over power status of each PoE port during specified time periods. This feature not only reduces energy costs but also enhances electrical safety.

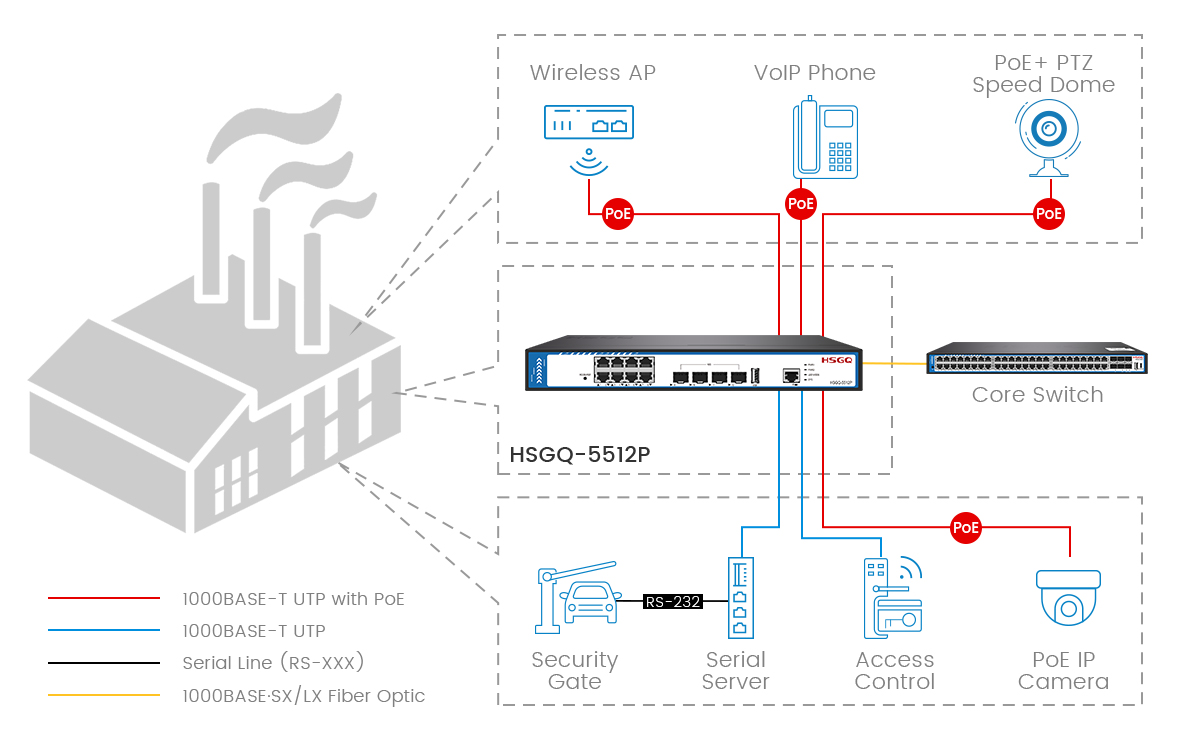

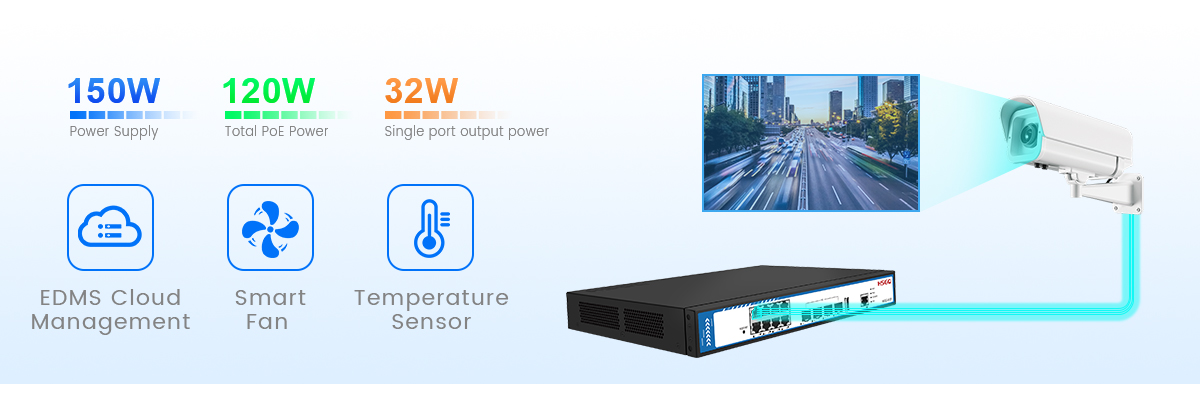

Application Scenarios

managed poe switch

Typical Applications: Widely used for surveillance cameras and WiFi coverage with AP devices.(Industrial Parks, medium-sized enterprises, factories, real estate, hospitals, government, banking, and campuses, etc)

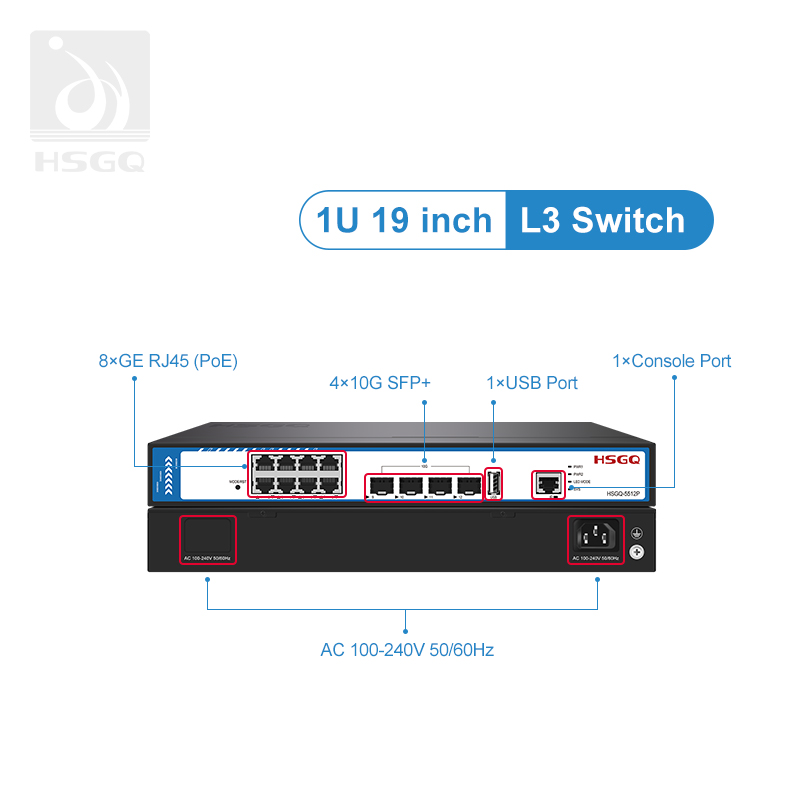

Interface
Downlink Ports	8*GE RJ45
Uplink Ports	4*10G SFP+
Console	1*RS-232(115200, 8, N, 1)
USB	1*USB 2.0
PoE
PoE Standard	IEEE802.3af/at (PSE)
PoE Power Supply Type	End-span
PoE in Assignment	1/2(+), 3/6(-)
PoE Power Output	46~55VDC
PoE Power	30W max for each port, 120W max
Switch Property
Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.ab, IEEE 802.3zIEEE 802.3x,IEEE 802.1Q,IEEE 802.1P,IEEE802.3ad.IEEE 802.1D.IEEE 802.1x.IEEE 802.3af/at
Forwarding Modes	Store and Forward
Packet Buffer	12Mbit
MAC Table	16K
Switching Capacity	96Gbps/non-blocking
Packet Forwarding Rate	71.424Mpps
Jumbo Frame	12KB
Power Supply

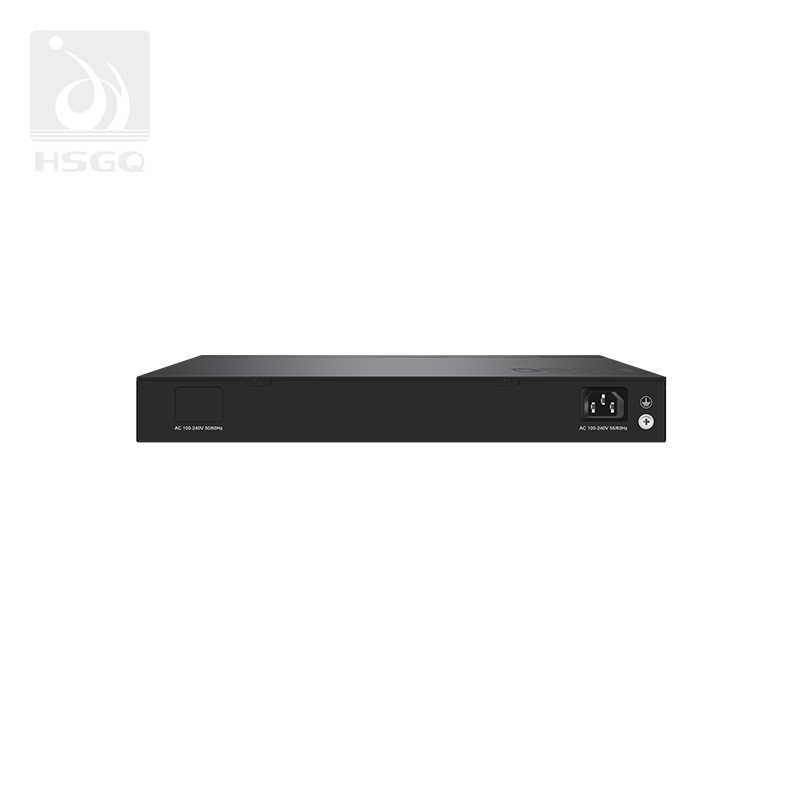

Input Voltage	AC100V-240V.50Hz/60Hz
Power Consumption	<24W
Reliability
ESD Protection	8kV Contact Discharge, 15kV Air Discharge.Standard:lEC61000-4-2
MTBF	100.000 hour
MTBF Standards	Telcordia SR-332,25°
Operating Temperature	-20℃~55℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%~95%(Non-condensing)
Physical Parameter
Led Indicators	2*power supply indicators
	1*system working indicator
	8*RJ45 status indicator or PoE status indicator
	4*optical port status indicator
Reset Button	Click change LED mode, press 3-10s reset user info, IP and password, long press >10s to reset the equipment
Dimensions(WDH)	33024044mm
Net Weight	1.95kg (Single power supply) 2.15kg (Dual power supply)
Material	Stainless Steel
Installation	Desktop/rack-mounted

Support IEEE 802.1d,IEEE 802.1W, IEEE 802.1S, IEEE 802.1P, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, lEEE 802.3ae Standard and IEEE 802.3af/at
L3 Management, Support DHCP Server, DHCP Snooping, DHCP Relay Static Routing, RIP and OSFP
Support RSTP/MSTP
Support VLAN function, Port VLAN, translation and Q-in-Q
