Have you ever wondered how modern fiber optic networks operate? OLT sticks play a crucial role in this technology. In this article, we’ll explore what an OLT stick is, how it functions, and its significance in today’s networking landscape. We’ll also highlight HSGQ, a leader in OLT stick solutions.
An OLT stick, or Optical Line Terminal stick, is a compact device that integrates the functionalities of a traditional OLT into a small, hot-pluggable module. This innovative design allows it to fit into standard SFP (Small Form-factor Pluggable) ports on network switches or routers. Unlike bulky traditional OLT systems, the OLT stick provides an efficient solution for managing fiber optic networks.
OLT sticks serve as the central hub in Passive Optical Networks (PON), managing data traffic between the service provider and end-users. They convert electrical signals into optical signals for transmission and vice versa. This process ensures that multiple users can share a single fiber line without interference.
Key Functions of OLT Sticks:
● Traffic Management: They utilize Time Division Multiple Access (TDMA) to allocate bandwidth to different users.
● Device Management: OLT sticks support protocols like OMCI, enabling remote configuration and monitoring of connected devices.
● Scalability: These devices can easily be integrated into existing networks, making them ideal for various deployment scenarios.
Traditional OLT systems are often large and require dedicated racks, making them less suitable for smaller installations. In contrast, OLT sticks are designed for flexibility and ease of use. Below is a comparison highlighting their differences:
Feature | Traditional OLT Systems | OLT Stick |
Size | Bulky, rack-mounted | Compact, hot-pluggable |
Installation | Complex, requires extensive setup | Simple, plug-and-play |
Cost | Higher initial investment | Cost-effective for small networks |
User Support | Limited scalability | Supports up to 32 ONUs |

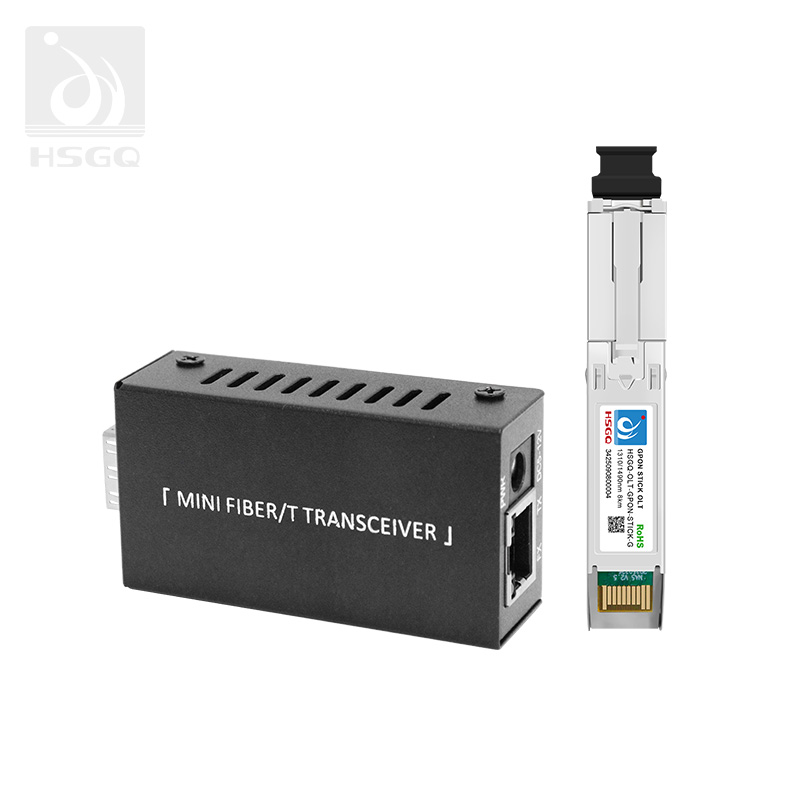

HSGQ is a prominent manufacturer of OLT sticks, offering advanced models like the HSGQ-OLT-GPON-STICK-G. This model stands out for its impressive specifications, including:
● Wavelengths: 1310nm for upstream and 1490nm for downstream.
● Transmission Distance: Up to 8 km using single-mode fiber.
● Power Consumption: Less than 3W, ensuring energy efficiency.
HSGQ’s OLT sticks are designed for diverse applications, from small office setups to larger deployments, making them a versatile choice for network operators. Their emphasis on quality and innovation positions HSGQ as a leader in the OLT stick market.
This blend of compact design, efficiency, and robust performance makes OLT sticks a vital component in modern fiber optic networks. As the demand for high-speed internet grows, understanding OLT sticks becomes increasingly important for both service providers and end-users.
OLT sticks are designed to be remarkably compact, making them an excellent choice for modern networking needs. Typically, these devices measure about 75×22×12mm, which is significantly smaller than traditional OLT systems. This mini OLT stick GPON design not only saves space but also simplifies installation in tight areas, such as small network cabinets or wall-mounted equipment boxes.
Benefits of Compact Design:
● Space-Saving: Ideal for environments where every inch counts, such as offices or data centers.
● Portability: Easy to transport and install, making it convenient for field technicians.
● Integration: Fits seamlessly into existing setups without requiring extensive modifications.
One of the standout features of OLT sticks is their hot-pluggable functionality. This means you can insert or remove the device without shutting down the entire system. This capability is crucial for maintaining network uptime and flexibility.
Advantages of Hot-Plugging:
● Minimized Downtime: Technicians can replace or upgrade devices without interrupting service.
● Ease of Use: Simplifies the process of adding or removing components from the network.
● Durability: HSGQ’s OLT sticks are built to withstand up to 200 hot-plug operations, ensuring reliability even in high-demand environments.
Power consumption is a vital consideration for any networking device. OLT sticks excel in this area, consuming less than 3W of power. This low energy requirement not only reduces operational costs but also contributes to a greener environment.
Key Aspects of Power Efficiency:
● Cost Savings: Lower energy consumption leads to reduced electricity bills, benefiting both small businesses and large enterprises.
● Heat Reduction: Less power usage means less heat generation, which can simplify cooling requirements in network cabinets.
● Sustainability: By using energy-efficient devices like the HSGQ OLT stick, companies can reduce their carbon footprint.
Feature | OLT Stick | Traditional OLT Systems |
Size | Compact (75×22×12mm) | Bulky, requires dedicated space |
Hot-Plugging | Yes (up to 200 operations) | Typically requires shutdown |
Power Consumption | < 3W | Often > 30W |
These features make OLT sticks an attractive option for anyone looking to enhance their fiber optic networks. Their compact design, hot-pluggable functionality, and energy efficiency combine to provide a reliable and effective solution for modern communication needs.
An OLT stick operates as a crucial component in fiber optic networks, seamlessly integrating with existing network devices like switches and routers. When connected, it converts electrical signals from these devices into optical signals for transmission over fiber cables. This process is essential for ensuring efficient data transfer across long distances.
Signal Conversion Process:
1. Electrical to Optical: The OLT stick takes electrical input and transforms it into optical signals using lasers.
2. Transmission: For downstream data, it typically uses a wavelength of 1490nm, while upstream signals operate at 1310nm. This dual-wavelength approach allows for effective communication between the OLT and the Optical Network Units (ONUs).
Managing data traffic efficiently is vital for maintaining network performance. OLT sticks utilize Time Division Multiple Access (TDMA) to allocate bandwidth among multiple users. This method ensures that each user receives a fair share of the available bandwidth, preventing congestion.
Key Features of Traffic Management:
● User Allocation: TDMA divides time slots for each user, allowing multiple ONUs to share the same fiber without interference.
● Scalability: HSGQ’s OLT sticks support up to 32 ONUs, making them suitable for both small and large deployments.
Feature | OLT Stick | Traditional OLT Systems |
User Support | Up to 32 ONUs | Varies, often limited |
Traffic Management | TDMA | Typically static allocation |
Effective device management is essential for maintaining network health and performance. OLT sticks support the OMCI (ONT Management and Control Interface) protocol, which provides a standardized method for managing ONUs remotely.
Device Management Capabilities:
● Remote Configuration: Technicians can configure settings and troubleshoot issues without needing physical access to devices.
● Real-Time Monitoring: HSGQ’s web-based management interface allows users to monitor network performance in real-time, providing insights into traffic patterns and device status.
This combination of advanced features makes OLT sticks an integral part of modern fiber optic networks, enhancing both performance and manageability. Their ability to integrate smoothly with existing infrastructure while providing robust traffic and device management ensures they meet the demands of today’s high-speed internet requirements.
OLT sticks are designed to support a varying number of users, typically ranging from 32 to 128. This capacity makes them versatile for different network sizes, whether for small offices or larger enterprises. For instance, HSGQ's OLT stick can support up to 32 Optical Network Units (ONUs), making it an excellent choice for smaller deployments or specific applications.
User Support Breakdown:
● 32 ONUs: Ideal for small businesses or residential areas.
● 64 ONUs: Suitable for medium-sized networks, such as schools or small campuses.
● 128 ONUs: Best for large-scale deployments, like urban fiber networks.
User Capacity | Application Type |
Up to 32 ONUs | Small offices, residential |
Up to 64 ONUs | Medium-sized networks |
Up to 128 ONUs | Large enterprises, urban areas |
Another important specification is the transmission distance of OLT sticks. They can effectively transmit signals over single-mode fiber up to 20 kilometers. This long-distance capability allows service providers to reach customers in remote locations without compromising signal quality.
Key Points on Transmission Distance:
● Up to 20 km: Enables connectivity in rural and suburban areas.
● Signal Integrity: Maintains high-quality data transmission over long distances.
OLT sticks adhere to the GPON (Gigabit Passive Optical Network) standards, which define the speed capabilities of these devices. Typically, OLT sticks can achieve downstream speeds of 2.5 Gbps and upstream speeds of 1.25 Gbps. These speeds are essential for providing high-speed internet access to multiple users simultaneously.
Speed Specifications:
● Downstream: 2.5 Gbps, allowing for fast data delivery to users.
● Upstream: 1.25 Gbps, facilitating efficient data uploads.
Speed Capability | Downstream Speed | Upstream Speed |
GPON Standard | 2.5 Gbps | 1.25 Gbps |
These specifications highlight the capabilities and limitations of OLT sticks in modern fiber optic networks. Their ability to support multiple users, transmit data over long distances, and deliver high-speed internet makes them a valuable tool for service providers looking to enhance their offerings.
One of the primary advantages of using an OLT stick is its cost-effectiveness compared to traditional OLT systems. Traditional systems often require significant investments in hardware, including large racks and extensive cabling. In contrast, OLT sticks are compact and affordable, allowing service providers to minimize their initial capital expenditure.
Cost Comparison:
● Traditional OLT Systems: High installation and maintenance costs due to bulky infrastructure.
● OLT Sticks: Lower hardware investment and reduced operational costs, making them ideal for budget-conscious ISPs.
Feature | Traditional OLT Systems | OLT Stick |
Initial Investment | High | Low |
Maintenance Costs | Higher | Lower |
Infrastructure Requirements | Bulky, complex | Compact, simple |
HSGQ offers solutions specifically designed to reduce hardware investments, allowing providers to allocate resources more efficiently. This cost-saving advantage is especially beneficial for small and medium-sized businesses.
OLT sticks also simplify the deployment process, making them particularly advantageous for small-scale deployments and rural Internet Service Providers (ISPs). Their compact size and plug-and-play functionality mean they can be quickly installed without extensive training or technical expertise.
Benefits of Simplified Deployment:
● Quick Setup: OLT sticks can be installed in minutes, reducing downtime.
● User-Friendly: Designed for easy integration into existing networks, even for less experienced technicians.
For example, HSGQ’s installation process involves straightforward steps, ensuring that even small ISPs can get up and running quickly. This ease of deployment allows providers to focus on expanding their services rather than dealing with complex installations.
Another significant advantage of OLT sticks is their flexibility and scalability. These devices can easily adapt to various network needs, whether a small home network or a larger enterprise setup. OLT sticks can accommodate growing user bases and changing requirements without necessitating a complete overhaul of the existing infrastructure.
Key Aspects of Flexibility and Scalability:
● Adaptable to Network Changes: Easily increase or decrease the number of supported ONUs as needed.
● Compatibility: HSGQ’s OLT sticks are designed to work seamlessly with third-party devices, providing additional options for network expansion.
Feature | OLT Stick | Traditional OLT Systems |
Scalability | Highly adaptable | Often limited |
Compatibility | Works with third-party devices | Typically proprietary |
This combination of cost-effectiveness, simplified deployment, and flexibility makes OLT sticks a compelling choice for service providers looking to enhance their fiber optic networks efficiently. They not only meet current demands but also position providers for future growth.
OLT sticks are particularly effective for small-scale deployments, making them an ideal choice for environments like apartments, student housing, and small hotels. Their compact design and ease of installation allow service providers to deliver high-speed internet quickly and efficiently.
Successful Implementations:
● Apartments: Many apartment complexes have successfully integrated HSGQ OLT sticks to provide residents with reliable internet access without the need for extensive infrastructure.
● Student Housing: Universities have adopted these devices to support internet connectivity in dormitories, ensuring students can easily connect to online resources.
● Small Hotels: Hotels benefit from the ability to offer guests fast internet, enhancing their overall experience while minimizing setup costs.
Application Type | Benefits | Example Implementation |
Apartments | Reliable connectivity | HSGQ OLT stick in multiple units |
Student Housing | Quick setup, high-speed access | Fast internet in dorms |
Small Hotels | Enhanced guest experience | OLT stick for guest Wi-Fi |
Field technicians frequently utilize OLT sticks for troubleshooting and testing on-site. These devices allow them to quickly diagnose issues, ensuring that service interruptions are minimized.
How Technicians Use OLT Sticks:
● On-Site Troubleshooting: When problems arise, technicians can deploy OLT sticks to test connections and assess network performance directly.
● Versatile Tool: HSGQ’s OLT stick has become a preferred tool among field technicians due to its portability and ease of use, allowing for rapid deployment in various scenarios.
Key Benefits for Technicians:
● Efficiency: Quickly identify and resolve issues without needing to return to the office.
● User-Friendly: Designed for straightforward operation, even for those less experienced in fiber optics.
For rural ISPs, OLT sticks present significant advantages in expanding fiber services. These providers often face unique challenges, such as limited infrastructure and high costs associated with traditional systems.
Advantages for Rural ISPs:
● Cost-Effective Solutions: OLT sticks reduce the need for extensive hardware investments, making it easier for small providers to offer competitive services.
● Scalability: As demand grows, rural ISPs can easily add additional ONUs to their networks without overhauling their existing setups.
Case Studies:
● Local ISPs: Several rural ISPs have successfully implemented HSGQ OLT sticks, allowing them to extend fiber services to underserved areas. For instance, one provider reported a 50% increase in customer satisfaction after integrating OLT sticks into their network.
ISP Type | Key Benefits | Case Study Example |
Rural ISPs | Cost-effective, scalable | Increased service reach |
Community Networks | Enhanced connectivity | Successful local implementations |
These use cases illustrate the versatility and effectiveness of OLT sticks in various scenarios, showcasing their role in enhancing internet connectivity across different environments.
OLT sticks are essential in modern networking. They provide cost-effective, flexible solutions for various applications. As technology advances, OLT sticks will continue to enhance fiber optic communication.
The future looks bright for OLT technology, promising faster and more reliable connections. Consider HSGQ OLT sticks for your networking needs. They offer the reliability and performance required in today’s digital landscape.
A: OLT sticks are compact and cost-effective, while traditional OLTs are bulkier and require more infrastructure.
A: Installation is straightforward; simply connect it to your network device and follow the setup instructions.
A: Yes, OLT sticks are compatible with various network devices, including third-party equipment.
A: Maintenance is minimal, typically involving software updates and monitoring for performance issues.
A: HSGQ OLT sticks offer superior performance, easy installation, and cost savings, making them a preferred choice.
