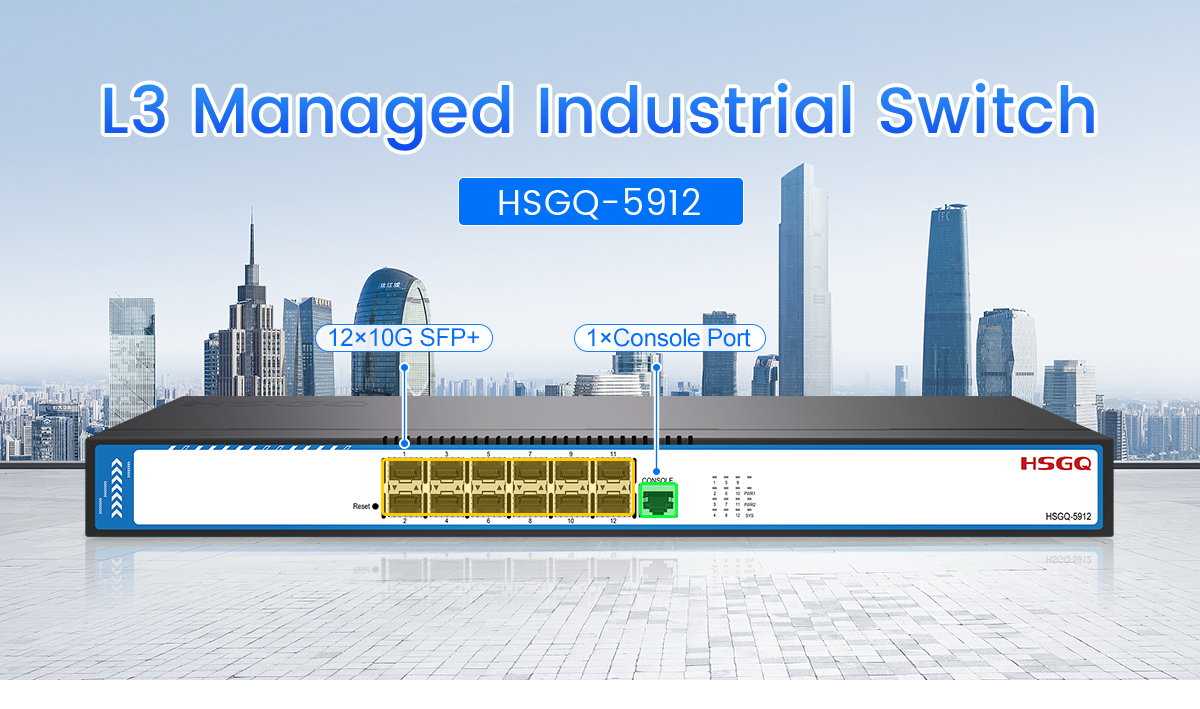

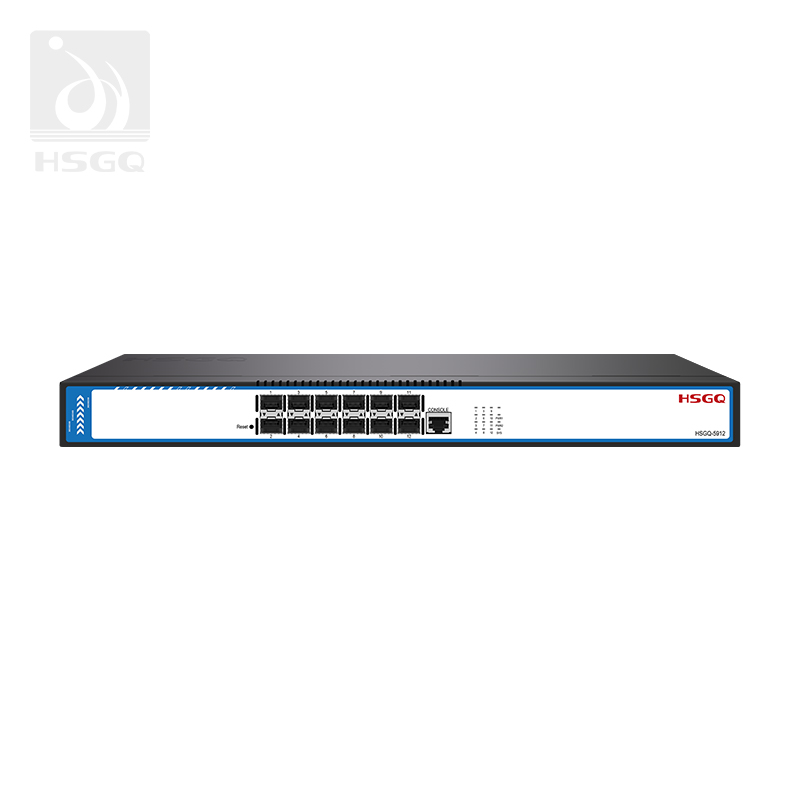

12 Ports 10G L3 Managed Switch, support 12 SFP+ port, 1 Console port., providing complete security control and CPU Protection policies, improving product fault-tolerant ability to ensure stable network and link load balancing; It supports various functions like Auto-protect from DOS attack, SNMP, IEEE 802.1q, spanning tree, fast spanning tree protocol and link aggregation etc. With advanced security features and QoS that can be used for core, distribution, or access layer switches.With high port densities, ease of management, are ideally suited for a variety of business networking applications.

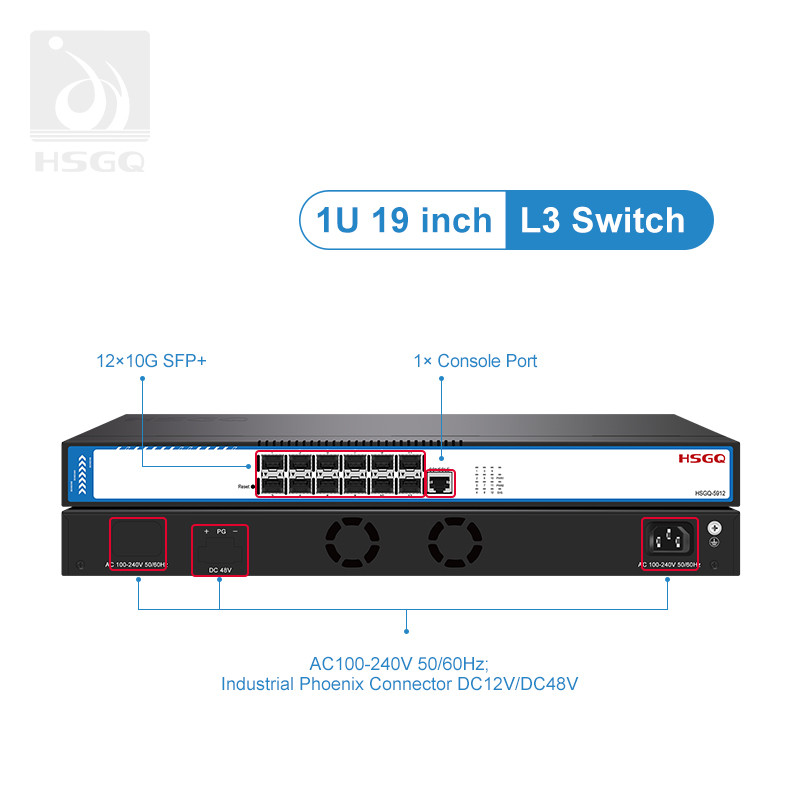

1. L3 Managed Ethernet switch
10G SFP+
12*10G SFP+

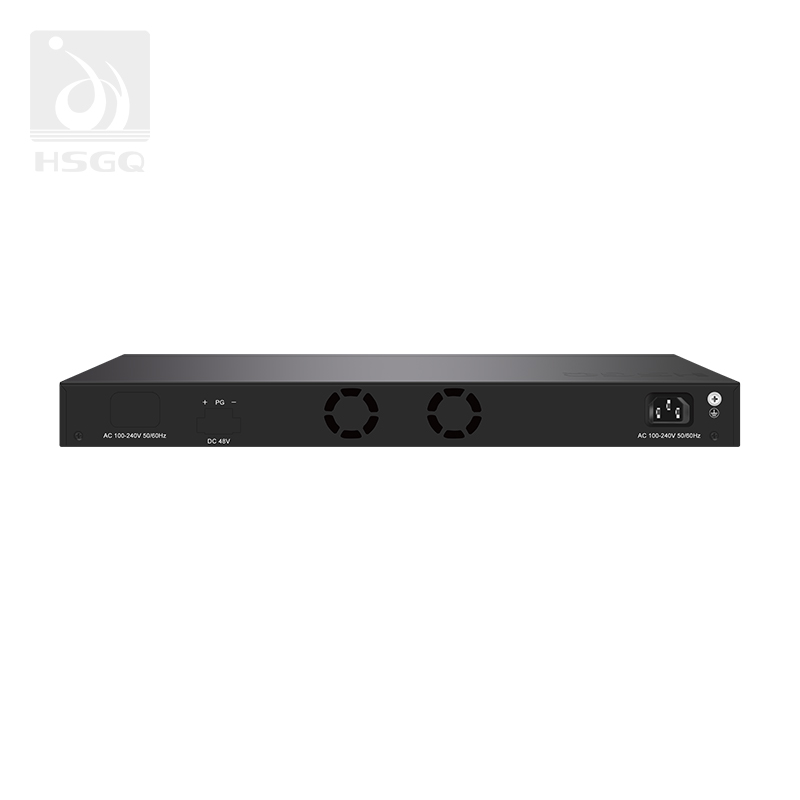

AC+AC/AC+DC/Dual DC
Multiple routing protocol
HSGQ Cloud platform
2. Full 10G, high speed access
HSGQ-5912 provides 12*1G/2.5/10Gbps SFP+ ports.
All ports support wire-speed forwarding, which can easily meet the needs of high-density and high-rate terminal access
12*10G SFP+ ports

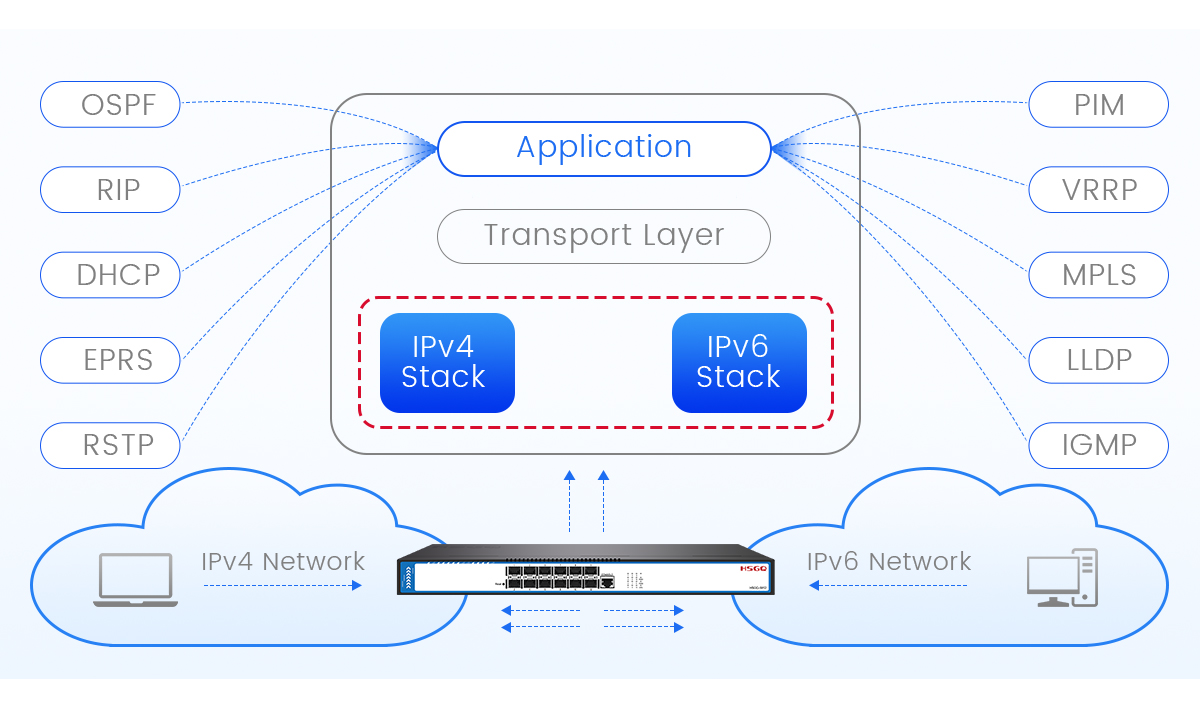

3. Multiple routing protocol
Supports RIP dynamic routing protocol and Open Shortest Path First protocol (OSPF) , solves the problem of routing selection after subnetting of large, medium and small complex networks, and simplifies network configuration.
Support static routing and achieve the simple, efficient and reliable communication between different network segments by simple configuration.
Support DHCP server, DHCP relay, ARP proxy function.
4. Powerful Transaction Processing capability with wide application
Perfect IGMP V1N2N3 multicast protocol, support MLD Snooping, IGMP Snooping to meet the requiremnets of multi-terminal HD video surveillance and video conference access.
The functions like QoS, ACL etc. are enhanced to meet the requirements of enterprise access and serving aggregation, and support more abundant voice, video and data applications.
5. Multiple security controls
Support four elements binding that is IP, MAC address, VLAN and port to achieve packet filtering.
Dos protection
Supports DoS protection against Land Attack, Scan SYNFIN, Xmascan, Ping Flooding and other attacks.
ARP protection
Supports ARP protection, which protects against ARP spoofing like Gateway spoofing that common in LAN and man-in-the-middle attack (MITM) etc, and ARP syn flood Protection.
802.1X authentication
Supports 802.1X authentication, providing authenticatio for LAN computers, and controls the status of controlled ports according to the authentication results.
IP source protection
supports IP source protection.Prevent illegal address spoofing including MAC spoofing, IP spoofing, MAC/IP spoofing.
DHCP Snooping
Supports DHCP Snooping, effectively avoiding private DHCP server, ensure the legitimacy.

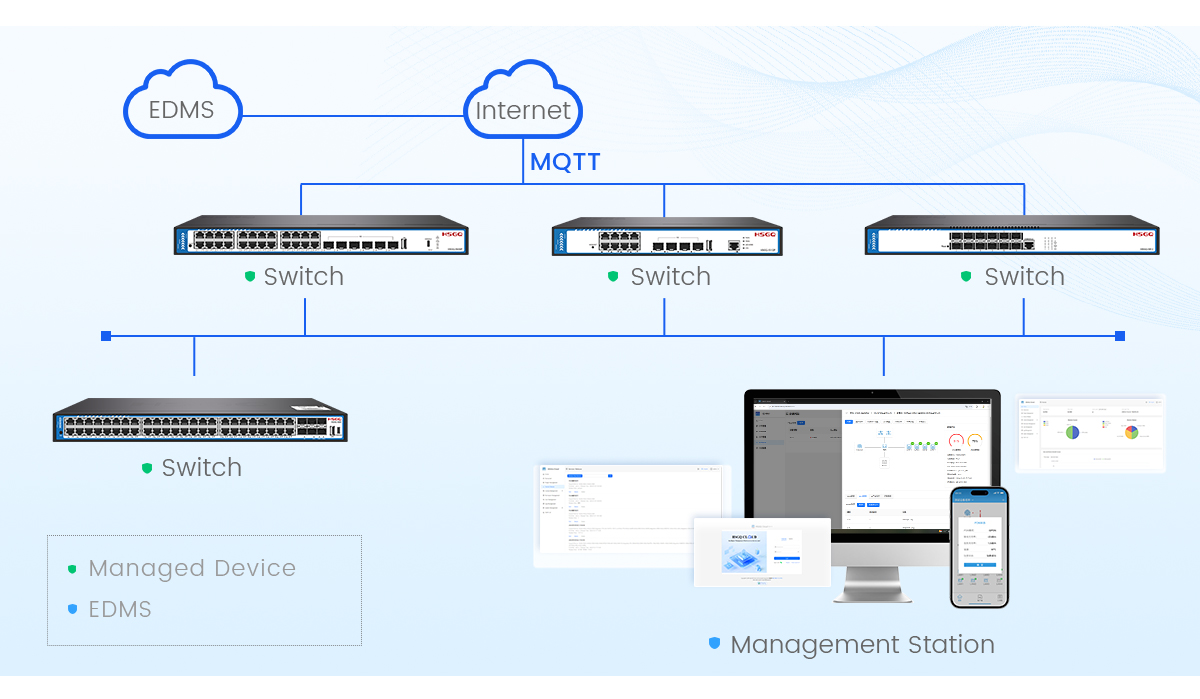

6. Support HSGQ cloud platform unified management
Support HSGQ cloud platform unified management, more convinient of equipment management and maintenance
Remote centralized management of multiple projects, efficient and convenient
Real-time monitoring equipment status
The alarm is timely and accurate
Graphical data analysis are clear at a glance
Item | HSGQ-5912 | |
Interface | ||
Port | 12*10G SFP+ | |
Console | 1*RS-232 (115200,8,N,1) | |
Switch Property | ||
Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1x | |
Forwarding Modes | Store and Forward | |
Packet Buffer | 12Mbit | |
MAC Table | 32k | |
Switching Capacity | 240Gbps / non-blocking | |
Packet Forwarding Rate | 179Mpps | |
Jumbo Frame | 12kB | |
Power Supply | ||
Input Voltage | AC100V-240V,50Hz/60Hz | |
Power Consumption | 40W | |
Reliability | ||
ESD Protection | 8kV Contact Discharge, 15kV Air Discharge, Standard: IEC61000-4-2 | |
MTBF | 10W h | |
MTBF Standards | Telcordia SR-332,25℃ | |
Operating Temperature | -40℃~75℃ | |
Storage Temperature | -40℃~85℃ | |
Operating Humidity | 5%~95%(Non-condensation) | |
Physical Parameter | ||
Led Indicators | 1*power supply indicators | |
1*system working indicator | ||
12*optical port status indicator | ||
Reset Button | Short press to restart the switch, long press >7s to initialise the system | |
Dimensions (W*D*H) | 445*193*44mm | |
Net Weight | 1.7 kG | |
Material | Iron | |
Desktop/DIN-rail/wall mounted | Desktop/rack-mounted |
Data centre
Small ISP
Park
Wide application, adapt to multi-scenario
