In the rapidly expanding world of fiber optic networks, the Optical Line Terminal (OLT) stands as a vital component in enabling high-speed internet access, seamless communication, and robust network management. Whether you are a network engineer, service provider, or technology enthusiast, understanding the different types of OLTs available in the market is crucial for designing and maintaining efficient Passive Optical Networks (PON).
This comprehensive guide dives into the various types of OLTs, explores the key technologies behind them such as EPON and GPON, explains the advantages and applications of Mini OLTs, and provides insights into how to select the best OLT type for your network needs.
Before exploring the types of OLTs, it’s important to understand what an OLT is and its fundamental role in fiber optic networks.
An Optical Line Terminal (OLT) is a device used in Passive Optical Networks to serve as the central endpoint at the service provider’s side. It connects the core network to multiple end-users via optical fibers, managing data transmission, bandwidth allocation, and network traffic between the internet backbone and Optical Network Units (ONUs) or Optical Network Terminals (ONTs) located at customer premises.
The OLT converts electrical signals to optical signals for downstream communication and converts optical signals back to electrical signals for upstream communication. Additionally, it controls synchronization, access control, and quality of service (QoS) to ensure stable, fast, and secure data delivery.
OLT devices come in various configurations designed to meet diverse deployment scenarios and business requirements. Generally, OLTs can be categorized into two broad types based on their physical size and application:
Full-sized OLTs, often referred to as chassis-based OLTs, are modular devices designed to support large-scale network deployments. These OLTs offer high capacity and scalability, typically featuring multiple slots that allow operators to insert different line cards for various PON interfaces, such as EPON or GPON.
Key Features:
High port density supporting hundreds or thousands of ONUs
Modular design allowing flexible expansion
Advanced features for traffic management, QoS, and security
Redundant power supplies and cooling for high reliability
Typically used by large ISPs and telecom operators
Due to their scalability and robustness, chassis-based OLTs are ideal for metropolitan or nationwide fiber network deployments, where thousands of users need to be served efficiently.

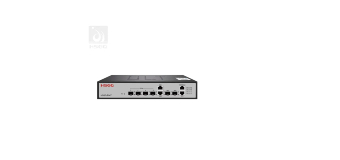

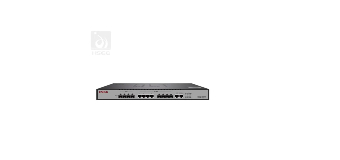

Mini OLTs are smaller, cost-effective devices designed for smaller or medium-sized fiber networks. These compact units usually support fewer ports but still provide essential OLT functions like bandwidth allocation, network management, and support for EPON and GPON standards.
Key Features:
Compact size suitable for space-constrained environments
Lower power consumption compared to full-sized OLTs
Cost-effective for small to medium-sized business networks or residential areas
Supports essential functions with fewer ports (commonly 8 to 32 PON ports)
Easy installation and management
Mini OLTs are perfect for rural broadband initiatives, small towns, residential complexes, and businesses that require reliable fiber optic access without the overhead of a large chassis system.
The type of PON technology supported by an OLT plays a critical role in network performance, compatibility, and service capabilities. The two most common PON standards used today are EPON and GPON.
Ethernet Passive Optical Network (EPON) is a standard based on Ethernet protocols that uses optical fiber to deliver broadband services. EPON transmits Ethernet frames directly over fiber, making it easy to integrate with existing Ethernet-based networks.
Key Characteristics of EPON OLTs:
Supports symmetrical bandwidth, commonly up to 1 Gbps
Uses standard Ethernet frames, simplifying network integration
Cost-effective and widely used in Asia-Pacific regions
Provides efficient data transmission with low latency
Ideal for internet access, voice, and video services
EPON OLTs are known for their compatibility with Ethernet environments and provide a straightforward upgrade path for networks already using Ethernet switching equipment.
Gigabit Passive Optical Network (GPON) is a more advanced PON standard offering higher bandwidth capabilities and enhanced service flexibility. GPON transmits data in encapsulated GEM (GPON Encapsulation Method) frames, enabling it to deliver triple-play services: voice, data, and video simultaneously.
Key Characteristics of GPON OLTs:
Supports downstream speeds up to 2.5 Gbps and upstream speeds up to 1.25 Gbps
Advanced QoS features for service prioritization
Strong security features with encryption and authentication
Compatible with legacy telephony and video services
Used extensively in Europe, North America, and other regions with demanding network requirements
GPON OLTs offer higher performance and flexibility, making them suitable for service providers aiming to deliver high-quality broadband, IPTV, VoIP, and other multimedia services.
Some modern OLT models are designed to support both EPON and GPON standards, providing network operators with flexibility to deploy different PON technologies on the same hardware. These hybrid OLTs allow gradual migration or coexistence of both technologies within a single network infrastructure.
Such OLTs are valuable for service providers who want to maximize their investment by supporting a wider range of customer equipment and use cases.
Beyond the general categories, some OLTs offer specialized features or designs to cater to specific needs:
Designed to operate in harsh environments, industrial OLTs feature ruggedized construction with extended temperature tolerance, vibration resistance, and enhanced protection against dust and moisture. They are commonly used in outdoor telecom cabinets or industrial sites.
Outdoor OLTs are weatherproof devices installed near the network edge, closer to subscribers. They reduce fiber length and improve signal quality by shortening the transmission distance. These units usually come with environmental protection enclosures.
Selecting the appropriate OLT depends on multiple factors, including:
Network Size and Scale: Large ISPs typically require chassis-based OLTs, while smaller deployments benefit from Mini OLTs.
PON Standard: Determine whether EPON, GPON, or a hybrid solution is most suitable based on existing infrastructure and service goals.
Port Density and Capacity: Consider the number of subscribers to be served and required bandwidth per user.
Deployment Environment: Choose industrial or outdoor OLTs if installation conditions are challenging.
Budget and Future Scalability: Balance initial investment with anticipated growth and technology upgrades.
Mini OLTs have gained significant popularity due to their compact design and cost-effectiveness. Here’s why many businesses and service providers prefer Mini OLTs:
Ease of Installation: Smaller size means easier deployment in space-limited environments.
Lower Power Consumption: Energy-efficient operation reduces operating costs.
Affordability: Ideal for startups or smaller ISPs with budget constraints.
Scalability: Supports phased network expansion with modular design.
Compatibility: Supports EPON and GPON, ensuring flexible service delivery.
The OLT market continues to evolve with advancements such as:
Integration of Software-Defined Networking (SDN): Enabling dynamic network management and automation.
Support for 10G PON: Higher speed standards like XG-PON and XGS-PON are becoming mainstream.
Enhanced Security Features: To protect against cyber threats in fiber networks.
Cloud-Based Management: Remote monitoring and control of OLT devices via cloud platforms.
Optical Line Terminals (OLTs) are indispensable in modern fiber optic networks, enabling reliable, high-speed communication between providers and end-users. Understanding the different types of OLTs—from full-sized chassis models to Mini OLTs—and the PON standards they support, such as EPON and GPON, helps network planners make informed decisions to optimize network performance and scalability.
Whether deploying a large metropolitan fiber network or a small residential broadband service, choosing the right OLT type tailored to your specific needs is key to success.
