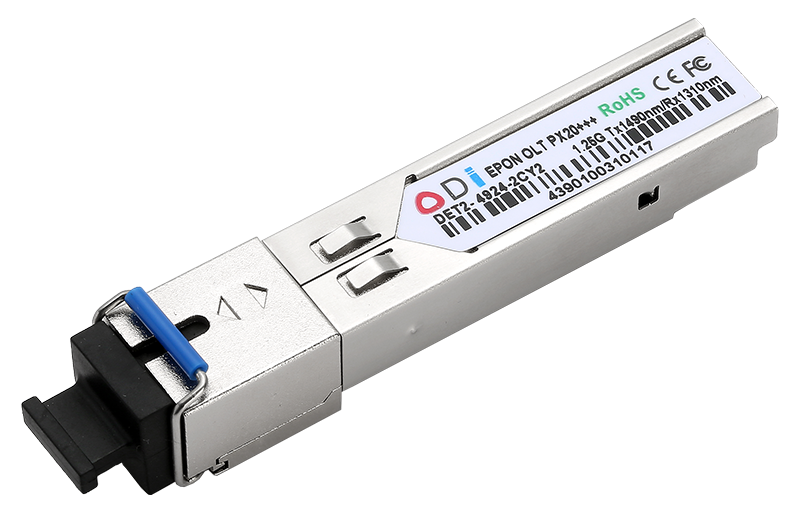

Use and precautions of Optical module.optic transceiver module

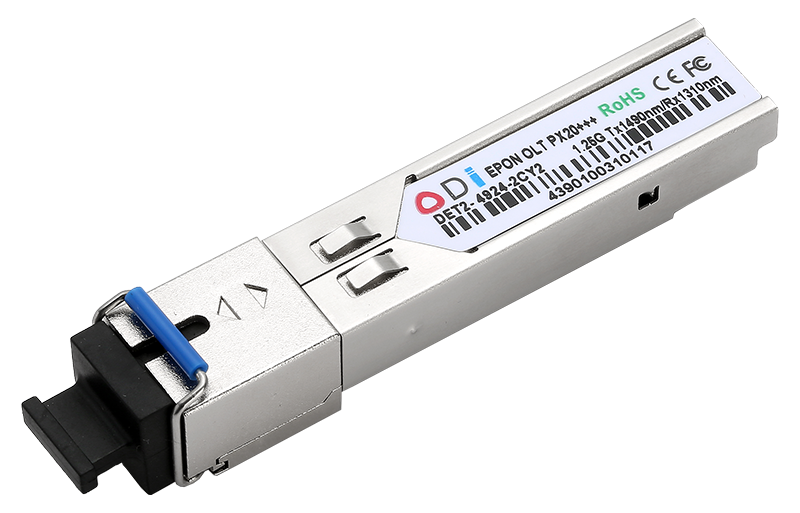

Wear anti-static gloves; Prevent static damage. To firmly insert the module to the bottom, hear a "snap" sound or feel a slight vibration, indicating that the module card lock is stuck in place. When the lock of the Optical module is not in place, the gold finger contacts the connector on the board slightly, and the link may be connected. However, in the case of vibration, collision, etc., the Optical module may break, or even become loose. Take out the Optical module, and be careful not to reverse the front and back; Insert the copper network cable into the RJ-45 interface of the SFP electrical port module. It is required to act gently and insert it directly against the optical port. If you insert it too hard or obliquely, the Optical module may be damaged. Gently push the SFP Optical module along the rails of the switch SFP slot until it is firmly connected with the bottom of the host slot; Pull off the lock of the SFP electric port module, pull the handle to the position about 90 degrees from the optical port, and then slowly pull it out. Do not pull too hard or pull out the handle before it is in place, which may damage the shielding cover of the Optical module.

Precautions for Optical module:

1. Anti static measures

Whether indoors or outdoors, anti-static measures must be taken when using the Optical module. It must be ensured that the Optical module can be contacted with hands when wearing anti-static gloves or anti-static bracelets.

2. Handling operations

It is forbidden to touch the golden finger of the Optical module when taking it, and it must be handled with care to prevent the Optical module from being pressed and bumped. If the Optical module is accidentally bumped when taking it, it is not recommended to use it again.

3. Insertion and removal methods

When installing the Optical module, it is necessary to firmly insert it to the bottom, and then feel a slight vibration or hear a "snap" sound, which means that the Optical module is locked in place. When inserting the Optical module, close the handle ring; After inserting, pull out the Optical module again to check whether it is installed in place. If it cannot be pulled out, it means it has been inserted to the bottom. When disassembling the Optical module, it is necessary to pull out the fiber jumper first, then pull the handle to about 90 degrees with the optical port, and then slowly take out the Optical module. It is forbidden to pull out the Optical module by force.

Remember never to have the fiber optic tail facing your eyes, never look inside the fiber optic, and never look directly or with an instrument at the fiber optic tail. Laser is invisible, but it may cause permanent damage to the human eye.
